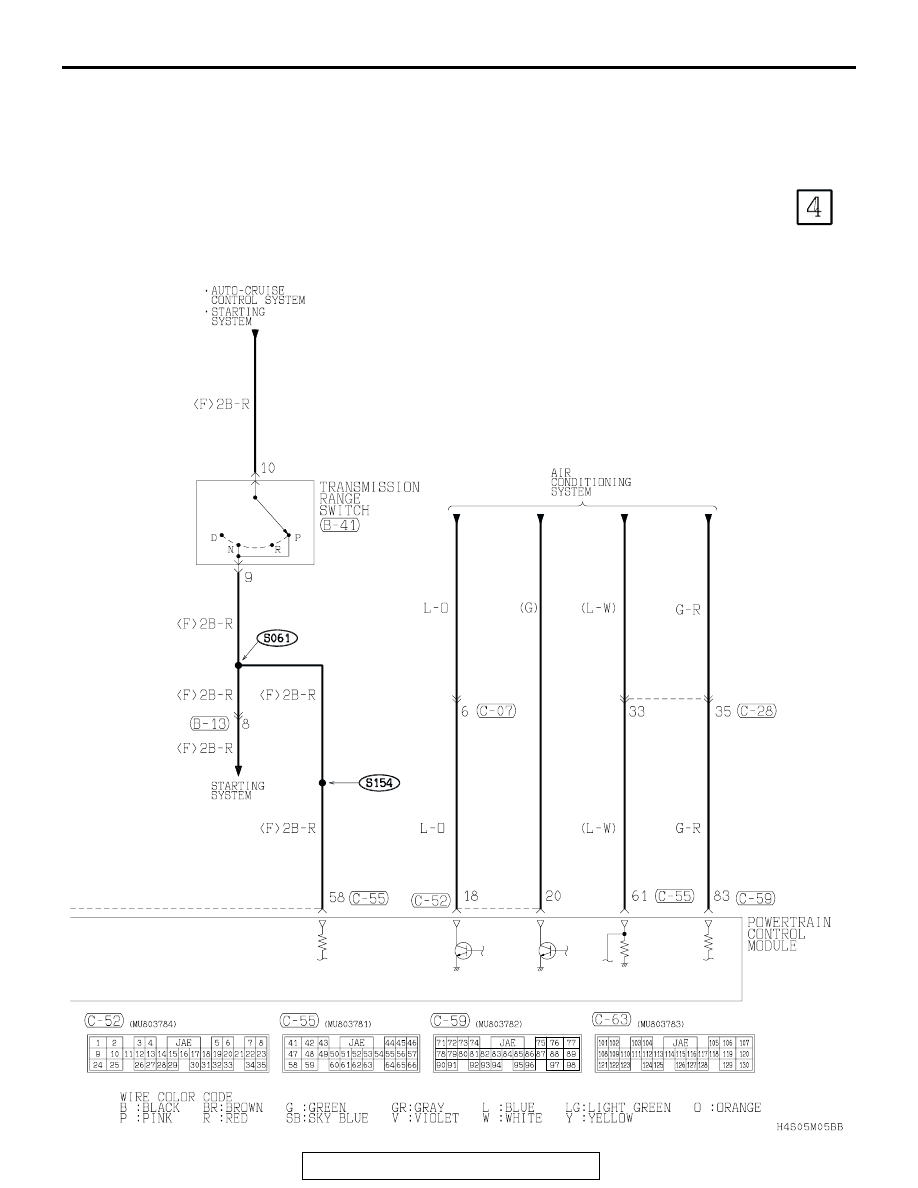

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-89

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-90

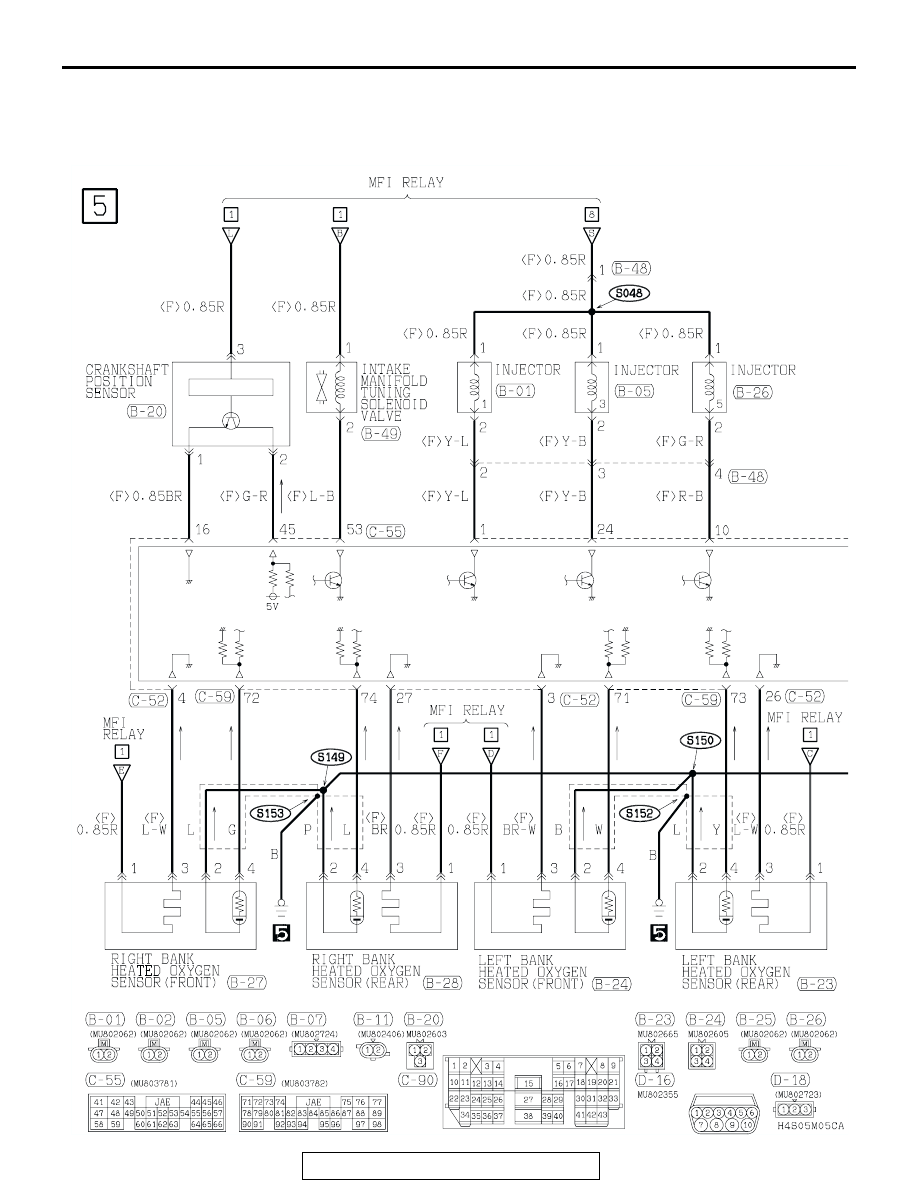

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)

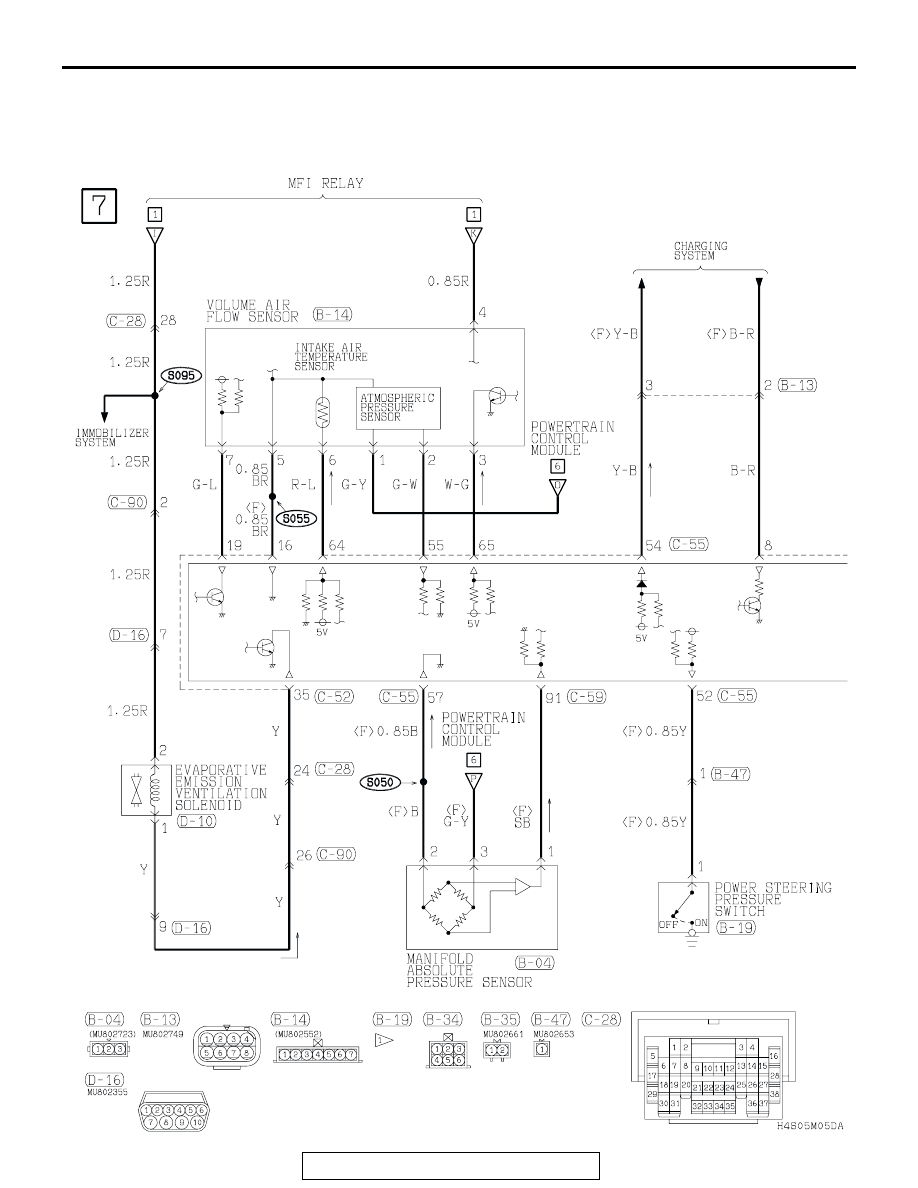

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-91

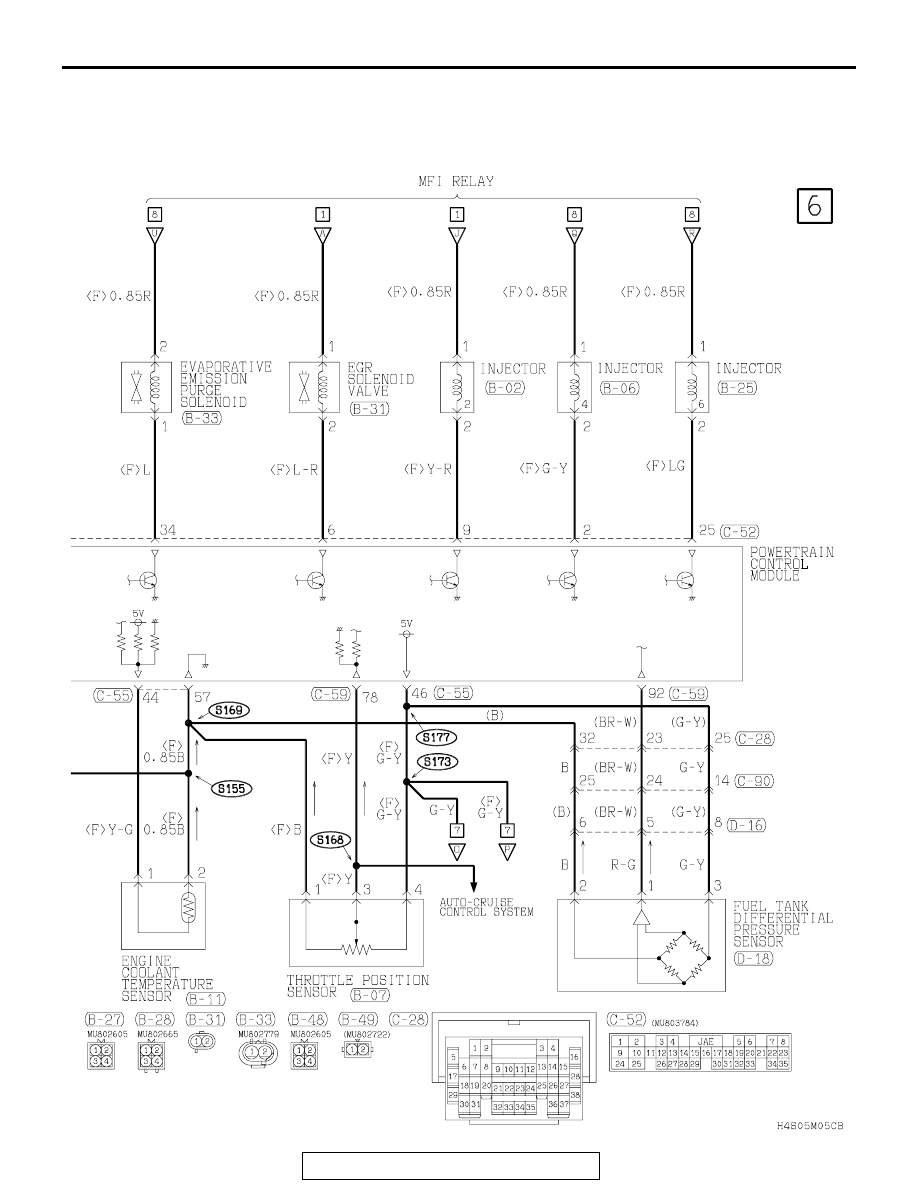

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-92

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)
