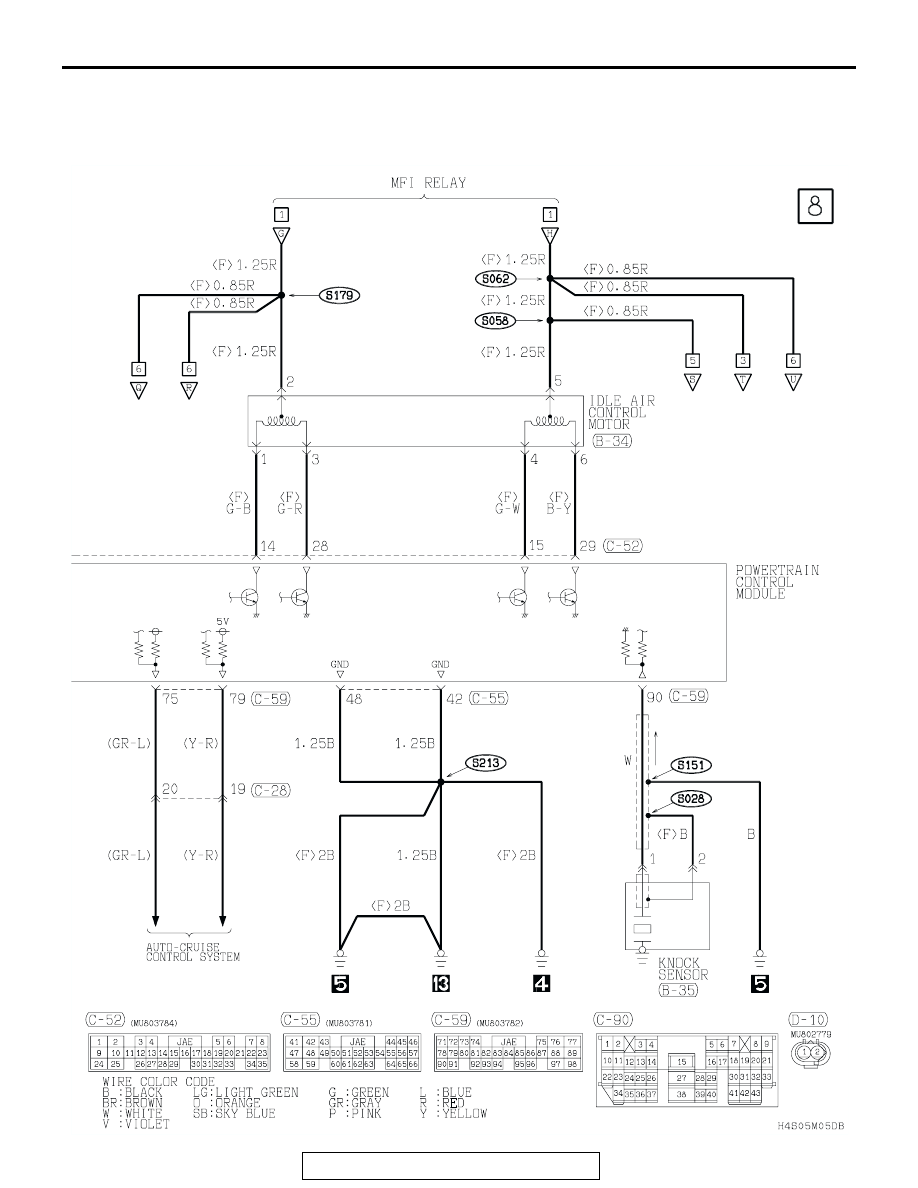

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-93

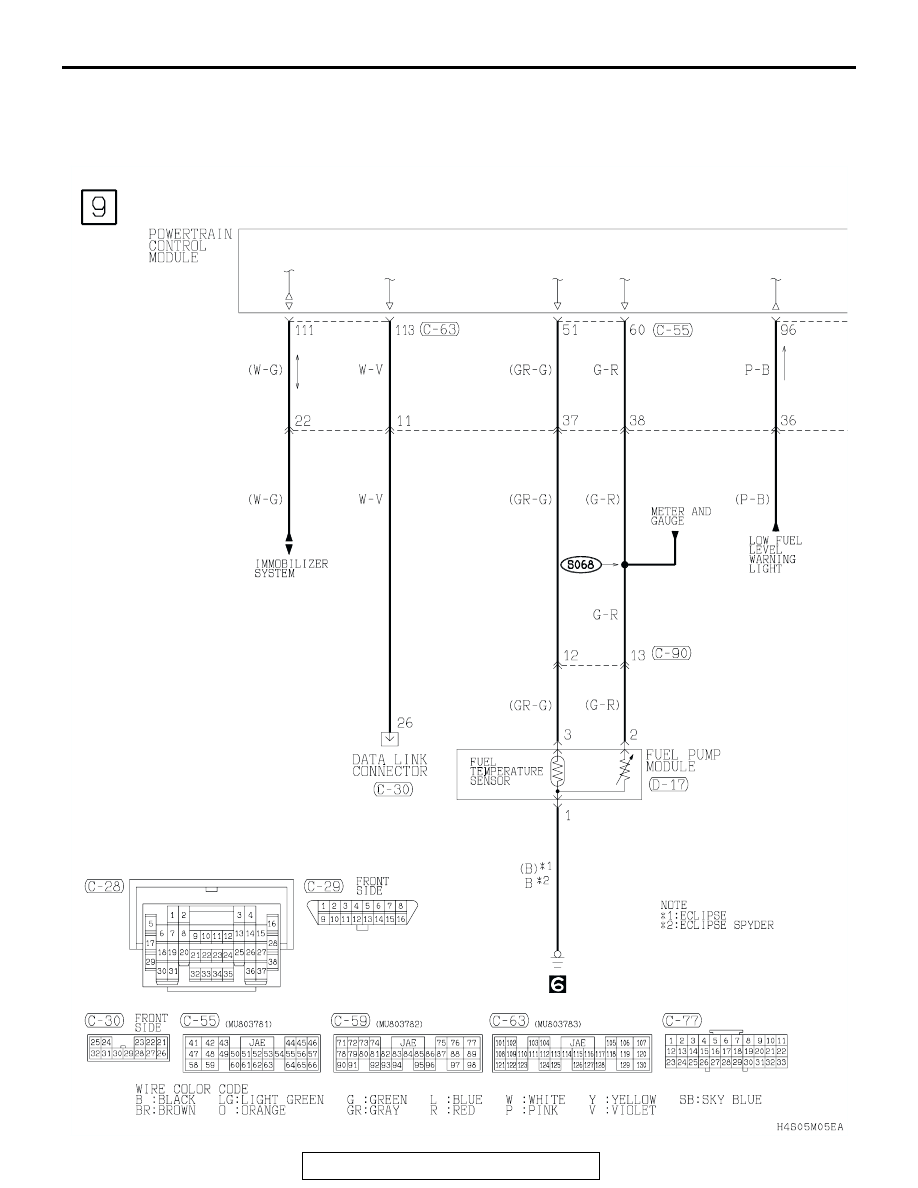

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-94

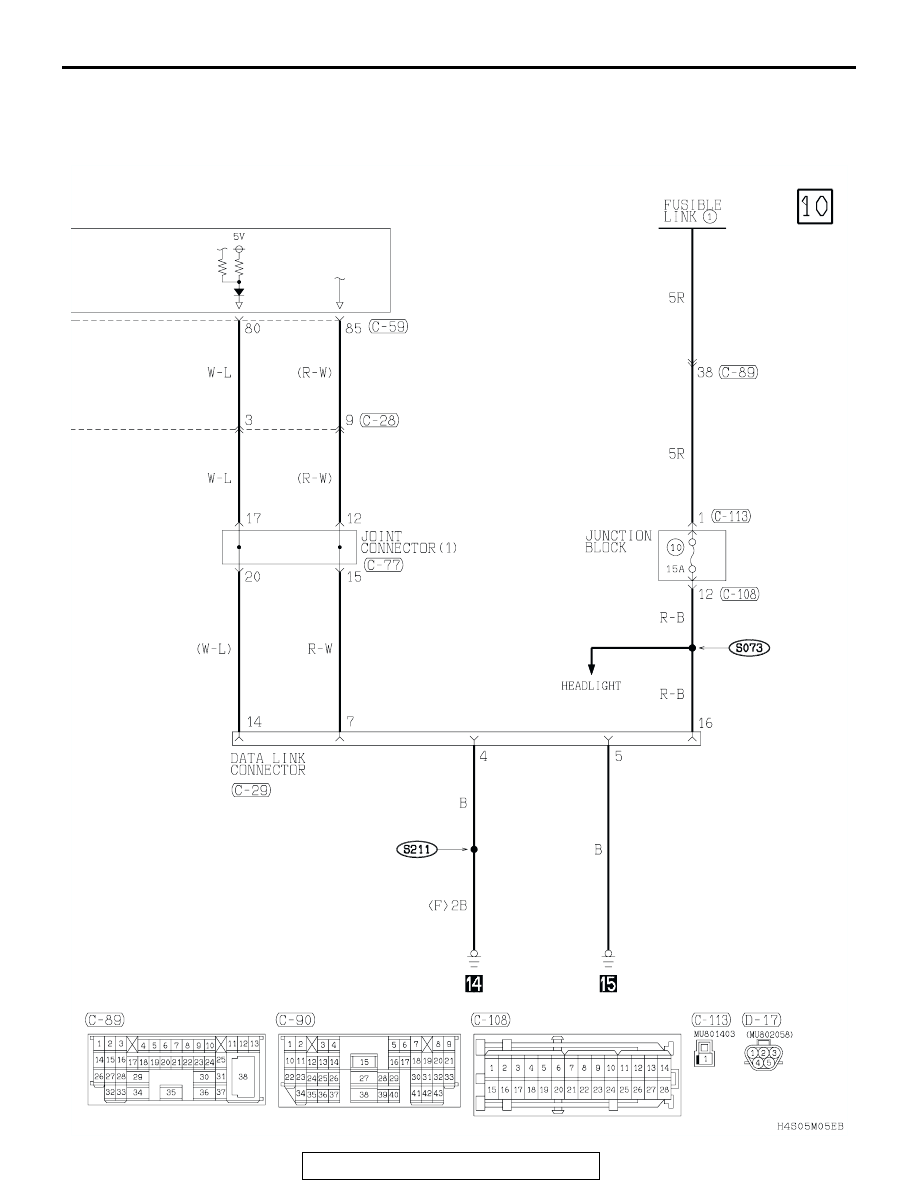

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)> (CONTINUED)

MFI SYSTEM <3.0L ENGINE-A/T (WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM)>

TSB Revision

CIRCUIT DIAGRAMS

90-95

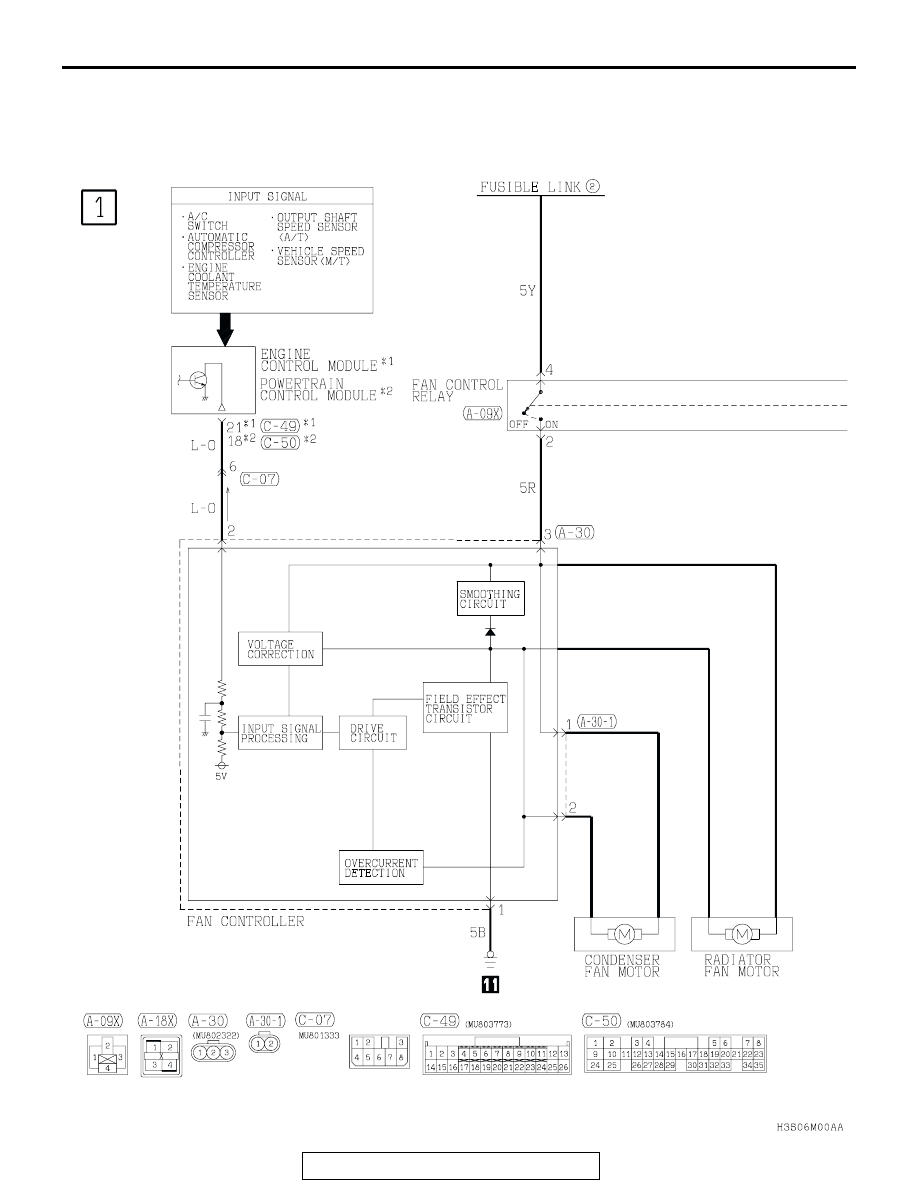

COOLING SYSTEM <2.4L ENGINE>

TSB Revision

CIRCUIT DIAGRAMS

90-96

COOLING SYSTEM <2.4L ENGINE>

M1901001000272
