Mitsubishi Eclipse. Manual - part 4





JOINT CONNECTOR

TSB Revision

CIRCUIT DIAGRAMS

90-13

NOTES

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-14

CENTRALIZED JUNCTION

M1901000300612

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

1

Battery

Fusible
link

60

Yellow

Fuse No.5, 6, 10 (in junction block)
circuit

2

50

Red

Fan control module

3

60

Yellow

ABS-ECU

4

40

Green

Ignition switch circuit, theft-alarm horn
and theft-alarm horn relay

5

30

Pink

Fuse No.1, 3 (in junction block)
circuit, convertible top control module,
power seat assembly, power window
main switch and power window motor

6

Fuse

15

Blue

Combination meter, fog light relay and
fog light

7

8

15

Blue

Horn and horn relay

9

20

Yellow

Camshaft position sensor, crankshaft
position sensor, distributor assembly,
EGR solenoid valve, engine control
module, evaporative emission purge
solenoid, evaporative emission
ventilation solenoid, fan control relay,
heated oxygen sensor, idle air control
motor, immobilizer-ECU, injector, MFI
relay, powertrain control module,
intake manifold tuning solenoid valve
and volume air flow sensor

10

10

Red

A/C compressor assembly

11

15

Blue

ABS-ECU, auto-cruise control-ECU,
capacitor, high-mounted stoplight,
immobilizer-ECU, powertrain control
module and rear combination light

12

13

7.5

Brown

Generator

14

10

Red

ETACS-ECU

15

20

Yellow

A/T control solenoid valve assembly
and powertrain control module

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-15

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOR

LOAD CIRCUIT

16

Front-ECU (Headlight
relay: High)

Fuse

10

Red

Headlight (RH)

17

10

Red

Headlight (LH)

18

Front-ECU (Headlight
relay: Low)

10

Red

Headlight (RH)

19

10

Red

Headlight (LH)

20

Front-ECU (Taillight
relay)

7.5

Brown

A/C switch, A/T selector lever position
illumination light, ashtray illumination
light, automatic compressor
controller, combination meter, fog light
switch, front combination light (RH),
glove box light, hazard warning light
switch, heater control panel
illumination light, multi center display
unit, radio, tape player, CD player,
rear combination light (RH), rear side
marker light (RH) and rheostat

21

7.5

Brown

Front combination light (LH), license
plate light, rear combination light (LH)
and rear side marker light (LH)

22

Battery

10

Red

Column switch, combination meter,
ETACS-ECU, front-ECU, motor
antenna assembly, multi center
display unit, radio, tape player, CD
player, sunroof motor assembly and
vanity mirror light

23

Ignition switch (ACC)

10

Red

ETACS-ECU, motor antenna
assembly, radio, tape player and CD
player

24

Battery

15

Blue

Fuel pump module

25

26

Fusible
link

120

White

Generator

27

30

Pink

Convertible top control module

CENTRALIZED JUNCTION

TSB Revision

CIRCUIT DIAGRAMS

90-16

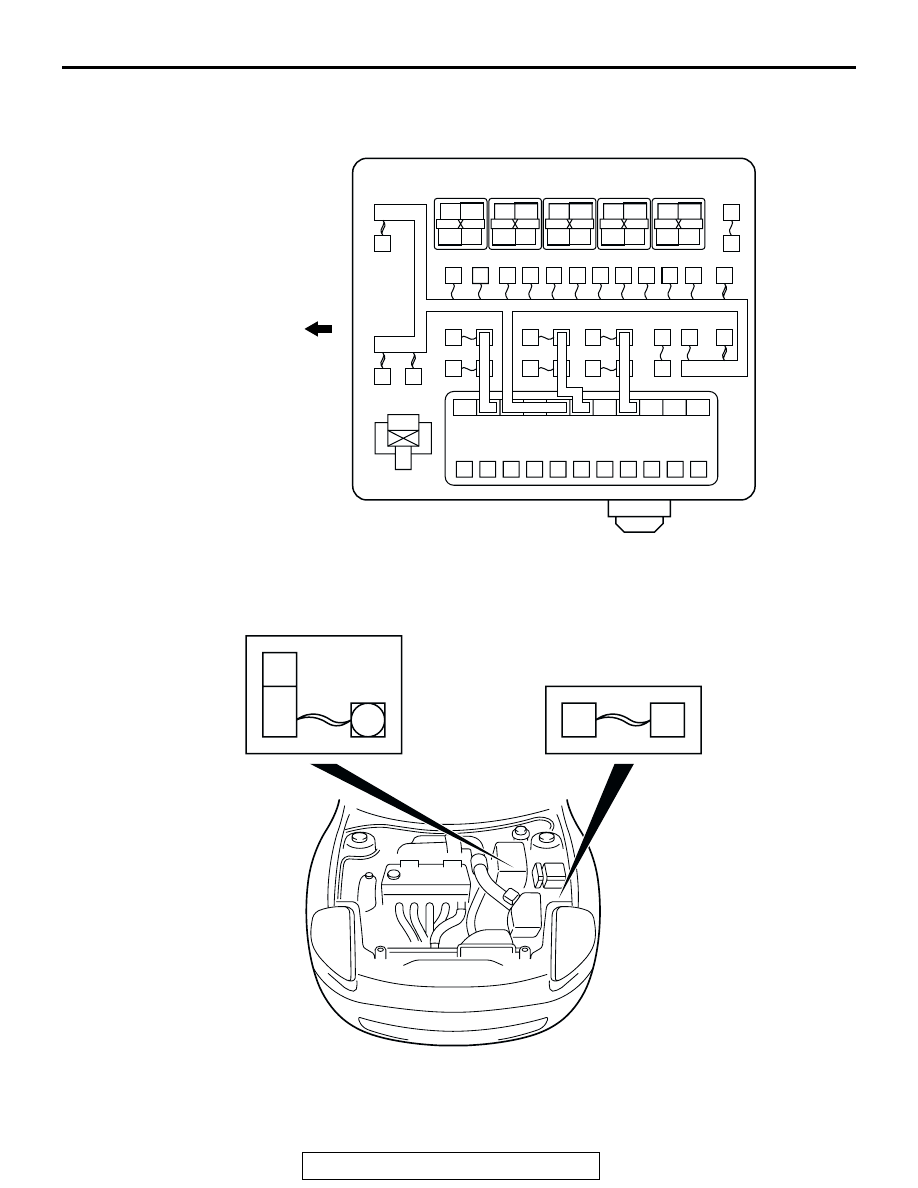

AC106661AB

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

1

2

3

4

5

25

6

7

8 9 10 11 12 13 14 15 24

16

17

18

19

20

21

23 22

AC106662AB

26

27

(CONNECTED DIRECTLY TO
 BATTERY POSITIVE TERMINAL)

(CONNECTED IN FRONT
 OF THE RELAY BOX)
