90-1

GROUP 90

CIRCUIT DIAGRAMS

CONTENTS

HOW TO READ CIRCUIT
DIAGRAMS  . . . . . . . . . . . . . . . . . . . .

90-4

JUNCTION BLOCK . . . . . . . . . . . . . .

90-10

JOINT CONNECTOR . . . . . . . . . . . . .

90-12

CENTRALIZED JUNCTION . . . . . . . .

90-14

POWER DISTRIBUTION SYSTEM . .

90-20

STARTING SYSTEM <M/T>  . . . . . . .

90-26

STARTING SYSTEM <A/T>. . . . . . . .

90-27

IGNITION SYSTEM
<2.4L ENGINE-M/T>  . . . . . . . . . . . . .

90-28

IGNITION SYSTEM
<2.4L ENGINE-A/T>. . . . . . . . . . . . . .

90-29

IGNITION SYSTEM
<3.0L ENGINE-M/T>  . . . . . . . . . . . . .

90-30

IGNITION SYSTEM
<3.0L ENGINE-A/T>. . . . . . . . . . . . . .

90-31

CHARGING SYSTEM <M/T> . . . . . . .

90-32

CHARGING SYSTEM <A/T> . . . . . . .

90-34

MFI SYSTEM <2.4L ENGINE-M/T> . .

90-36

MFI SYSTEM <2.4L ENGINE-A/T> . .

90-46

MFI SYSTEM <3.0L ENGINE-M/T
(WITHOUT INTAKE MANIFOLD
TUNING (IMT) SYSTEM)>  . . . . . . . . .

90-56

MFI SYSTEM <3.0L ENGINE-A/T
(WITHOUT INTAKE MANIFOLD
TUNING (IMT) SYSTEM)>  . . . . . . . . .

90-66

MFI SYSTEM <3.0L ENGINE-M/T
(WITH INTAKE MANIFOLD TUNING
(IMT) SYSTEM)>. . . . . . . . . . . . . . . . .

90-76

MFI SYSTEM <3.0L ENGINE-A/T
(WITH INTAKE MANIFOLD TUNING
(IMT) SYSTEM)>. . . . . . . . . . . . . . . . .

90-86

COOLING SYSTEM
<2.4L ENGINE>  . . . . . . . . . . . . . . . . .

90-96

COOLING SYSTEM
<3.0L ENGINE>  . . . . . . . . . . . . . . . . .

90-98

INVECS-II 4A/T <VEHICLES WITHOUT
SPORT MODE TYPE> . . . . . . . . . . . .

90-100

INVECS-II 4A/T
<VEHICLES WITH SPORT MODE
TYPE (2.4L ENGINE)> . . . . . . . . . . . .

90-108

INVECS-II 4A/T <VEHICLES WITH
SPORT MODE TYPE (3.0L ENGINE)>

90-118

HEADLIGHT . . . . . . . . . . . . . . . . . . . .

90-128

Continued on next page

90-2

TAILLIGHT, POSITION LIGHT, REAR
SIDE MARKER LIGHT AND LICENSE
PLATE LIGHT  . . . . . . . . . . . . . . . . . .

90-132

FOG LIGHT  . . . . . . . . . . . . . . . . . . . .

90-138

DOME LIGHT AND LUGGAGE
COMPARTMENT LIGHT <ECLIPSE>

90-144

DOME LIGHT AND TRUNK LIGHT
<ECLIPSE SPYDER>  . . . . . . . . . . . .

90-150

GLOVE BOX LIGHT. . . . . . . . . . . . . .

90-156

VANITY MIRROR LIGHT . . . . . . . . . .

90-157

TURN-SIGNAL LIGHT AND HAZARD
WARNING LIGHT  . . . . . . . . . . . . . . .

90-158

STOPLIGHT . . . . . . . . . . . . . . . . . . . .

90-164

BACKUP LIGHT <M/T> . . . . . . . . . . .

90-166

BACKUP LIGHT <A/T> . . . . . . . . . . .

90-167

HORN . . . . . . . . . . . . . . . . . . . . . . . . .

90-168

METER AND GAUGE  . . . . . . . . . . . .

90-170

BRAKE WARNING LIGHT, OIL
PRESSURE WARNING LIGHT, FUEL
WARNING LIGHT  . . . . . . . . . . . . . . .

90-174

POWER WINDOWS <ECLIPSE>  . . .

90-176

POWER WINDOWS
<ECLIPSE SPYDER>  . . . . . . . . . . . .

90-180

CENTRAL DOOR LOCKING SYSTEM
<VEHICLES WITHOUT KEYLESS
ENTRY SYSTEM> . . . . . . . . . . . . . . .

90-184

CENTRAL DOOR LOCKING SYSTEM
<VEHICLES WITH KEYLESS ENTRY
SYSTEM (WITHOUT THEFT-ALARM
SYSTEM)> . . . . . . . . . . . . . . . . . . . . .

90-190

CENTRAL DOOR LOCKING SYSTEM
<VEHICLES WITH KEYLESS ENTRY
SYSTEM (WITH THEFT-ALARM
SYSTEM)>  . . . . . . . . . . . . . . . . . . . . .

90-200

AIR CONDITIONING SYSTEM
<2.4L ENGINE (ECLIPSE)> . . . . . . . .

90-212

AIR CONDITIONING SYSTEM
<2.4L ENGINE (ECLIPSE SPYDER)>

90-220

AIR CONDITIONING SYSTEM
<3.0L ENGINE (ECLIPSE)> . . . . . . . .

90-226

AIR CONDITIONING SYSTEM
<3.0L ENGINE (ECLIPSE SPYDER)>

90-234

WINDSHIELD WIPER AND
WASHER. . . . . . . . . . . . . . . . . . . . . . .

90-242

REAR WIPER AND WASHER
<M/T>  . . . . . . . . . . . . . . . . . . . . . . . . .

90-248

REAR WIPER AND WASHER
<A/T>. . . . . . . . . . . . . . . . . . . . . . . . . .

90-254

DEFOGGER <ECLIPSE (VEHICLES
FOR USA)> . . . . . . . . . . . . . . . . . . . . .

90-260

DEFOGGER AND DOOR MIRROR
HEATER <ECLIPSE (VEHICLES FOR
CANADA)> . . . . . . . . . . . . . . . . . . . . .

90-262

DEFOGGER <ECLIPSE SPYDER
(VEHICLES FOR USA)>. . . . . . . . . . .

90-265

DEFOGGER AND DOOR MIRROR
HEATER <ECLIPSE SPYDER
(VEHICLES FOR CANADA)>. . . . . . .

90-266

REMOTE CONTROLLED MIRROR
<ECLIPSE> . . . . . . . . . . . . . . . . . . . . .

90-268

REMOTE CONTROLLED MIRROR
<ECLIPSE SPYDER> . . . . . . . . . . . . .

90-269

Continued on next page

90-3

AUDIO SYSTEM <VEHICLES
WITHOUT AMPLIFIER>  . . . . . . . . . .

90-270

AUDIO SYSTEM <VEHICLES WITH
AMPLIFIER>  . . . . . . . . . . . . . . . . . . .

90-274

MULTI CENTER DISPLAY  . . . . . . . .

90-280

CIGARETTE LIGHTER  . . . . . . . . . . .

90-284

ACCESSORY SOCKET . . . . . . . . . . .

90-285

AUTO-CRUISE CONTROL SYSTEM
<2.4L ENGINE-M/T>  . . . . . . . . . . . . .

90-286

AUTO-CRUISE CONTROL SYSTEM
<2.4L ENGINE-A/T>. . . . . . . . . . . . . .

90-290

AUTO-CRUISE CONTROL SYSTEM
<3.0L ENGINE-M/T>  . . . . . . . . . . . . .

90-294

AUTO-CRUISE CONTROL SYSTEM
<3.0L ENGINE-A/T>. . . . . . . . . . . . . .

90-298

ANTI-LOCK BRAKING SYSTEM (ABS)
<VEHICLES WITHOUT TCL> . . . . . .

90-302

ANTI-LOCK BRAKING SYSTEM (ABS)
<VEHICLES WITH TCL> . . . . . . . . . .

90-306

SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) <VEHICLES WITHOUT
SIDE AIR BAG> . . . . . . . . . . . . . . . . .

90-310

SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) <VEHICLES WITH
SIDE AIR BAG> . . . . . . . . . . . . . . . . .

90-312

POWER SEAT  . . . . . . . . . . . . . . . . . .

90-314

THEFT-ALARM SYSTEM . . . . . . . . . .

90-316

FORGOTTEN KEY PREVENTION
FUNCTION  . . . . . . . . . . . . . . . . . . . . .

90-324

LIGHTING MONITOR TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .

90-328

KEY REMINDER TONE ALARM  . . . .

90-330

SEAT BELT TONE ALARM . . . . . . . .

90-332

IMMOBILIZER SYSTEM
<2.4L ENGINE-M/T> . . . . . . . . . . . . . .

90-334

IMMOBILIZER SYSTEM
<2.4L ENGINE-A/T> . . . . . . . . . . . . . .

90-336

IMMOBILIZER SYSTEM
<3.0L ENGINE-M/T> . . . . . . . . . . . . . .

90-338

IMMOBILIZER SYSTEM
<3.0L ENGINE-A/T> . . . . . . . . . . . . . .

90-340

SUNROOF. . . . . . . . . . . . . . . . . . . . . .

90-342

CONVERTIBLE TOP  . . . . . . . . . . . . .

90-344

RHEOSTAT. . . . . . . . . . . . . . . . . . . . .

90-350

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-4

HOW TO READ CIRCUIT DIAGRAMS

M1901000100544

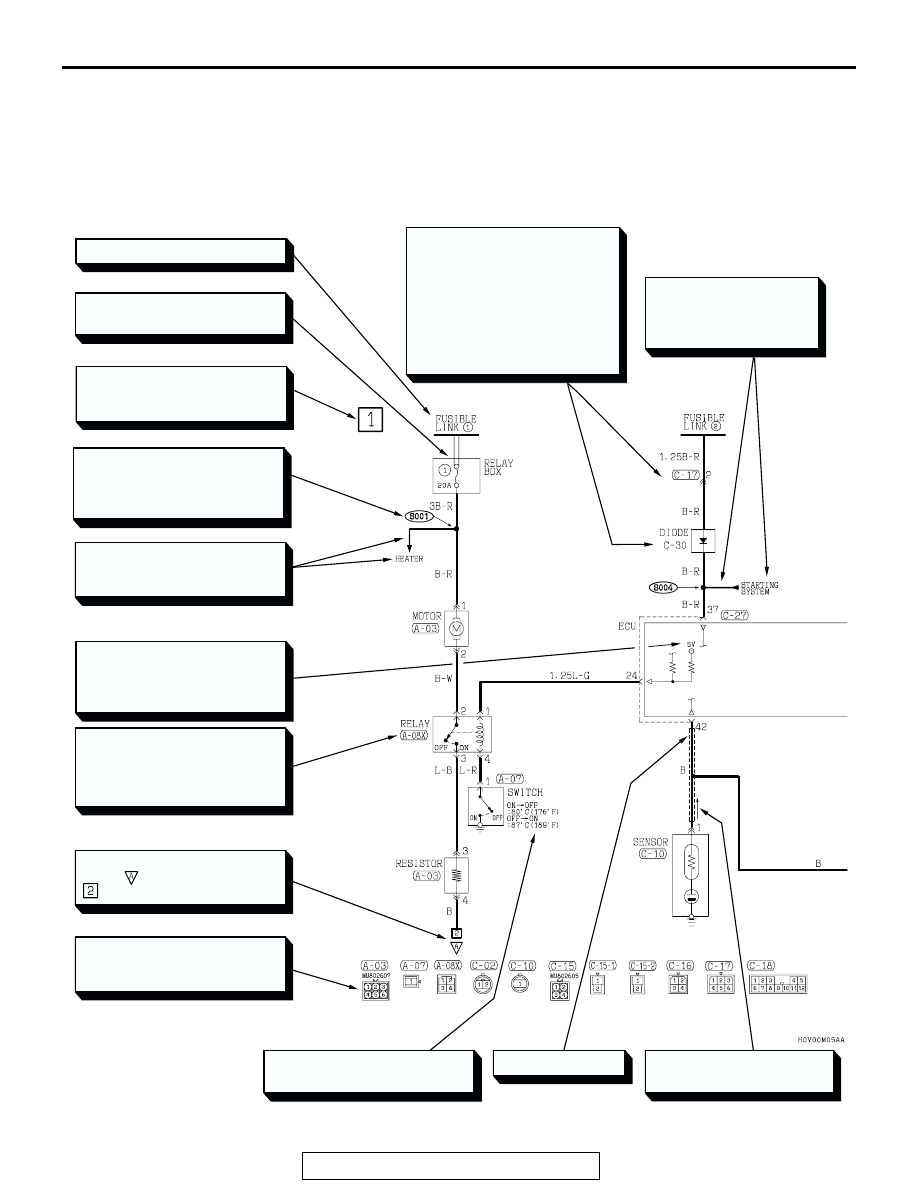

The circuit of each system from the fuse (or fusible link) to ground is shown. The power supply is shown at
the top and the ground at the bottom to facilitate understanding of how the current flows. Some variations are
included in one circuit diagram.Accordingly, some diagrams may not be applicable for individual vehicles.

AC106603

Indicates power source.

Indicates that terminal is conne-
cted via a plate in the relay box.

Each circuit diagram consists of
block(s). The blocks are divided
by page number.

Indicates splice point numbers.
These numbers are identical to
those described in "Splice Loca-
tions."

Indicates the circuit name to be
connected. The arrow indicates
the current flow direction.

Indicates the power supply in
the control unit. If no voltage is
displayed, this indicates battery
positive voltage.

An "X" at the end of a connector
number indicates that the conn-
ector is connected to a central-
ized junction that is shown in the
section "Centralized Junction."

Indicates the connector symbol.
Connectors in the circuit diagram
are indicated in numerical order.

Indicates connector number.
The same number as used in the
wiring harness diagram.
Connector and connector numbers
are shown at the lower part of the
page.
Connector numbers not enclosed
by frame indicate the device incor-
porated into wiring harness.

Indicates the circuit mame
to be connected. The arrow
indicates the current flow
direction.

Indicates that the diagram contin-
ues at        which belongs to the
       block in the same circuit.

AC

One-directional arrow indicate
that current flows upwards.

Indicates shield wire.

Indicates the operating conditions
of the engine coolant switch, etc.
