Mitsubishi Colt Ralliart. Manual - part 600

TRANSMISSION ASSEMBLY

MANUAL TRANSAXLE(TRANSMISSION)

22A-10

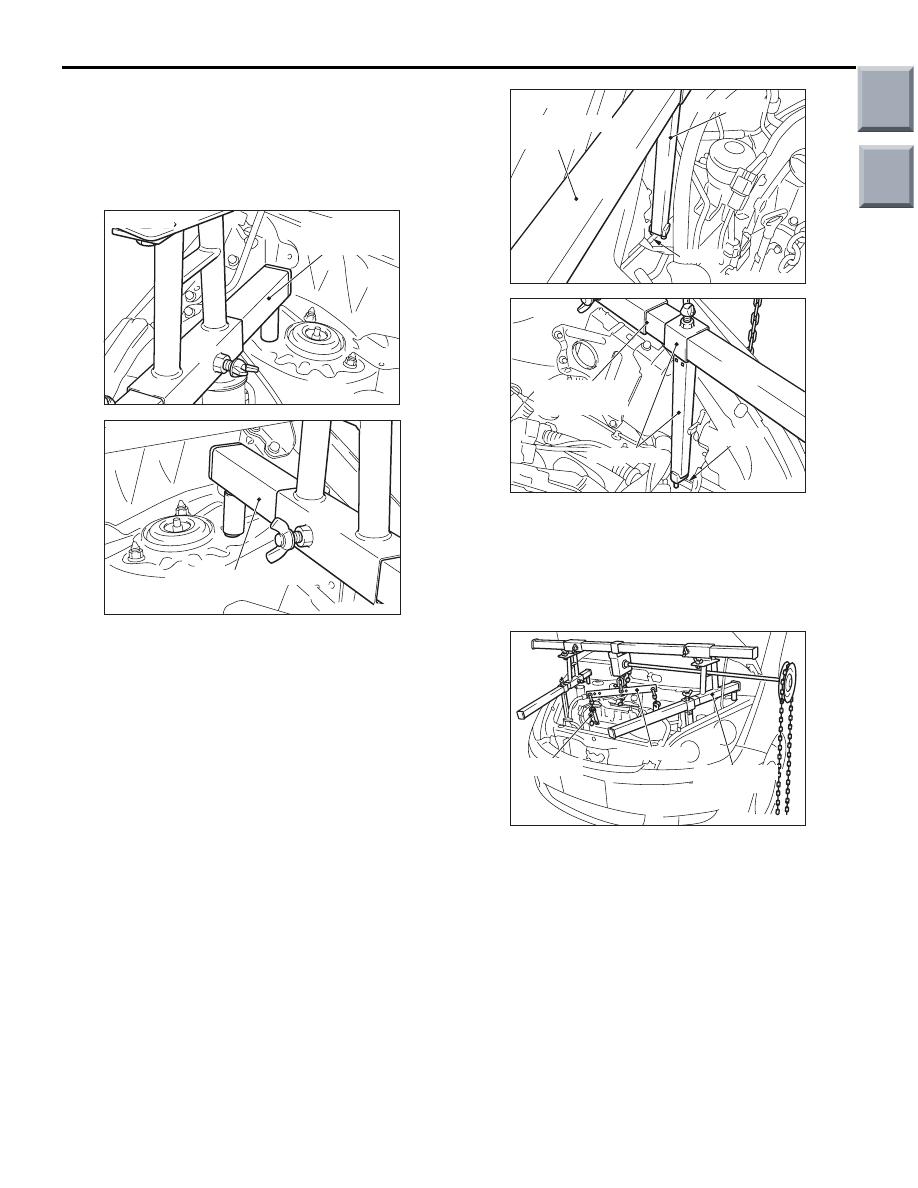

3. <Engine mechanical hanger (special tool

MZ203830 or MZ203831) is used>
(1) Set the engine hanger attachment (Special

tool: MB991924) to the engine mechanical
hanger (Special tool: MZ203830 or
MZ203831).

AC207434

<Right rear>

AB

MZ203830 or
MZ203831

AC207433AB

<Left rear>

MZ203830 or MZ203831

(2) Set the foot at the rear side of the engine

mechanical hanger (Special tool: MZ203830
or MZ203831) to the strut assembly mounting
nut of the front fender shown in the figure.

AC207435

<Right front>

MB991924

MZ203830 or MZ203831

Welded
part

AB

AC207432

<Left front>

AB

MB991924

MZ203830 or
MZ203831

Welded part

(3) Set the engine hanger attachment (Special

tool: MB991924) to the front side member
welded part shown in the figure.

NOTE: Adjust the engine hanger balance by
sliding the engine hanger attachment (Special
tool: MB991924).

AC207431AE

MZ203830 or
MZ203831

MB991527

MB991454

(4) Set the chains of the engine hanger (Special

tool: MB991527) and the engine hanger
balancer (Special tool: MB991454) to support
the engine and transmission assembly.
Remove the transmission assembly upper part
coupling bolts that have been loosened
previously.

Main

Index

Group

TOC

GROUP 11D

ENGINE OVERHAUL

<4G1>

CONTENTS

GENERAL INFORMATION . . . . . . . .

11D-2

GENERAL SPECIFICATIONS . . . . . .

11D-2

SERVICE SPECIFICATIONS. . . . . . .

11D-2

REWORK DIMENSIONS . . . . . . . . . .

11D-4

TORQUE SPECIFICATIONS . . . . . . .

11D-4

SEALANTS  . . . . . . . . . . . . . . . . . . . .

11D-7

SPECIAL TOOLS. . . . . . . . . . . . . . . .

11D-8

ALTERNATOR AND IGNITION



SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

11D-10

REMOVAL AND INSTALLATION . . . . . . . .

11D-10

TIMING BELT. . . . . . . . . . . . . . . . . . .

11D-12

REMOVAL AND INSTALLATION . . . . . . . .

11D-12

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

11D-18

FUEL AND EMISSION PARTS . . . . .

11D-20

REMOVAL AND INSTALLATION . . . . . . . .

11D-20

WATER PUMP AND WATER HOSE .

11D-22

REMOVAL AND INSTALLATION . . . . . . . .

11D-22

INLET MANIFOLD  . . . . . . . . . . . . . . .

11D-24

REMOVAL AND INSTALLATION  . . . . . . . .

11D-24

EXHAUST MANIFOLD . . . . . . . . . . . .

11D-25

REMOVAL AND INSTALLATION  . . . . . . . .

11D-25

ROCKER ARMS AND CAMSHAFT . .

11D-27

REMOVAL AND INSTALLATION  . . . . . . . .

11D-27

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11D-30

CYLINDER HEAD AND VALVES. . . .

11D-33

REMOVAL AND INSTALLATION  . . . . . . . .

11D-33

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11D-36

OIL PAN AND OIL PUMP. . . . . . . . . .

11D-39

REMOVAL AND INSTALLATION  . . . . . . . .

11D-39

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11D-42

PISTON AND CONNECTING ROD  . .

11D-43

REMOVAL AND INSTALLATION  . . . . . . . .

11D-43

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11D-49

CRANKSHAFT AND



CYLINDER BLOCK  . . . . . . . . . . . . . .

11D-50

REMOVAL AND INSTALLATION  . . . . . . . .

11D-50

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11D-54

Main

Index

Group

TOC

GENERAL INFORMATION

ENGINE OVERHAUL <4G1>

11D-2

GENERAL INFORMATION

M1113000101065

VEHICLE AND ENGINE MODELS

Vehicle name

Vehicle
model

Engine model

Displacement
cc

Specification

Colt

Z27A

4G15-7

1,468

Double overhead camshaft
(DOHC), 16-valve, V.V.T.

GENERAL SPECIFICATIONS

M1113000200973

Item

Specification

Total displacement mL

1,468

Bore

× Stroke mm

75.5

× 82.0

Compression ratio

9.0

Compression chamber

Pentroof

Camshaft arrangement

DOHC

Number of valve

Intake

2

Exhaust

2

Valve timing

Intake opening

BTDC 34

° − ATDC 6°

Intake closing

ABDC 30

° − ABDC 70°

Exhaust opening

BBDC 50

°

Exhaust closing

ATDC 10

°

Fuel system

Electronically controlled multipoint fuel injection

Rocker arm

Roller type

Auto-lash adjuster

Equipped

SERVICE SPECIFICATIONS

M1113000301025

Item

Standard value

Limit

TIMING BELT
Auto-tensioner rod extension length
(with timing belt installed) mm

4.8

− 5.5

−

Auto-tensioner rod extension length (when free) mm

12.0

−

Auto-tensioner rod retraction length
(when pressed with force of 98

− 196 N⋅m) mm

Less than 1

−

ROCKER ARMS AND CAMSHAFTS
Cam height mm

Intake valves

35.08

34.58

Exhaust valves

34.26

33.76

Main

Index

Group

TOC

SERVICE SPECIFICATIONS

ENGINE OVERHAUL <4G1>

11D-3

CYLINDER HEAD AND VALVES
Cylinder head gasket surface warp mm

0.03

0.2

Cylinder head gasket surface grinding limit



(including cylinder block grinding amount) mm

−

0.2

Cylinder head overall height mm

131.9

− 132.1

−

Valve margin mm

Intake valves

1.0

0.5

Exhaust valves

1.5

1.0

Valve length mm

Intake valves

106.35

105.85

Exhaust valves

106.85

106.35

Valve spring free height mm

54.8

55.8

Valve spring squareness

2

° or less

4

°

Valve stem-to-guide clearance mm

Intake valves

0.02

− 0.05

0.10

Exhaust valves

0.03

− 0.06

0.15

Valve guide length mm

Intake valves

48

−

Exhaust valves

55

−

Valve guide projection mm

22.7

− 23.3

−

Valve face-to-seat contact width mm

0.9

− 1.3

−

Valve projection from valve spring
seat mm

Intake valves

48.8

49.3

Exhaust valves

48.7

49.2

OIL PUMP AND OIL PAN
Oil pump tip clearance mm

0.06

− 0.18

−

Oil pump side clearance mm

0.10

− 0.18

−

Oil pump body clearance mm

0.040

− 0.095

−

PISTONS AND CONNECTING RODS
Piston pin press-in load (at ambient temperature) N

4,900

− 14,700

−

Piston ring side clearance in ring
groove mm

No. 1

0.03

− 0.07

0.1

No. 2

0.02

− 0.06

0.1

Piston ring end gap mm

No. 1

0.15

− 0.30

0.8

No. 2

0.30

− 0.45

0.8

Oil ring

0.20

− 0.50

1.0

Connecting rod big end thrust clearance mm

0.10

− 0.25

0.4

Oil clearance at crankshaft pins mm

0.025

− 0.040

0.1

CRANKSHAFT AND CYLINDER BLOCK
Crankshaft end play mm

0.05

− 0.18

0.25

Oil clearance at crankshaft journals mm

0.02

− 0.04

0.1

Cylinder block gasket surface warp mm

0.05

0.1

Cylinder block gasket surface grinding limit



(including cylinder head grinding amount) mm

−

0.2

Item

Standard value

Limit
