GENERAL INFORMATION

MANUAL TRANSAXLE(TRANSMISSION)

22A-2

GENERAL INFORMATION

M1221000100901

Due to the addition of vehicles with M/T, the following
service procedures have been established.

LUBRICANT

M1221000400504

Item

Specified lubricant

Quantity L

Transmission oil

Dia-Queen wide gear oil G-1 SAE 75W-90 API GL-4

1.75

Main

Index

Group

TOC

SPECIAL TOOLS

MANUAL TRANSAXLE(TRANSMISSION)

22A-3

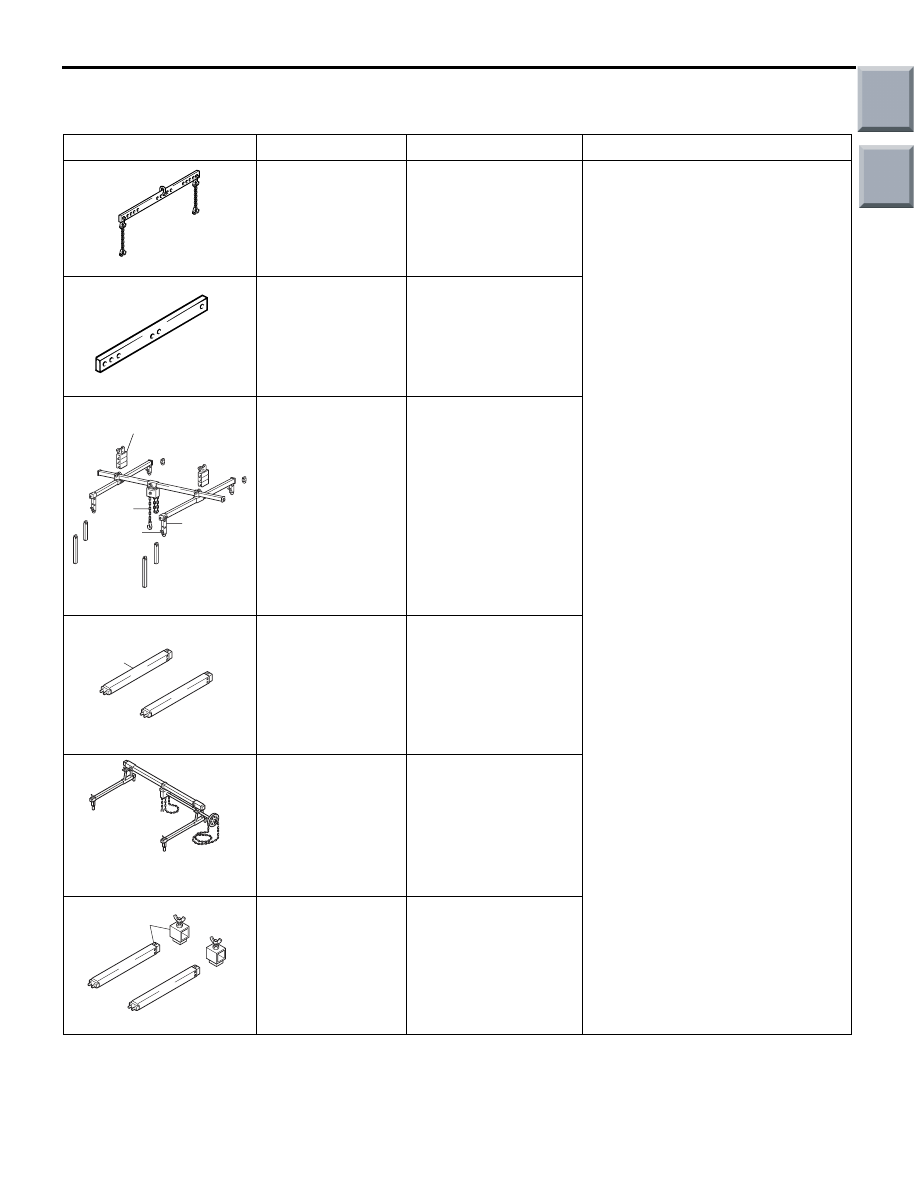

SPECIAL TOOLS

M1221000600876

Tool

Number

Name

Use

B991454

MB991454

Engine hanger
balancer

Supporting the engine assembly
while removing and installing the
manual transmission assembly.

1. For the engine hanger balancer

(Special tool: MB991454), use a
chain only.

2. When using the engine hanger

(Special tool: MB991928), install
the engine hanger attachment
(Special tool: MB991925).

3. When using the engine

mechanical hanger (Special tool:
MZ203830, MZ203831), install
the engine hanger attachment
(Special tool: MB991924).

NOTE: Engine hanger balancer
(MB991454) is a part of the engine
hanger assembly (MB991453).

B991527

MB991527

Engine hanger

B991928

A

B

C

D

E

F

Slide bracket (HI)

MB991928

A: MB991929
B: MB991930
C: MB991931
D: MB991932
E: MB991933
F: MB991934

Engine hanger

A: Joint (50)

×2

B: Joint (90)

×2

C: Joint (140)

×2

D: Foot (standard)

×4

E: Foot (short)

×2

F: Chain and hook

assembly

B991925

A

MB992005 (2 sets)

A: MB991925 (1

set)

Engine hanger
attachment set

A: Engine hanger

attachment

Z203830

Recommended
tool is available
from BANZAI LTD.
(MZ203830) or
from ANZEN
MOTOR CAR CO.,
LTD. (MZ203831).

Engine mechanical
hanger

B991924

A

MB992004 (2 sets)

A: MB991924 (1

set)

Engine hanger
attachment set

A: Engine hanger

attachment

Main

Index

Group

TOC

ON-VEHICLE SERVICE

MANUAL TRANSAXLE(TRANSMISSION)

22A-4

ON-VEHICLE SERVICE

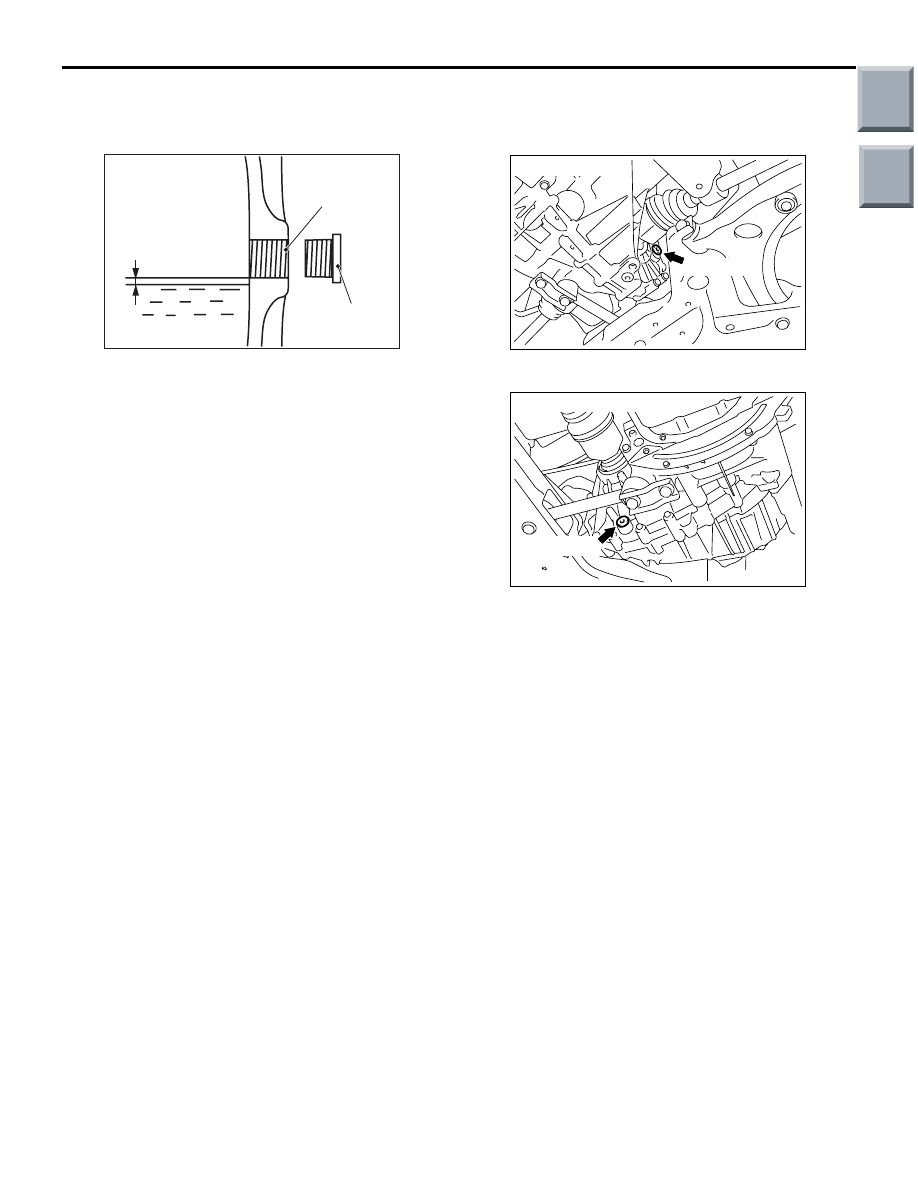

TRANSMISSION OIL LEVEL CHECK

M1221000900617

AC311891AB

Filler plug hole

Filler plug

Transmission oil

0 - 5 mm

1. Remove the filler plug.
2. Check that the oil level is with in 0

− 5 mm from the

lower edge of the filler plug hole.

3. Check that the oil is not noticeably dirty.
4. Tighten the filler plug to the specified torque.

Tightening torque: 43

± 3 N⋅m

TRANSMISSION OIL REPLACEMENT

M1221001000639

AC311889

Filler plug

AB

<Left side view>

1. Remove the filler plug.

AC311888

Drain plug

AB

<Right side view>

2. Remove the drain plug and drain the oil.
3. Tighten the drain plug to the specified torque.

Tightening torque: 43

± 3 N⋅m

4. Fill with specified transmission oil until the level

comes to the lower portion of filler plug hole.

Brand name: Dia-Queen wide gear oil G-1
SAE 75W-90 API GL-4
Quantity: 1.75 L

5. Tighten the filler plug to the specified torque.

Tightening torque: 43

± 3 N⋅m

Main

Index

Group

TOC

TRANSMISSION CONTROL

MANUAL TRANSAXLE(TRANSMISSION)

22A-5

TRANSMISSION CONTROL

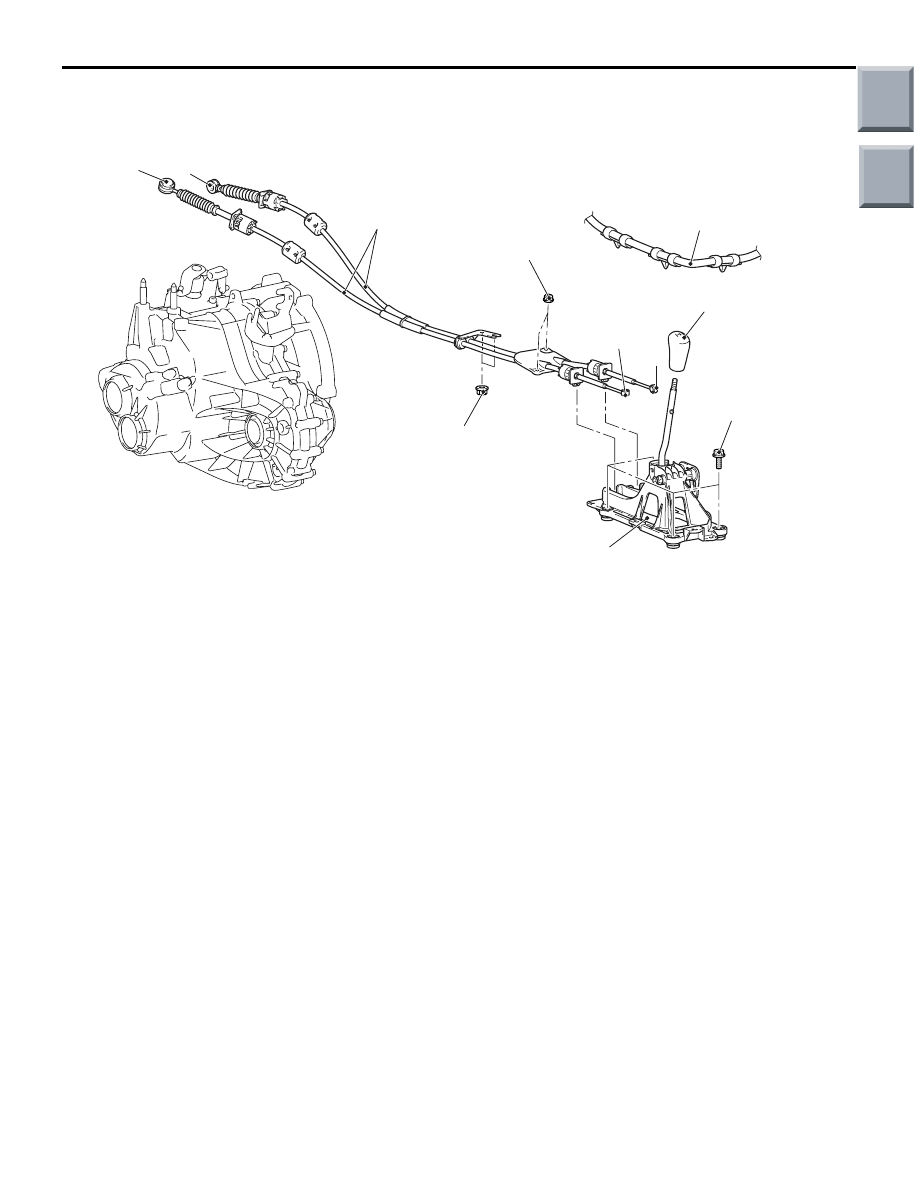

REMOVAL AND INSTALLATION

M1221003800909

AC600700AD

1

2

3

4

5

6

12 ± 2 N·m

5 ± 1 N·m

8

7

12 ± 2 N·m

Gearshift lever assembly
removal steps

1.

Gearshift lever knob

•

Centre console (Refer to GROUP
52A

− Instrument Panel

P.52A-3

).

•

Front scuff plate, cowl side trim
(Refer to GROUP 52A

− Interior

trim

P.52A-11

).

•

Floor console assembly (Refer to
GROUP 52A

− Floor Console

Assembly

P.52A-10

).

•

Front seat assembly (Refer to
GROUP 52A

− Front Seat

Assembly

P.52A-20

 <Except for

RECARO seat>,

P.52A-22



<RECARO seat>).

•

Floor console front bracket (Refer
to GROUP 52A

− Floor Console

Assembly

P.52A-10

).

2.

Harness

<<

A

>>

3.

Gearshift cable connection
(Gearshift lever side)

<<

A

>>

4.

Select cable connection (Gearshift
lever side)

5.

Lever assembly
Gearshift cable and select cable
assembly removal steps

1.

Gearshift lever knob

•

Centre console (Refer to GROUP
52A

− Instrument Panel

P.52A-3

).

•

Front scuff plate, cowl side trim
(Refer to GROUP 52A

− Interior

trim

P.52A-11

).

•

Floor console assembly (Refer to
GROUP 52A

− Floor Console

Assembly

P.52A-10

).

•

Front seat assembly (Refer to
GROUP 52A

− Front Seat

Assembly

P.52A-20

 <Except for

RECARO seat>,

P.52A-22



<RECARO seat>).

•

Floor console front bracket (Refer
to GROUP 52A

− Floor Console

Assembly

P.52A-10

).

2.

Harness

<<

A

>>

3.

Gearshift cable connection
(Gearshift lever side)

<<

A

>>

4.

Select cable connection (Gearshift
lever side)

5.

Gearshift lever assembly

•

Air cleaner assembly (Refer to
GROUP 15

− Air cleaner

P.15-5



<4A9>,

P.15-6

 <4G1>).

•

Battery and battery tray

<<

B

>>

6.

Gearshift cable connection
(Transmission side)

<<

B

>>

7.

Select cable connection
(Transmission side)

Gearshift cable and select cable
assembly removal steps
