FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

EXTERIOR

51-2

FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

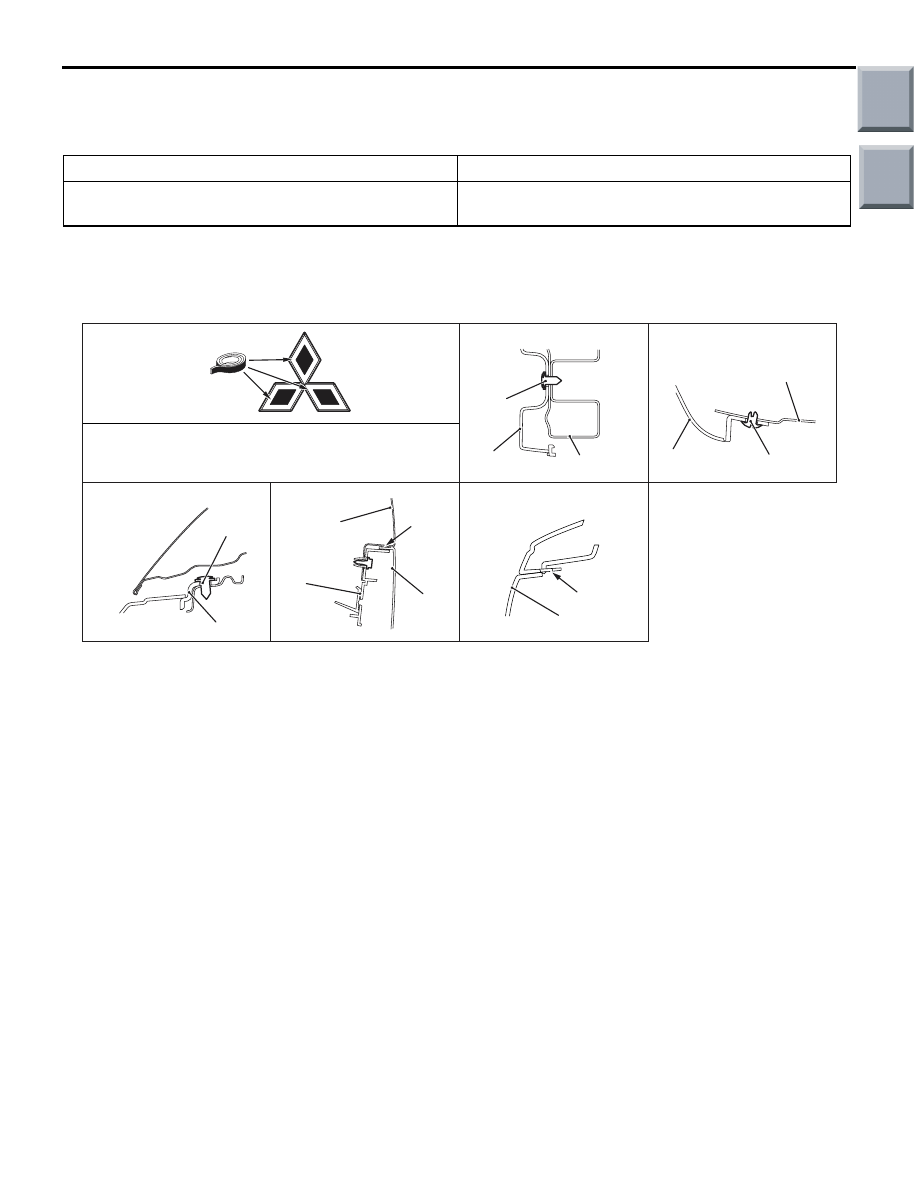

ADHESIVE

M1511000501021

Application

Specified adhesive

Front three-diamond mark

Double-sided tape: Generic products
18 mm width and 0.8 mm thickness

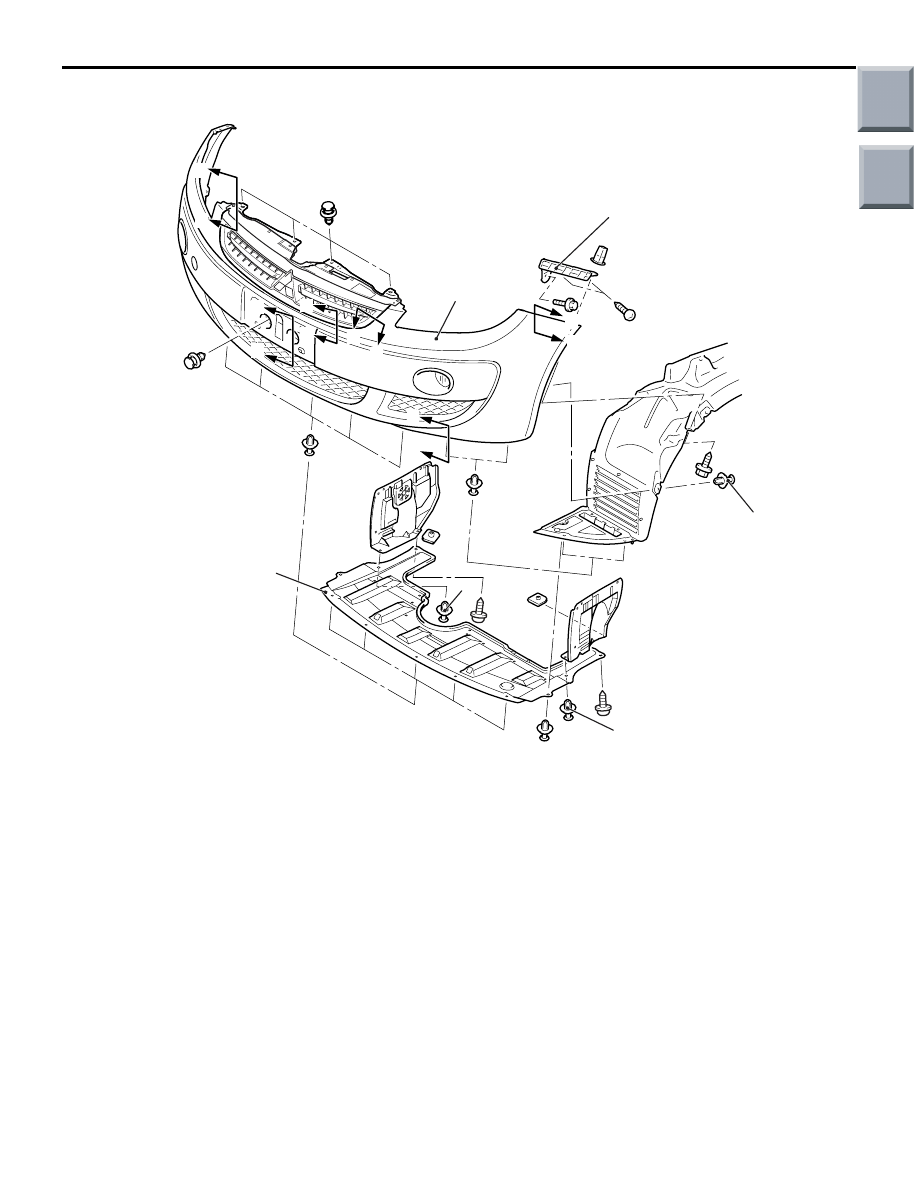

REMOVAL AND INSTALLATION

M1511025400170

<EXCEPT RALLIART Version-R>

AC403339AE

4

4

4

4

4

5

Double-sided tape:
Generic products [ 18 mm width and 0.8 mm thickness ]

Double-sided tape affixed
location

Section A – A

Section B – B

Section C – C

Section D – D

Section E – E

Clip

Front end
centre member

Splash shield

Clip

Clip

Front
fender

Claw

Claw

Main

Index

Group

TOC

AC405501

1

2

2

AB

3

4

5

A

A

B

B

E

E

E

E

C

C

D

D

Removal steps
1. Front under cover panel assembly
2. Side under cover panel mounting

clips

3. Splash shield mounting clips

•

Fog lamp connector connection
<vehicles with fog lamp>

4. Front bumper assembly
5. Front bumper bracket

FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

EXTERIOR

51-3

Removal steps (Continued)

Main

Index

Group

TOC

FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

EXTERIOR

51-4

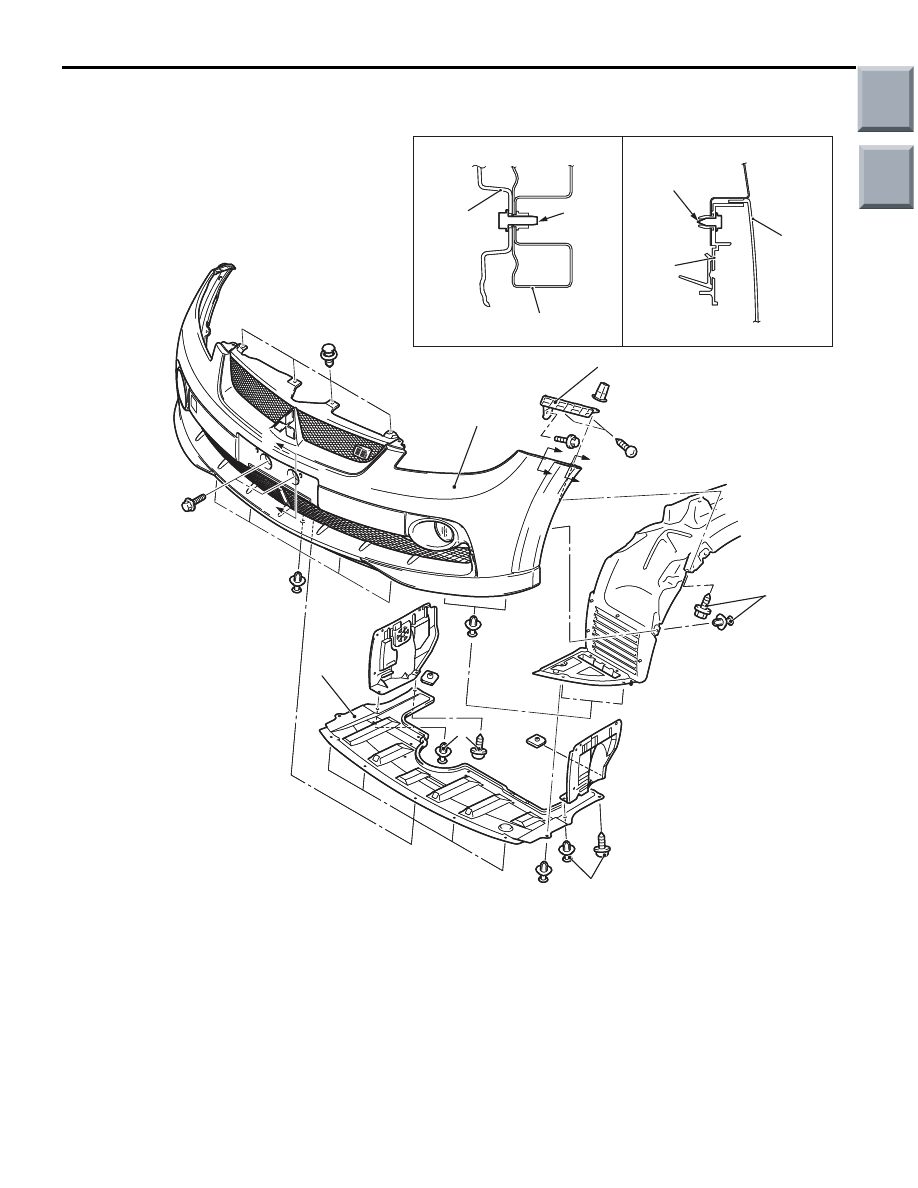

<RALLIART Version-R>

AC402777
AC511769

AC511768

B

AC402777
AC511769

AC511768

1

2

2

AB

3

4

5

A

A

B

B

Section A – A

SectionB – B

Bolt

Front end centre member

4

5

4

Screw

B

Removal steps
1. Front under cover panel assembly
2. Side under cover panel mounting

clips and screw

3. Splash shield mounting clips and

screw

•

Fog lamp connector connection
<vehicles with fog lamp>

4. Front bumper assembly
5. Front bumper bracket

Removal steps (Continued)

Main

Index

Group

TOC

FRONT BUMPER ASSEMBLY AND RADIATOR GRILLE

EXTERIOR

51-5

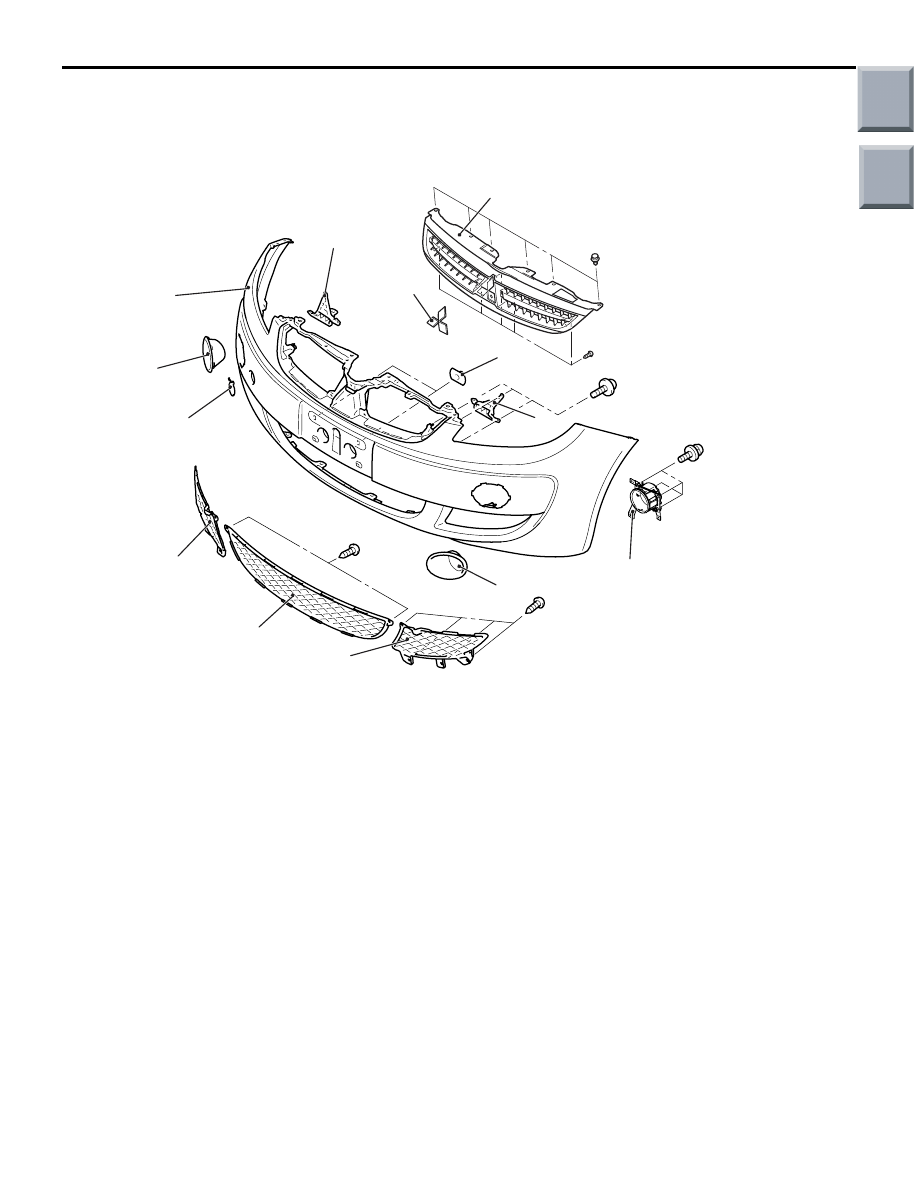

DISASSEMBLY AND REASSEMBLY

M1511025500155

<EXCEPT RALLIART Version-R>

AC601359

8

AB

9

3

9

10

1

2

2

6

7

5

6

4

Disassembly steps
1. Front bumper grille
2. Front bumper side grille
3. Front bumper cap
4. Radiator grille assembly
5. Front three-diamond mark
6. Front bumper bracket

7. Front bumper nut
8. Front fog lamp <vehicles with fog

lamp>

9. Front fog lamp bezel <vehicles with

fog lamp>

10. Front bumper face

Disassembly steps (Continued)
