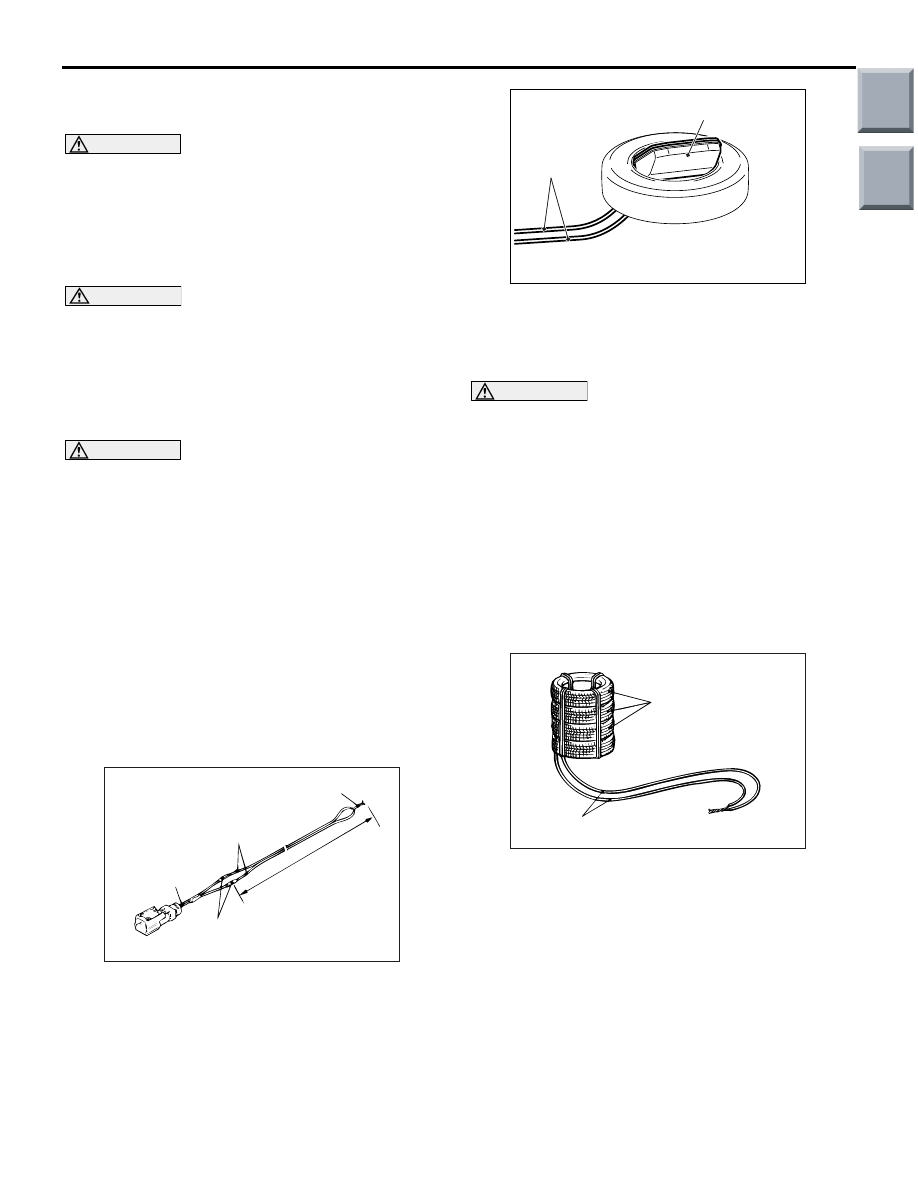

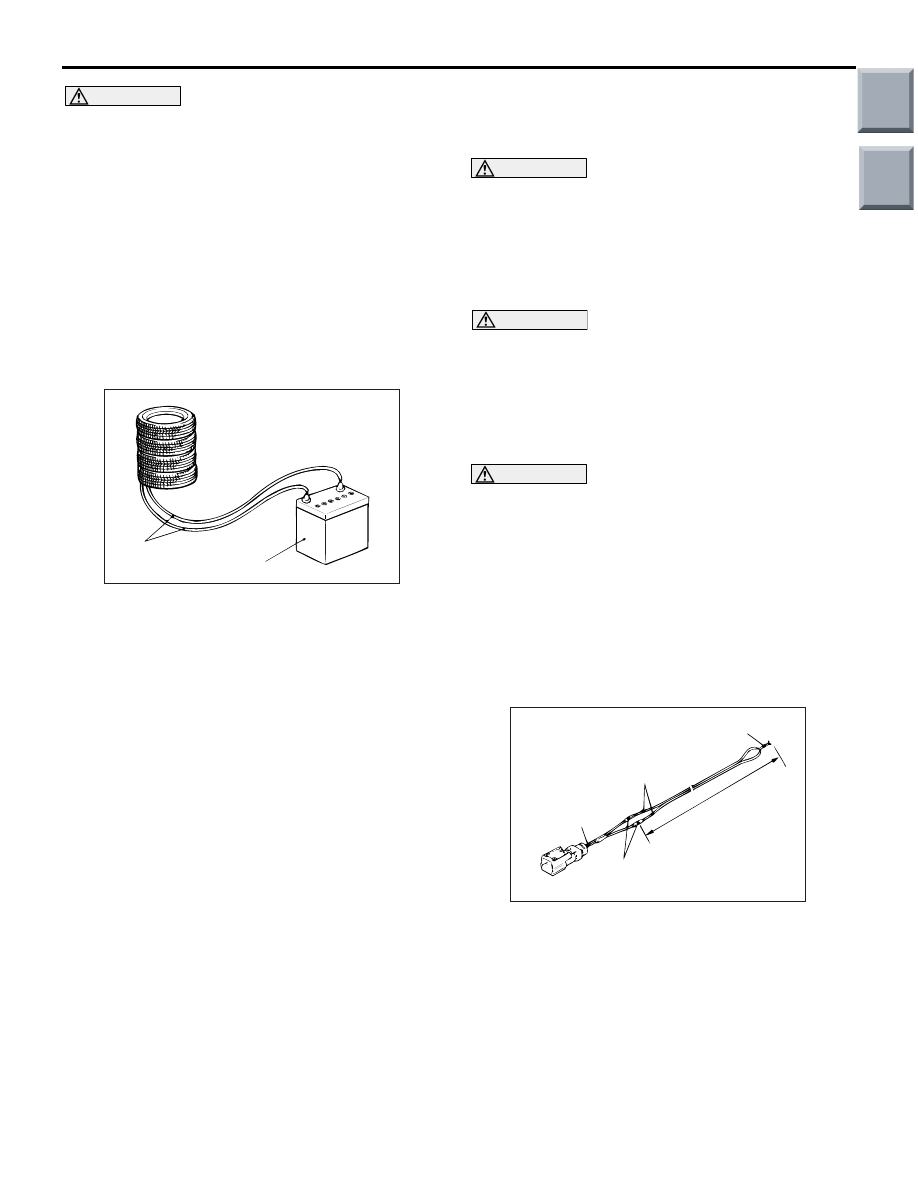

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-170

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to

P.52B-176

) for

post-deployment handling instructions.

•

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

9. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them, to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.

10.Discard the deployed air bag module as specified

in Deployed Air Bag Module and Operated Seat
Belt Pre-tensioner Disposal (Refer to

P.52B-176

).

DEPLOYMENT OUTSIDE THE VEHICLE
<PASSENGER'S (FRONT) AIR BAG
MODULE>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.52B-5

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
front passenger’s (front) air bag module con-
nector short automatically to prevent acci-
dental deployment caused by static etc. Still,
in consideration of the accidental deploy-
ment, store the air bag module on flat place
with deployment surface facing up. Also, do
not put anything on it.

2. Remove the passenger’s (front) air bag module

from the vehicle (Refer to

P.52B-145

).

3. Connect deployment wires longer than 6 m to

each SRS air bag adapter harness (MB686560)
and insulate the connections with insulator tape.
Also, connect the deployment wires in the other
ends to short, thereby preventing the passenger's
(front) air bag from accidental deployment caused
by static etc.

AC300493AB

Deployment
wires

Vehicle battery

AC300419AC

Connection

Deployment wires

MB686560

Insulator tape

6 m or longer

Main

Index

Group

TOC

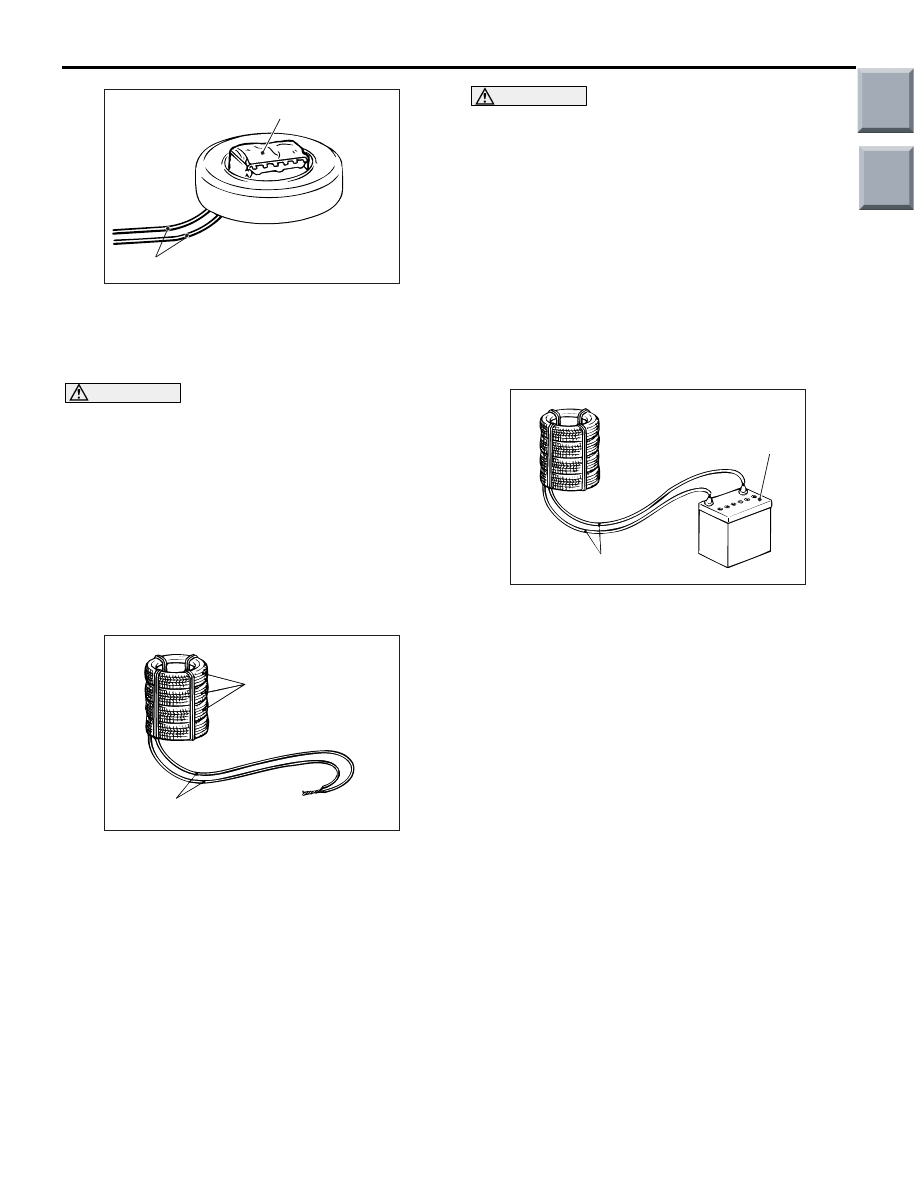

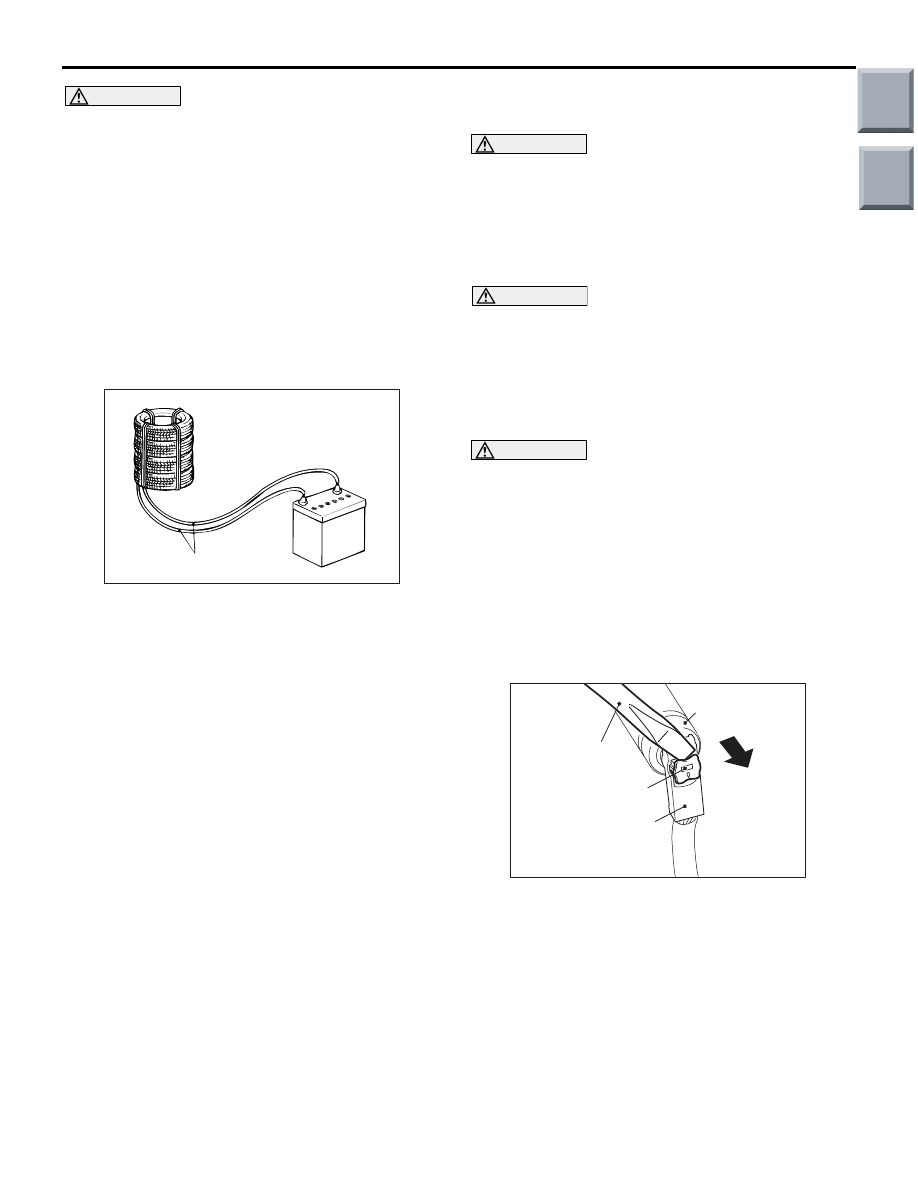

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-171

4. Connect the deployment wires to SRS air bag

adapter harness (MB686560), pass it beneath the
tyre and wheel assembly, and connect it to the air
bag module.

CAUTION

• The adapter harness below the wheel should

be loose. If it is too tight, the reaction when
the air bag deploys could damage the adapter
harness.

• During deployment, the connector of SRS air

bag adapter harness (MB686560) must not be
between the tyres.

5. Pass the thick wire through the air bag module

mounting hole, and then secure the air bag
module to an old tyre with a wheel in it so that the
pad on the module is facing upwards.

6. Place three old tyres without wheels on top of the

tyre secured to the air bag module, and secure all
tyres together with ropes (four locations).

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to

P.52B-176

) for

post-deployment handling instructions.

•

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

7. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them, to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.

8. Discard the deployed air bag module as specified

in Deployed Air Bag Module and Operated Seat
Belt Pre-tensioner Disposal (Refer to

P.52B-176

).

AC300520 AE

Passenger's (front) air bag module

Deployment wires

AC300521

Tyres without wheels

Deployment wires

AB

ACX01315AF

Deployment wires

Vehicle battery

Main

Index

Group

TOC

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-172

DEPLOYMENT OUTSIDE VEHICLE
<SIDE-AIRBAG MODULE>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.52B-5

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
side-airbag module connector short auto-
matically to prevent accidental deployment
caused by static etc. Still, in consideration of
the accidental deployment, store the air bag
module on flat place with deployment sur-
face facing up. Also, do not put anything on
it.

2. Remove the front seatback assembly with

side-airbag module from the vehicle (Refer to

P.52B-152

).

3. After reassembling the front seatback assembly

incorporated in the side-airbag, remove the
side-airbag module from the front seatback frame.

4. Connect deployment wires longer than 6 m to

each SRS air bag adapter harness (MB686560)
and insulate the connections with insulator tape.
Also, connect the deployment wires in the other
ends to short, thereby preventing the side-airbag
from accidental deployment caused by static etc.

5. Pass the SRS air bag adapter harness

(MB686560) connected with deployment wires
beneath an old tyre and wheel assembly, and
connect it to the side-airbag module connector.

CAUTION

• The adapter harness below the wheel should

be loose. If it is too tight, the reaction when
the air bag deploys could damage the adapter
harness.

• During deployment, the connector of SRS air

bag adapter harness (MB686560) must not be
between the tyres.

6. Connect the thick wire to the side-airbag module

installation bolt with a used nut, and place the
side-airbag module on an old tyre and wheel
assembly so that its deployment side is facing
upward.

7. Place three old tyres without wheels on top of the

tyre secured to the air bag module, and secure all
tyres together with ropes (four locations).

AC300419AC

Connection

Deployment wires

MB686560

Insulator tape

6 m or longer

AC300990

AF

Side-airbag module

Deployment
wires

AC300521

Tyres without wheels

Deployment wires

AB

Main

Index

Group

TOC

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-173

WARNING

•

Before deployment, check carefully to be
sure that no one is nearby.

•

The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to

P.52B-176

) for

post-deployment handling instructions.

•

If the air bag fails to deploy, do not go
near the module. Contact your distributor.

8. At a location as far away from the air bag module

as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.

9. Discard the deployed air bag module as specified

in Deployed Air Bag Module and Operated Seat
Belt Pre-tensioner Disposal (Refer to

P.52B-176

).

DEPLOYMENT OUTSIDE VEHICLE
<CURTAIN AIR BAG MODULE>

WARNING

•

This should be carried out in a wide, flat
area at least 6 m away from obstacles and
other people.

•

Do not deploy outside if wind is high.
Even in a soft wind, ignite to windward of
the air bag modules.

DANGER

Wait at least 60 seconds after disconnecting
the battery cables before doing any further
work (Refer to

P.52B-5

).

1. Disconnect the negative and positive battery

cables from the battery terminals, and then
remove the battery from the vehicle.

WARNING

Once disconnected, both electrodes of the
curtain air bag module connector short auto-
matically to prevent accidental deployment
caused by static etc. Still, in consideration of
the accidental deployment, store the air bag
module on flat place with deployment sur-
face facing up. Also, do not put anything on
it.

2. Remove the headlining (Refer to GROUP 52A,

Headlining

P.52A-16

).

3. Use a flat-tipped screwdriver to unlock the locking

button of the harness-side connector (2-pin,
black) by with drawing it toward you in two stages.

4. Disconnect the C-07 or C-10 harness side

connector.

AC300522

Deployment wires

AB

AC208384AU

C-07 or C-10

Curtain air bag

module connector

(2-pin)

Flat-tip screw
driver

Locking button

C-07 or C-10
Harness side
connector
(2-pin, black)
