AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-174

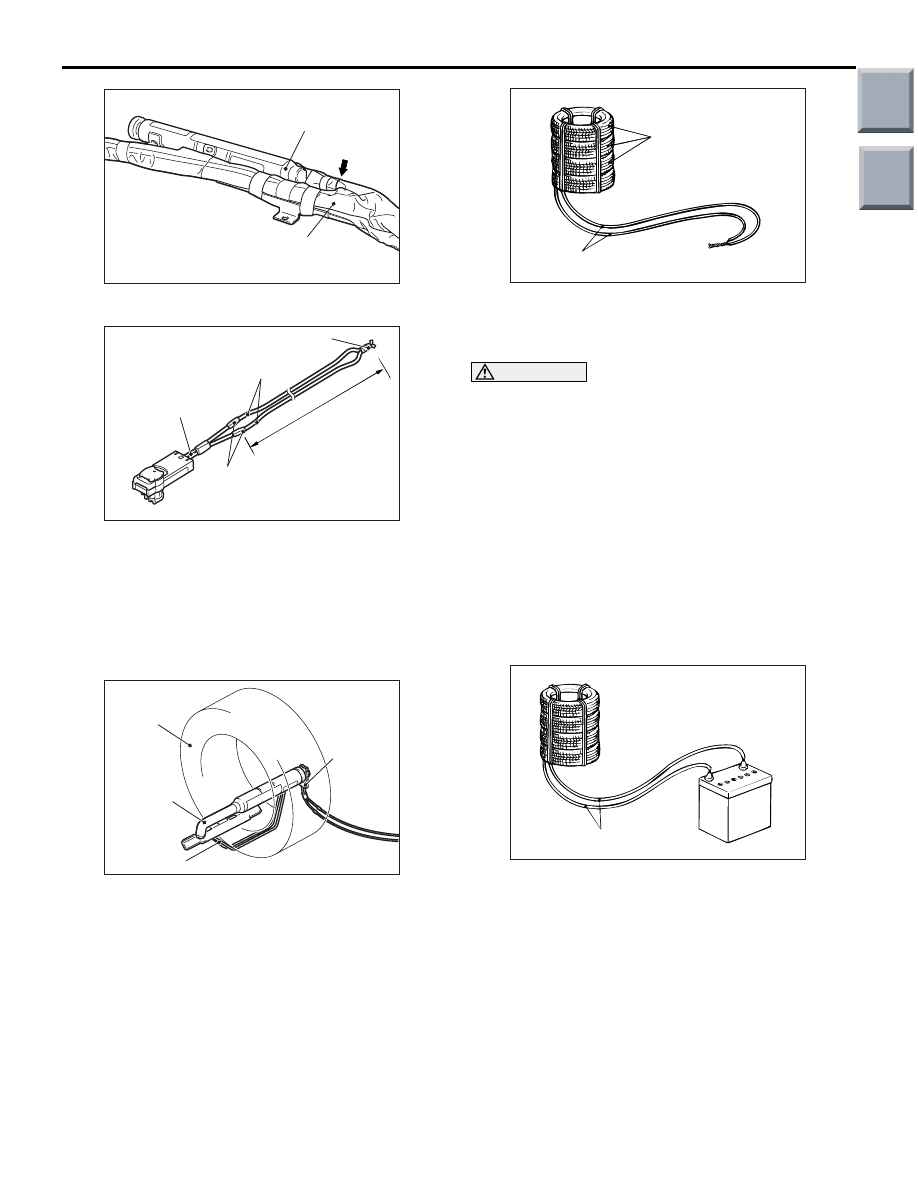

5. Cut the inflator and the air bag with a cutter.

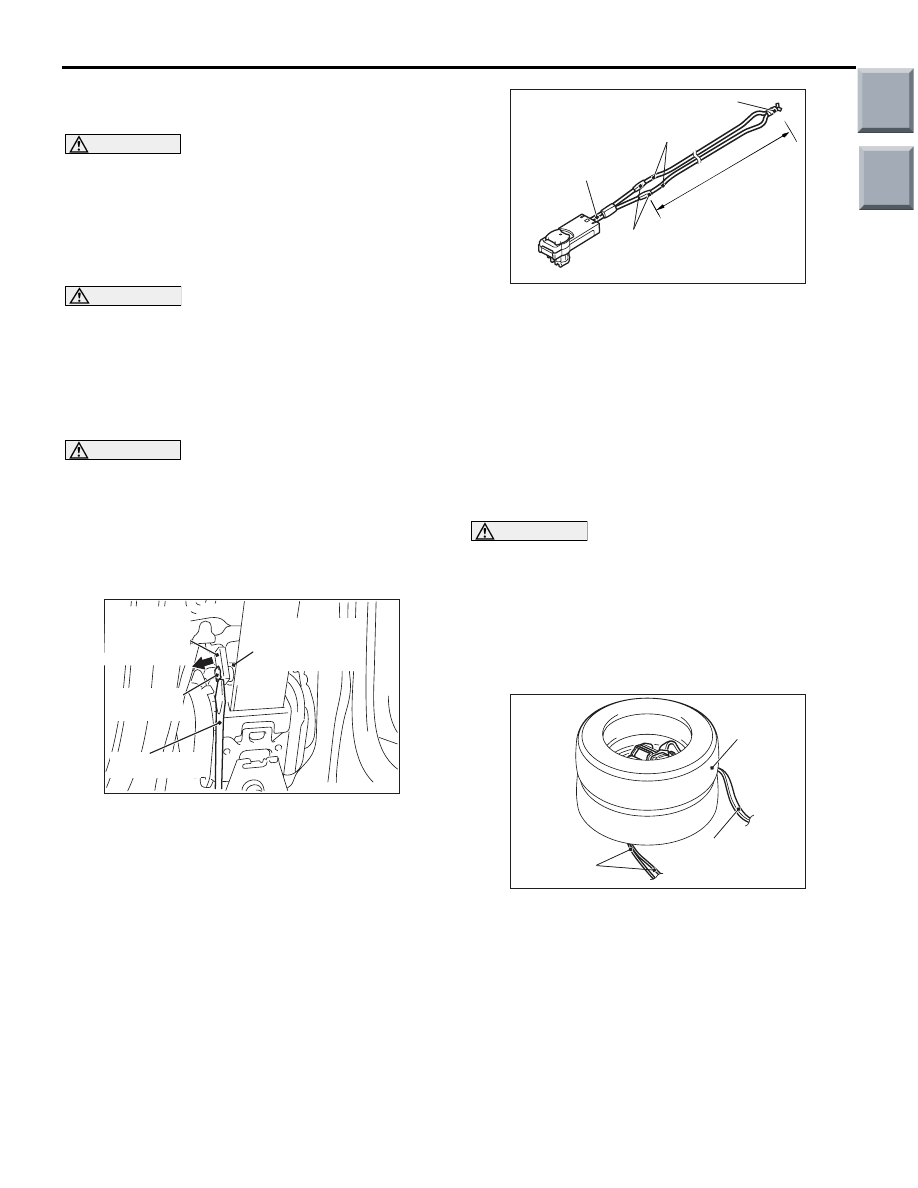

6. Connect deployment wires longer than 6 m to
each special tool SRS air bag adapter harness
(MB991885) and insulate the connections with
insulator tape. Also, connect the deployment
wires in the other ends to short, thereby
preventing the curtain air bag from accidental
deployment caused by static etc.
7. Feed a thick wire through the bracket of the
inflator, and connect it to an old tyre with a wheel.
8. Connect the SRS air bag adapter harness
(MB991885) to the inflator connector.
9. Place three old tyres without wheels on top of the
tyre secured to the air bag module, and secure all
tyres together with ropes (four locations).
WARNING
•
Before deployment, check carefully to be
sure that no one is nearby.
•
The inflator will be quite hot immediately
following the deployment, so wait at least
30 minutes to allow it to cool before
attempting to handle it. Although not poi-
sonous, do not inhale gas from air bag
deployment. See Deployed Air Bag Mod-
ule and Operated Seat Belt Pre-tensioner
Disposal (Refer to
) for
post-deployment handling instructions.
•
If the air bag fails to deploy, do not go
near the module. Contact your distributor.

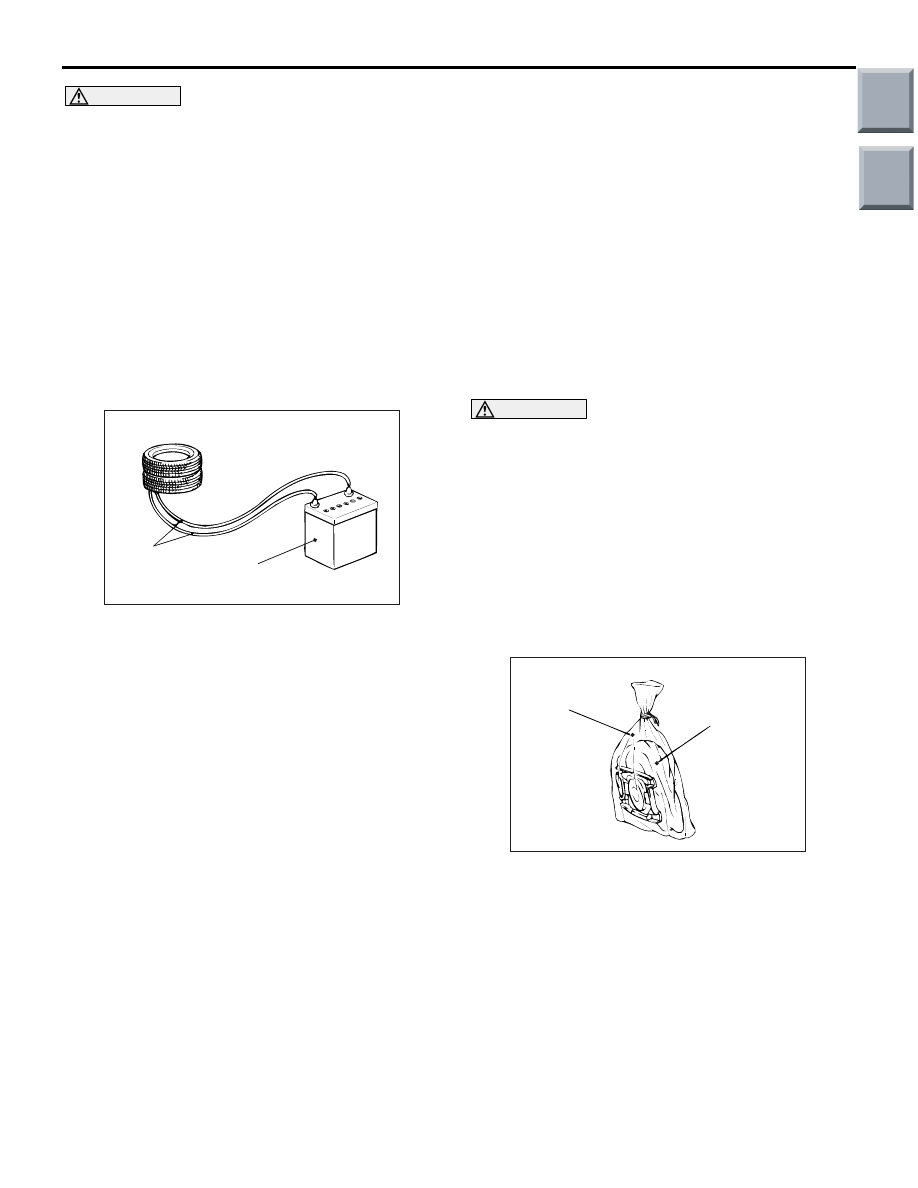

10.At a location as far away from the air bag module
as possible, and from a shielded position,
disconnect the two connected wires from each
other, and connect them to the two terminals of
the battery (which has been removed from the
vehicle) to deploy the air bag.
11.Discard the deployed inflator as specified in
Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to
AC208386AC
Inflator
Air bag
AC300447
AC
Connection
Deployment wires
MB991885
Insulator tape
6 m or longer
AC208387AC
Inflator
Wire
Old tyre
without wheel
MB991885
AC300521
Tyres without wheels
Deployment wires
AB
AC300522
Deployment wires
AB
