Mitsubishi Colt Ralliart. Manual - part 522





REAR SEAT ASSEMBLY

INTERIOR

52A-28

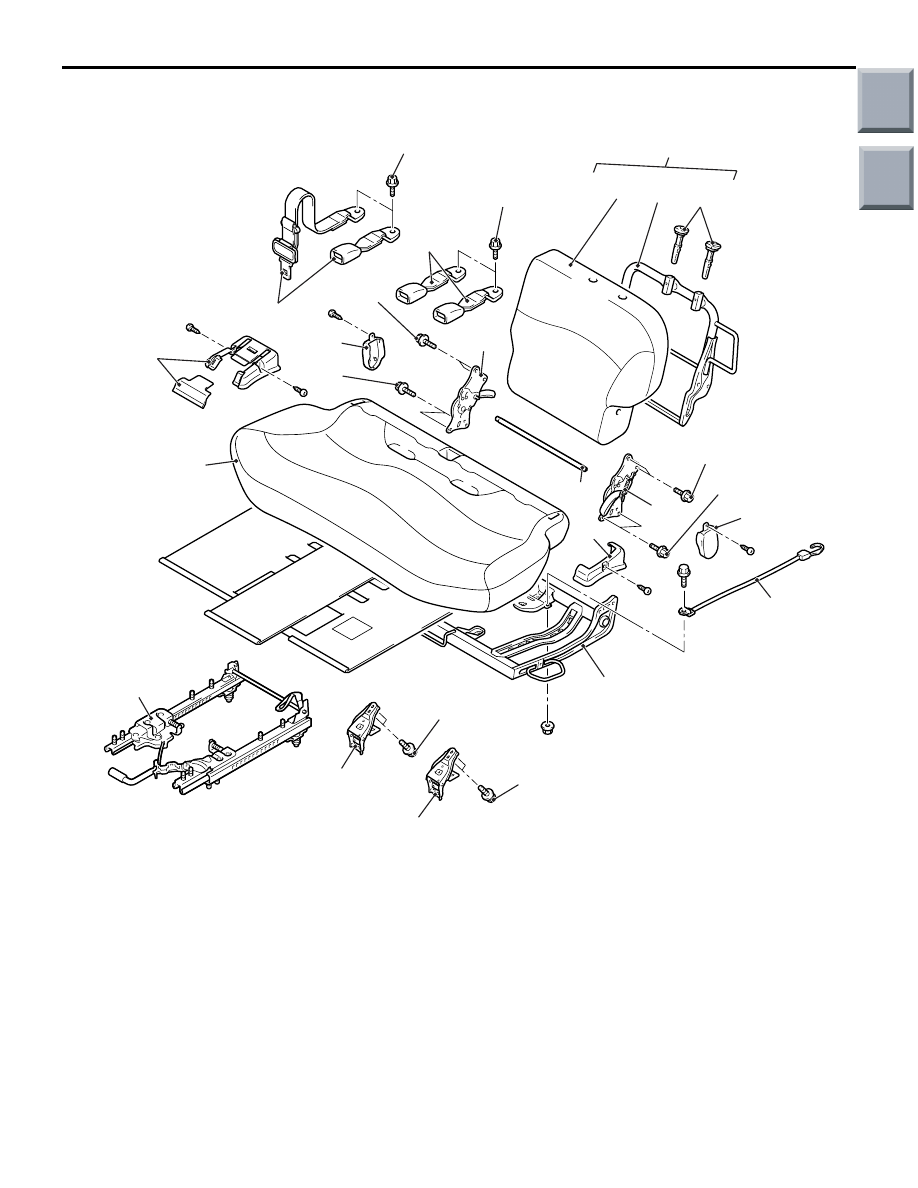

DISASSEMBLY AND REASSEMBLY

M1522002000465

AC400419

7

14

6

13

14

5

8

10

11

9

4

2

1

15

16

12

12

17

44 ± 10 N·m

44 ± 10 N·m

44 ± 10
N·m

22 ± 4
N·m

44 ± 10 N·m

22 ± 4 N·m

22 ± 4 N·m

22 ± 4 N·m

AB

3

Disassembly steps

1.

Hinge cover outer

2.

Reclining adjuster cover outer

3.

Reclining adjuster outer

4.

Reclining adjuster shaft

5.

Reclining adjuster inner

6.

Reclining adjuster cover inner

7.

Hinge centre cover

8.

Rear seatback assembly

<<

A

>>

9.

Headrestraint guide

10. Seatback cover and pad assembly
11. Seatback frame
12. Hinge bracket
13. Cushion cover and pad assembly
14. Centre seat belt, inner seat belt
15. Band
16. Cushion frame
17. Slide adjuster

Disassembly steps (Continued)

Main

Index

Group

TOC

REAR SEAT ASSEMBLY

INTERIOR

52A-29

DISASSEMBLY SERVICE POINT

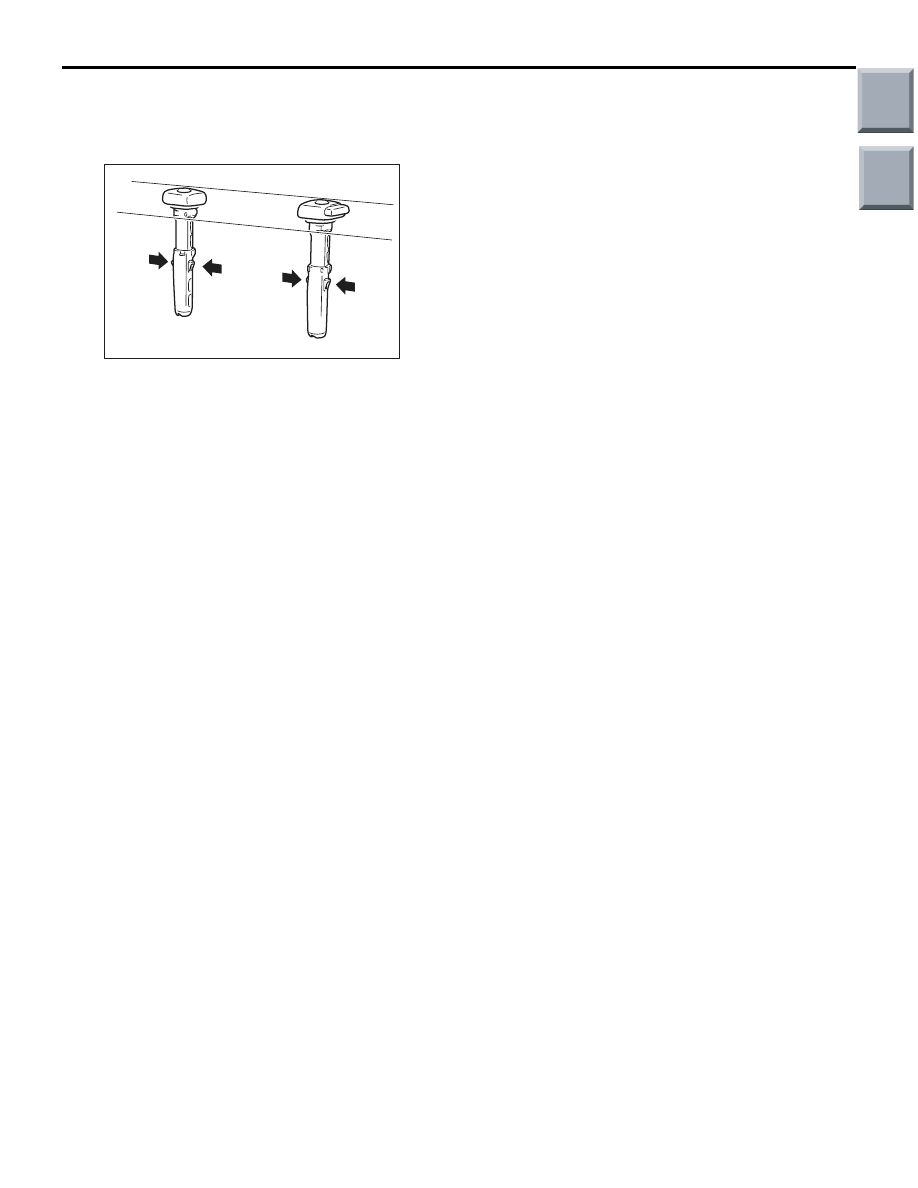

<<A>> HEADRESTRAINT GUIDE
REMOVAL

AC205342

Main

Index

Group

TOC

FRONT SEAT BELT

INTERIOR

52A-30

FRONT SEAT BELT

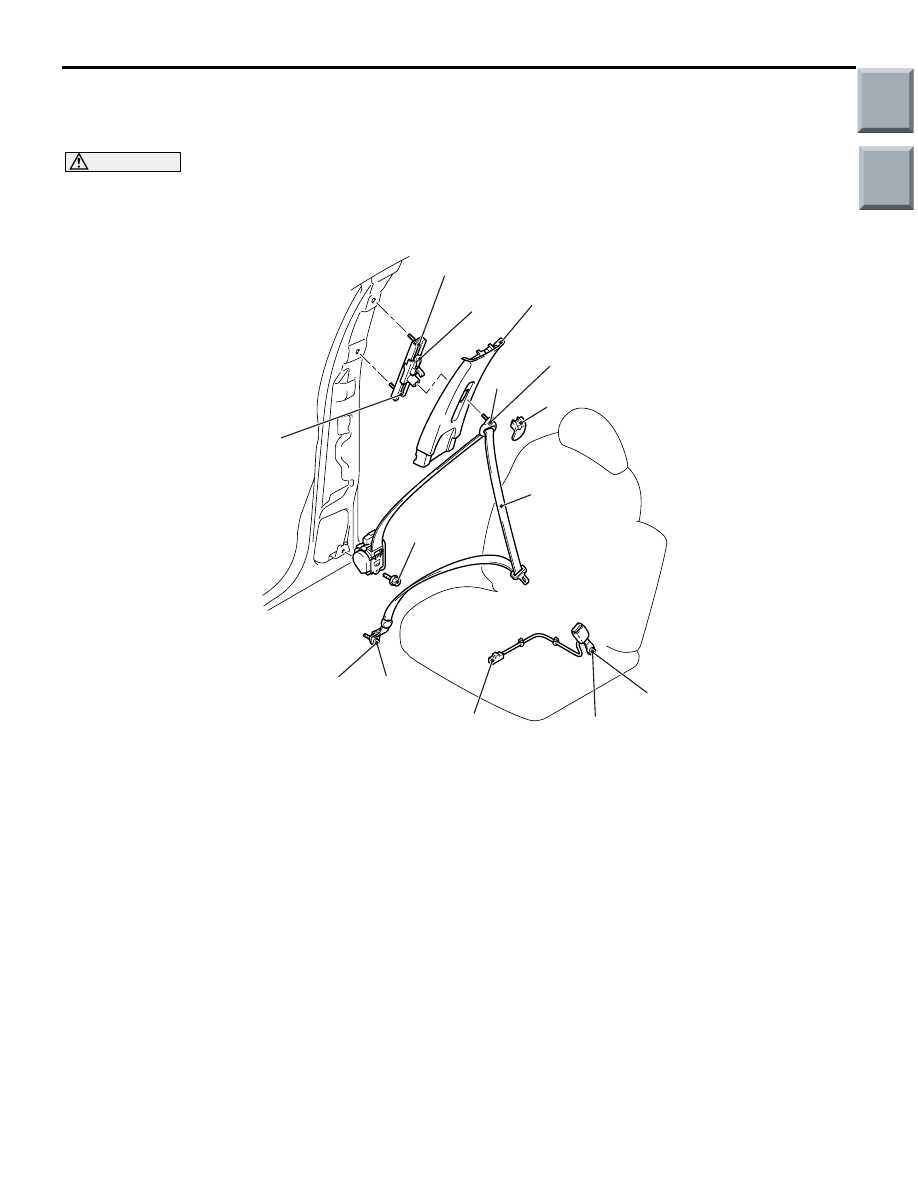

REMOVAL AND INSTALLATION

M1523001300499

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B, Seat Belt
with Pre-tensioner

P.52B-159

.

AC601416

6

5

2

1

4

3

7

8

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

44 ± 10 N·m

AB

22 ± 4 N·m

Outer seat belt removal

1.

Sash guide cover

2.

Seat belt shoulder anchor bolt

3.

Seat belt lower anchor bolt

•

Centre pillar trim lower (Refer to

P.52A-11

).

4.

Outer seat belt (Refer to GROUP
52B, Seat Belt with Pre-tensioner

P.52B-159

.)

5.

Centre pillar trim upper (Refer to

P.52A-11

).

6.

Adjustable seat belt anchor
Inner seat belt removal steps

7.

Seat belt switch connector

•

Hinge cover (passenger’s side)
(Refer to

P.52A-23

).

8.

Inner seat belt (Refer to

P.52A-26

).

Outer seat belt removal

Main

Index

Group

TOC

FRONT SEAT BELT

INTERIOR

52A-31

INSPECTION

M1523004400202

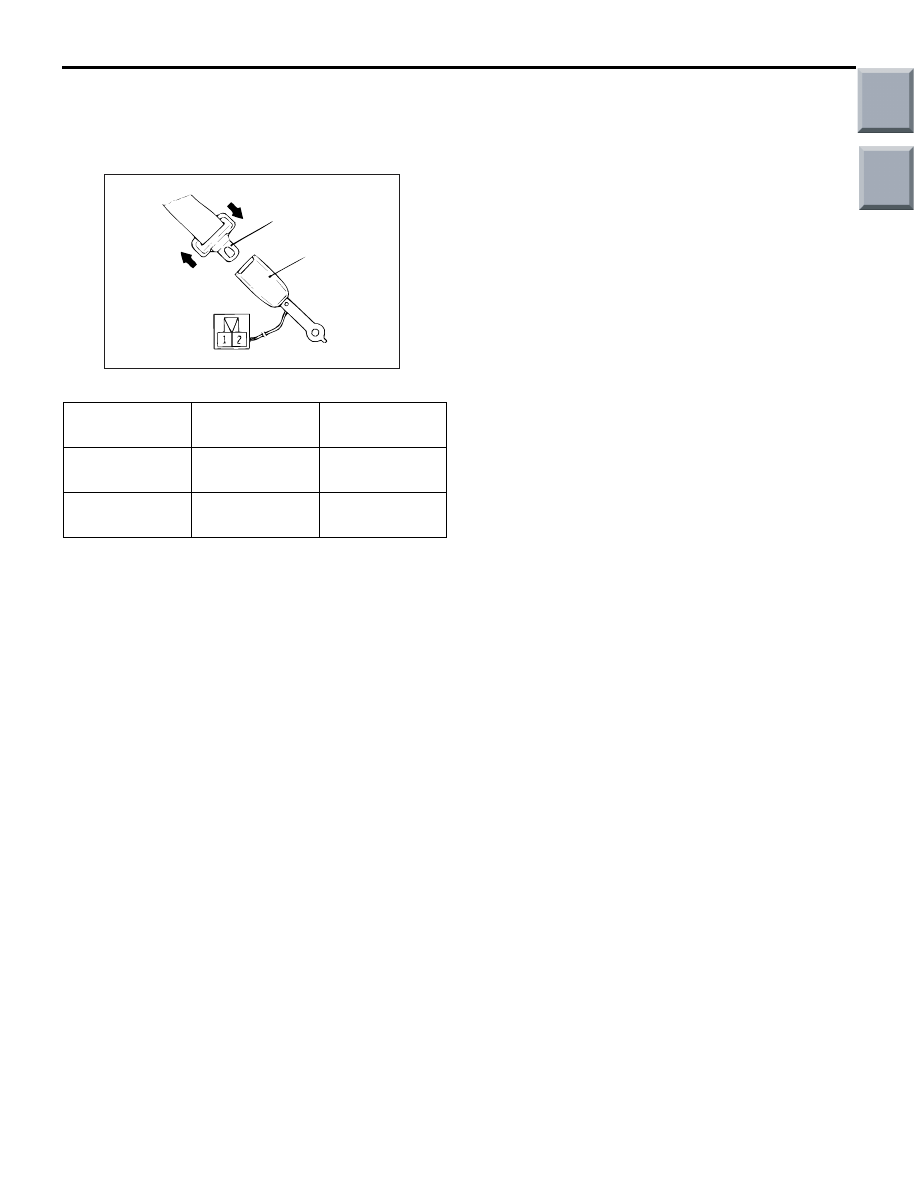

SEAT BELT BUCKLE SWITCH CONTINU-
ITY CHECK

AC003238AD

Tongue

Buckle

If there is no continuity, replace the seat belt.

Item

Tester
connection

Specified
condition

Fastened seat
belt

1

− 2

Open circuit

Unfastened
seat belt

1

− 2

Continuity (Less
than 2

Ω)
