Mitsubishi Colt Ralliart. Manual - part 521

FRONT SEAT ASSEMBLY

INTERIOR

52A-24

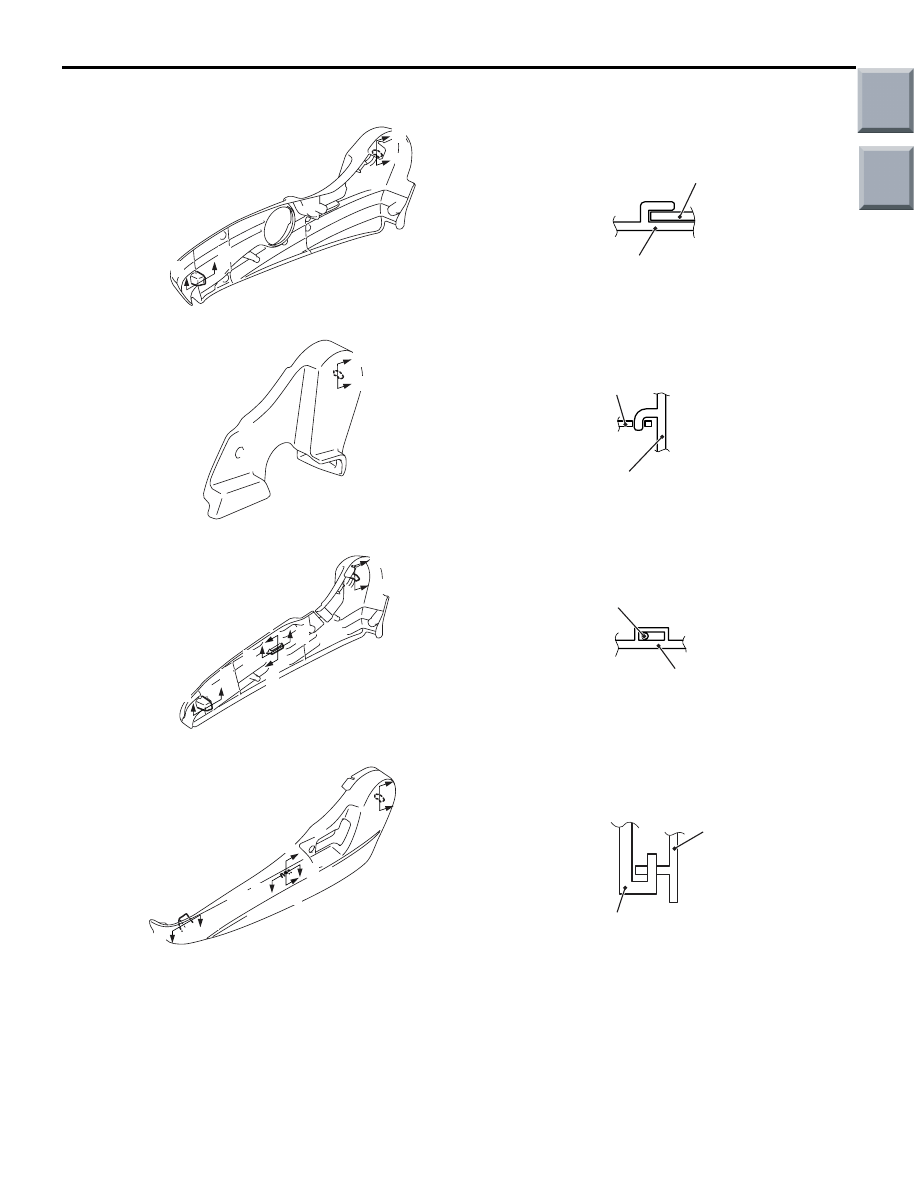

CLAW POSITIONS

AC207976

<Side shield cover outer>

<Hinge cover (driver's side)>

<Hinge cover (passenger's side)>

<Side shield cover>

A

A

A

A

C

C

D

D

A

A

C

C

D

D

B

Frame assembly

Side shield cover outer,
hinge cover (passenger's side),
Side shield cover

Frame assembly

Side shield cover outer,
hinge cover,
side shield cover

Under box

Hinge cover (passenger's side),
side shield cover

Under box

Hinge cover (passenger's side),
side shield cover

AB

B

B

B

B

B

B

B

Section A – A

Section B – B

Section C– C

Section D – D

Main

Index

Group

TOC

FRONT SEAT ASSEMBLY

INTERIOR

52A-25

DISASSEMBLY SERVICE POINTS

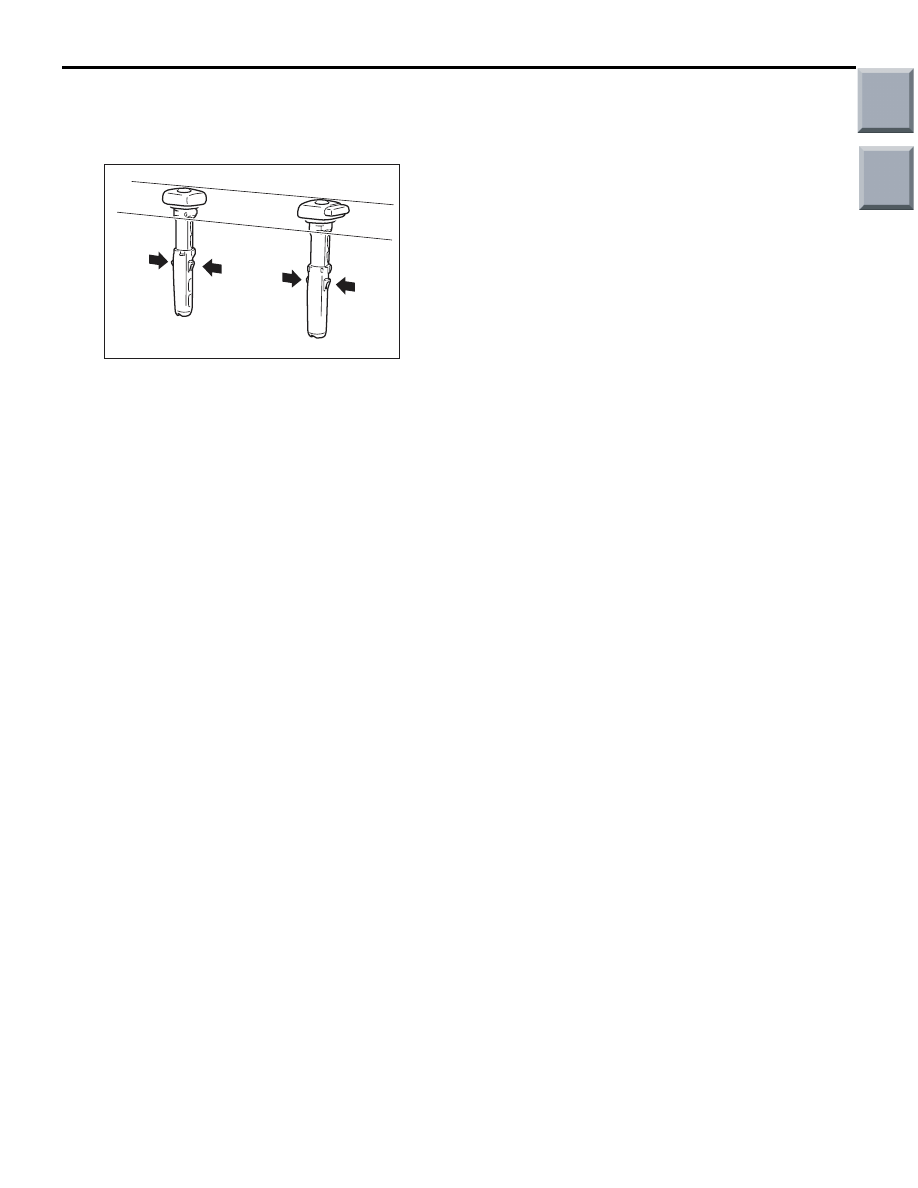

<<A>> HEADRESTRAINT GUIDE
REMOVAL

AC205342

<<B>> FRAME ASSEMBLY REMOVAL

Do not remove the side-air bag module from the
frame. <Vehicles with side and curtain air bag mod-
ule>

Main

Index

Group

TOC

FRONT SEAT ASSEMBLY

INTERIOR

52A-26

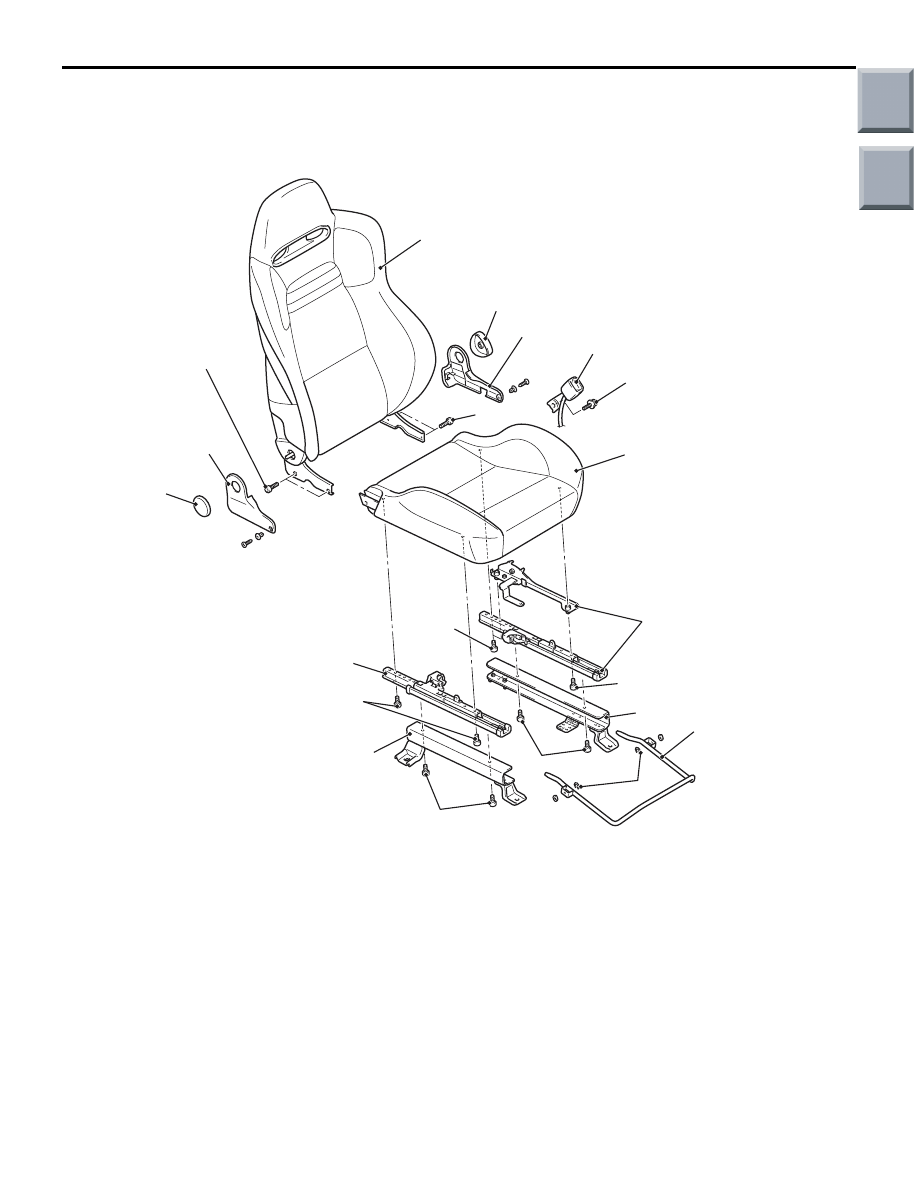

DISASSEMBLY AND REASSEMBLY
<RECARO seat>

M1522001501095

AC600699AC

2

1

3

4

5

6

7

8

9

10

11

44 ± 10 N·m

22 ± 3 N·m

22 ± 3 N·m

22 ± 3 N·m

22 ± 3 N·m

22 ± 3 N·m

4

22 ± 3 N·m

22 ± 3 N·m

3

Disassembly steps

1.

Cap

2.

Reclining adjuster knob

3.

Leg assembly

4.

Slide adjuster

5.

Inner seat belt

6.

Cushion shield inner

7.

Cushion shield outer

8.

Seatback assembly

9.

Seat cushion assembly

10. Snap ring
11. Slide adjuster lever

Disassembly steps (Continued)

Main

Index

Group

TOC

REAR SEAT ASSEMBLY

INTERIOR

52A-27

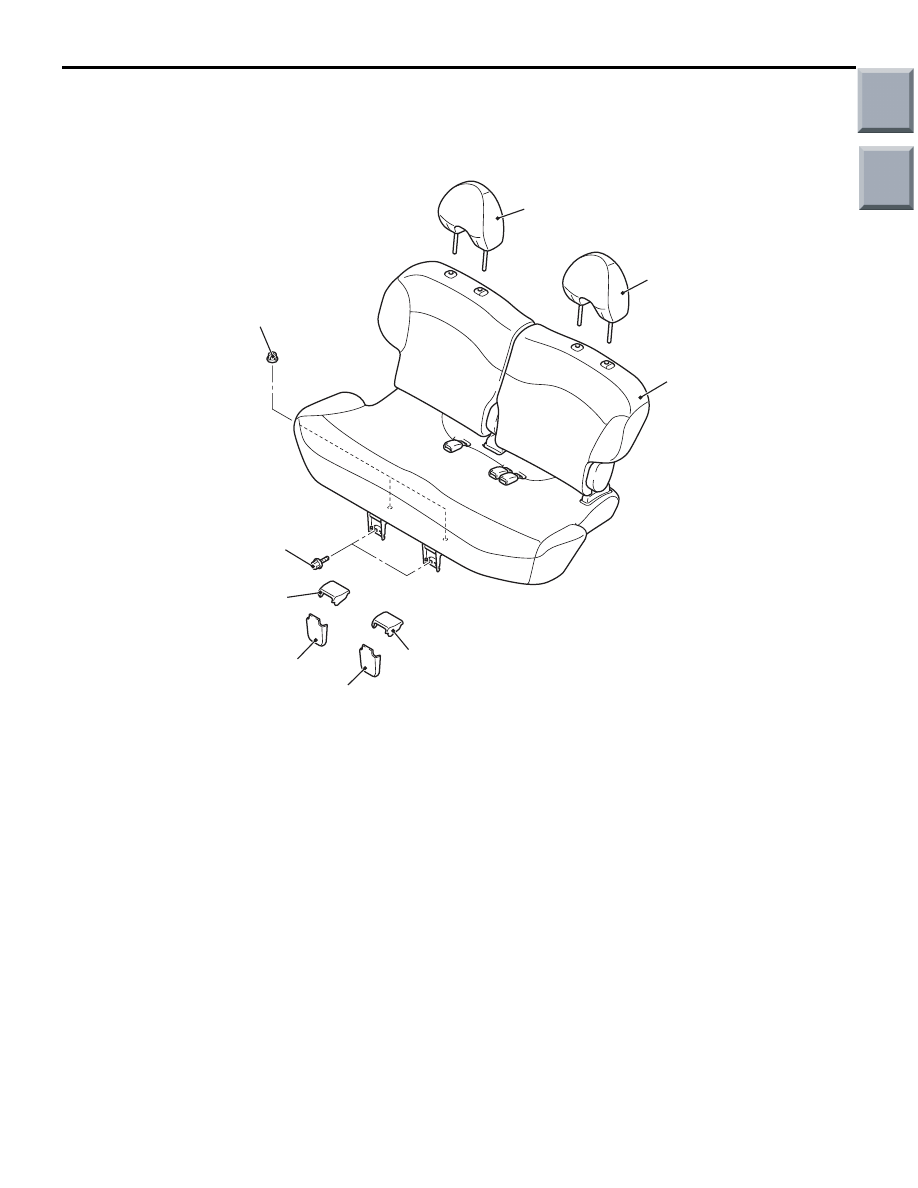

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001800394

AC400418

AC207515

1

1

4

3

3

2

2

30 ± 5 N·m

44 ± 10 N·m

AB

1.

Headrestraint

Removal steps

2.

Cushion anchor cover

3.

Anchor cover

4.

Rear seat assembly
