SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-184

DIAGNOSIS PROCEDURE

Step 1. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure A-2 "When
the ignition switch is at the LOCK (OFF)
position, the functions do not work normally.
Check the battery power supply circuit to
the ETACS-ECU

P.54B-43

."

Step 2. Pulse check
Check the input signals below, which are related to
the interior lamps (room lamp, luggage compartment
lamp).

OK: The M.U.T.-II sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (IG1) signal is not received. :

Refer to Inspection Procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-202

."

The key reminder switch signal is not received. :

Refer to Inspection Procedure N-7 "The key
reminder switch signal is not received

P.54B-210

."

All the door switch signals are not received. :

Refer to Inspection Procedure N-10 "All the
door switch signals are not received

P.54B-219

."

The driver's door lock actuator switch signal is not
received. :

Refer to Inspection Procedure N-11

"The driver's door lock actuator switch
signal is not received

P.54B-223

."

Step 3. Retest the system.
When the room lamp and the luggage compartment
lamp switches are set to the DOOR or ON position,
the room lamp and the luggage compartment lamp
should illuminate normally.

Q: Is the check result normal?

The lamp illuminates at neither the ON or DOOR
position.  :

Go to Step 4.

The lamp does not illuminate at the DOOR position.
:

Go to Step 6.

The lamp does not illuminate at the ON position. :

Go to Step 8.

Step 4. Connector check: C-04 room lamp
connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

System switch

Check condition

Ignition switch (IG1)

When turned from ACC
to ON

Key reminder switch

When the inserted
ignition key is pulled out

All of the door switches

A door is opened when
all the doors are closed

Driver's door lock
actuator switch

When the driver's door is
unlocked or locked

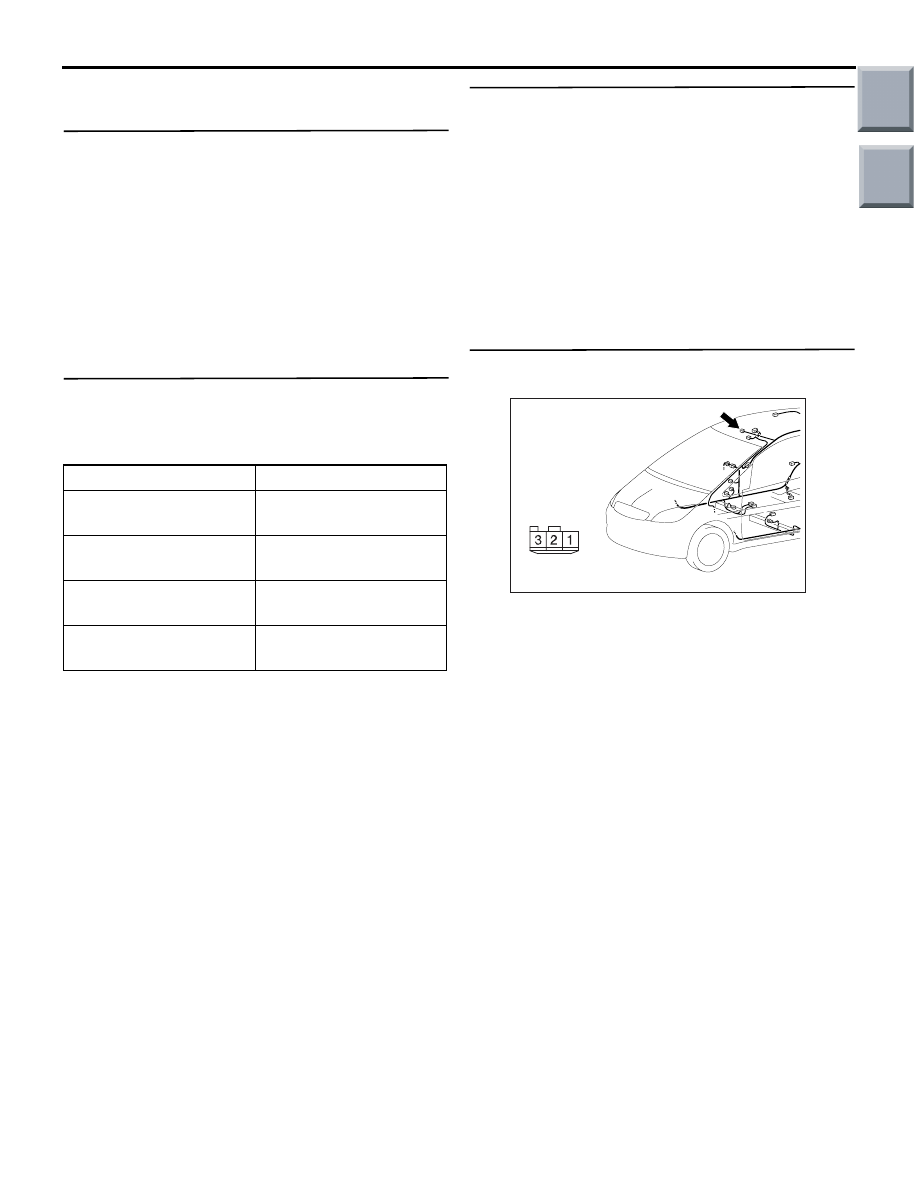

AC401057

Connector: C-04

Harness side

AC

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-185

Step 5. Check the wiring harness from C-04 room
lamp connector terminal No.3 to fusible link (1).

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-02 and junction block connector
B-108 and B-113 repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 6. Connector check: B-134 ETACS-ECU
connector, C-04 room lamp connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

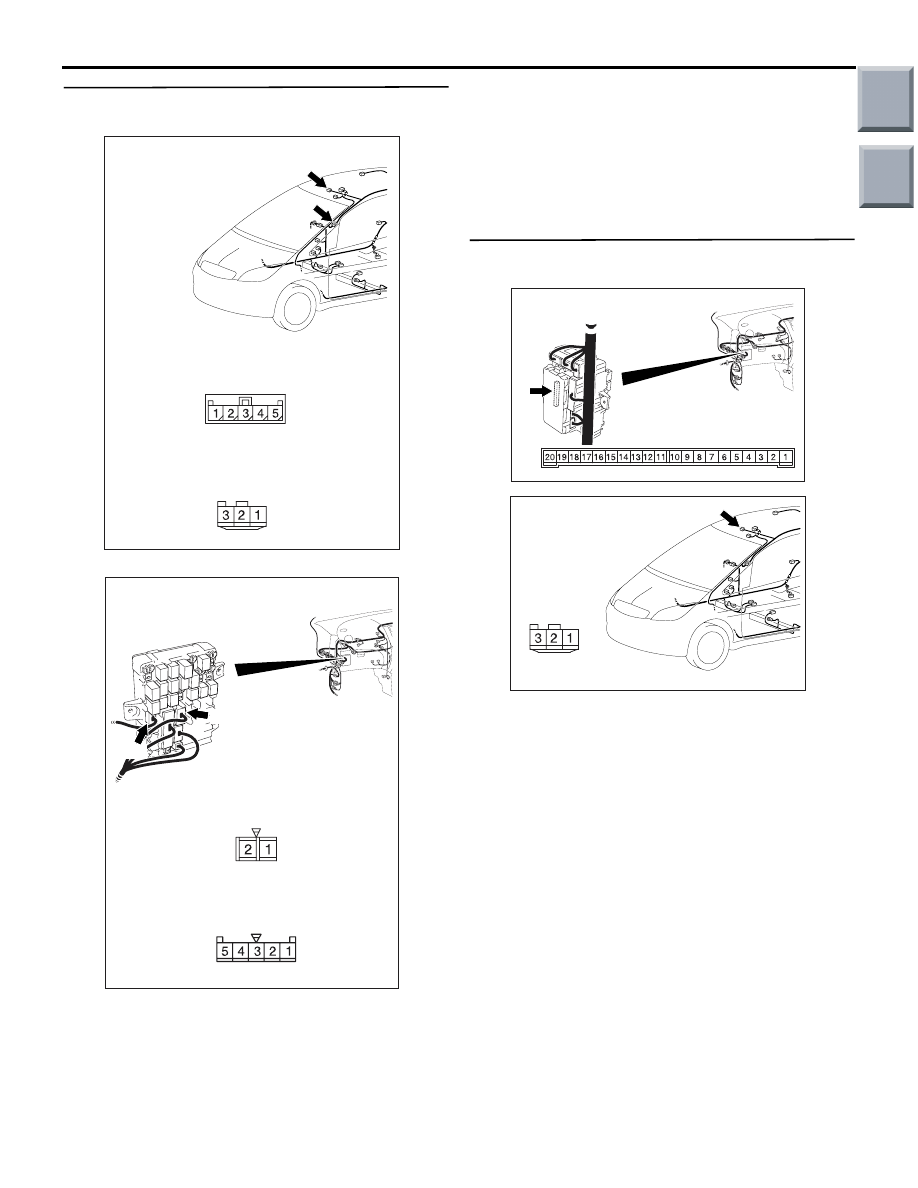

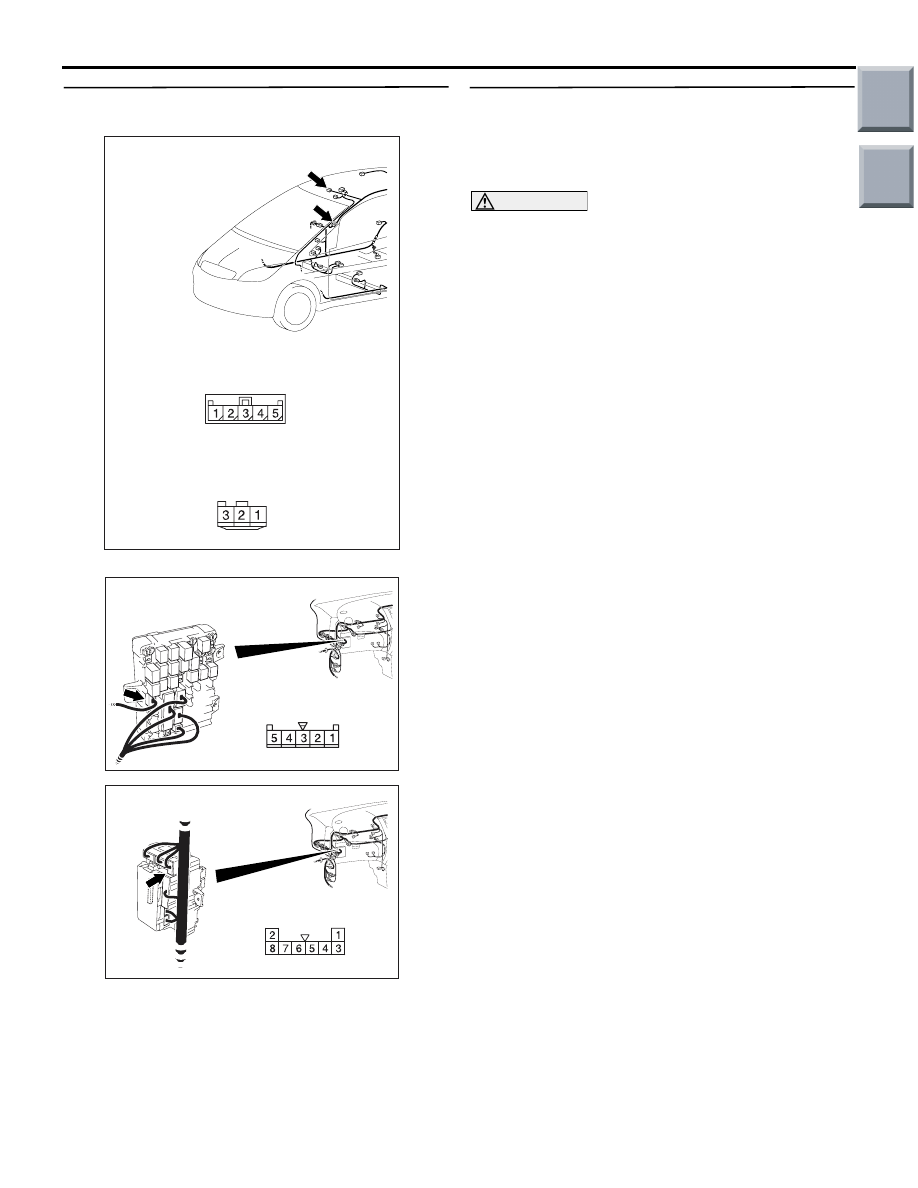

AC401058

Connectors: C-02, C-04

Harness side

AB

C-02

C-04

C-02

C-04

AC313825 AB

Connectors: B-108, B-113

Junction Block (Front view)

B-113

B-108 (B)

Harness side

B-108

Harness side

B-113

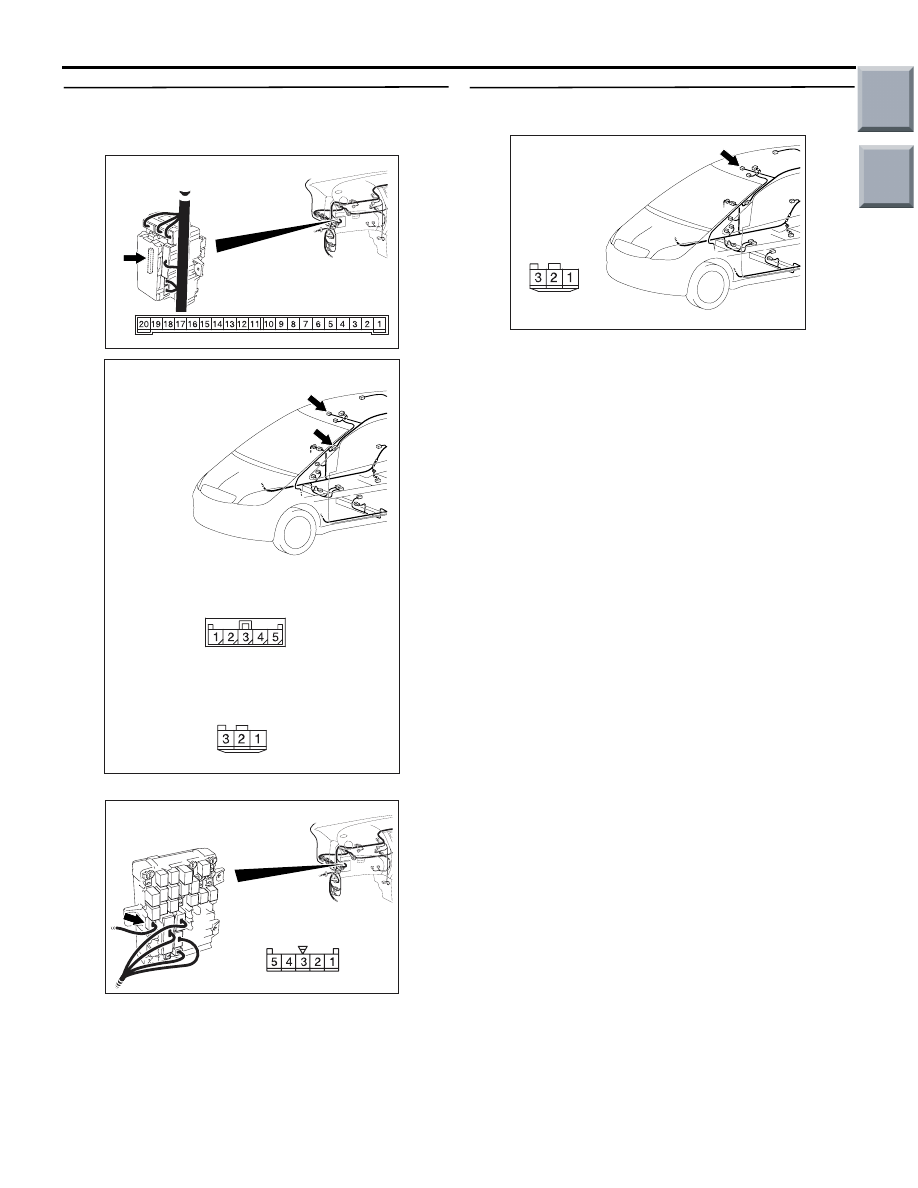

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC401057

Connector: C-04

Harness side

AC

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-186

Step 7. Check the wiring harness from B-134
ETACS-ECU connector terminal No.18 to C-04
room lamp connector terminal No.1

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-02 and junction block connector
B-113 repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

Replace the ETACS-ECU.

NO :

Repair the wiring harness.

Step 8. Connector check: C-04 room lamp
connector

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the defective connector.

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC401058

Connectors: C-02, C-04

Harness side

AB

C-02

C-04

C-02

C-04

AC313824

Harness side

AB

Connector: B-113

Junction block (Front view)

AC401057

Connector: C-04

Harness side

AC

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-187

Step 9. Check the wiring harness from C-04 room
lamp connector terminal No.2 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-02 and junction block connector
B-113 and B-130 repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 10. Check the SWS monitor customised
function.
Use the SWS monitor customise function to confirm
that "RM LMP TN OFF" is set to other than "W/O
FUNCTION".

CAUTION

The SWS monitor must be used in order to con-
firm and change that setting. Use the SWS moni-
tor to confirm and/or change the customised
function.

Q: Is the check result normal?

YES :

Replace the ETACS-ECU.

NO :

Use the SWS monitor customise function to
set the "RM LMP TN OFF" to other than
"W/O FUNCTION" (Refer to GROUP 54C

−

Customize function

P.54C-240

).

AC401058

Connectors: C-02, C-04

Harness side

AB

C-02

C-04

C-02

C-04

AC313824

Harness side

AB

Connector: B-113

Junction block (Front view)

AC313826

Harness side

AE

Connector: B-130

Junction block (Rear view)
