Mitsubishi Colt Ralliart. Manual - part 361





SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-188

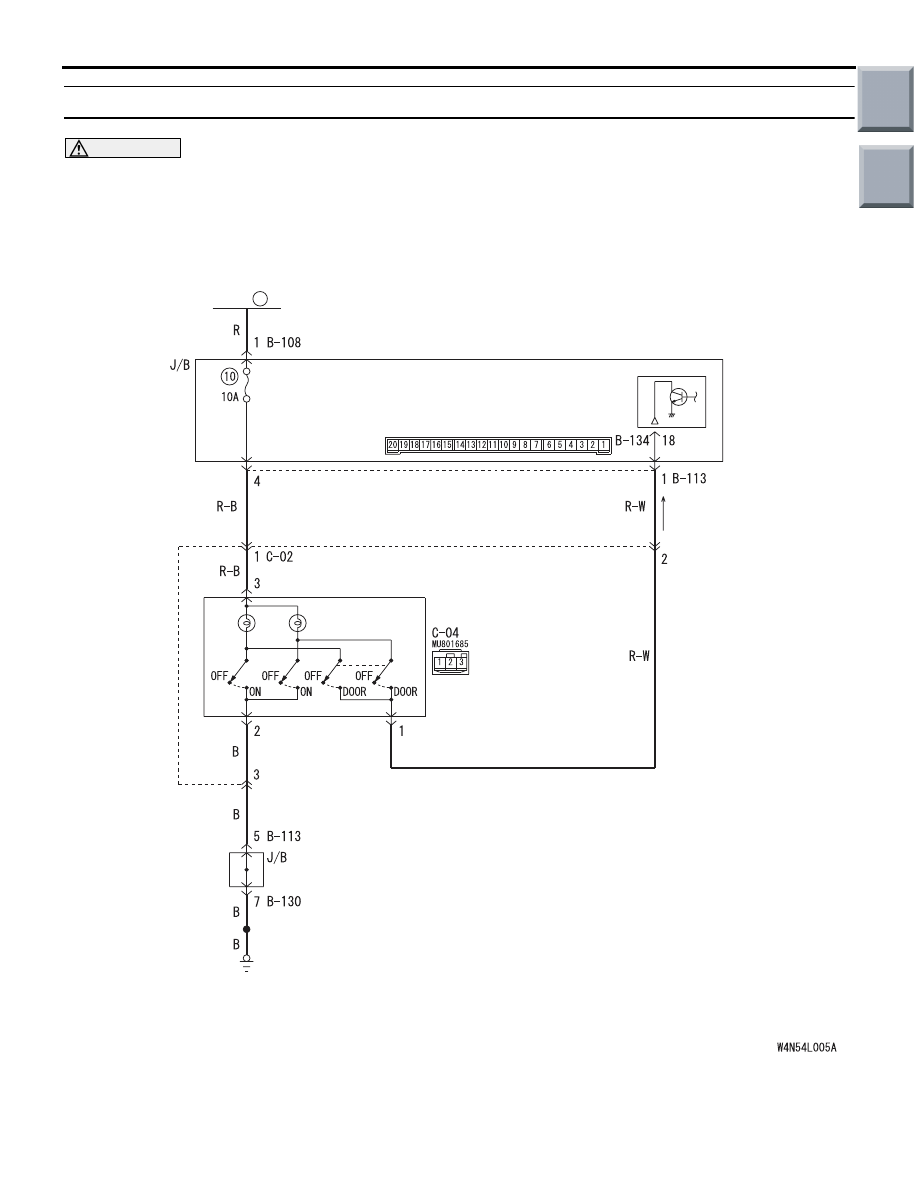

INSPECTION PROCEDURE M-2: The room lamp does not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

ETACS-ECU

ROOM
LAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

J/B SIDE

FUSIBLE
LINK

1

Room Lamp Circuit

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-189

COMMENTS ON TROUBLE SYMPTOM

If the room lamp do not illuminate, the wiring harness
connector(s), the bulb or the fuse may be defective
or burned out.

POSSIBLE CAUSES

• Malfunction of the room lamp

• Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check that the luggage compartment
lamp illuminates.
Check that the luggage compartment lamp illumi-
nates normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure M-1 "The
interior lamps (room ramp, luggage
compartment lamp) does not illuminate or
extinguish normally

P.54B-183

."

Step 2. Connector check: C-04 room lamp
connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the bulb.
Check whether the room lamp bulb is normal.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the bulb(s) of the defective lamp.

Step 4. Check the room lamp.
Check whether the room lamp is normal.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the room lamp.

Step 5. Determine a trouble spot.

Q: Which switch position (DOOR or ON) does the

room lamp illuminate at?
The lamp illuminates at neither the ON or DOOR
position.  :

Go to Step 6.

The lamp illuminates at the DOOR position. :

Go to

Step 7.

The lamp illuminates at the ON position. :

Go to

Step 9.

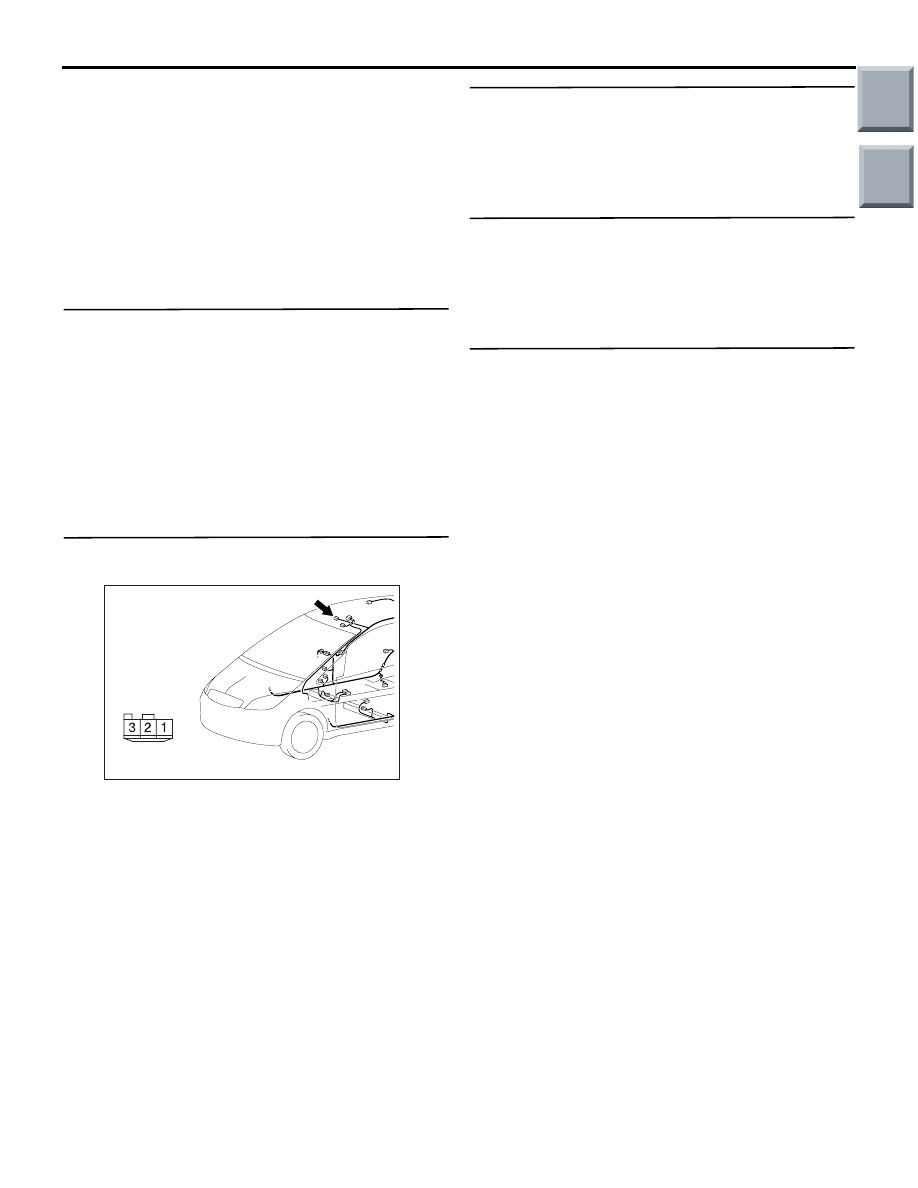

AC401057

Connector: C-04

Harness side

AC

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-190

Step 6. Check the wiring harness from C-04 room
lamp connector terminal No.3 to fusible link (1).

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-02 and junction block connector
B-108 and B-113 repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 7. Connector check: B-134 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

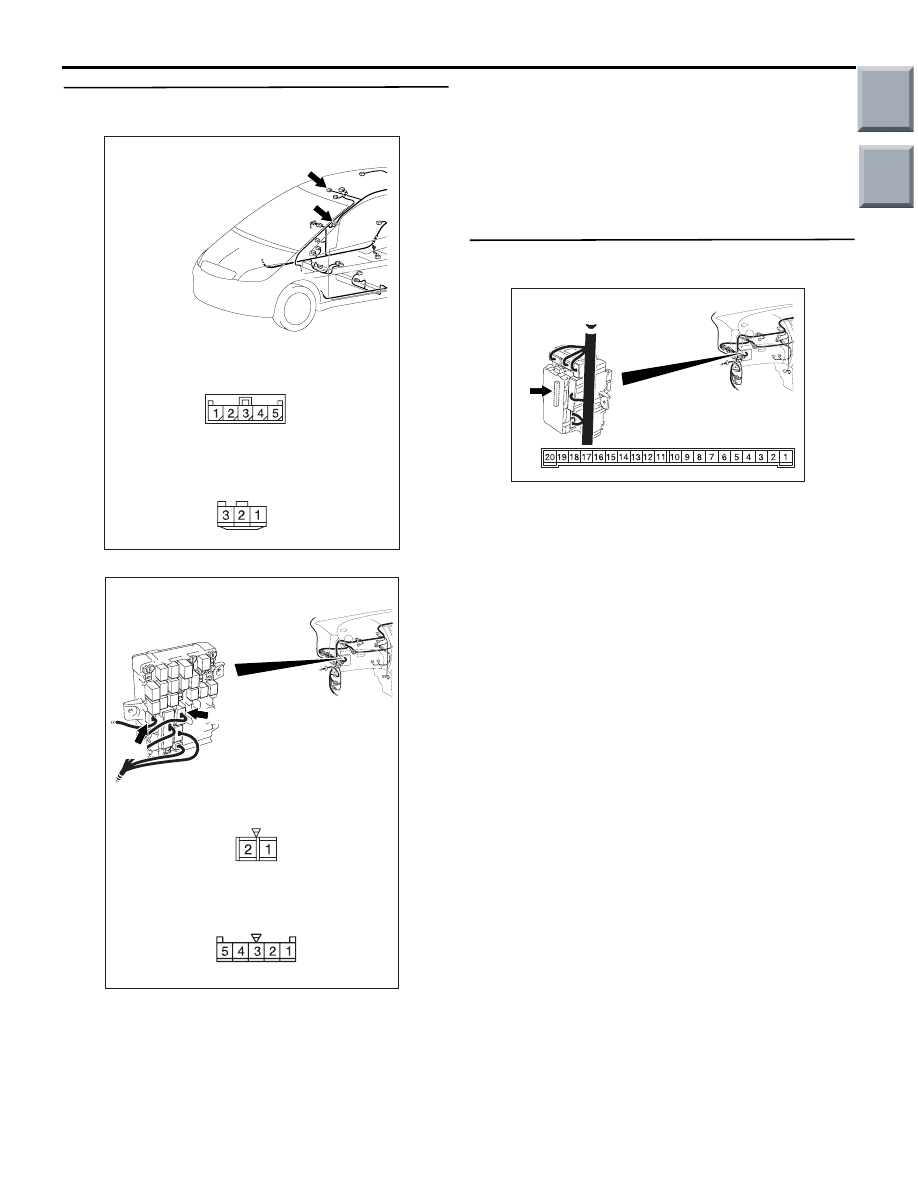

AC401058

Connectors: C-02, C-04

Harness side

AB

C-02

C-04

C-02

C-04

AC313825 AB

Connectors: B-108, B-113

Junction Block (Front view)

B-113

B-108 (B)

Harness side

B-108

Harness side

B-113

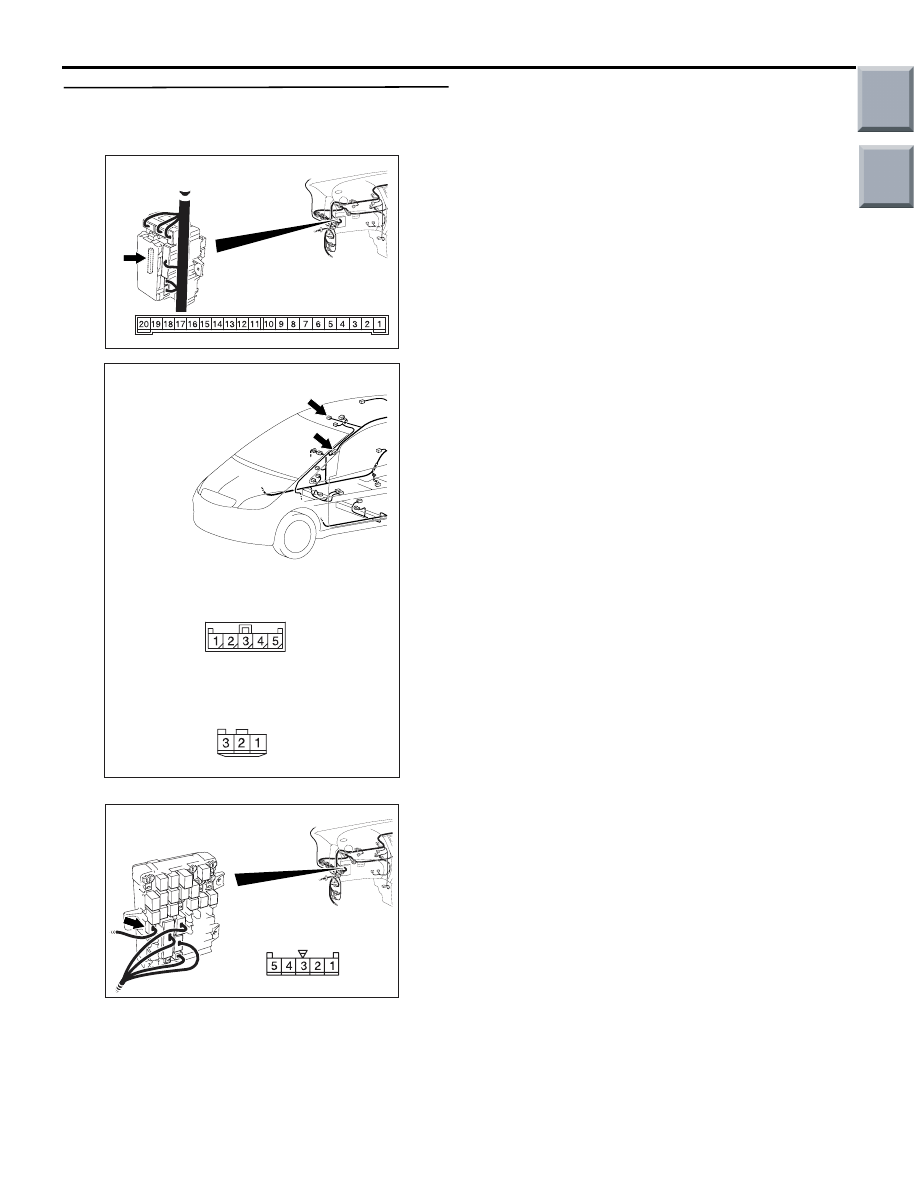

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-191

Step 8. Check the wiring harness from B-134
ETACS-ECU connector terminal No.18 to C-04
room lamp connector terminal No.1

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-02 and junction block connector
B-113 repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC401058

Connectors: C-02, C-04

Harness side

AB

C-02

C-04

C-02

C-04

AC313824

Harness side

AB

Connector: B-113

Junction block (Front view)

Main

Index

Group

TOC
