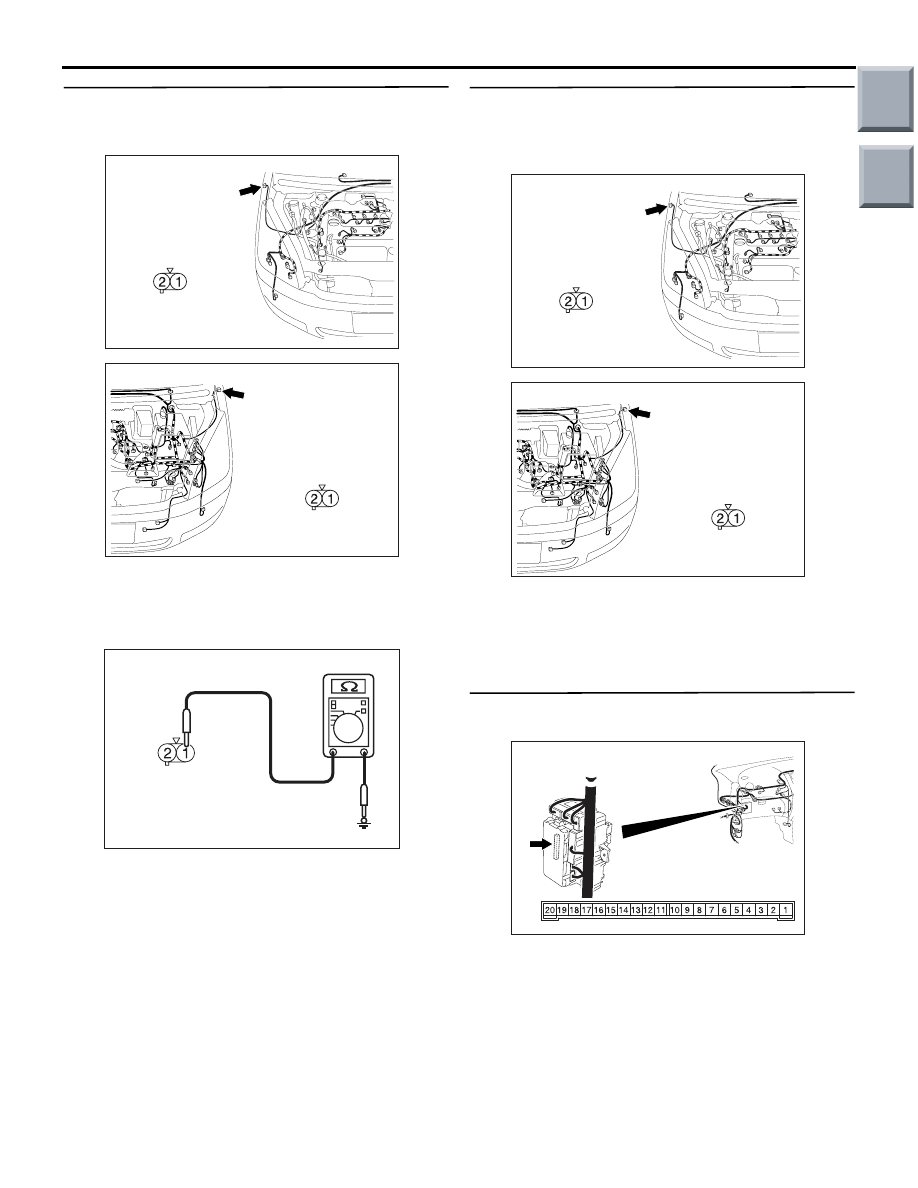

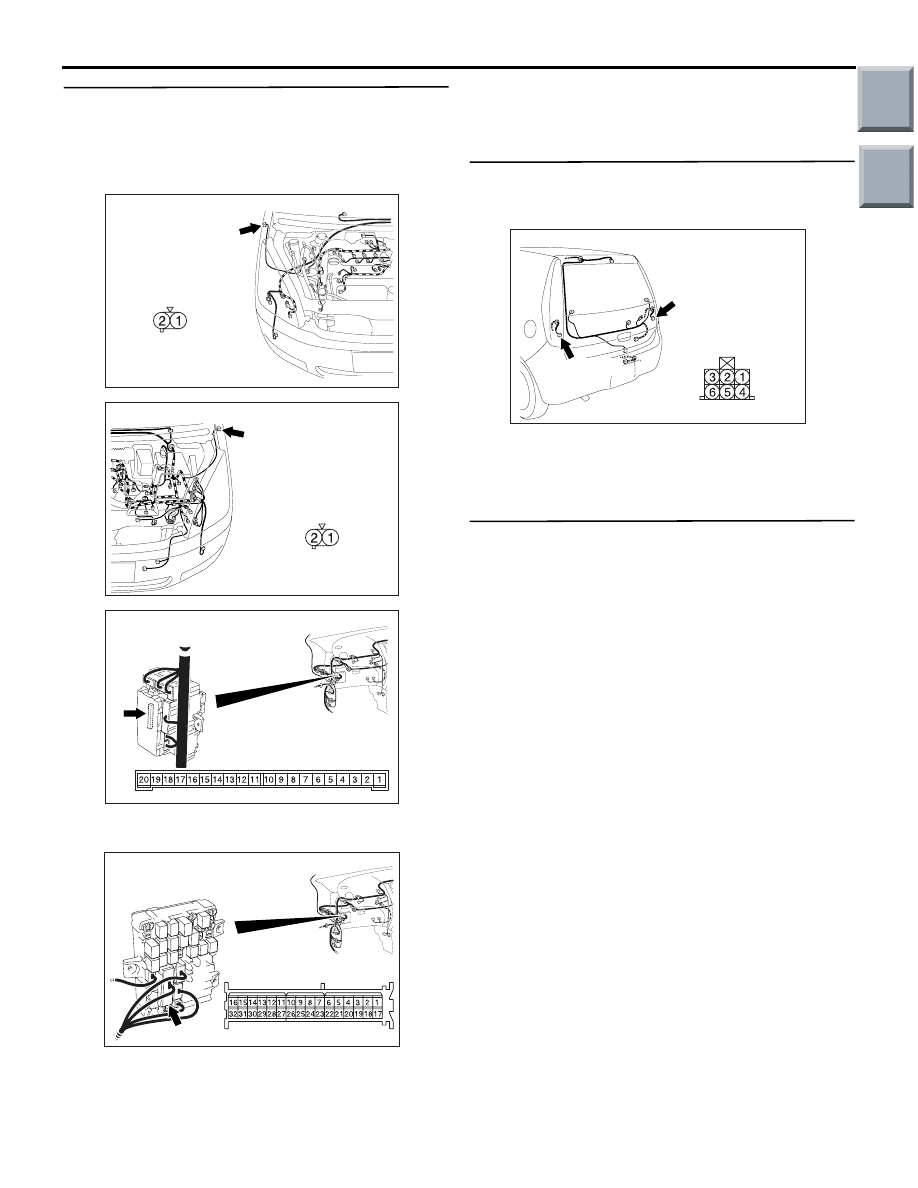

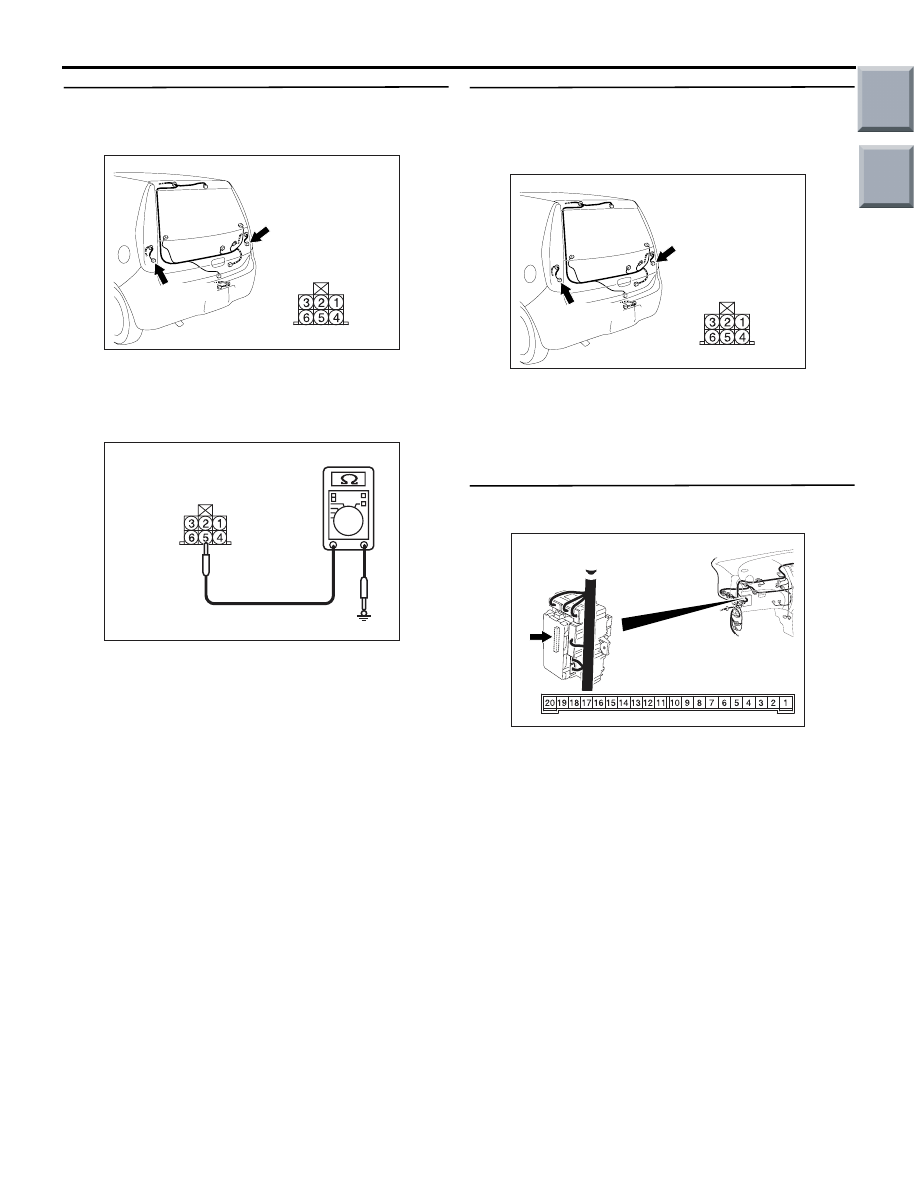

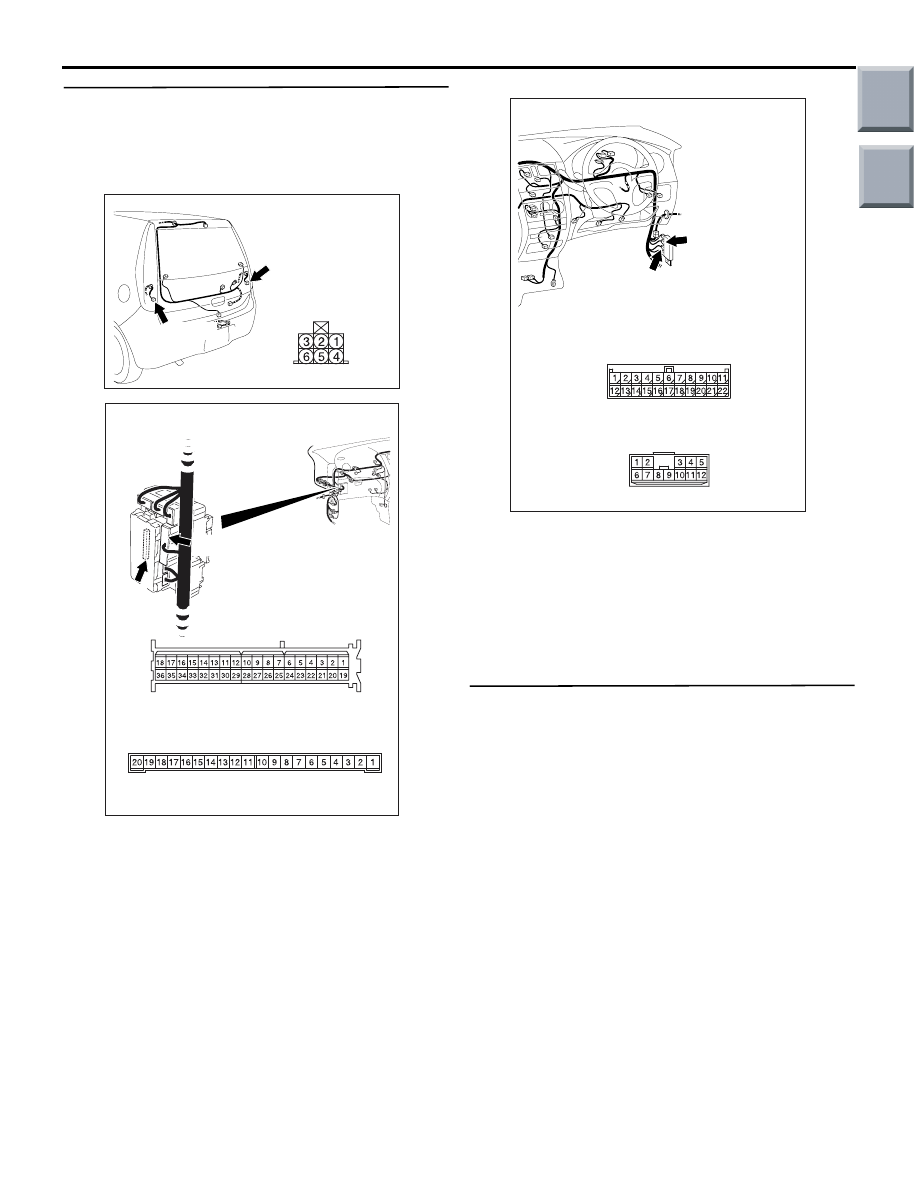

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR 54B-176 Step 10. Resistance measurement at A-01 <side (1) Disconnect the connector, and measure at the wiring harness side. (2) Measure the resistance between the defective lamp connector terminal and body earth. • Resistance between A-01 <side turn-signal lamp (RH)> connector or A-07 <side turn-signal OK: Continuity exists (2 Ω or less) Q: Is the check result normal? YES : Go to Step 12. NO : Go to Step 11. Step 11. Check the wiring harness from A-01 • Check the earth wires for open circuit. Q: Is the check result normal? YES : Go to Step 12. NO : Repair the wiring harness. Step 12. Connector check: B-134 ETACS-ECU Q: Is the check result normal? YES : Go to Step 13. NO : Repair the defective connector. AC313797AE A-01 (GR) Connector: A-01 Harness side AC313811AJ A-07 (GR) Connector: A-07 Harness side AC310506 ED Connectors A-01, A-07 AC313797AE A-01 (GR) Connector: A-01 Harness side AC313811AJ A-07 (GR) Connector: A-07 Harness side AC313826 Connector: B-134 AG Junction block side Junction block (Rear view) Main Index Group TOC |
