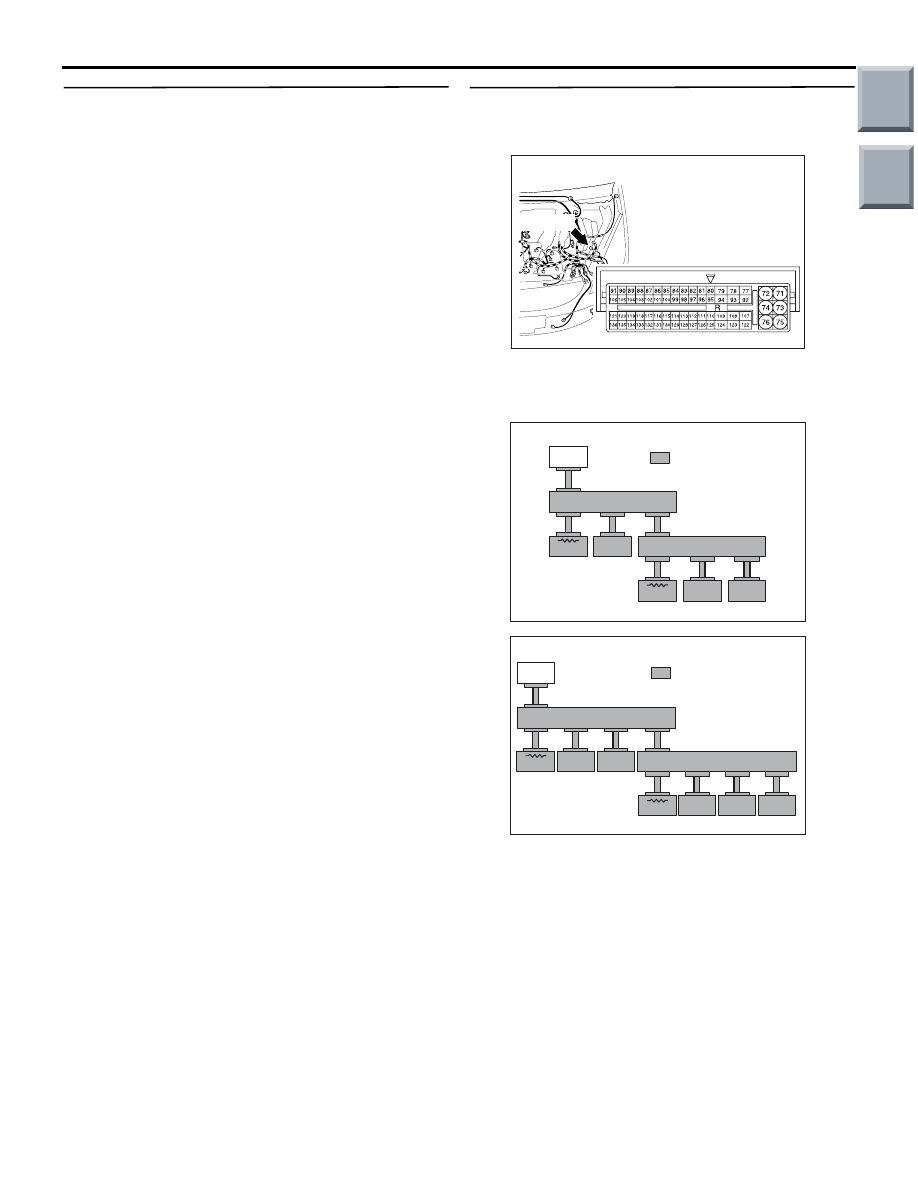

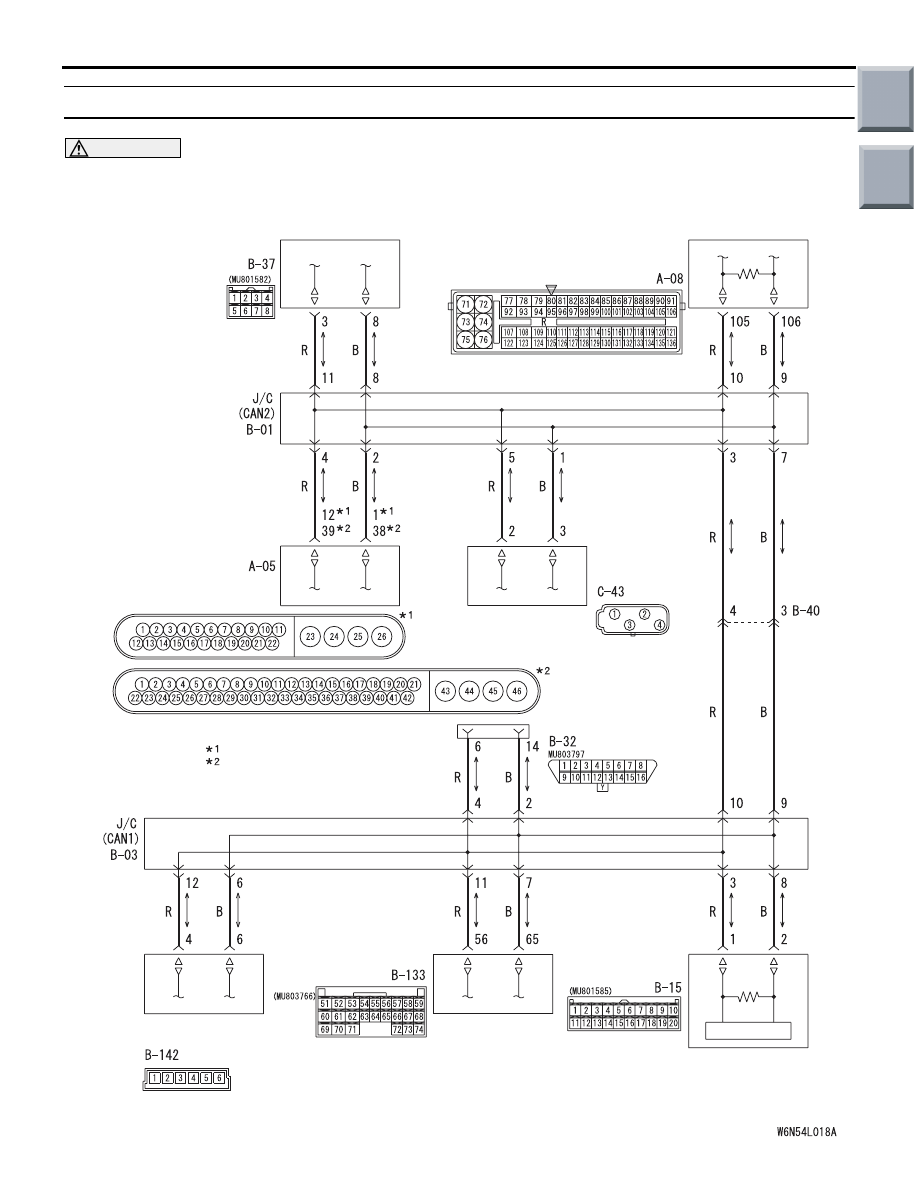

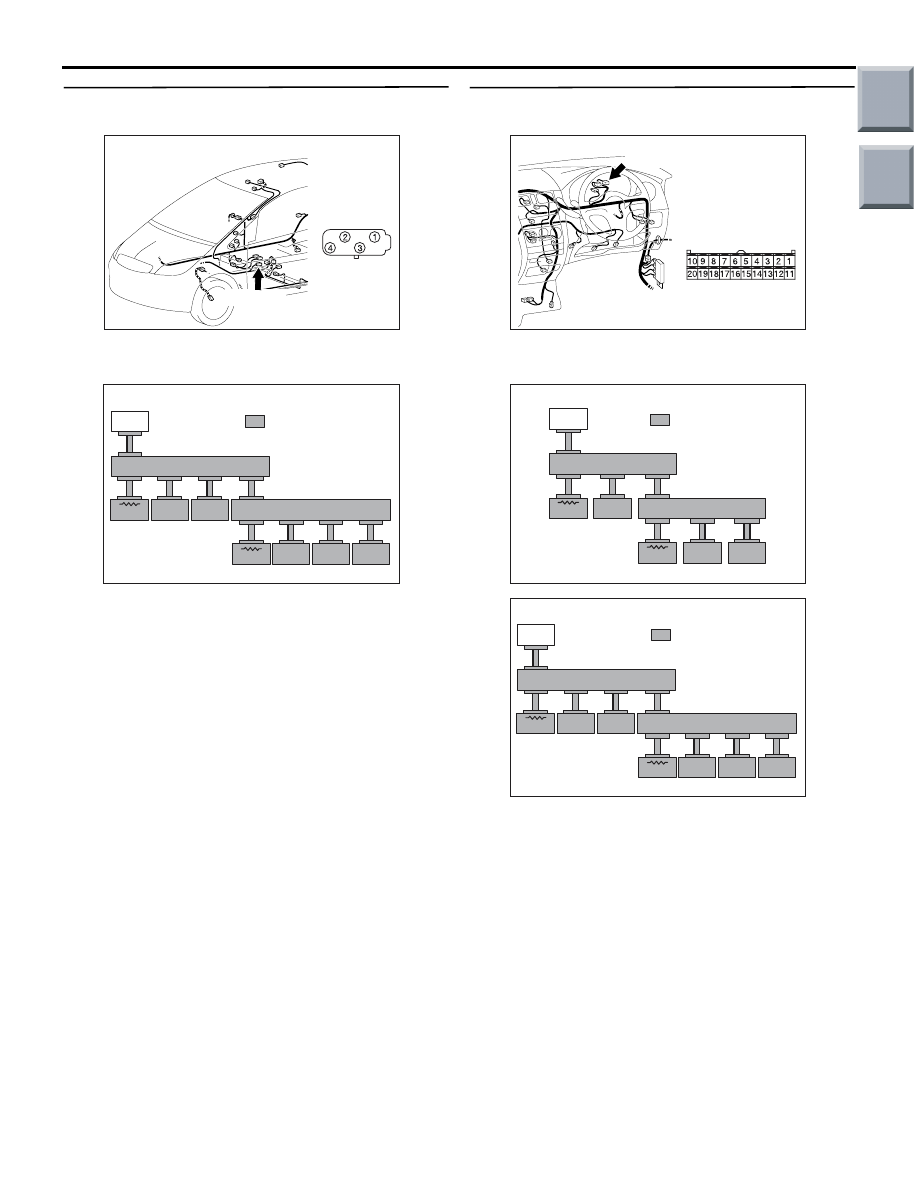

TROUBLESHOOTING CONTROLLER AREA NETWORK (CAN) 54D-45 STEP 9. M.U.T.-III CAN bus diagnostics (C-43 G AC601064 AB C-43 (B) Connector: C-43 Harness side (1) Disconnect the G and yaw rate sensor connector, and diagnose by using the M.U.T.-III. AC206268AK <Vehicles with ASC> METER/AC ETACS SAS M.U.T. J/C(1) J/C(2) ASC EPS YR/G ENG/CVT : Red section on screen (2) Check that the M.U.T.-III indications correspond to the illustration. Q: Is the check result normal? YES : <M.U.T.-III indications correspond to the illustration> Repair the wiring harness NO : <M.U.T.-III indications do not correspond to − Troubleshooting STEP 10. M.U.T.-III CAN bus diagnostics (B-15 AC401055 AE Connector: B-15 B-15 (B) Harness side (1) Disconnect the combination meter connector, and diagnose by using the M.U.T.-III. AC206268AJ <Vehicles without ASC> METER/AC ETACS M.U.T. J/C(1) J/C(2) ABS EPS ENG/CVT : Red section on screen AC206268AK <Vehicles with ASC> METER/AC ETACS SAS M.U.T. J/C(1) J/C(2) ASC EPS YR/G ENG/CVT : Red section on screen (2) Check that the M.U.T.-III indications correspond to the illustration. Q: Is the check result normal? YES : <M.U.T.-III indications correspond to the illustration> Go to Step 12. NO : <M.U.T.-III indications do not correspond to Main Index Group TOC |
