TORQUE SPECIFICATIONS

ENGINE OVERHAUL <4A9>

11B-4

TORQUE SPECIFICATIONS

M1113023401788

Cylinder bore mm

75

−

Cylindrically mm

0.007 or less

−

Piston to cylinder clearance mm

0.010

− 0.035

−

Item

Standard value

Limit

Items

N

⋅m

ALTERNATOR AND IGNITION SYSTEM
Spark plugs

25

± 5

Ignition coil bolt

8.4

± 0.6

Tensioner pulley bolts

49

± 9

Crankshaft pulley bolts

190

Water pump pulley bolts

8.4

± 0.65

Adjust bolt

5.0

± 1.0

Alternator brace bolt (M6)

Hexagon bolts

11

± 1

Torx bolts

8.4

± 0.6

Alternator brace bolt (M10)

36.0

± 3.6

Alternator nut (M8)

22.5

± 2.5

Alternator nut (M10)

47

± 5

Oil level gauge guide bolt

7.6

± 0.6

FUEL AND EMISSION PARTS
Delivery pipe and injector assembly bolts

18.4

± 1.4

Manifold absolute pressure (MAP) sensor bolts

6.0

± 0.5

Throttle body bolts

6.0

± 0.5

Solenoid valve nut

7.6

± 0.6

Engine hanger bolts

18.4

± 1.4

INLET MANIFOLD
Water inlet pipe bolt

7.6

± 0.6

Water inlet fitting bolts

8.4

± 0.65

Engine coolant temperature sensor

29.4

± 9.8

Crank angle sensor bolts

8.4

± 0.6

Camshaft position bolt

8.4

± 0.6

Detonation sensor bolt

20

± 1

Oil pressure switch bolts

10

± 2

Inlet manifold bolts

13.4

± 6.4

EGR pipe nuts

18

± 1

EGR pipe bolts

7.6

± 0.6

Special bolts

13.4

± 6.4

Main

Index

Group

TOC

TORQUE SPECIFICATIONS

ENGINE OVERHAUL <4A9>

11B-5

Inlet manifold stay bolts

13.4

± 6.4

Inlet manifold stay nuts

13.4

± 6.4

EXHAUST MANIFOLD
Exhaust manifold bracket A bolts

20

± 1.6

Exhaust manifold bracket B bolts

34.5

± 6.5

Exhaust manifold nuts

35

± 2

Heat protector bolts

6.0

± 1.0

OIL PAN AND TIMING CHAIN CASE
Timing chain case bolts (M10)

39.5

± 3.0

Timing chain case bolts (M6)

8.4

± 0.6

Water pump bolts

8.4

± 0.6

Cover bolts

8.4

± 0.6

Oil screen bolts

11.5

± 1.1

Oil pan bolts

9.5

± 0.5

Cylinder head cover bolts

9.0

± 1.0

Oil filter bracket bolts

20

± 1

Drain plug

39

± 5

TIMING CHAIN
V.V.T. sprocket bolt

64.9

± 5.9

Camshaft sprocket bolts

88

± 10

Tensioner lever assembly bolt

23.5

± 4.5

Chain guide assembly bolt

10

± 2

Timing chain tensioner assembly bolt

8.4

± 0.6

CAMSHAFT
Oil feeder control valve (OCV) bolts

7.6

± 0.6

Oil feeder control valve (OCV) filter bolts

44

± 5

Camshaft bearing cap bolts (M6)

11

± 1

Camshaft bearing cap bolts (M8)

20

± 1

CYLINDER HEAD AND VALVES
Cylinder head bolts

24.5

± 2.0 → +180° to 184°

PISTON AND CONNECTING ROD
Connecting rod cap bolts

15

± 2 → +90° to 94°

CRANKSHAFT AND CYLINDER BLOCK
Crankshaft sensing ring screw

9.0

± 1.0

Bearing cap bolts

35

± 2 → +60° to 64°

Oil seal case bolts

7.6

± 0.6

Bell housing cover bolts

6.7

± 1.3

Drive plate bolts

100

± 5

Flywheel bolts

100

± 5

Items

N

⋅m

Main

Index

Group

TOC

SEALANTS

ENGINE OVERHAUL <4A9>

11B-6

SEALANTS

M1113000500888

Application points

Specified sealant

Cylinder block rear oil seal mounting face

LOCTITE 5971 or exact equivalent

Balancer shaft side cover

LOCTITE 5971 or exact equivalent

Oil pan

LOCTITE 5971 or exact equivalent

Cylinder head cover

LOCTITE 5971 or exact equivalent

Timing chain case

LOCTITE 5971 or exact equivalent

Cylinder block crank angle sensor mounting face

LOCTITE 5971 or exact equivalent

Drine plate bolt

LOCTITE 2701 or equivalent

Oil pressure switch

LOCTITE 565 or equivalent

Engine coolant temperature sensor

LOCTITE 262 or equivalent

FORM-IN-PLACE GASKET (FIPG)

The engine has several areas where the
form-in-place gasket (FIPG) is in use. To ensure that
the gasket fully serves its purpose, it is necessary to
observe some precautions when applying the gas-
ket.
Bead size, continuity and location are of paramount
importance. Too thin a bead could cause leaks. Too
thick a bead, on the other had, could be squeezed
out of location, causing blocking or narrowing of the
fluid feed line. To eliminate the possibility of leaks
from a joint, therefore, it is absolutely necessary to
apply the gasket evenly without a break, while
observing the correct bead size.
Since the FIPG used in the engine is hardens as it
reacts with the moisture in the atmospheric air, it is
normally used in the metallic flange areas.

Disassembly

The parts assembled with the FIPG can be easily
disassembled without use of a special method. In
some cases, however, the sealant between the
joined surfaces may have to be broken by lightly
striking a part with a mallet or similar tool. A flat and
thin gasket scraper may be lightly hammered in
between the joined surfaces. In this case, however,
care must be taken to prevent damage to the joined
surfaces.

Surface Preparation

Thoroughly remove all substances deposited on the
gasket application surfaces, using a gasket scraper
or wire brush. Check to ensure that the surfaces to
which the FIPG is to be applied is flat. Make sure that
there are no oils, greases and foreign substances
deposited on the application surfaces. Do not forget
to remove the old gasket remaining in the bolt holes.

Application

Apply FIPG as a bead of the specified size without
breaks. Be sure to encircle the bolt hole circumfer-
ence with a completely continuous bead. The FIPG
can be wiped away unless it is hardened. While the
FIPG is still moist (in less than 3 minutes), mount the
parts in position. When the parts are mounted, make
sure that the gasket is applied to the required area
only. Never apply oil or water on the FIPG nor start
the engine until a sufficient time (approx. 2 hours)
has passed. The FIPG application procedure may
vary on different areas. Observe the procedure
described in the text when applying the FIPG.

Main

Index

Group

TOC

SPECIAL TOOLS

ENGINE OVERHAUL <4A9>

11B-7

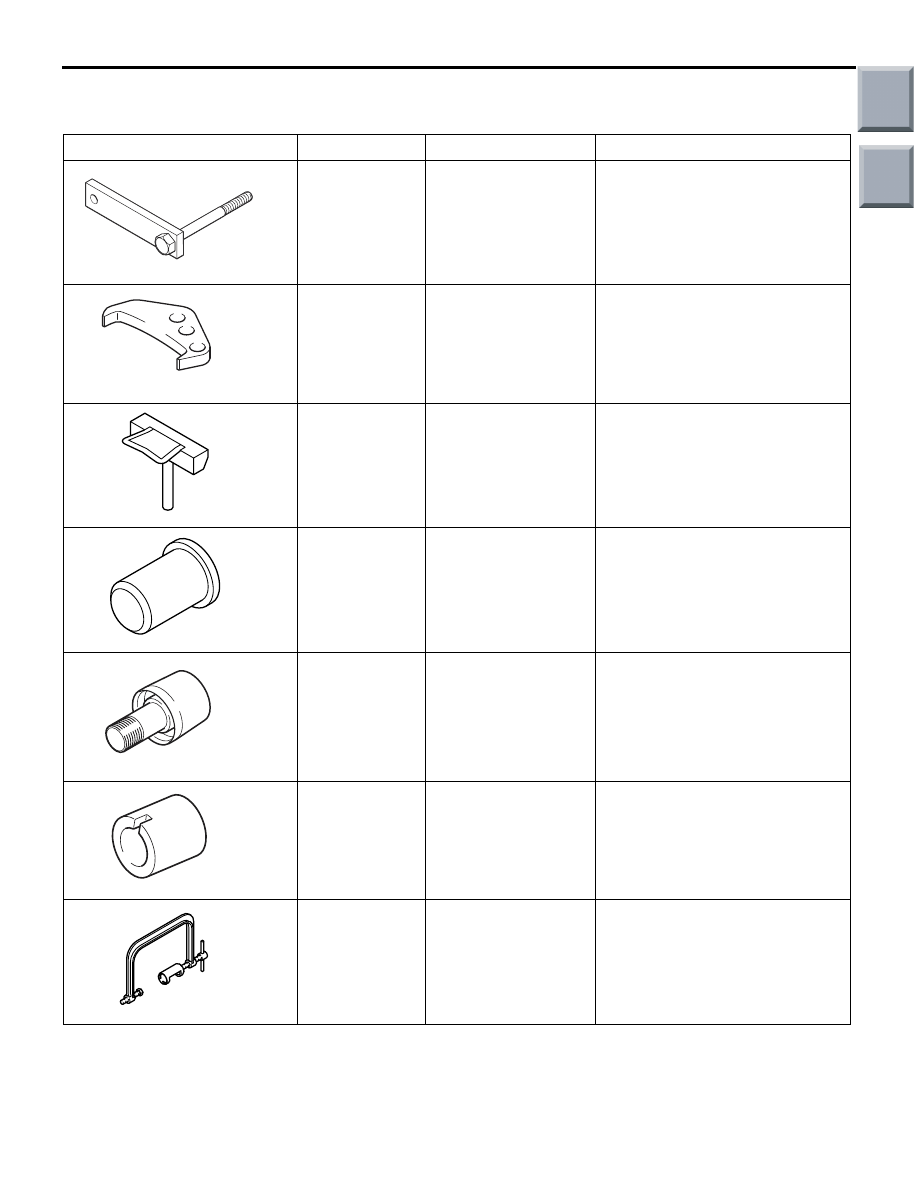

SPECIAL TOOLS

M1113000601628

Tool

Number

Name

Use

D998781

MD998781

Flywheel stopper

Retention of flywheel

MB991883

MB991883

Flywheel stopper

Retention of flywheel

D998727

MD998727

Oil pan remover

Removal of oil pan

MB990699

Differential oil seal
installer

Installation of front oil seal

B991993

MB991993

Crankshaft front oil
seal guide

Installation of chain case

B992000

MB992000

Crankshaft adapter

Turn the crankshaft

D999597

MD999597

Valve spring
compressor

Compression of valve spring
