Mitsubishi Colt Ralliart. Manual - part 259





REAR AXLE HUB ASSEMBLY

REAR AXLE

27-8

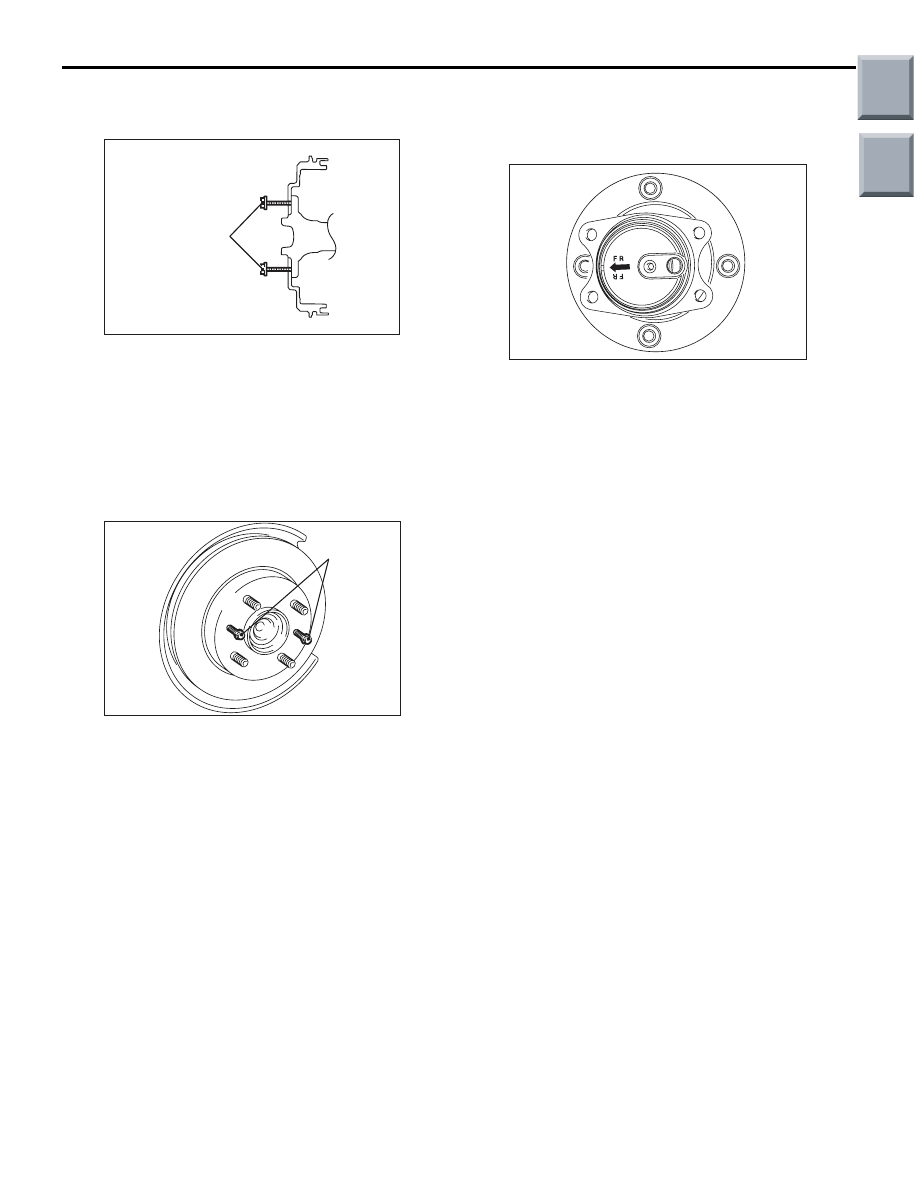

REMOVAL SERVICE POINTS
<<A>>BRAKE DRUM REMOVAL

AC207894 AC

Bolts
(M8×1.25)

If the brake drum is seized, install M8

× 1.25 bolts as

shown, and remove the drum by tightening the bolts
evenly and gradually.

<<B>>CALIPER ASSEMBLY REMOVAL

Secure the removed caliper assembly with wire, etc.

<<C>>BRAKE DISC REMOVAL

AC311433 AC

Bolts
(M8 × 1.25)

If the brake disc is seized, install M8

× 1.25 bolts as

shown, and remove the drum by tightening the bolts
evenly and gradually. <4A9>

INSTALLATION SERVICE POINT
>>A<<REAR HUB ASSEMBLY INSTALLA-
TION

AC401302

Direct the arrow mark forward, and install the rear
hub assembly.

INSPECTION

M1271002100281

• Check the rear hub assembly for crack or dam-

age.

Main

Index

Group

TOC

GROUP 11B

ENGINE OVERHAUL

<4A9>

CONTENTS

GENERAL INFORMATION . . . . . . . .

11B-2

GENERAL SPECIFICATIONS . . . . . .

11B-2

SERVICE SPECIFICATIONS. . . . . . .

11B-2

TORQUE SPECIFICATIONS . . . . . . .

11B-4

SEALANTS  . . . . . . . . . . . . . . . . . . . .

11B-6

SPECIAL TOOLS. . . . . . . . . . . . . . . .

11B-7

ALTERNATOR AND IGNITION



SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

11B-9

REMOVAL AND INSTALLATION . . . . . . . .

11B-9

FUEL AND EMISSION PARTS . . . . .

11B-11

REMOVAL AND INSTALLATION . . . . . . . .

11B-11

INLET MANIFOLD . . . . . . . . . . . . . . .

11B-13

REMOVAL AND INSTALLATION . . . . . . . .

11B-13

EXHAUST MANIFOLD. . . . . . . . . . . .

11B-17

REMOVAL AND INSTALLATION . . . . . . . .

11B-17

OIL PAN AND TIMING CHAIN



CASE. . . . . . . . . . . . . . . . . . . . . . . . . .

11B-19

REMOVAL AND INSTALLATION  . . . . . . . .

11B-19

TIMING CHAIN . . . . . . . . . . . . . . . . . .

11B-24

REMOVAL AND INSTALLATION  . . . . . . . .

11B-24

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-27

CAMSHAFT  . . . . . . . . . . . . . . . . . . . .

11B-29

REMOVAL AND INSTALLATION  . . . . . . . .

11B-29

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-32

CYLINDER HEAD AND VALVES. . . .

11B-33

REMOVAL AND INSTALLATION  . . . . . . . .

11B-33

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-35

PISTON AND CONNECTING ROD  . .

11B-37

REMOVAL AND INSTALLATION  . . . . . . . .

11B-37

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-43

CRANKSHAFT AND CYLINDER



BLOCK . . . . . . . . . . . . . . . . . . . . . . . .

11B-44

REMOVAL AND INSTALLATION  . . . . . . . .

11B-44

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11B-50

Main

Index

Group

TOC

GENERAL INFORMATION

ENGINE OVERHAUL <4A9>

11B-2

GENERAL INFORMATION

M1113000100976

Vehicle name

Vehicle
model

Engine model

Displacement
mL

Specification

Colt

Z23A

4A91

1,499

Double overhead camshaft, 16-valve

GENERAL SPECIFICATIONS

M1113000200962

Item

4A91

Total displacement mL

1,499

Bore

× stroke mm

75.0

× 84.8

Compression ratio

10.0

Combustion chamber

Pentroof type

Camshaft arrangement

DOHC

Number of valve

Intake

2

Exhaust

2

Valve timing

Intake opening

BTDC 31

° − ATDC 19°

Intake closing

ABDC 21

° − ABDC 71°

Exhaust opening

BBDC 39

°

Exhaust closing

ATDC 5

°

Fuel system

Electronically controlled multipoint fuel injection

Rocker arm

None

Auto-lash adjuster

None

SERVICE SPECIFICATIONS

M1113000301014

Item

Standard value

Limit

TIMING CHAIN
Valve clearance mm

Intake

0.22

Exhaust

0.30

CAMSHAFT
Cam height mm

Intake

44.71

44.21

Exhaust

44.28

43.78

CYLINDER HEAD AND VALVES
Cylinder head bottom face distortion mm

0.03 or less

0.2

Cylinder head bottom surface grinding limit (Total resurfacing
depth of both cylinder head and cylinder block) mm

0.2

Cylinder head overall height mm

112.9

− 113.1

Main

Index

Group

TOC

SERVICE SPECIFICATIONS

ENGINE OVERHAUL <4A9>

11B-3

Valve margin mm

Intake

1.35

0.85

Exhaust

1.85

1.35

Valve stem outside diameter mm

Intake

4.965

− 4.980

Exhaust

4.955

− 4.970

Valve face angle

45

°− 45.5°

Valve stem-to-guide clearance mm

Intake

0.020

− 0.047

0.10

Exhaust

0.030

− 0.057

0.15

Valve length mm

Intake

89.61

89.11

Exhaust

90.94

90.44

Valve stem protrusion mm

Intake

38.46

38.96

Exhaust

38.49

38.99

Valve spring free length mm

43.1

42.1

Valve spring load / installed height N/mm

152/33.4

Valve spring out-of-squareness

2

° or less

4

°

Valve seat contact width mm

1.1

− 1.5

Valve guide inside diameter mm

5.000

− 5.012

Valve guide installed height mm

7.9

− 8.3

PISTON AND CONNECTING ROD
Piston outer diameter mm

75

Piston ring to ring groove clearance mm

No. 1

0.03

− 0.07

0.1

No. 2

0.02

− 0.06

0.1

Piston ring end gap mm

No. 1

0.15

− 0.30

0.8

No. 2

0.20

− 0.40

0.8

Oil ring

0.10

− 0.40

1.0

Piston pin outer diameter mm

18

Piston pin press-fitting load (at room temperature) N

5,000

− 11,000

Crankshaft pin oil clearance mm

0.014

− 0.059

0.1

Connecting rod big end thrust clearance mm

0.10

− 0.35

0.4

CRANKSHAFT AND CYLINDER BLOCK
Crankshaft end play mm

0.09

− 0.27

0.3

Crankshaft journal outer diameter mm

46

Crankshaft pin outer diameter mm

40

Crankshaft journal oil clearance mm

0.014

− 0.034

0.1

Cylinder block top surface distortion mm

0.05

0.1

Cylinder block top face grinding limit (Total resurfacing depth of
both cylinder head and cylinder block) mm

0.2

Cylinder block overall height mm

280

Item

Standard value

Limit
