ON-VEHICLE SERVICE

REAR AXLE

27-4

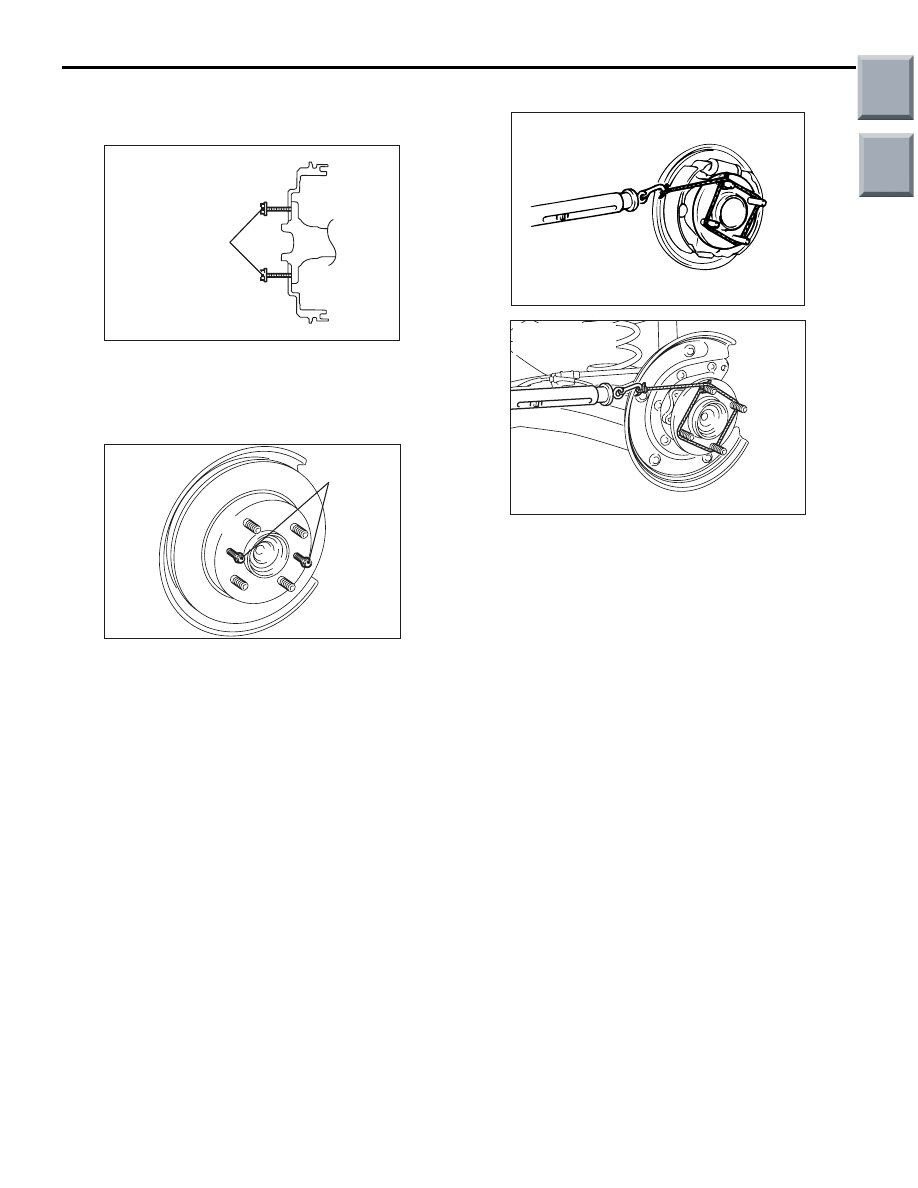

WHEEL BEARING ROTARY-SLIDING
RESISTANCE CHECK

M1271001100448

AC207894 AC

Bolts
(M8×1.25)

1. For vehicles with rear drum brake, remove the

brake drum. If the brake drum is seized, install M8
× 1.25 bolts as shown, and remove the drum by
tightening the bolts evenly and gradually.

AC311433 AC

Bolts
(M8 × 1.25)

2. For vehicles with rear disc brake, remove the

caliper assembly, and suspend the caliper
assembly with a wire and remove the brake disc.
If the brake disc is seized, install M8

× 1.25 bolts

as shown, and remove the disc by tightening the
bolts evenly and gradually. <4A9>

3. Turn the hub a few times to seat the bearing.

AC208744 AC

Vehicles with
rear drum brake

AC302113

AC311431AB

Vehicles with
rear disc brake

4. Wind a rope around the hub bolt and turn the hub

by pulling at a 90

° angle with a spring balance.

Measure to determine whether or not the
rotary-sliding resistance of the wheel bearing is
within the limit value.

Limit: 19 N or less

5. If the measured value is exceeded the limit value,

replace the rear hub assembly.

Main

Index

Group

TOC

ON-VEHICLE SERVICE

REAR AXLE

27-5

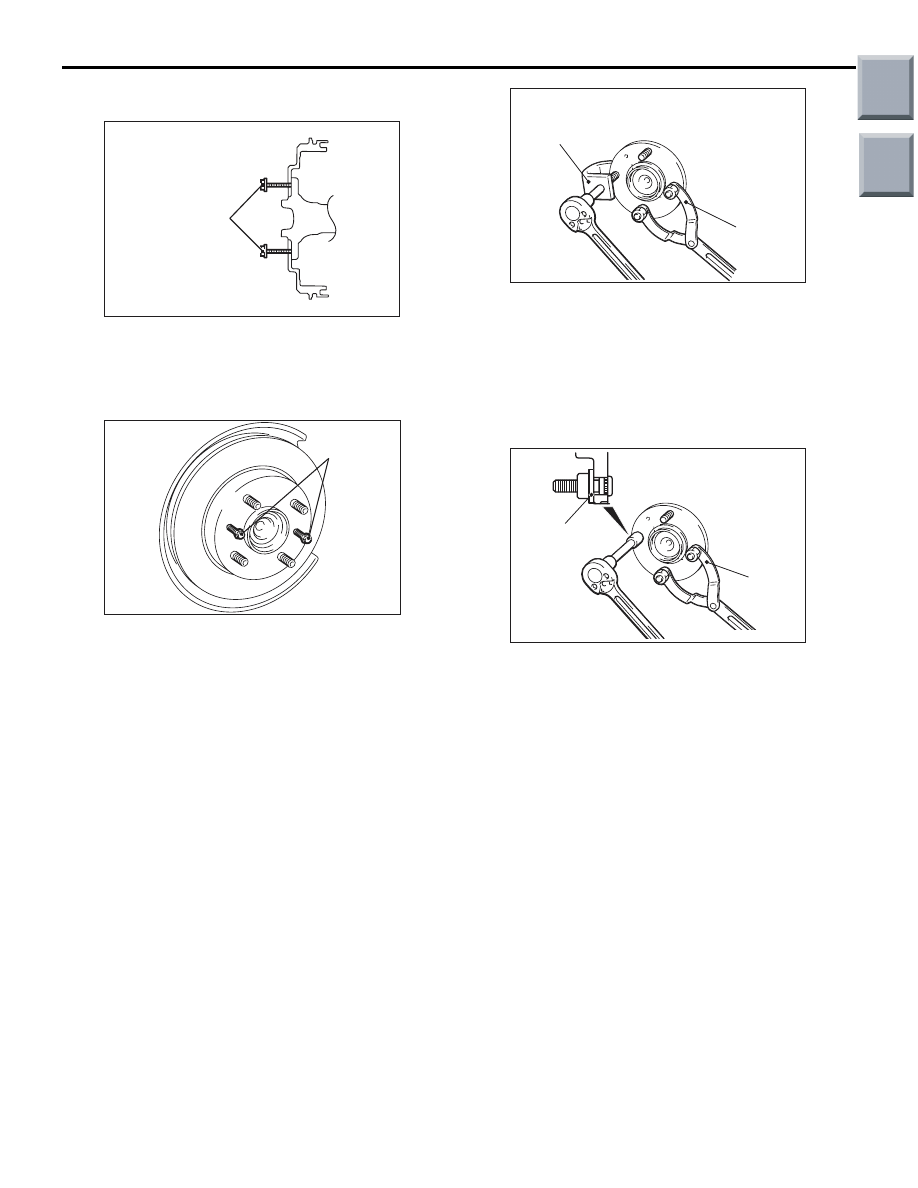

HUB BOLT REPLACEMENT

M1271001000452

AC207894 AC

Bolts
(M8×1.25)

1. For vehicles with rear drum brake, remove the

brake drum. If the brake drum is seized, install M8
× 1.25 bolts as shown, and remove the drum by
tightening the bolts evenly and gradually.

AC311433 AC

Bolts
(M8 × 1.25)

2. For vehicles with rear disc brake, remove the

caliper assembly, and suspend the caliper
assembly with a wire and remove the brake disc.
If the brake disc is seized, install M8

× 1.25 bolts

as shown, and remove the disc by tightening the
bolts evenly and gradually. <4A9>

AC301662

AC311414

MB990767

MB991618

AB

3. Use the following special tools to remove the hub

bolts.

• Front hub & flange yoke holder (MB990767)

• Hub bolt remover (MB991618)

NOTE: To retain a space for removing the hub
bolts, remove them near the place shown in the
illustration.

AC301663

AC311415

MB990767

AB

Plain
washer

4. Install the plain washer to the new hub bolt, and

install the bolt with a nut.

Main

Index

Group

TOC

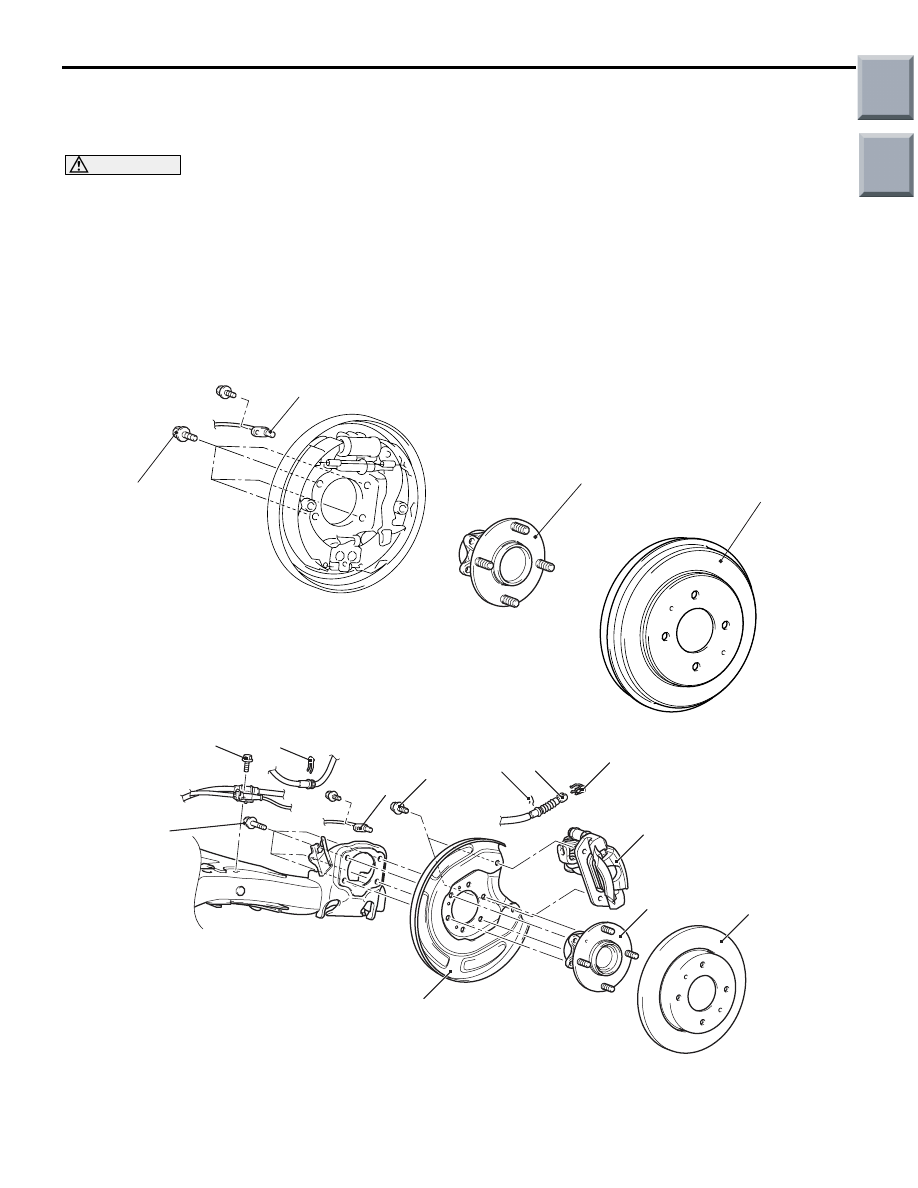

REAR AXLE HUB ASSEMBLY

REAR AXLE

27-6

REAR AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

M1271002000778

CAUTION

• Do not disassemble the rear hub assembly.
• The magnetic encoder collects any metallic particle easily, because it is magnetized. Make sure

that the magnetic encoder should not collect any metallic particle. Check that there is not any
trouble prior to reassembling it.

• When the rear hub assembly is removed and installed, make sure that the magnetic encoder does

not contact with surrounding parts to avoid damage.

•

AC505145 AE

10

1

100 ± 10 N·m

2

<Vehicles with
rear drum brake>

AC402425AG

100 ± 10 N·m

1

3

6

60 ± 5 N·m

4

5

<Vehicles with
rear disc brake-
4A9>

9

7

8

10

11

When the rear wheel speed sensor is removed and installed, make sure that its pole piece does
not contact with surrounding parts to avoid damage.

Main

Index

Group

TOC

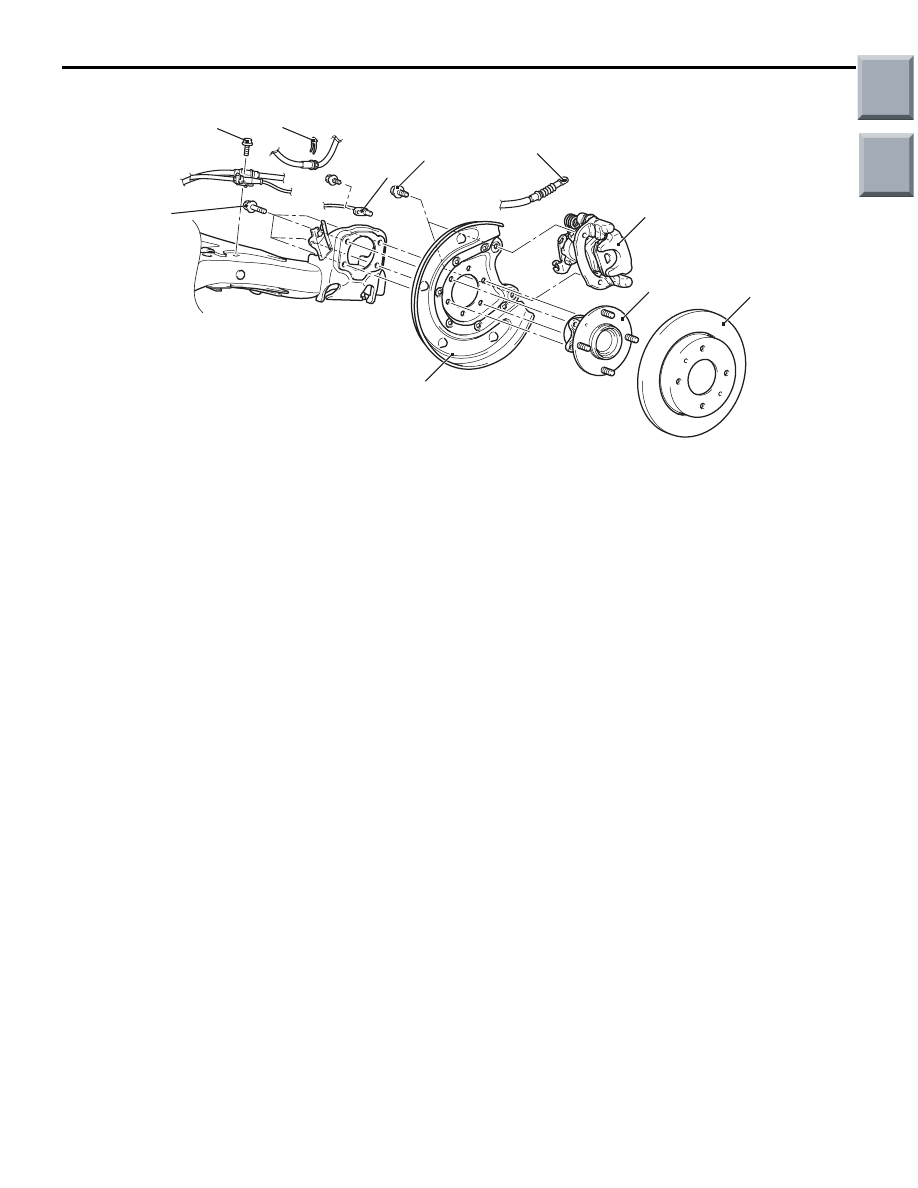

AC511711AF

69 ± 7 N·m

1

3

6

60 ± 5 N·m

<Vehicles with
rear disc brake-
4G1>

9

7

8

10

11

Removal steps

1.

Rear wheel speed sensor

<<

A

>>

2.

Brake drum

3.

Bolt

4.

Clip <Vehicles with rear disc brake
- 4A9>

5.

Cable retainer <Vehicles with rear
disc brake - 4G1>

6.

Parking brake cable and caliper
assembly connection

7.

Brake hose clamp <Vehicles with
rear disc brake>

<<

B

>>

8.

Caliper assembly

<<

C

>>

9.

Brake disc

>>

A

<< 10. Rear hub assembly

11. Disc brake adapter assembly

REAR AXLE HUB ASSEMBLY

REAR AXLE

27-7

Removal steps (Continued)
