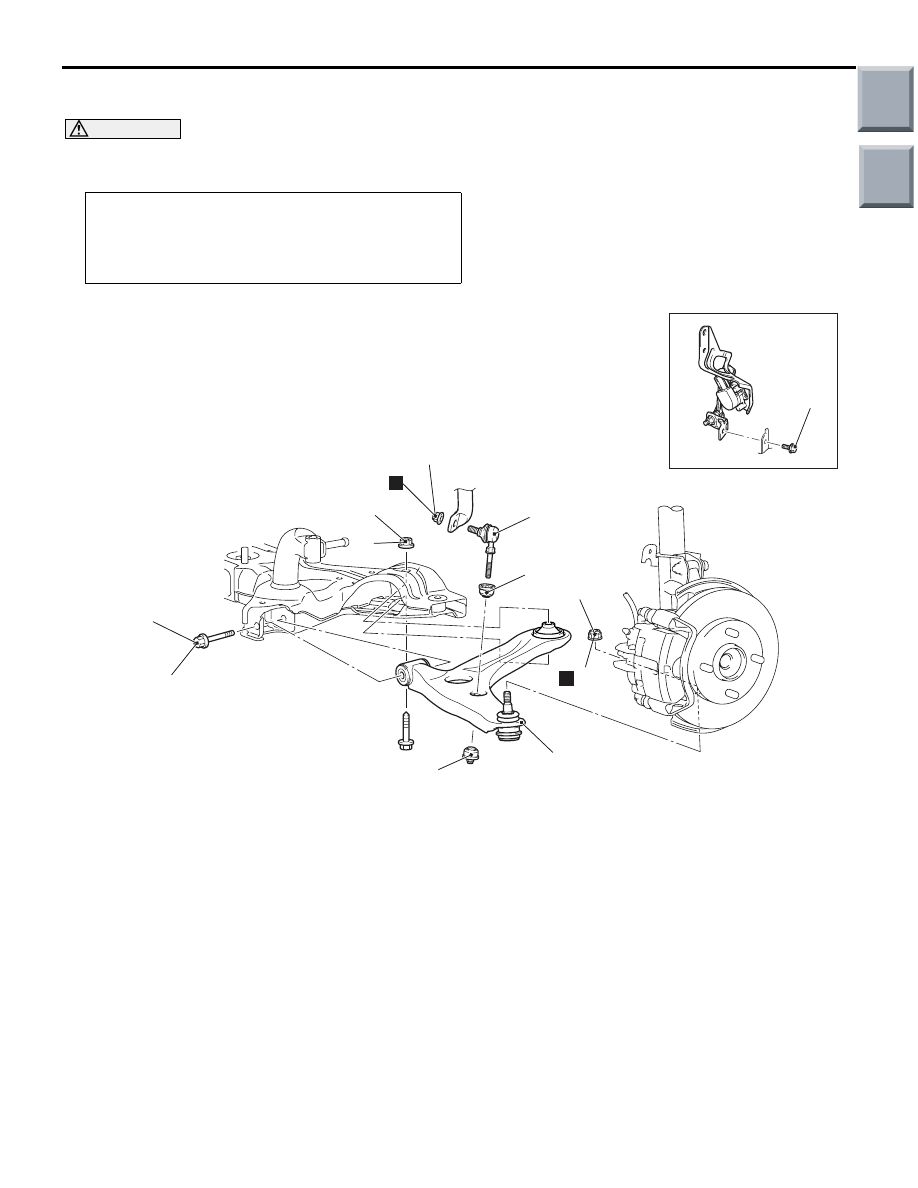

LOWER ARM

FRONT SUSPENSION

33-13

REMOVAL AND INSTALLATION <4G1>

M1332001600922

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the earth in an unladen condition.

Post-installation Operation
• Check the dust cover for cracks or damage by pushing it

with finger.

• Front wheel alignment check and adjustment (Refer to

P.33-5

).

AC600243 AE

2

60 ± 6 N·m

4

4

5

123 ± 12 N·m*

8

123 ± 12 N·m*

30 ± 5 N·m

N

1

N

7

6

Removal steps

1.

Front height sensor and lower arm
connection (LH) <Vehicles with
headlamp auto levelling system>

<<

A

>>

2.

Self-locking nut (Lower arm and
knuckle connection)

>>

A

<<

3.

Self-locking nut

>>

A

<<

4.

Stabilizer rubber

5.

Stabilizer link assembly

6.

Nut (Lower arm and crossmember
connection)

7.

Bolt (Lower arm and crossmember
connection)

8.

Lower arm assembly

Removal steps (Continued)

Main

Index

Group

TOC

LOWER ARM

FRONT SUSPENSION

33-14

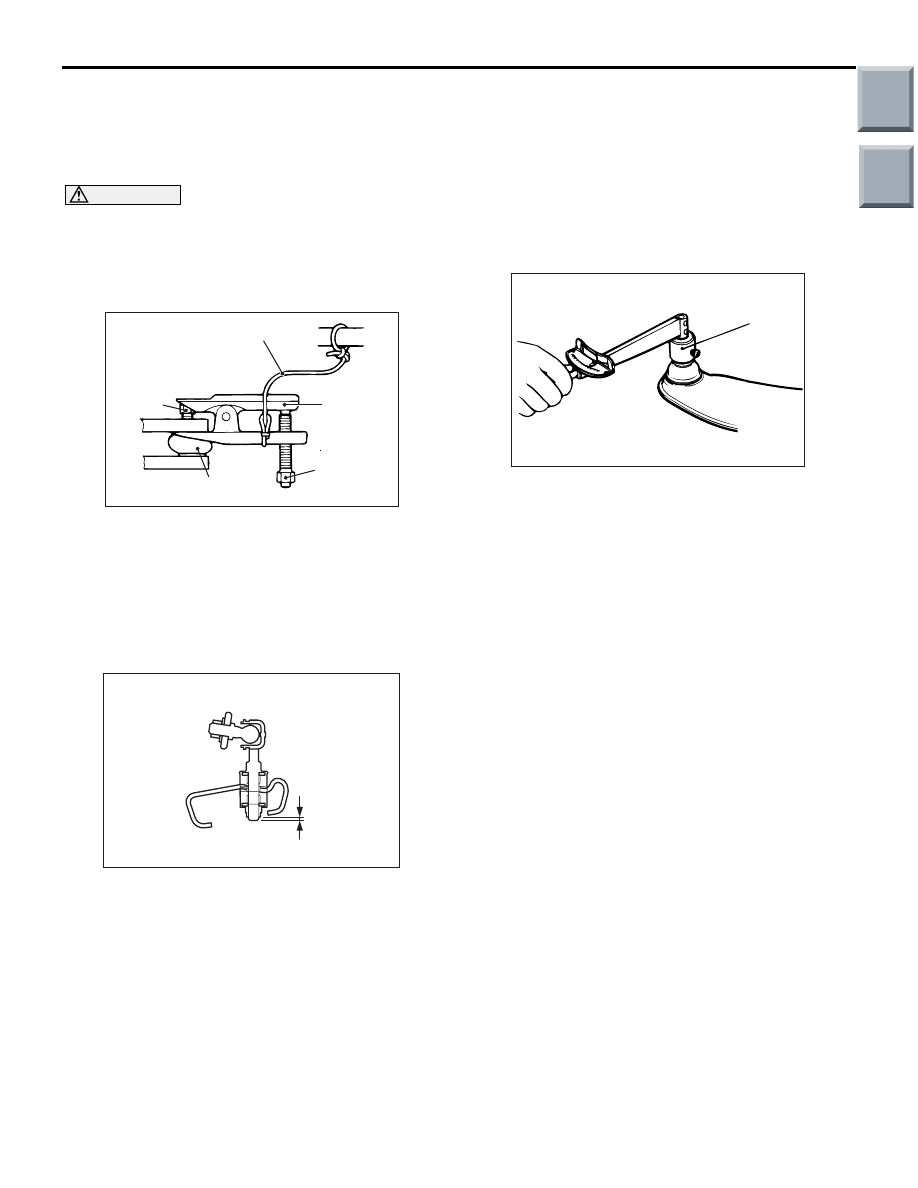

REMOVAL SERVICE POINT
<<A>> SELF-LOCKING NUT REMOVAL
(LOWER ARM BALL JOINT DISCONNEC-
TION)

CAUTION

• Do not remove the nut from ball joint. Loosen

it and use the special tool to avoid possible
damage to ball joint threads.

•

AC102599AC

Cord

Bolt

MB991113

Nut

Ball joint

Hang the special tool with cord to prevent it
from falling.

Replace the self-locking nut with a regular nut, and
then install special tool steering linkage puller
(MB991113) as shown in the figure.

INSTALLATION SERVICE POINT
>>A<< SELF-LOCKING NUT INSTALLA-
TION

AC402824AB

A

Install the stabilizer rubber as shown in the figure,
and tighten the self-locking nut so that the protrusion
of the stabilizer link assembly is within the standard
value (A).

Standard value (A): 5.5

± 1.5 mm

INSPECTION

M1332001700394

• Check the lower arm bushing for wear and deteri-

oration.

• Check the lower arm assembly for bend or break-

age.

• Check all bolts for condition and straightness.

LOWER ARM BALL JOINT STARTING
TORQUE CHECK

AC001091 AG

MB990326

1. After shaking the ball joint stud several times, use

special tool preload socket (MB990326) to
measure the starting torque of the ball joint.

Standard value: 0

− 3.9 N⋅m

2. If the measured value is not within the standard

value, or if the ball joint is difficult to turn or does
not turn smoothly, replace the lower arm
assembly.

LOWER ARM BALL JOINT COVER
CHECK

1. Check the lower arm ball joint cover for cracks or

damage by pushing it with your finger.

2. If the lower arm ball joint cover is cracked or

damaged, replace the lower arm assembly.
NOTE: Cracks or damage to the dust cover may
cause damage to the ball joint. When it is dam-
aged during service work, replace the dust cover.

Main

Index

Group

TOC

LOWER ARM

FRONT SUSPENSION

33-15

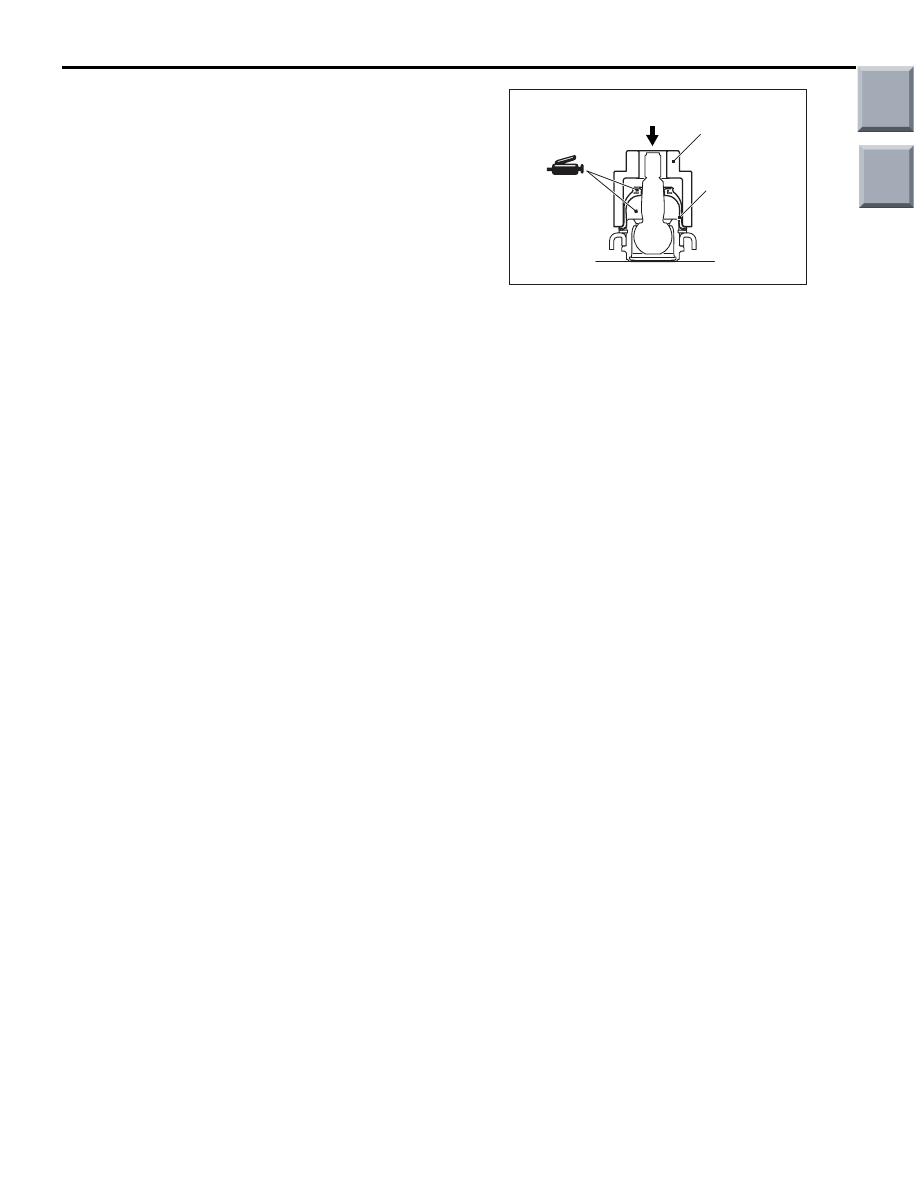

LOWER ARM BALL JOINT COVER
REPLACEMENT

M1332008200367

If the lower arm ball joint cover is damaged acciden-
tally during service work, replace the lower arm ball
joint cover as follows:
1. Remove the lower arm ball joint cover.
2. Apply specified grease to the lip and the inside of

a new lower arm ball joint cover.

Specified grease: Multipurpose grease SAE
J310, NLGI No.2 or equivalent
Grease amount for the inside of dust cover :
9.0

± 0.5 g, lip portion of dust cover : 1.0 ± 0.5

g

AC207103AC

MB990800

Dust cover

3. Using special tool ball joint remover and installer

(MB990800), drive in the lower arm ball joint
cover until it is fully seated.

4. Check the lower arm ball joint cover for cracks or

damage by pushing it with your finger.

Main

Index

Group

TOC

STABILIZER BAR

FRONT SUSPENSION

33-16

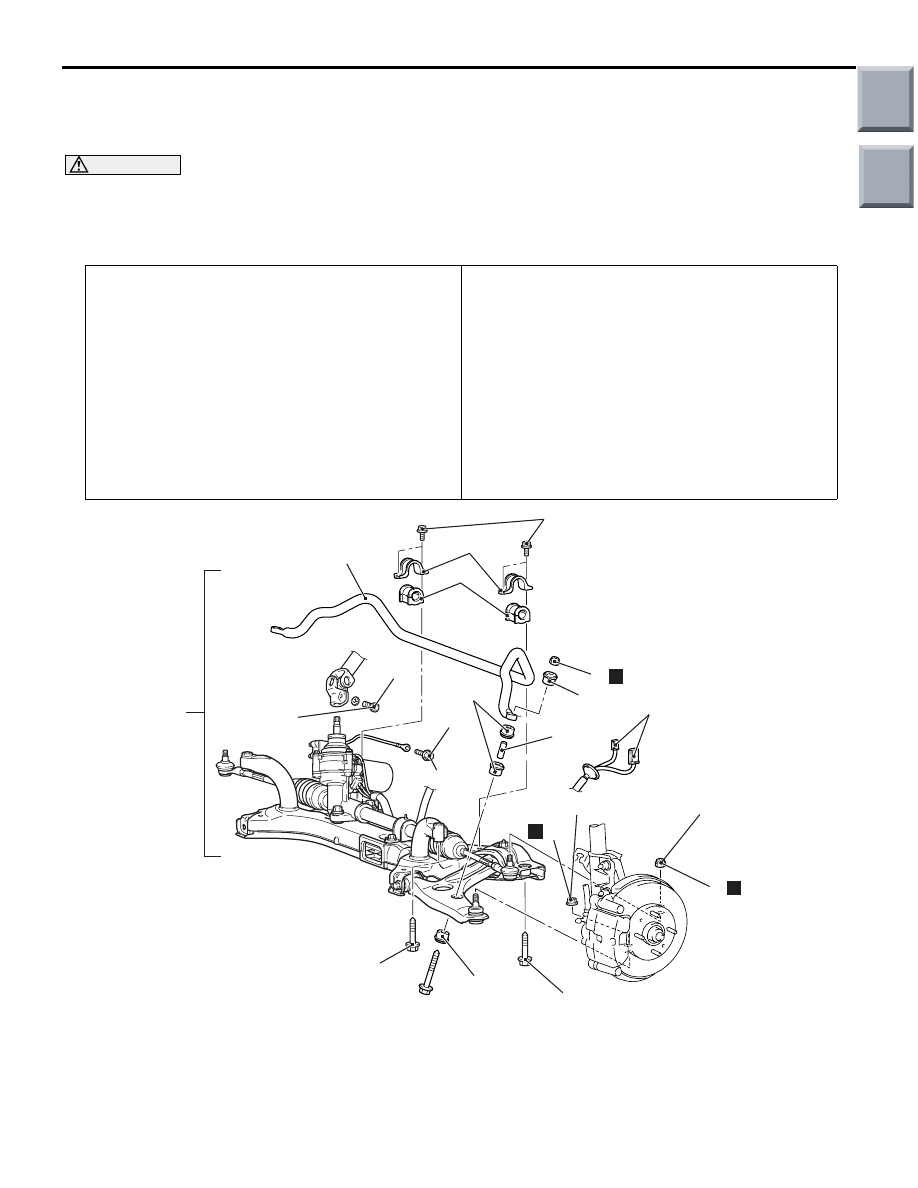

STABILIZER BAR

REMOVAL AND INSTALLATION <4A9>

M1332004000769

CAUTION

Before removing the steering wheel and air bag module assembly, refer to GROUP 52B, Service Pre-
cautions

P.52B-5

 and Air Bag Module and Clock Spring

P.52B-145

. Also, put the front wheels in

straight-ahead position. Failure to do so may damage the SRS clock spring and render the SRS air
bag inoperative, which results serious driver injury.

Pre-removal Operation
• Air bag module and steering wheel (Refer to GROUP

52B, Driver’s, front passenger’s air bag module(s) and

clock spring

P.52B-145

).

• Engine room centre under cover

• Engine room side under cover (RH)
• Front exhaust pipe (Refer to GROUP 15, Exhaust pipe

and main muffler

P.15-19

).

• Engine roll stopper rod assembly (Refer to GROUP 32,

Engine roll stopper rod

P.32-11

).

Post-installation Operation
• Engine roll stopper rod assembly (Refer to GROUP 32,

Engine roll stopper rod

P.32-11

).

• Front exhaust pipe (Refer to GROUP 15, Exhaust pipe

and main muffler

P.15-19

).

• Engine room side under cover (RH)
• Engine room centre under cover

• Air bag module and steering wheel (Refer to GROUP

52B, Driver’s, front passenger’s air bag module(s) and

clock spring

P.52B-145

).

• Checking steering wheel position with wheels straight

ahead

• Front wheel alignment check and adjustment (Refer to

P.33-5

).

AC405504 AB

2

18 ± 2 N·m

4

7

123 ± 12 N·m

123 ± 12 N·m

25 ± 5 N·m

66 ± 6 N·m

50 ± 10 N·m

9.0 ± 2.0 N·m

3

5

5

6

5

N

1

N

8

N

12

11

10

9

Removal steps

<<

A

>>

>>

E

<<

1.

Bolt (Steering gear and steering
column assembly connection)

>>

A

<<

2.

Stabilizer bar bracket

>>

A

<<

3.

Stabilizer bushing

>>

D

<<

4.

Self-locking nut

>>

D

<<

5.

Stabilizer rubber

>>

D

<<

6.

Collar

<<

B

>>

7.

Self-locking nut (Lower arm ball
joint and knuckle connection)

<<

B

>>

8.

Self-locking nut (Tie rod end and
knuckle connection)

Removal steps (Continued)
