ON-VEHICLE SERVICE

CVT

23A-143

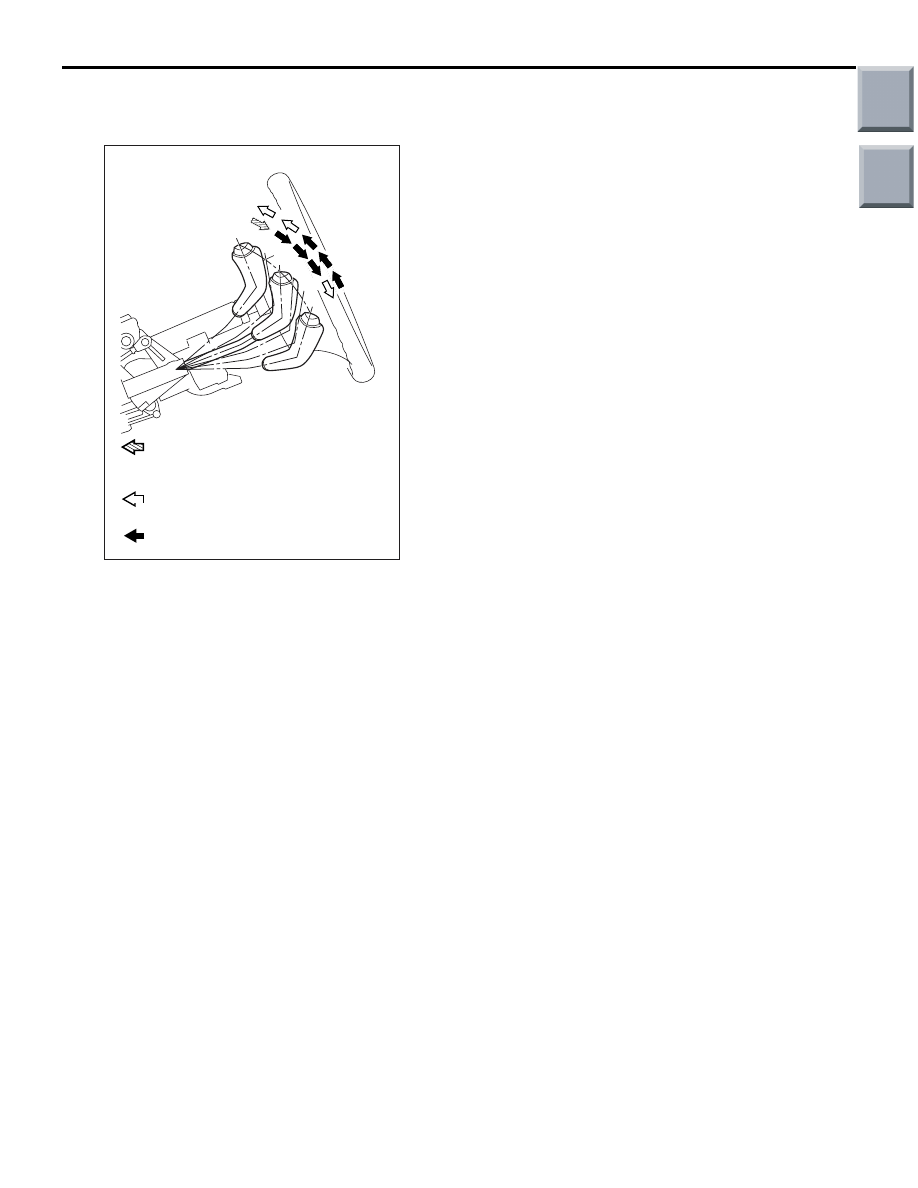

SELECTOR LEVER OPERATION CHECK

M1231202900113

1. Depress and hold the parking brake pedal.

AC509407

AB

P

R

N

D

Ds

L

: Turn the ignition switch to the position other
  than LOCK, depress the brake pedal.
  Then operate while pushing the button.

: Operate without pushing the button.

: Operate while pushing the button.

2. Check that the selector lever can be moved

through each range smoothly and securely.

3. Check that the engine starts when the selector

lever is in the N or P position, and that it does not
start when the selector lever is in any other
position.

4. Start the engine, and then depress the parking

brake pedal again to release it.

5. The vehicle should move forward when the

selector lever is moved into D or Ds range, and
moves backward when moved into R range.

6. Stop the engine.
7. Turn the ignition switch to the ON position, and

check that the backup lamp illuminates when the
selector lever is shifted from the P position to the
R position.
NOTE: The A/T mis-operation prevention mecha-
nism prevents movement of the selector lever
from the P position if the ignition switch is in a
position other than LOCK (OFF) position and the
brake pedal is not depressed.

Main

Index

Group

TOC

ON-VEHICLE SERVICE

CVT

23A-144

KEY INTERLOCK/SHIFT LOCK
MECHANISM CHECK AND ADJUSTMENT

M1232003100614

1. Carry out the following check.

<Key interlock side>

Inspection
procedure

Inspection conditions

Check details (normal condition)

1

Brake pedal:
Depressed

Ignition key position:
LOCK (OFF) or pulled out

The selector lever push button cannot be
pushed, and the selector lever should not be
moved from P position.

2

Ignition key position: Other
than above

The selector lever push button can be pushed,
and the selector lever can be moved from P
position.

3

Selector lever position: Other than P position The ignition key cannot turned to LOCK (OFF)

position.

4

Selector lever position: P position

The ignition key can be turned to LOCK (OFF)
position.

<Shift lock side>

Inspection
procedure

Inspection conditions

Check details (normal condition)

1

Ignition switch
position: ACC

Brake pedal: Depressed

The selector lever push button can be pushed,
and the selector lever can be moved from P
position.

2

Brake pedal: Not
depressed

The selector lever push button cannot be
pushed, and the selector lever should not be
moved from P position.

2. If the operations above are abnormal, check the

shift lock cable unit in the following procedures.
(1) Remove the instrument lower panel (Refer to

GROUP 52A

− Instrument Panel Assembly

P.52A-3

).

(2) Remove the steering column lower cover

(Refer to GROUP 37

− Steering Shaft

P.37-92

).

(3) Shift the selector lever to the P position.
(4) Turn the ignition switch to the LOCK (OFF)

position.

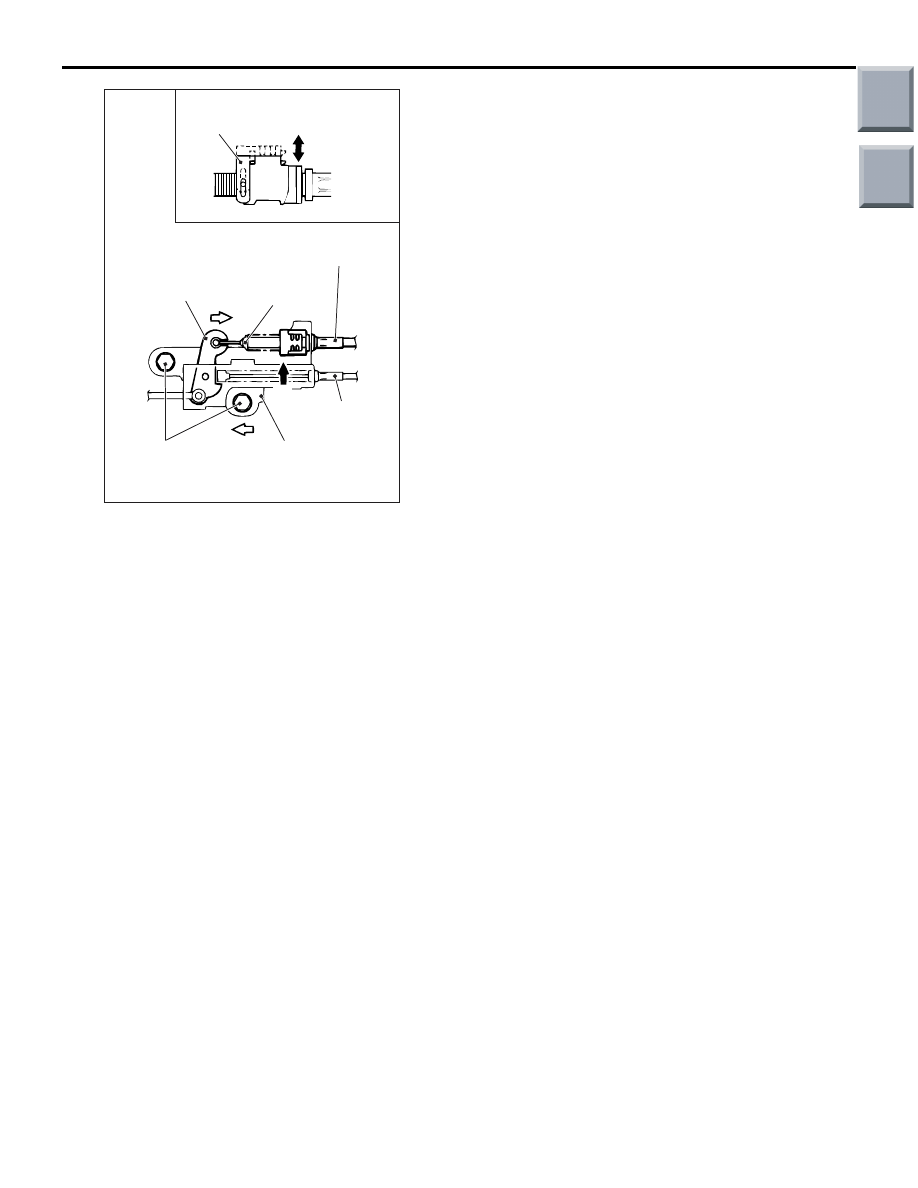

(5) Lift the lock guide of the key interlocking cable

and then unlock it.

Main

Index

Group

TOC

AC000004

B

C

A

View A

Lock guide

AC

Lock released

Locked

Key interlock cable

Cap

Lever

Shift lock cable

Shift lock
cable unit

Fixing bolt

ON-VEHICLE SERVICE

CVT

23A-145

(6) Loosen the bolts fixing the shift lock cable unit,

push the lever in direction B and tighten the
bolts to the specified torque.

Tightening torque: 5.0

± 1.0 N⋅m

(7) Lower the lock guide of the key interlocking

cable and then lock it.

NOTE: The key interlocking cable is adjusted
according to the lock position (cap push state)
at this time. Readjust the lock position if key
interlocking operations malfunction after lock-
ing.

3. After adjustment, re-check the operations.

Replace the shift lock cable unit if operations are
defective (Refer to

P.23A-148

).

Main

Index

Group

TOC

TRANSMISSION CONTROL

CVT

23A-146

TRANSMISSION CONTROL

REMOVAL AND INSTALLATION

M1231203200173

CAUTION

When removing and installing the transmission control cable and shift lock cable unit, be careful not
to hit the SRS-ECU.

Pre-removal Operation
• Steering column lower cover and instrument lower panel

removal (Refer to GROUP 52A, Instrument Panel Assem-

bly

P.52A-3

).

Post-installation Operation
• Key interlock and shift lock mechanism check (Refer to

P.23A-144

).

• Selector lever operation check (Refer to

P.23A-143

).

• Steering column lower cover and instrument lower panel

installation (Refer to GROUP 52A, Instrument Panel

Assembly

P.52A-3

).

AC309755

AC208301

AB

1

2

4

12 ± 2 N·m

5.0 ± 1.0 N·m

12 ± 2 N·m

5.0 ± 1.0 N·m

7

8

9

3

5

6

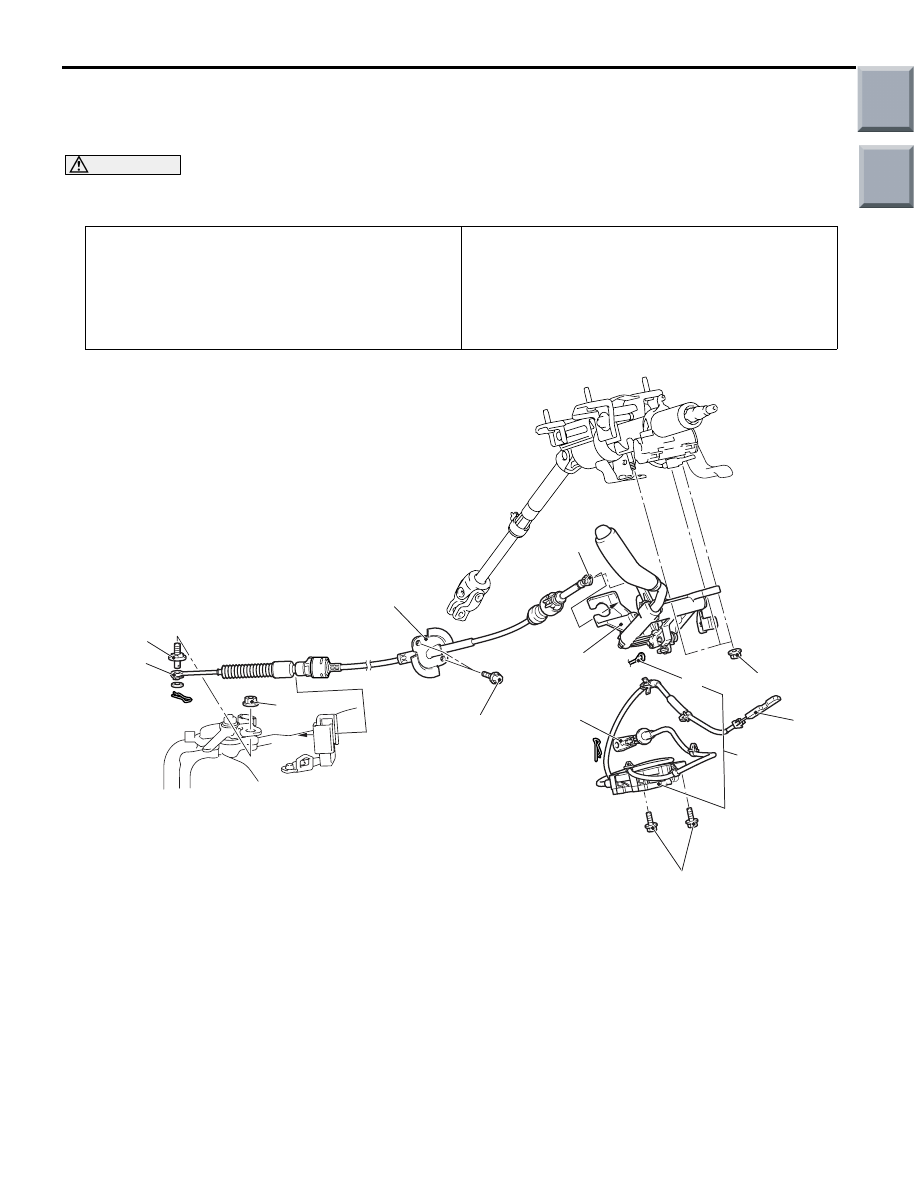

Removal steps

•

Shift the selector lever to the N position.

•

Air cleaner assembly

•

Battery and battery tray

•

Connectors and clamps around
steering column assembly

1. Shift lock cable connection

<<

A

>> >>

D

<< 2. Key interlock rod connection

>>

C

<< 3. Shift lock rod connection

>>

C

<< 4. Shift lock cable unit

>>

B

<< 5. Transmission control cable connection

(selector lever side)

6. Selector lever assembly

>>

A

<< 7. Transmission control cable connection

(transmission side)

8. Adjuster
9. Transmission control cable

Removal steps (Continued)
