ON-VEHICLE SERVICE

CVT

23A-135

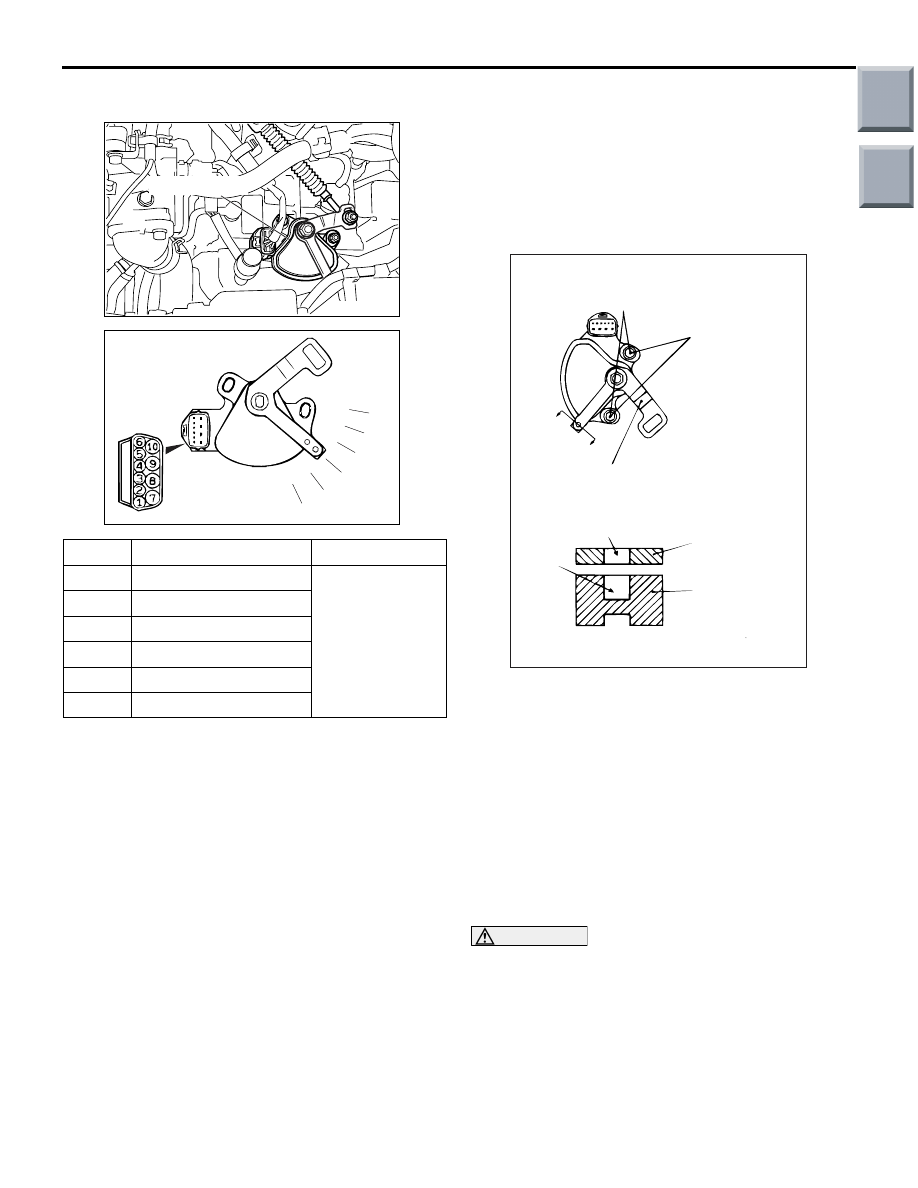

INHIBITOR SWITCH CONTINUITY CHECK

M1231201400182

AC103395AE

Inhibitor switch

AC314251AB

P

R

N

D

Ds

L

Item

Terminal No.

Resistance

P

3

− 8, 9 − 10

Less than 2

Ω

R

7

− 8

N

4

− 8, 9 − 10

D

1

− 8

Ds

5

− 8

L

2

− 8

INHIBITOR SWITCH AND CONTROL
CABLE ADJUSTMENT

M1231201500048

1. Move the selector lever to the N position.
2. Loosen the adjusting nut, and set the manual

control lever upper and lower to the free condition.

3. Move the manual control lever lower to the neutral

position.

AC001893 AC

11 ± 1 N·m

A

A

Mounting bolt

Manual
control lever

Section A - A

Hole in
flange

Inhibitor switch
body

Manual
control lever

Second hole from the end

4. Loosen the inhibitor switch body mounting bolts,

and then turn the inhibitor switch body to align the
second hole from the end of the manual control
lever with the hole in the inhibitor switch body
flange (section A

− A).

NOTE: The inhibitor switch body can be aligned
by hand, because the manual control lever end is
as wide as the switch body flange. Alternatively,
the inhibitor switch can also be aligned by insert-
ing a 5-mm bar in the second hole from the end of
the manual control lever and the hole in the inhibi-
tor switch body flange.

CAUTION

Be careful not let the inhibitor switch body slip
out of place.

Main

Index

Group

TOC

ON-VEHICLE SERVICE

CVT

23A-136

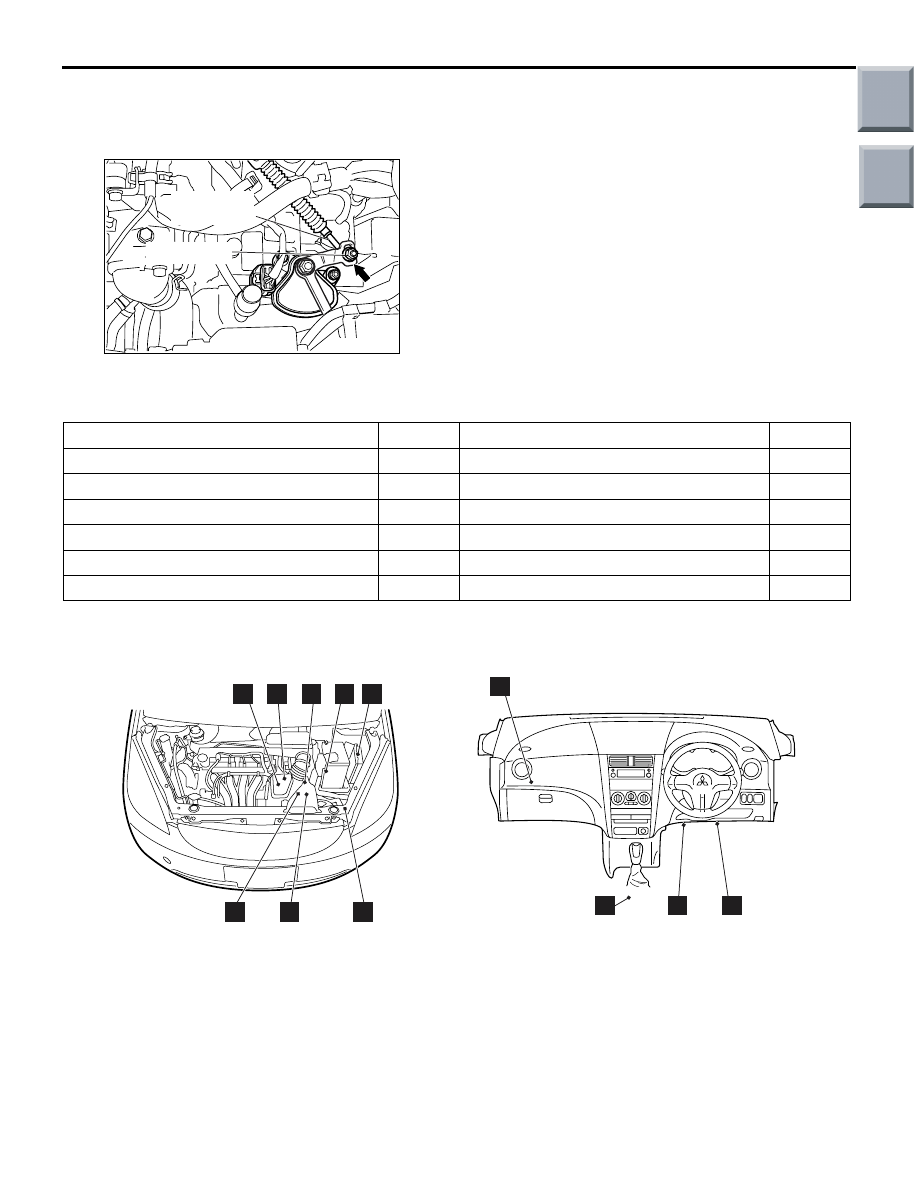

5. Tighten the inhibitor switch body mounting bolts to

the specified torque.

Tightening torque: 11

± 1 N⋅m

AC103395AD

Adjusting nut

Transmission
control cable

6. Gently push the transmission control cable in the

direction of the arrow to tighten the adjusting nut
to the specified torque.

Tightening torque: 12

± 2 N⋅m

7. Check that the selector lever is at the N position.
8. Check that the transmission shifts to the correct

range corresponding to the position of the selector
lever, and that it functions correctly in that range.

CVT CONTROL COMPONENT LOCATION

M1231208600110

Name

Symbol

Name

Symbol

CVT control relay

I

Line pressure sensor

D

CVT control solenoid valve assembly

G

Primary pressure sensor

H

CVT fluid temperature sensor

G

Primary speed sensor

C

Diagnosis connector

K

Secondary speed sensor

B

Engine-CVT-ECU

E

Stop lamp switch

L

Inhibitor switch

F

Turbine speed sensor

A

AC509406

A

B

C

D

E

F

G

H

I

K

L

J

AB

Main

Index

Group

TOC

ON-VEHICLE SERVICE

CVT

23A-137

CVT CONTROL COMPONENT
CHECKS

INHIBITOR SWITCH CHECK

M1231201400159

Refer to

P.23A-135

.

STOP LAMP SWITCH CHECK

M1231210100060

Refer to GROUP 35A

− Brake pedal, Inspection

P.35A-22

.

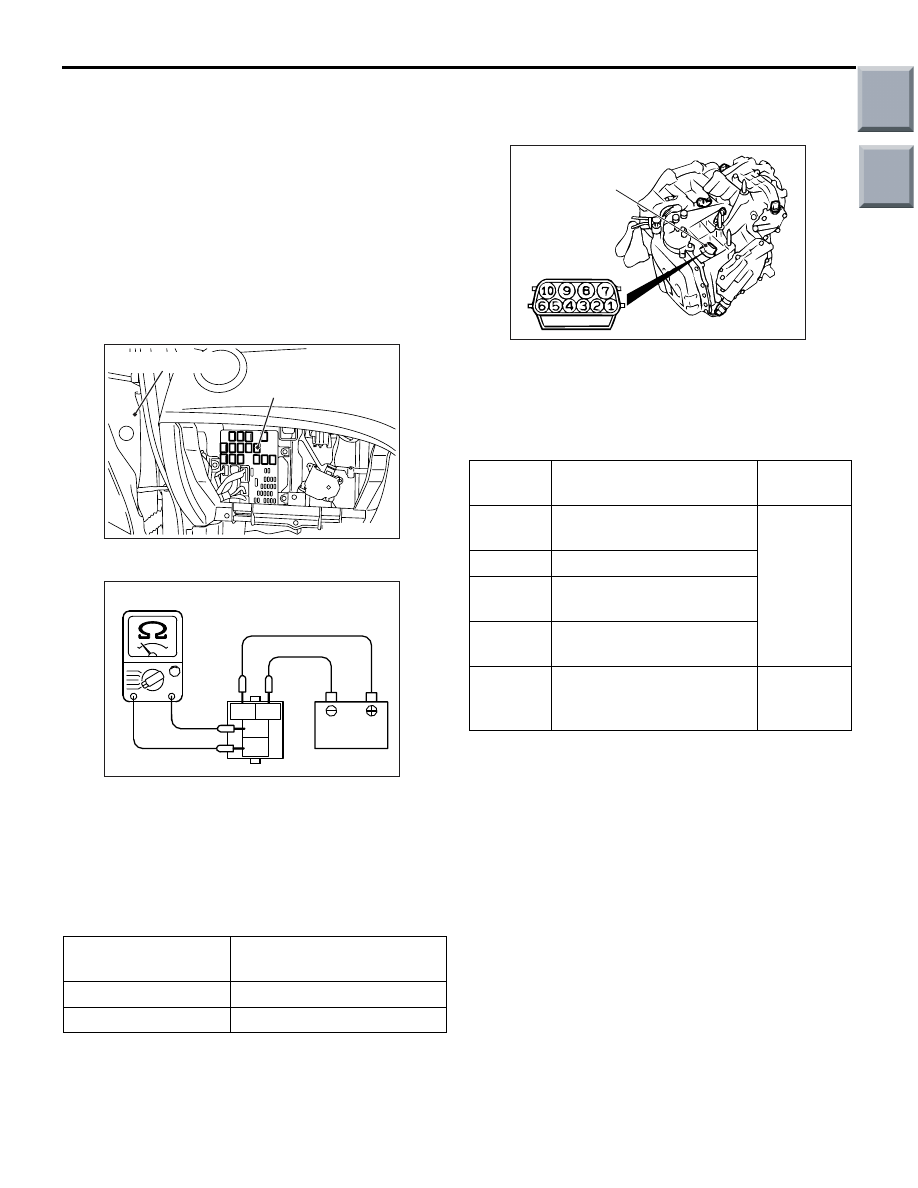

CVT CONTROL RELAY CHECK

M1231229400047

AC208716

AC

Front door <LH>

CVT control relay

1. Removal the CVT control relay.

AC208289

1

2

3
4

2. Use the jumper leads to connect CVT control

relay terminal 2 to the negative battery terminal
and terminal 1 to the positive battery terminal.

3. Check the continuity between CVT control relay

connector terminals 3 and 4 while alternately
connecting and disconnecting the jumper leads
from the battery terminals.

Jumper leads

Continuity between
terminals 3 and 4

Connected

Less than 2

Ω

Disconnected

Open circuit

4. If there is a malfunction, replace the CVT control

relay.

CVT CONTROL SOLENOID VALVE
ASSEMBLY CHECK

M1231229500130

AC208223AB

CVT control solenoid
valve assembly
connector

1. Disconnect the CVT control solenoid valve

assembly connector.

2. Measure the resistance between the solenoid

valve terminals.

STANDARD VALUE:

Terminal
No.

Name

Resistanc
e value

3

− 10

Damper clutch control
solenoid valve

2.9

− 3.5 Ω

(CVT fluid
temperatur
e 20

°C)

5

− 9

Shift control solenoid valve

6

− 10

Line pressure control
solenoid valve

4

− 9

Clutch pressure control
solenoid valve

9,10

−

Body
earth

−

1 k

Ω or

more

3. If within the standard value, check the power

supply and the earth circuits.

4. If not within the standard value, drain the CVT

fluid and remove the valve body cover.

Main

Index

Group

TOC

AC207111

AB

Damper clutch
control solenoid valve

Clutch pressure control
solenoid valve

Shift control
solenoid valve

Line pressure
control solenoid valve

ON-VEHICLE SERVICE

CVT

23A-138

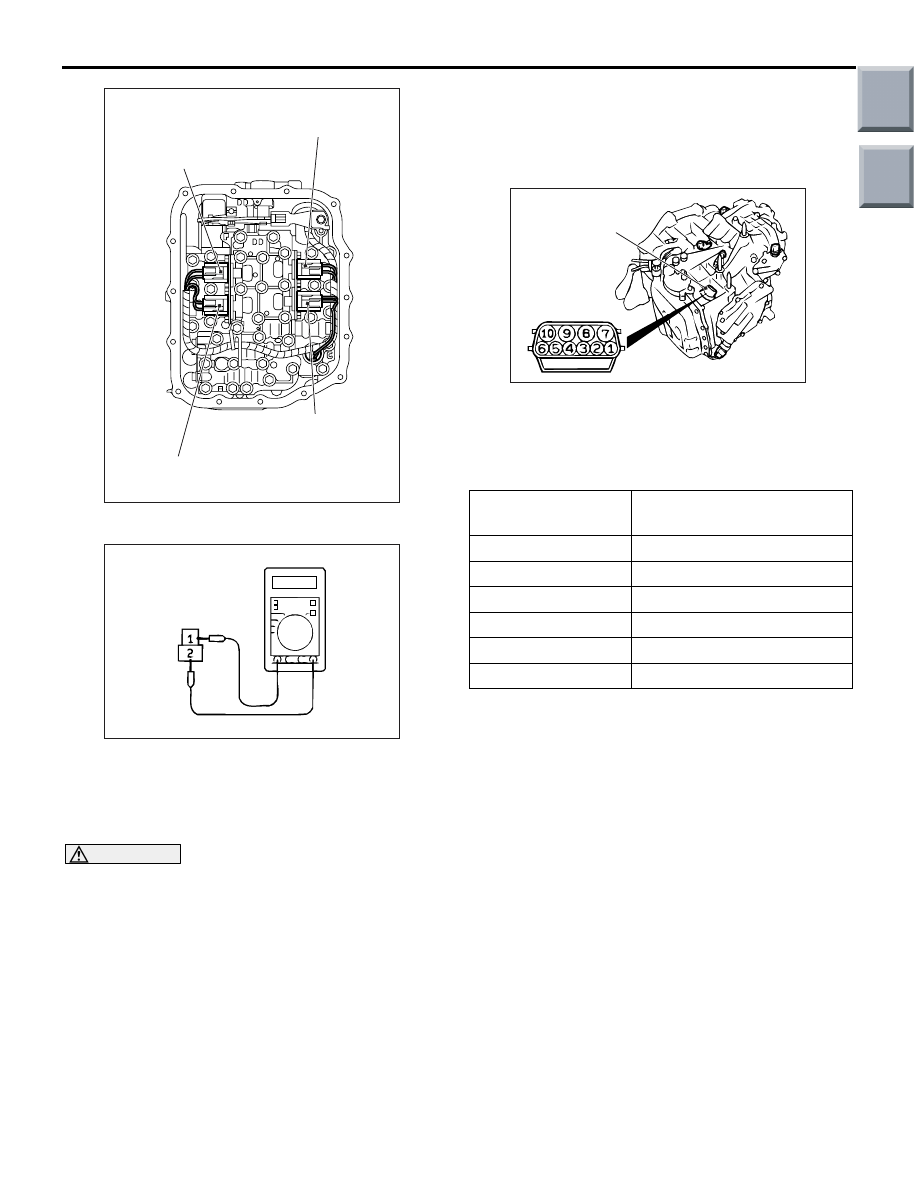

5. Disconnect the solenoid valve connectors.

AC208246

6. Measure the resistance between terminals 1 and

2 at each solenoid valve side.

Standard value: 2.9

− 3.5 Ω (CVT fluid tem-

perature 20

°C)

CAUTION

The single shift control solenoid valve cannot be
removed nor replaced. If the shift control sole-
noid valve needs to be replaced, replace the
valve body assembly.
7. If not within the standard value, replace the

solenoid valve.

8. If within the standard value, check the harness

wire between CVT control solenoid valve
assembly connector and each solenoid valve
connector. If a problem is not found at the steps
above, check the solenoid valve O-rings and
replace if necessary.

CVT FLUID TEMPERATURE SENSOR
CHECK

M1231229600041

1. Disconnect the CVT control solenoid valve

assembly connector.

AC208223AB

CVT control solenoid
valve assembly
connector

2. Measure the resistance between CVT control

solenoid valve assembly connector terminals 1
and 2.

Standard value:

CVT fluid
temperature (

°C)

Resistance value (k

Ω)

0

16.7

− 20.5

20

7.3

− 8.9

40

3.4

− 4.2

60

1.9

− 2.2

80

1.0

− 1.2

100

0.57

− 0.69

NOTE: The N range lamp on the combination
meter flashes when the temperature reaches
approximately 145

°

C or higher and then stops

flashing when the temperature drops below
approximately 135

°

C.

3. If the CVT fluid temperature sensor resistance

and the temperature when the N range indicator is
flashing or switched off are outside the standard
value ranges, replace the CVT fluid temperature
sensor.
