SERVICE SPECIFICATIONS

CVT

23A-3

SERVICE SPECIFICATIONS

M1231200300041

Item

Standard value

CVT fluid temperature sensor resistance k

Ω

At 0

°C

16.7

− 20.5

At 20

°C

7.3

− 8.9

At 40

°C

3.4

− 4.2

At 60

°C

1.9

− 2.2

At 80

°C

1.0

− 1.2

At 100

°C

0.57

− 0.69

Damper clutch control (DCC) solenoid valve coil resistance (at 20

°C) Ω

2.9

− 3.5

Clutch pressure control solenoid valve coil resistance (at 20

°C) Ω

2.9

− 3.5

Line pressure control solenoid valve coil resistance (at 20

°C) Ω

2.9

− 3.5

Shift control solenoid valve coil resistance (at 20

°C) Ω

2.9

− 3.5

Stall speed r/min

D range

2,200

− 2,700

R range

1,800

− 2,300

LUBRICANTS

M1231200400048

Item

Specified lubricants

 Capacity L

CVT fluid

DIA QUEEN ATF SP III

8.1

SEALANTS AND ADHESIVES

M1231200500023

Item

Specified sealant

Remarks

Secondary rear cover

MITSUBISHI GENUINE PART MD974421 or equivalent

Semi-drying sealant

Primary rear cover
Valve body cover

Main

Index

Group

TOC

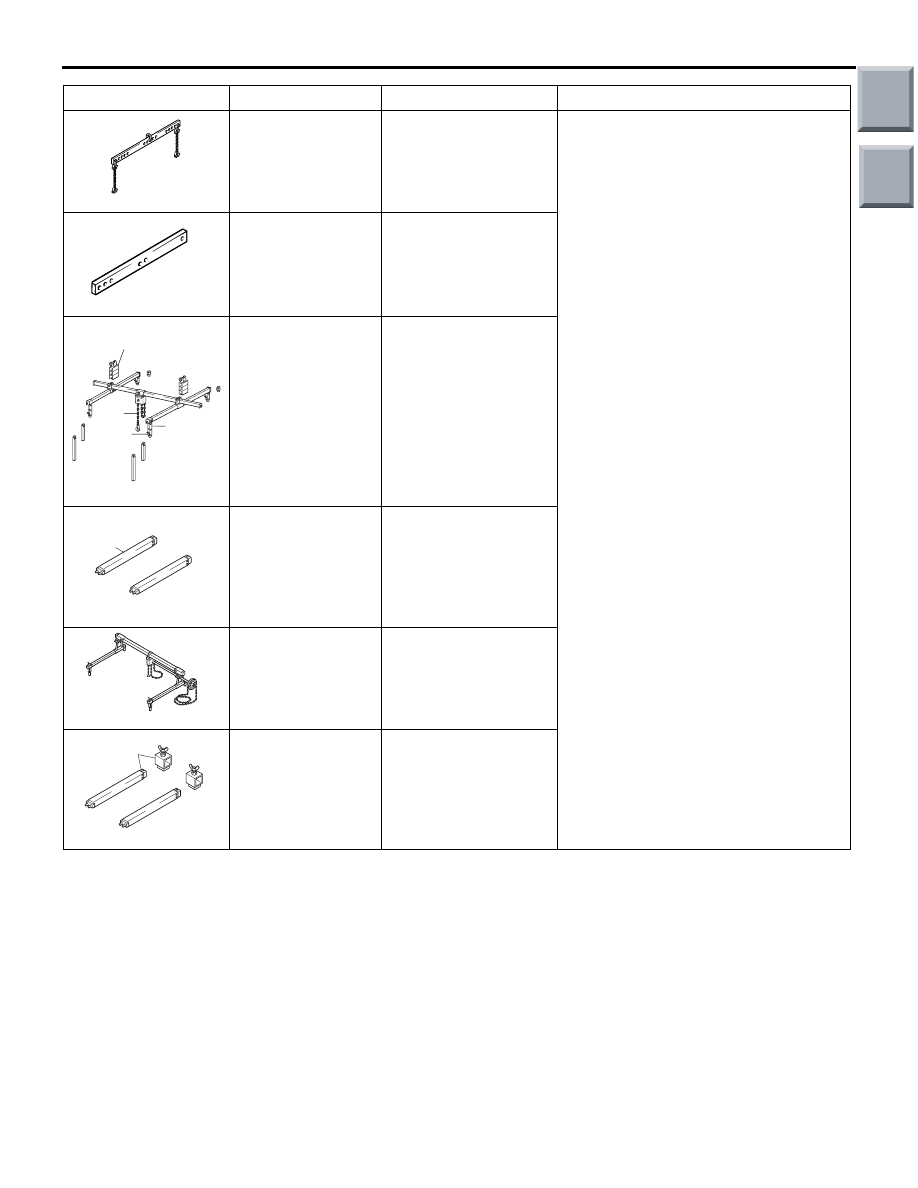

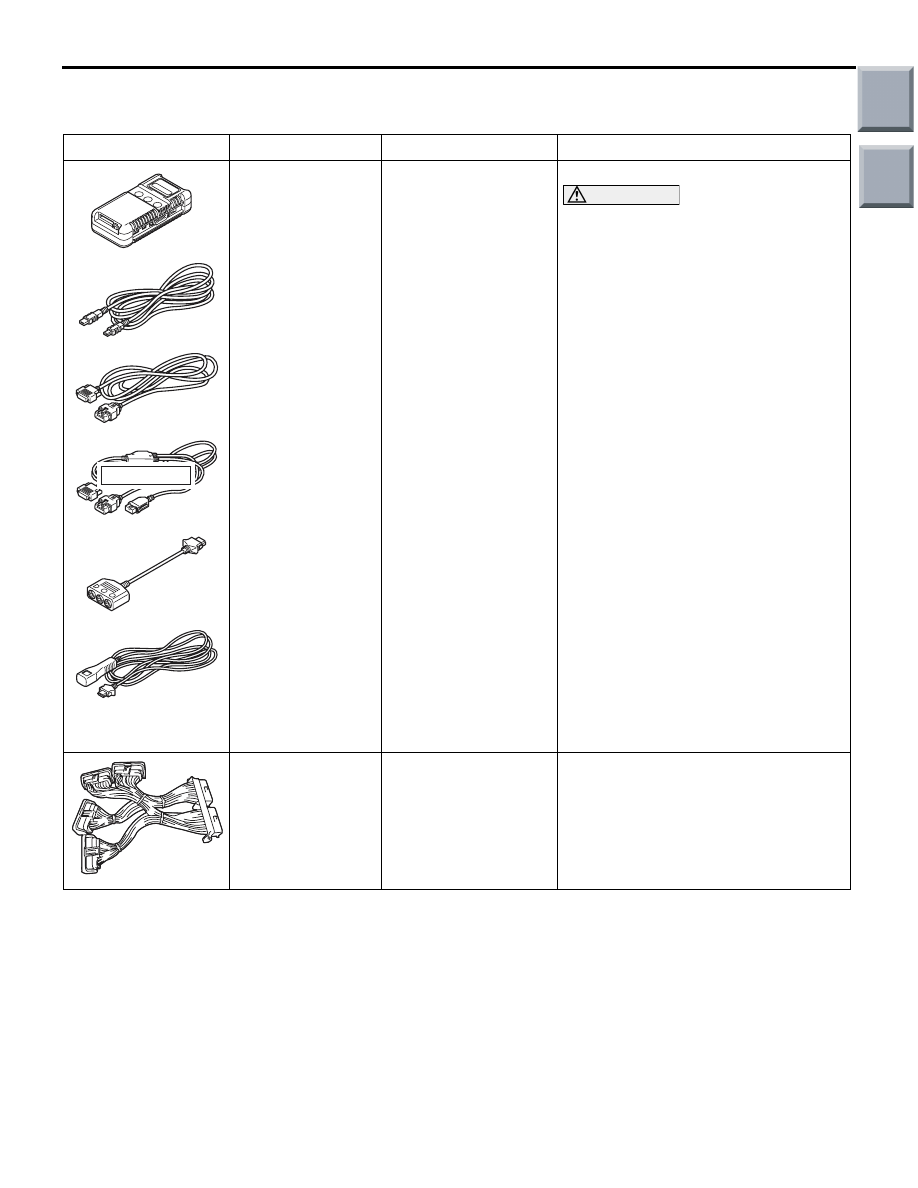

SPECIAL TOOLS

CVT

23A-4

SPECIAL TOOLS

M1231200600116

Tool

No.

Name

Application

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

Communication
Interface (V.C.I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

D: M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

E: M.U.T.-III

measurement
adapter

F: M.U.T.-III trigger

harness

Checking the CVT

CAUTION

For vehicles with CAN
communication, use M.U.T.-III main
harness A to send simulated vehicle
speed. If you connect M.U.T.-III main
harness B instead, the CAN
communication does not function
correctly.

MB991987

MB991987

Power plant ECU
check harness

• Inspection using an oscilloscope

• Inspection of the engine-CVT-ECU

terminal voltage check

Main

Index

Group

TOC

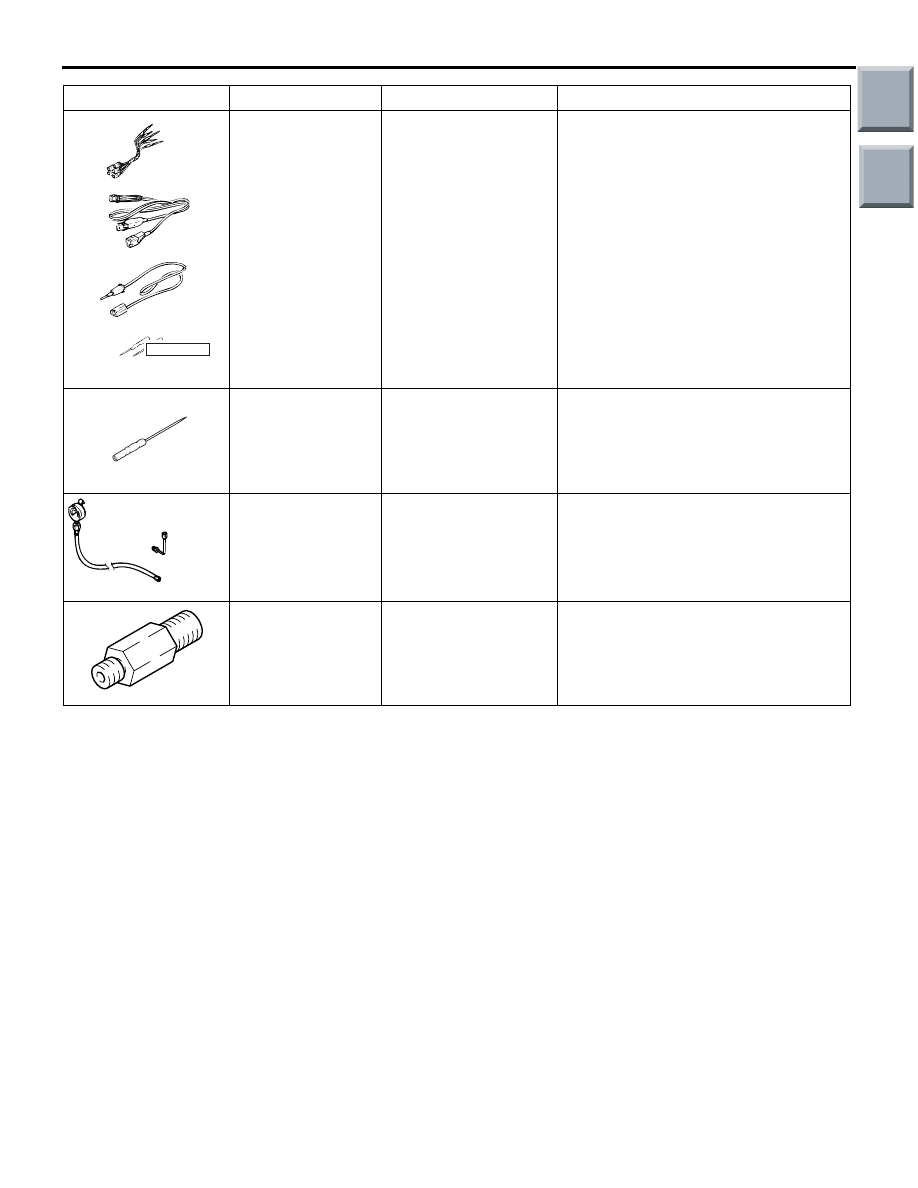

MB991223

A

D

C

B

AZ

DO NOT USE

SPECIAL TOOLS

CVT

23A-5

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Check harness
B: LED harness
C: LED harness

adapter

D: Probe

For checking voltage (continuity and
value) at harness and connectors

A: For checking connector pin contact

voltage

B: For checking power supply circuits
C: For checking power supply circuits
D: For connection to commercially

available testers

MB992006

MB992006

Extra fine probe

Making voltage and resistance
measurement during troubleshooting

AC103525A

A

MD998330

A: MD998331

Oil pressure gauge
(3.0 MPa)

A: Oil pressure gauge

joint

Hydraulic pressure measurement

MD998332

Hose adapter

Oil pressure gauge connection

Tool

No.

Name

Application

Main

Index

Group

TOC

B991454

SPECIAL TOOLS

CVT

23A-6

MB991454

Engine hanger
balancer

Supporting the engine when removing
and installing the automatic
transmission assembly

1. For the engine hanger balancer

(MB991454), use the chain only.

2. When using the engine hanger

(MB991928), install the engine
hanger attachment (MB991925).

3. When using the engine hanger

(MB991895), install the engine
hanger attachment (MB991924).

NOTE: The engine hanger balancer
(MB991454) is part of the engine
hanger assembly (MB991453).

B991527

MB991527

Hanger

B991928

A

B

C

D

E

F

Slide bracket (HI)

MB991928

A: MB991929
B: MB991930
C: MB991931
D: MB991932
E: MB991933
F: MB991934

Engine hanger

A: Joint (50)

× 2

B: Joint (90)

× 2

C: Joint (140)

× 2

D: Foot (standard)

× 4

E: Foot (short)

× 2

F: Chain and hook

assembly

B991925

A

MB992005 (two
pieces)

A: MB991925 (one

piece)

Engine hanger
attachment set

A: Engine hanger

attachment

Z203830

MB991895

Engine hanger

B991924

A

MB992004 (two
sets)

A: MB991924 (one

set)

Engine hanger
attachment set

A: Engine hanger

attachment

Tool

No.

Name

Application
