Mitsubishi Colt Ralliart. Manual - part 145

J/C

CIRCUIT DIAGRAMS

90-5

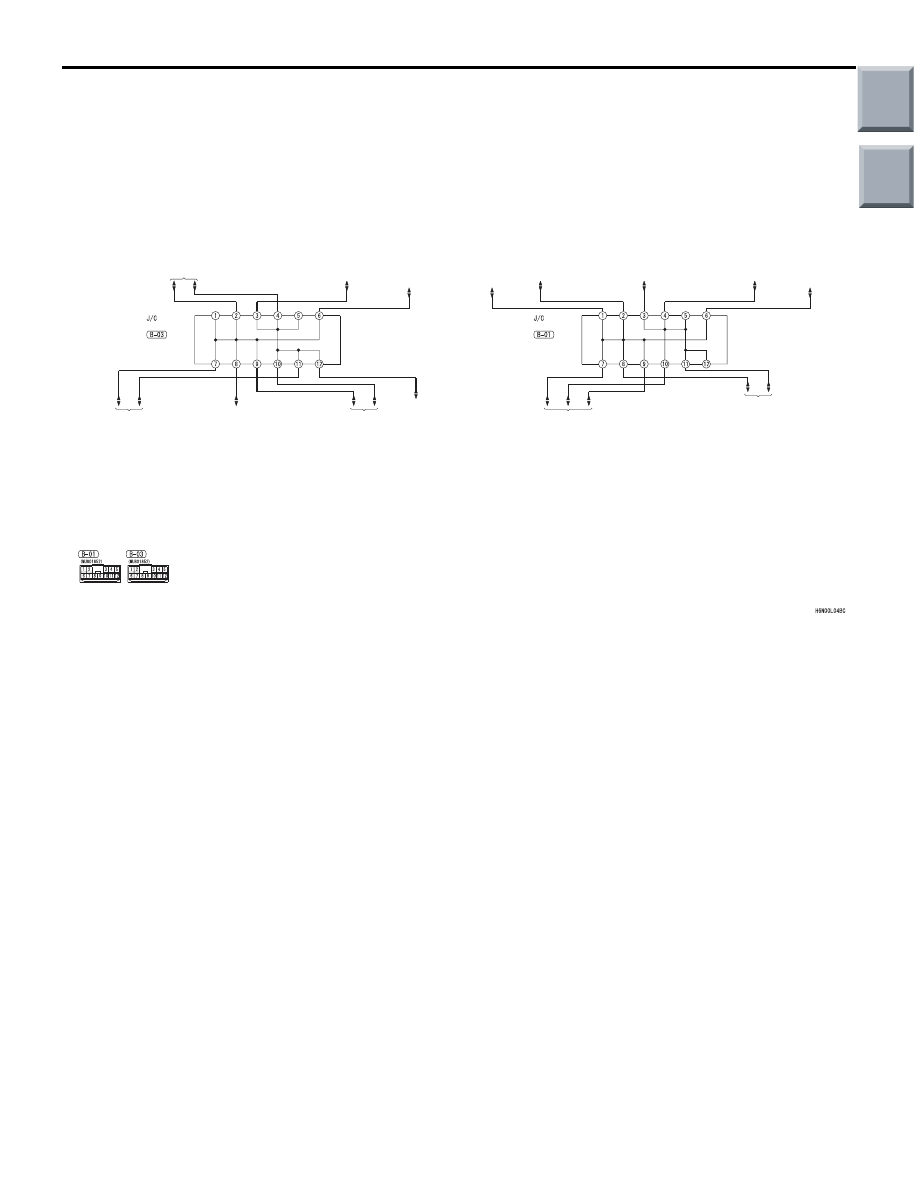

J/C (CONTINUED)

·ABS <4A91>
·ABS AND ASC <4G15>
·AUTOMATIC AIR
 CONDITIONER
·BACK-UP LAMP <CVT>
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC POWER STEERING SYSTEM
·ELECTRIC RETRACTABLE REMOTE
 CONTROLLED MIRROR
·ENGINE CONTROL SYSTEM
·FOG LAMP
·FUEL WARNING LAMP,
 OIL PRESSURE WARNING LAMP,
 SEAT BELT WARNING LAMP
 AND BRAKE WARNING LAMP
·HEADLAMP
·INVECS-III CVT
·MANUAL AIR CONDITIONER
·METER AND GAUGE
·REAR WIPER AND WASHER
·ROOM LAMP, LUGGAGE COMPARTMENT LAMP
 AND IGNITION KEY CYLINDER ILLUMINATION LAMP
·TAIL LAMP, POSITION LAMP, LICENCE PLATE LAMP
 AND LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND WASHER

·ABS <4A91>
·ABS AND ASC <4G15>
·AUTOMATIC AIR
 CONDITIONER
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC POWER STEERING SYSTEM
·ENGINE CONTROL SYSTEM
·FOG LAMP
·FUEL WARNING LAMP,
 OIL PRESSURE WARNING LAMP,
 SEAT BELT WARNING LAMP
 AND BRAKE WARNING LAMP
·HEADLAMP
·INVECS-III CVT
·MANUAL AIR CONDITIONER
·METER AND GAUGE
·ROOM LAMP, LUGGAGE COMPARTMENT
 LAMP AND IGNITION KEY CYLINDER
 ILLUMINATION LAMP
·TAIL LAMP, POSITION LAMP, LICENCE PLATE
 LAMP AND LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP

·ABS <4A91>
·ABS AND ASC <4G15>
·AUTOMATIC AIR
 CONDITIONER
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC POWER STEERING SYSTEM
·ENGINE CONTROL SYSTEM
·FOG LAMP
·FUEL WARNING LAMP,
 OIL PRESSURE WARNING LAMP,
 SEAT BELT WARNING LAMP
 AND BRAKE WARNING LAMP
·HEADLAMP
·INVECS-III CVT
·MANUAL AIR CONDITIONER
·METER AND GAUGE
·ROOM LAMP,
 LUGGAGE COMPARTMENT LAMP AND
 IGNITION KEY CYLINDER ILLUMINATION LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP

·ABS <4A91>
·ABS AND ASC <4G15>
·AUTOMATIC AIR
 CONDITIONER
·BACK-UP LAMP <CVT>
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC POWER STEERING SYSTEM
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED MIRROR
·ENGINE CONTROL SYSTEM
·FUEL WARNING LAMP,
 OIL PRESSURE WARNING LAMP,
 SEAT BELT WARNING LAMP
 AND BRAKE WARNING LAMP
·INVECS-III CVT
·MANUAL AIR CONDITIONER
·METER AND GAUGE
·REAR WIPER AND WASHER
·WINDSHIELD WIPER AND WASHER

·BACK-UP LAMP <CVT>
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED MIRROR
·FOG LAMP
·HEADLAMP
·METER AND GAUGE
·REAR WIPER AND WASHER
·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP AND IGNITION
 KEY CYLINDER ILLUMINATION LAMP
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP AND
 LIGHTING MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER AND WASHER

·ABS <4A91>
·ABS AND ASC <4G15>
·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONER
·BACK-UP LAMP <CVT>
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC POWER STEERING SYSTEM
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED MIRROR
·ENGINE CONTROL SYSTEM
·FUEL WARNING LAMP,
 OIL PRESSURE WARNING LAMP,
 SEAT BELT WARNING LAMP
 AND BRAKE WARNING LAMP
·INVECS-III CVT
·MANUAL AIR CONDITIONER
·METER AND GAUGE
·REAR WIPER AND WASHER
·WINDSHIELD WIPER AND WASHER

·ABS <4A91>
·ABS AND ASC <4G15>
·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONER
·BACK-UP LAMP <CVT>
·CAN
·CENTRAL DOOR LOCKING SYSTEM
·CHARGING SYSTEM
·DOOR AJAR WARNING BUZZER
·ELECTRIC POWER STEERING SYSTEM
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED MIRROR
·ENGINE CONTROL SYSTEM
·FUEL WARNING LAMP,
 OIL PRESSURE WARNING LAMP,
 SEAT BELT WARNING LAMP
 AND BRAKE WARNING LAMP
·INVECS-III CVT
·MANUAL AIR CONDITIONER
·METER AND GAUGE
·REAR WIPER AND WASHER
·WINDSHIELD WIPER AND WASHER

·ABS <4A91>
·ABS AND ASC <4G15>
·AUDIO SYSTEM
·CAN
·DOOR AJAR WARNING
 BUZZER
·ELECTRIC POWER
 STEERING SYSTEM
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED
 MIRROR
·ENGINE CONTROL
 SYSTEM <M/T>
·METER AND GAUGE
·WINDSHIELD WIPER
 AND WASHER

·ABS <4A91>
·ABS AND ASC <4G15>
·AUDIO SYSTEM
·CAN
·DOOR AJAR WARNING
 BUZZER
·ELECTRIC POWER
 STEERING SYSTEM
·ELECTRIC RETRACTABLE
 REMOTE CONTROLLED
 MIRROR
·ENGINE CONTROL
 SYSTEM <M/T>
·METER AND GAUGE
·WINDSHIELD WIPER
 AND WASHER

·CAN
·ELECTRIC POWER
 STEERING SYSTEM
·ENGINE CONTROL
 SYSTEM

(CAN1)

(CAN2)

ABS AND ASC
<4G15>

ABS AND ASC
<4G15>

ABS AND ASC
<4G15>

ABS AND ASC
<4G15>

Main

Index

Group

TOC

J/C

CIRCUIT DIAGRAMS

90-6

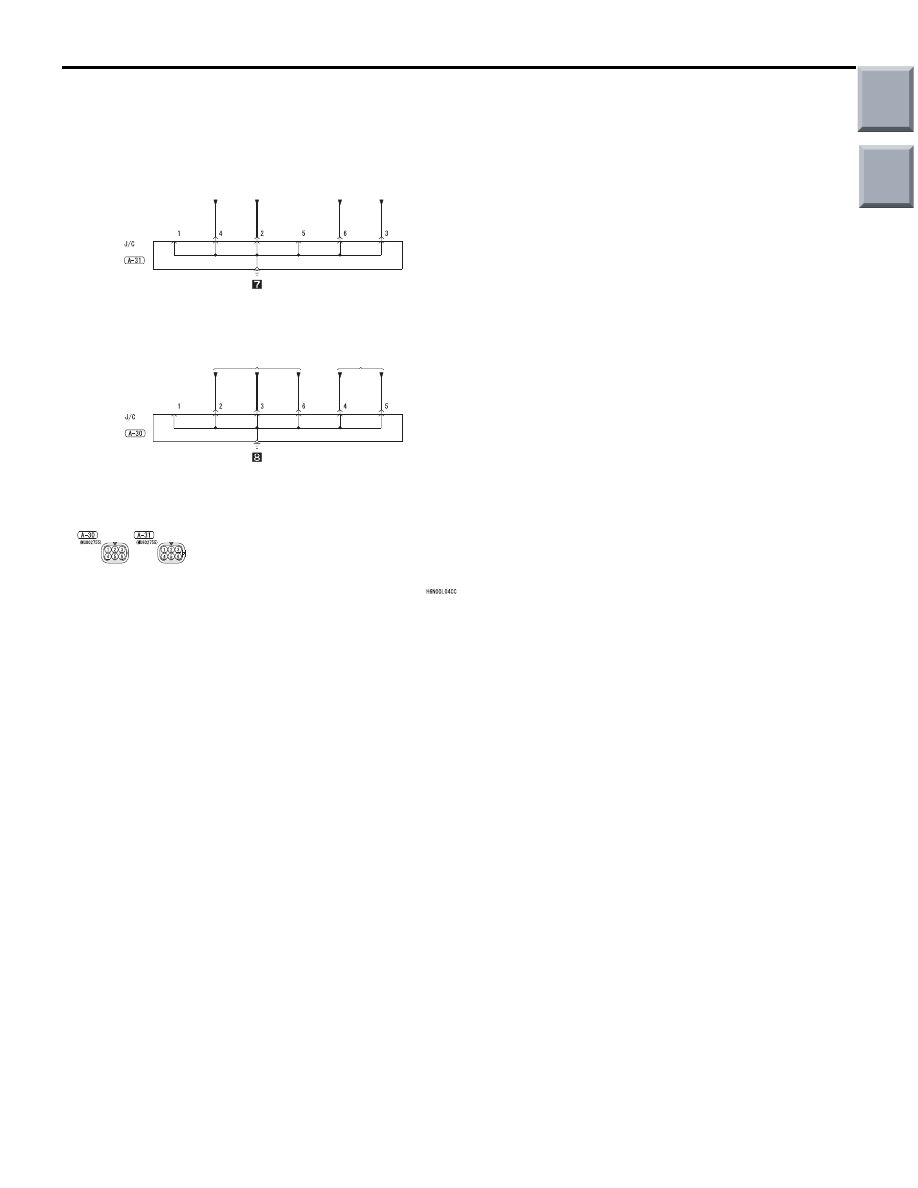

J/C (CONTINUED)

WINDSHIELD
WIPER
AND WASHER

·AUTOMATIC AIR
 CONDITIONER
·COOLING SYSTEM
·MANUAL AIR
 CONDITIONER

BRAKE
WARNING
LAMP

·CAN
·ENGINE CONTROL
 SYSTEM

·CAN
·ENGINE CONTROL
 SYSTEM

·CAN
·INVECS-III CVT

(EARTH 7)

(EARTH 8)

Main

Index

Group

TOC

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-7

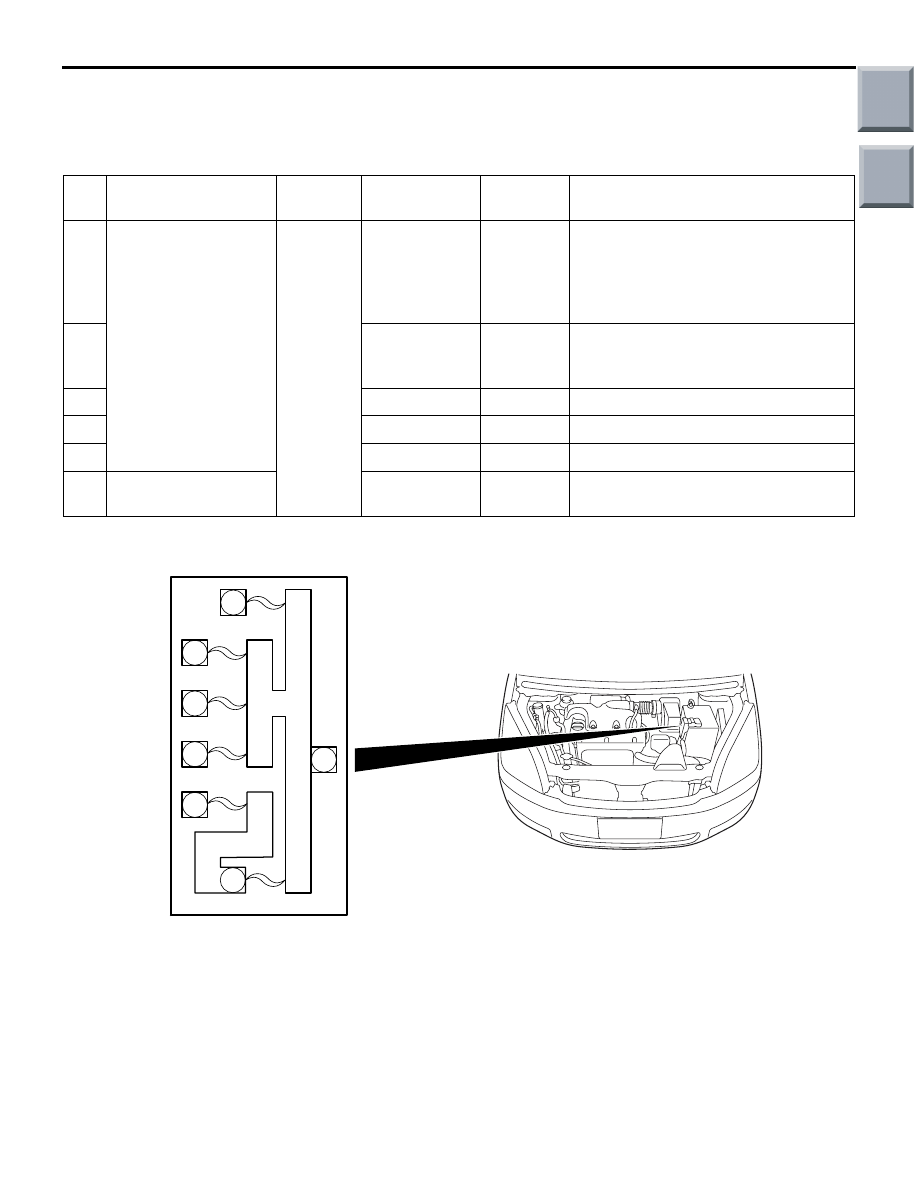

CENTRALIZED JUNCTION

M1901000301842

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

No. Power source

circuit

Name

Rated
capacity (A)

Housing
colour

Load circuit

1

Battery/alternator

Fusible
link

120

−

ETACS-ECU, headlamp relay, fusible
link No.1, 2, 3 (in junction block)
circuit and fuse No.10, 14, 15, 16, 17,
18, 19, 20, 31, 35, 36, 42, 43, 44
circuit

2

120

−

Fusible link No.6 (in fusible link box)
circuit/battery and fusible link No.1, 3,
4, 5 (in fusible link box) circuit

3

40

−

ABS-ECU and ASC-ECU

4

60

−

EPS-ECU

5

30

−

ABS-ECU, ASC-ECU and alternator

6

Fusible link No.2 (in
fusible link box)

80

−

Fuse No.5, 8, 11, 24, 27, 29, 30, 33,
34 circuit

AC208919

AC

(Fusible link box connected directly to battery positive terminal)

1

3

4

5

6

2

Main

Index

Group

TOC

CENTRALIZED JUNCTION

CIRCUIT DIAGRAMS

90-8

PASSENGER COMPARTMENT

No. Power source

circuit

Name

Rated
capacity (A)

Housing
colour

Load circuit

1

Fusible link No.1 (in
fusible link box)

Fusible
link

40

Green

Ignition switch circuit

2

40

Green

Power window main switch and
power window sub switch

3

40

Green

Cooling fan motor

4

−

−

−

5

Fusible link No.6 (in
fusible link box)

Fuse

30

Green

Rear window defogger

6

−

−

−

7

−

−

−

−

8

Fusible link No.6 (in
fusible link box)

30

Green

Combination meter, blower motor,
power transistor and resistor

9

Ignition switch (ACC)

10

Red

ETACS-ECU, radio and CD player

10

Fusible link No.1 (in
fusible link box)

10

Red

ETACS-ECU, ignition key cylinder
illumination lamp, luggage
compartment lamp and room lamp

11

Fusible link No.6 (in
fusible link box)

7.5

Brown

−

12

Ignition switch (IG2)

7.5

Brown

Sunroof motor assembly

13

Ignition switch (ACC)

20

Yellow

ETACS-ECU, windshield wiper motor
and washer motor

14

ETACS-ECU (tail
lamp relay)

7.5

Brown

Fog lamp switch, hazard warning
switch, position lamp and tail lamp

15

7.5

Brown

Licence plate lamp, position lamp and
tail lamp

16

Fusible link No.1 (in
fusible link box)

20

Yellow

Air flow sensor <4G15>, camshaft
position sensor, crank angle sensor,
EGR valve <CVT>, engine control
relay, engine-CVT-ECU <CVT>,
engine-ECU <M/T>, fuel pressure
control solenoid valve <4G15>,
injector, oxygen sensor, primary
speed sensor <CVT>, purge control
solenoid valve, oil feeder control
valve, secondary speed sensor
<CVT>, turbine speed sensor <CVT>,
throttle valve control servo relay and
wastegate solenoid valve <4G15>

17

15

Blue

Fuel pump and gauge unit

18

10

Red

Horn and horn relay

19

Headlamp relay: HI

10

Red

Headlamp (HI)

20

10

Red

Headlamp (HI)

21

−

−

−

−

22

−

−

−

−

23

Ignition switch (ACC)

7.5

Brown

Door mirror assembly
