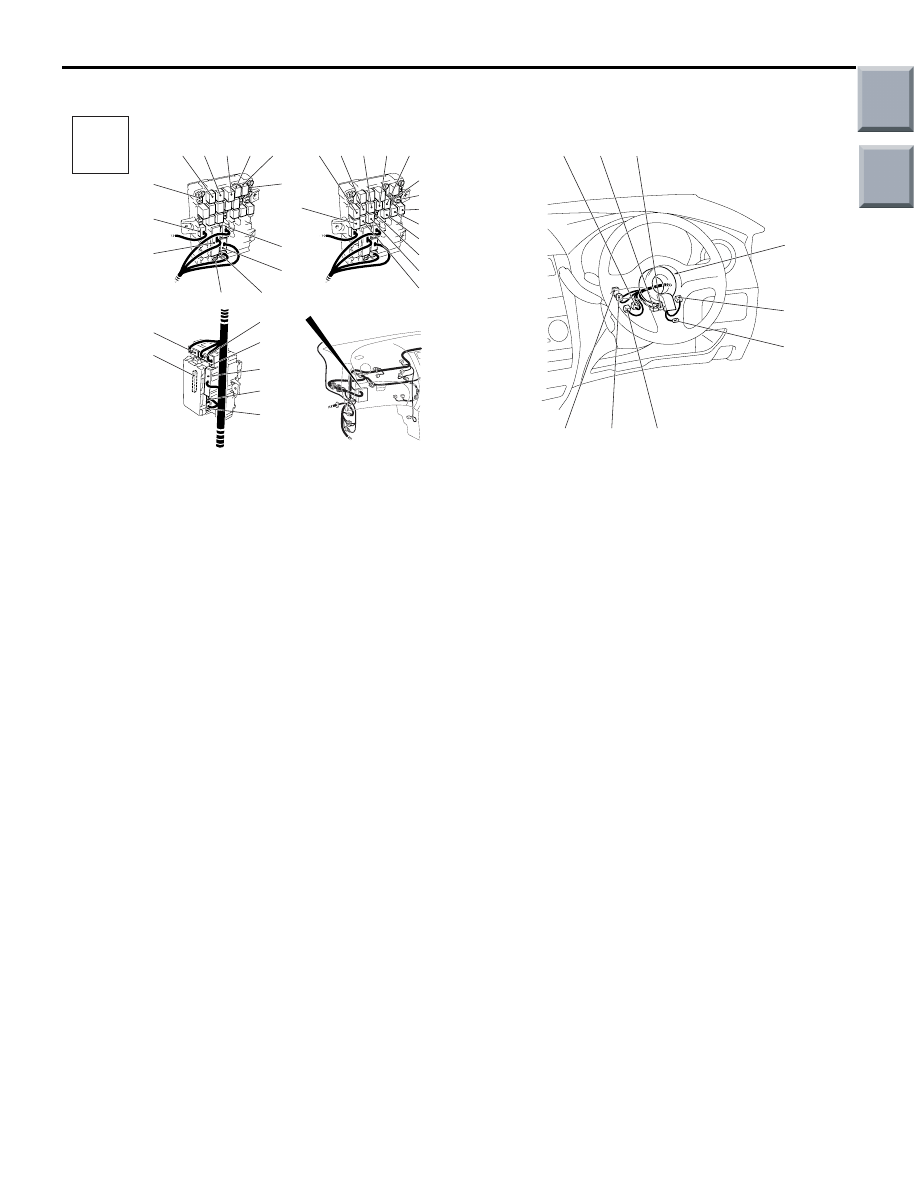

INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-10

INSTRUMENT PANEL (CONTINUED)

AC600831

AC405524

AB

J/B

(front side)

(rear side)

B-102 B-103 B-104 B-105 B-106

B-107

B-108

B-109

B-110

B-111

B-113

B-112

B-101

B-114 B-115 B-116

B-128

B-134

B-129

B-130

B-117 B-118

B-119

B-120

B-121

B-122

B-123

B-124

B-125

B-126

B-132

B-131

B-133

B-127

Steering column

B-135

B-136

B-137

Clock
spring

B-138

B-139

B-141

B-140

B-142

Connector
symbol

-101
thru
-142

B

Connector colour
code
B : Black
BR : Brown
DG: Dark grey
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-101 (4)

No connection

B-102 (4)

Horn relay

B-103 (4)

Fuel pump relay 2

B-104 (4)

A/C compressor relay

B-105 (4)

Starter relay <M/T>

B-106 (4)

Engine control relay

B-107 (4)

No connection

B-108 (2-B)

Front wiring harness and J/B
combination

B-109 (6)

Front wiring harness and J/B
combination

B-110 (14)

Front wiring harness and J/B
combination

B-111 (3)

No connection

B-112 (32)

Front wiring harness and J/B
combination

B-113 (5)

Pillar wiring harness and J/B
combination

B-114 (4)

Cooling fan control relay <4A91> or
cooling fan control relay (LO) <4G15>

B-115 (4)

Fog lamp relay

B-116 (4)

Blower relay

B-117 (4)

Fuel pump relay 1

B-118 (4)

CVT control relay

B-119 (4)

No connection

B-120 (4)

No connection

B-121 (4)

Throttle valve control servo relay

B-122 (4)

Headlamp relay (HI)

B-123 (4)

Headlamp relay (LO)

B-124 (4)

No connection

B-125 (4)

Rear window defogger relay

B-126 (4)

Power window relay

B-127 (4)

Cooling fan control relay (HI) <4G15>

B-128 (15)

Instrument panel wiring harness and
J/B combination

B-129 (6)

Instrument panel wiring harness and
J/B combination

B-130 (8)

Instrument panel wiring harness and
J/B combination

B-131 (36)

Instrument panel wiring harness and
J/B combination

B-132 (24)

ETACS-ECU

B-133 (24-GR) ETACS-ECU
B-134 (20)

ETACS-ECU

B-135 (10)

Column switch

B-136 (4-Y)

Clock spring

B-137 (6)

Clock spring

B-138 (2)

Driver’s air bag module (squib)

B-139 (1)

Horn switch

B-140 (7-B)

Ignition key cylinder illumination lamp

B-141 (6)

Ignition switch

B-142 (6)

Steering wheel sensor <ASC>

Main

Index

Group

TOC

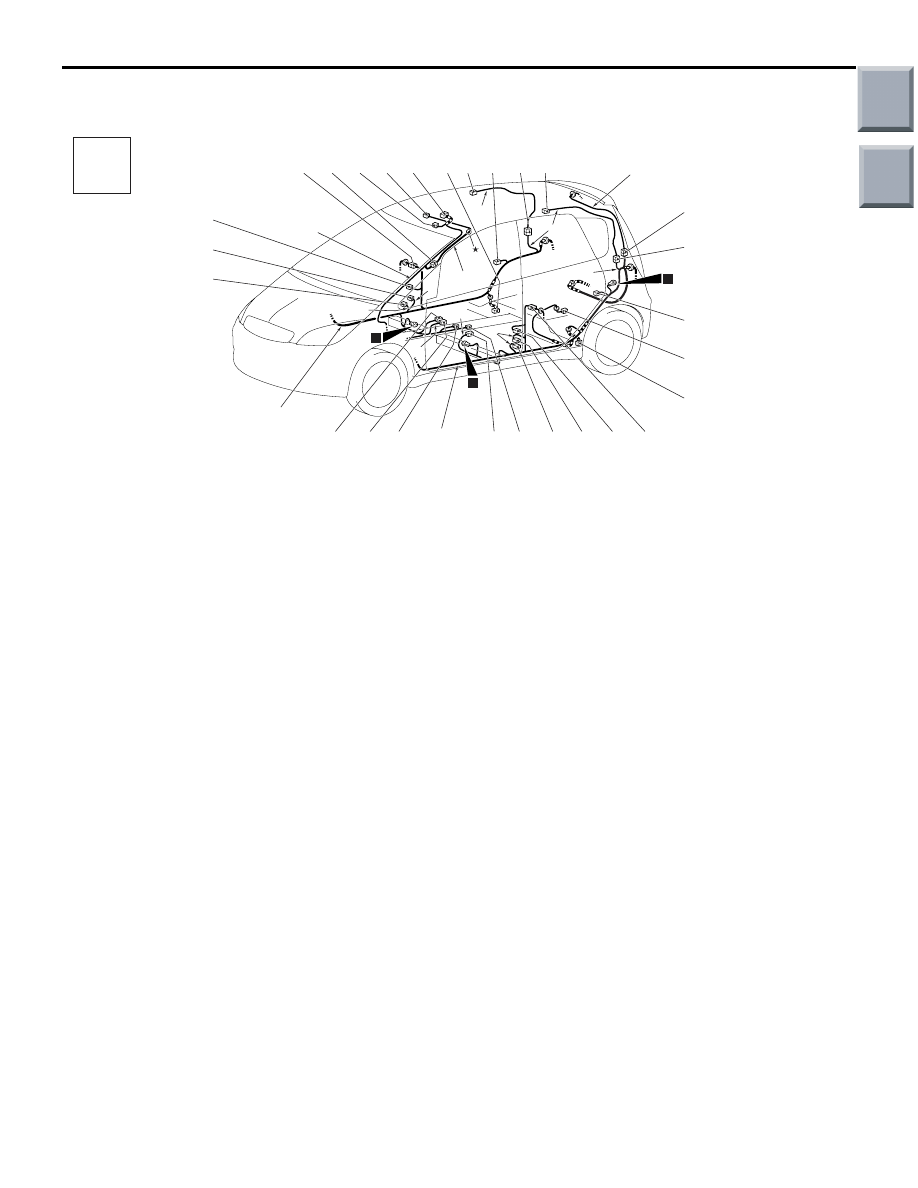

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80-11

FLOOR AND ROOF

M1801000902174

AC400504

AC600832

Connector
symbol

C

AC

Connector colour
code
B : Black
BR : Brown
DG:Dark gray
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-29

C-28

Pillar wiring
harness

Roof wiring
harness

C-01

C-02

C-03

C-04

C-05

C-06

C-08

C-25

11

12

Y

C-14

C-12

C-16

Instrument panel
wiring harness

Tailgate
wiring harness

C-18

C-17

C-19

C-21

C-20

13

Y

Instrument panel
wiring harness

C-07

C-09

C-10

Y

Y

C-13

Y

C-23

C-42

C-26

C-43

Y

Y

Y

C-27

C-01

(10)

Instrument panel wiring harness and
rear door wiring harness (RH)
combination

C-02

(5)

Pillar wiring harness and roof wiring
harness combination

C-03

(6-B)

Sunroof switch

C-04

(3)

Room lamp

C-05

(10-GR) Sunroof motor assembly

C-06

(2-B)

Rear wheel speed sensor (RH)

C-07

(2-B)

Curtain air bag module (squib) (RH)

C-08

(3)

Door switch (Rear: RH)

C-09

(2-R)

Instrument panel wiring harness and
curtain air bag wiring harness (RH)
combination

C-10

(2-B)

Curtain air bag module (squib) (LH)

C-12

(10)

Instrument panel wiring harness and
tailgate wiring harness combination

C-13

(2-R)

Instrument panel wiring harness and
curtain air bag wiring harness (LH)
combination

C-14

(3)

Door switch (Rear: LH)

C-16

(5-GR)

Fuel pump and gauge unit

C-17

(2-B)

Rear wheel speed sensor (LH)

C-18

(10)

Instrument panel wiring harness and
rear door wiring harness (LH)
combination

C-19

(3)

Door switch (Front: LH)

C-20

(2-B)

Seat belt pre-tensioner (LH)

C-21

(2-Y)

Side impact sensor (LH)

C-23

(2-R)

Side-airbag module (squib) (LH)

C-25

(2-R)

Side-airbag module (squib) (RH)

C-26

(2)

Front seat belt switch (RH)

C-27

(2-Y)

Side impact sensor (RH)

C-28

(2-B)

Seat belt pre-tensioner (RH)

C-29

(3)

Door switch (Front: RH)

C-42

(1-B)

Parking brake switch <M/T>

C-43

(4-B)

G and yaw rate sensor <ASC>

Main

Index

Group

TOC

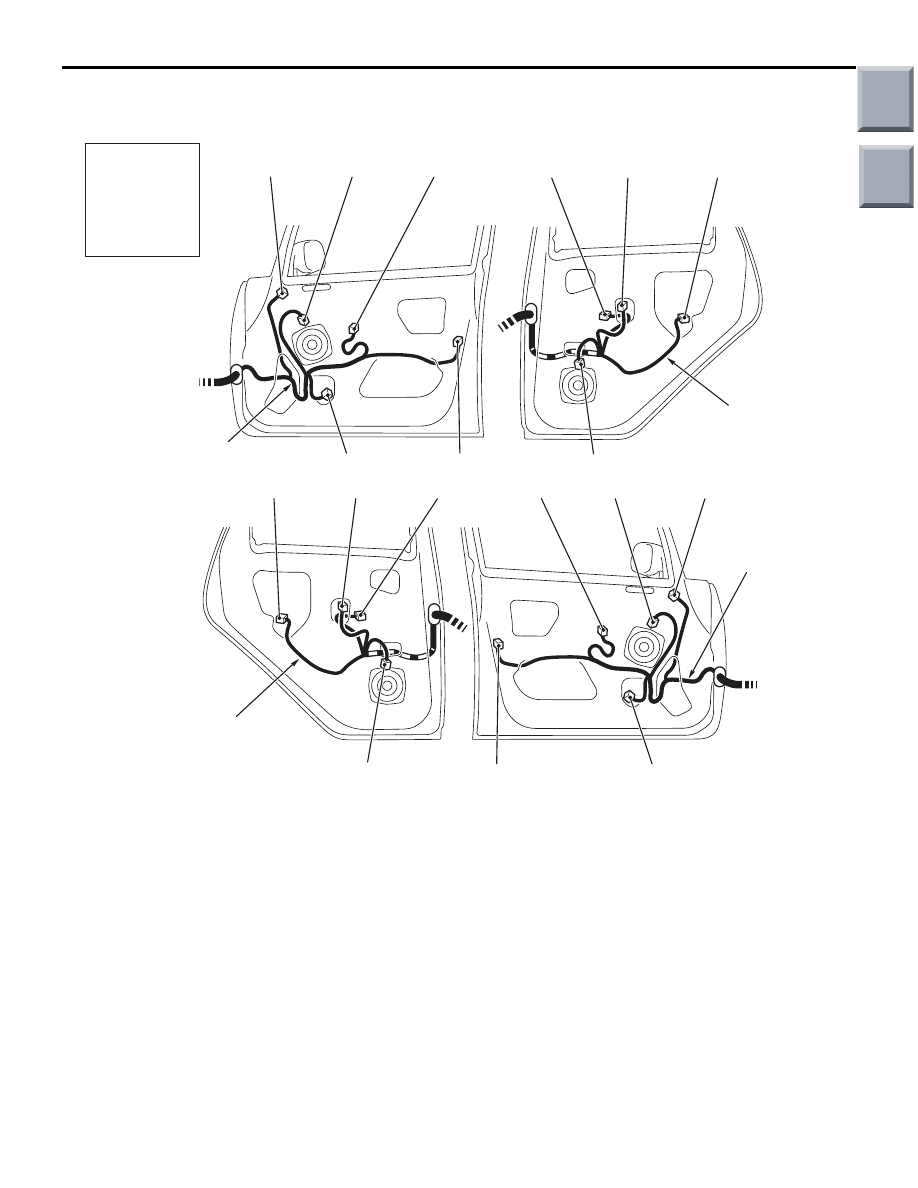

DOOR

CONFIGURATION DIAGRAMS

80-12

DOOR

M1801001401793

AC505469

D-01

(Driver's side)

(Passenger's
side)

D-02

D-03

D-04

D-05

D-06

D-10

D-11

D-12

D-13

D-14

D-15

D-16

D-17

D-18

D-07

D-08

D-09

Connector
symbol

D

Rear door
wiring harness (RH)

Rear door
wiring harness (LH)

Front door
wiring harness (RH)

Front door
wiring harness (LH)

AB

D-01

(7)

Door mirror assembly (RH)

D-02

(2)

Front door speaker (RH)

D-03

(14)

Power window main switch

D-04

(2-B)

Power window motor (Rear: RH)

D-05

(8)

Power window sub switch (Rear: RH)

D-06

(6-B)

Rear door lock actuator (RH)

D-07

(2)

Rear door speaker (RH)

D-08

(6-B)

Front door lock actuator (RH)

D-09

(2-B)

Power window motor (Front: RH)

D-10

(6-B)

Rear door lock actuator (LH)

D-11

(8)

Power window sub switch (Rear: LH)

D-12

(2-B)

Power window motor (Rear: LH)

D-13

(8)

Power window sub switch (Front: LH)

D-14

(2)

Front door speaker (LH)

D-15

(7)

Door mirror assembly (LH)

D-16

(2-B)

Power window motor (Front: LH)

D-17

(6-B)

Front door lock actuator (LH)

D-18

(2)

Rear door speaker (LH)

Main

Index

Group

TOC

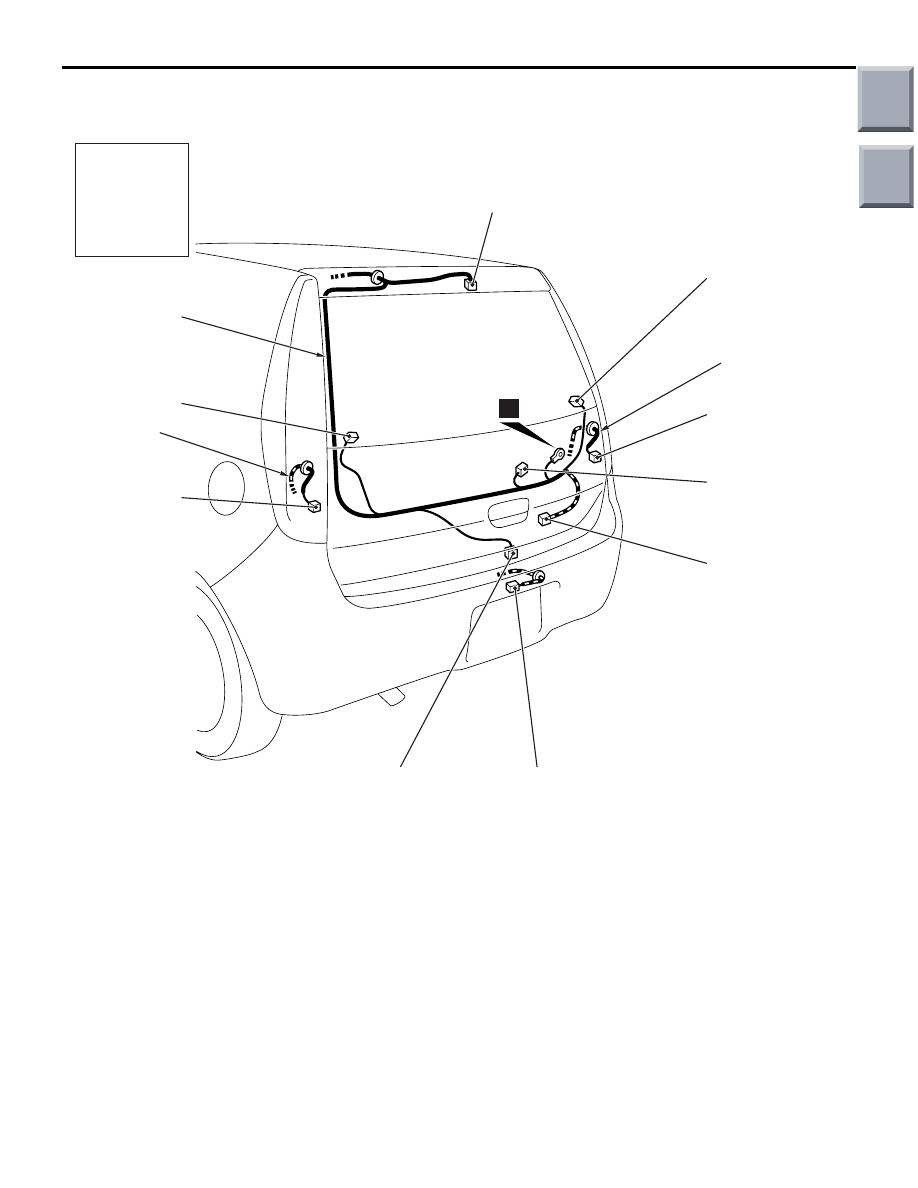

TAILGATE

CONFIGURATION DIAGRAMS

80-13

TAILGATE

M1801001900751

AC400507AC

E-01

E-02

E-03

E-04

E-05

E-07

E-08

E-12

E-13

Tailgate
wiring
harness

Instrument
panel wiring
harness

Instrument
panel wiring
harness

6

Connector
symbol

E

Connector colour
code
B : Black
BR : Brown
DG:Dark gray
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

E-01

(2-B)

High-mounted stop lamp

E-02

(1-B)

Rear window defogger (

−)

E-03

(6-B)

Rear combination lamp (RH)

E-04

(4)

Rear wiper motor

E-05

(2-B)

Tailgate lock actuator

E-07

(2)

Licence plate lamp

E-08

(1-B)

Tailgate switch

E-12

(6-B)

Rear combination lamp (LH)

E-13

(1-B)

Rear window defogger (+)

Main

Index

Group

TOC
