HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-11

4. For others

Abbreviation
symbol

Meaning

Abbreviation
symbol

Meaning

A/C

Air conditioner

GND

Earthing

CPU

Central processing unit

HI

High

ECU

Electronic control unit

ILL

Illumination lamp

EGR

Exhaust gas recirculation

IND

Indicator lamp

EPS

Electric control power steering

LH

Left hand

ETACS

Electronic time and alarm control
system

LO

Low

RH

Right hand

Sunroof switch

UP

Sunroof tilts up

OPEN

Sunroof slides to open

CLOSE/DOWN Sunroof tilts down or slides to close

Turn-signal lamp
switch

LH

LH turn-signal lamps ON

RH

RH turn-signal lamps ON

Windshield intermittent
wiper interval adjusting
knob

SLOW

Pause time for intermittent operation lengthens

FAST

Pause time for intermittent operation shortens

Windshield wiper
switch

MIST

Windshield wiper operates once

INT

Windshield wiper operates intermittently

LO

Windshield wiper operates at low speed

HI

Windshield wiper operates at high speed

Name of switches
and relays

Abbreviation
symbol

Operation

Main

Index

Group

TOC

GROUP 70

COMPONENT

LOCATIONS

CONTENTS

SENSOR. . . . . . . . . . . . . . . . . . . . . . .

70-2

DIODE  . . . . . . . . . . . . . . . . . . . . . . . .

70-8

ECU  . . . . . . . . . . . . . . . . . . . . . . . . . .

70-9

FUSIBLE LINK AND FUSE . . . . . . . .

70-11

RELAY . . . . . . . . . . . . . . . . . . . . . . . .

70-12

INSPECTION CONNECTOR AND



SPARE CONNECTOR  . . . . . . . . . . . .

70-13

SOLENOID VALVE. . . . . . . . . . . . . . .

70-14

EARTH  . . . . . . . . . . . . . . . . . . . . . . . .

70-16

EARTH CABLE. . . . . . . . . . . . . . . . . .

70-18

Main

Index

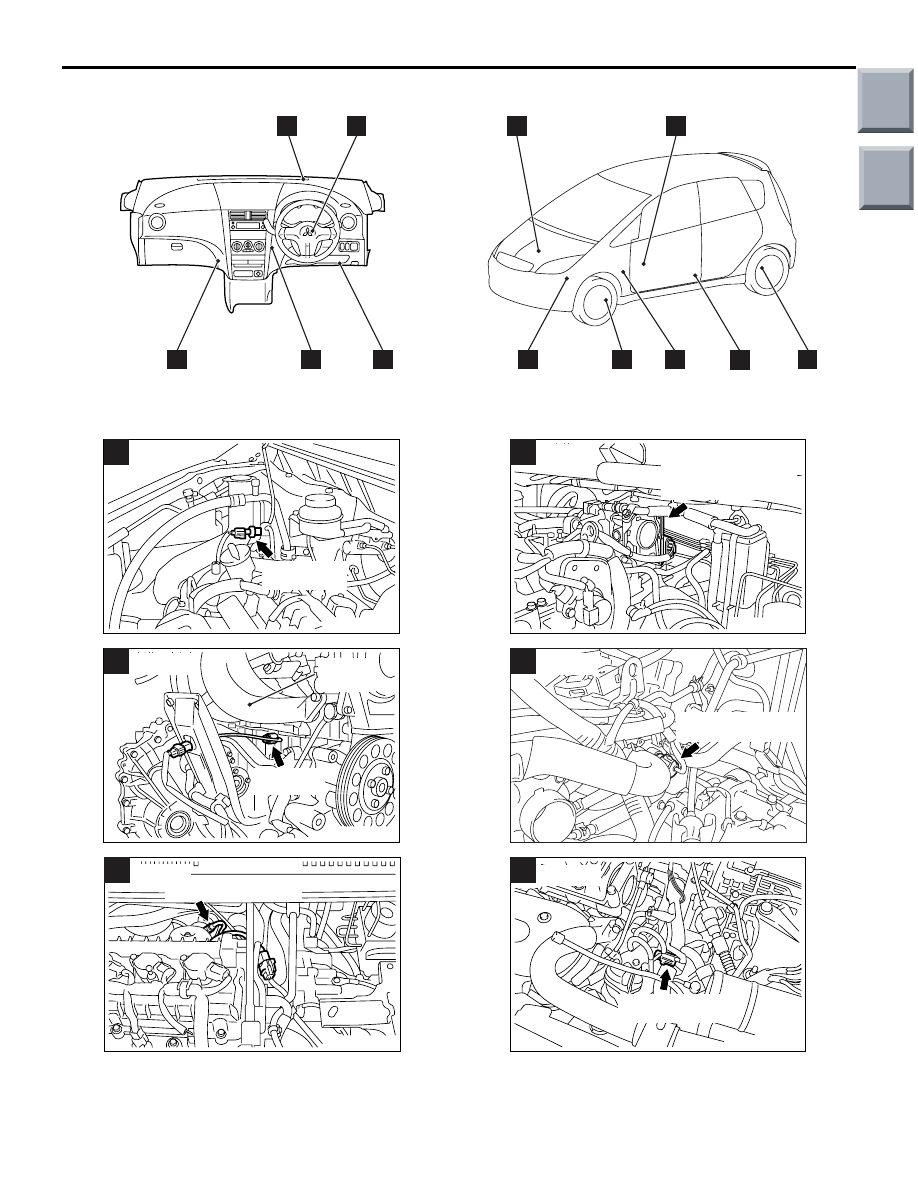

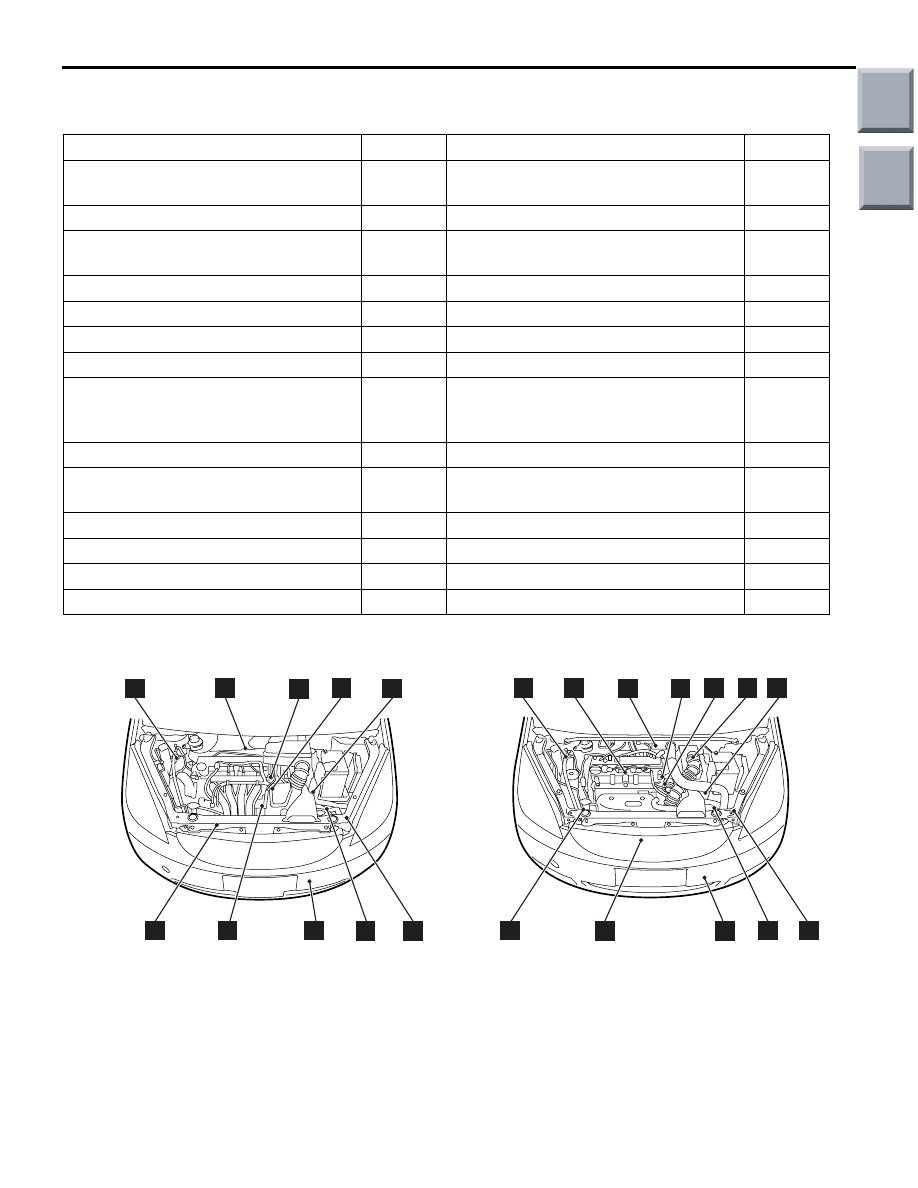

SENSOR

COMPONENT LOCATIONS

70-2

SENSOR

M1701000601151

Name

Symbol

Name

Symbol

A/C pressure sensor

A

Interior temperature sensor <Automatic
A/C>

R

Accelerator pedal position sensor

S

Line pressure sensor <CVT>

H

Air flow sensor (incorporating intake air
temperature sensor) <4G15>

G

Manifold absolute pressure sensor
<4A91>

K

Air thermo sensor

Q

Oxygen sensor (front)

C, J

Ambient temperature sensor

L

Oxygen sensor (rear)

X

Camshaft position sensor

F

Photo sensor <Automatic A/C>

O

Crank angle sensor

I

Primary pressure sensor <CVT>

V

CVT control solenoid valve
(incorporating CVT fluid temperature
sensor)

M

Primary speed sensor <CVT>

H

Detonation sensor

B, I

Rear wheel speed sensor

Z

Electronic control throttle valve
(incorporating throttle position sensor)

D, K

Secondary speed sensor <CVT>

H

Engine coolant temperature sensor

E

Side impact sensor

Y

Front impact sensor

N

Steering wheel sensor <ASC>

P

G and yaw rate sensor <ASC>

U

Torque sensor (for EPS)

T

Front wheel speed sensor

W

Turbine speed sensor <CVT>

H

AC402858

AK

<4A91>

<4G15>

A

A

B

D

F

G

H

K

L

L

M

M

N

N

C

E

E

J

F

H

I

I

*

*

Main

Index

Group

TOC

AC600962 AB

O

P

Q

R

S

T

*

*

U

V

Z

X

W

Y

SENSOR

COMPONENT LOCATIONS

70-3

NOTE: *:also equipped at the right side.

AC402653

AD

A/C pressure
sensor

A

AC402580

AF

Detonation
sensor

Intake
manifold

B

<4G15>

AC402716

AF

Oxygen sensor (front)

<4A91>

C

AC402579

AF

Electronic control
throttle valve
(incorporating throttle
position sensor)

D

<4G15>

AC402814AF

Engine coolant
temperature sensor

<4A91>

E

AC402575

AE

Engine coolant
temperature sensor

<4G15>

E
