IGNITION SYSTEM

ENGINE ELECTRICAL

16-38

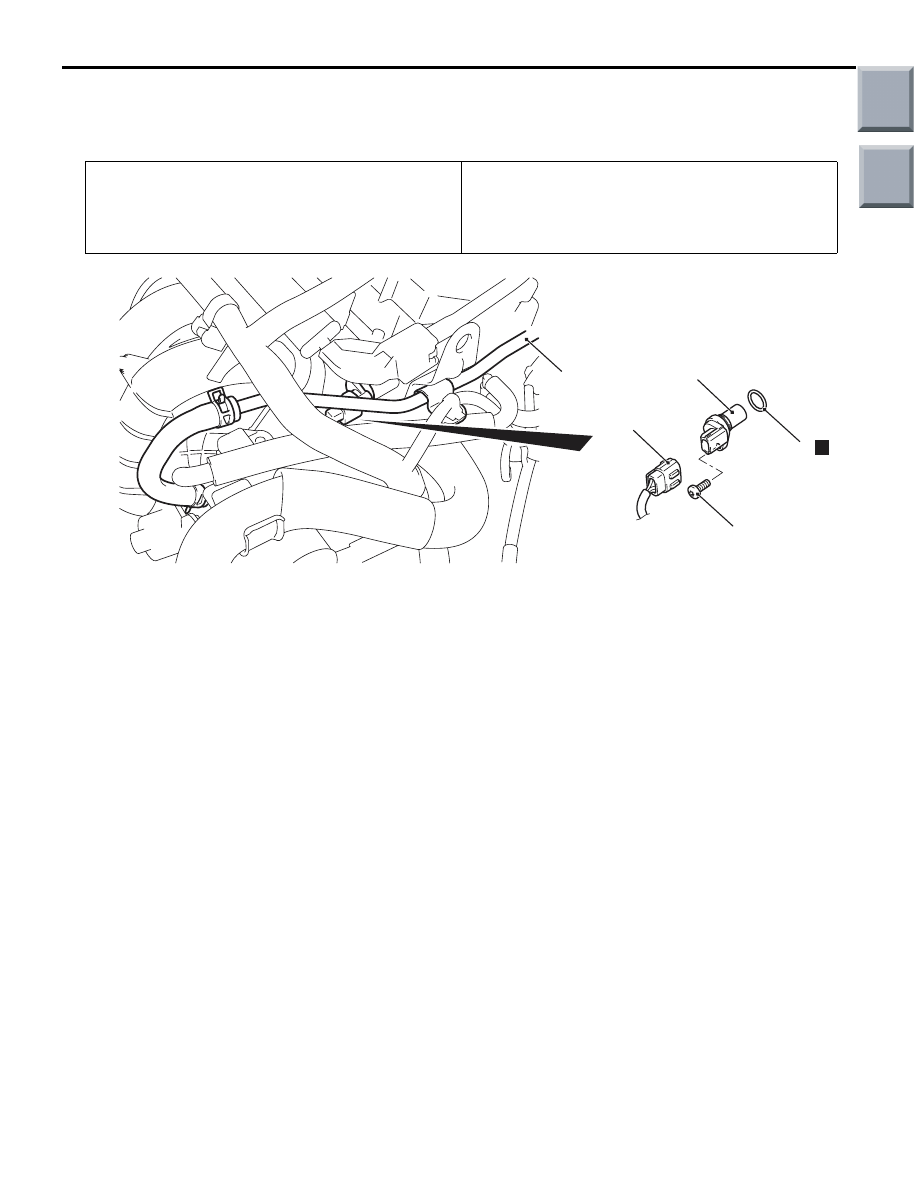

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <4A9>

M1163003400960

Pre-removal Operation
• Engine Cover Removal (Refer to GROUP 11A, Camshaft

P.11A-17

).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-5

).

Post-installation Operation
• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-5

).

• Engine Cover Installation (Refer to GROUP 11A, Cam-

shaft

P.11A-17

).

AC402692AB

4

8.4 ± 0.6 N·m

2

1

3

N

Removal steps

1.

Brake booster vacuum hose and
pipe assembly

2.

Camshaft position sensor
connector

3.

Camshaft position sensor

4.

O-ring

Removal steps (Continued)

Main

Index

Group

TOC

IGNITION SYSTEM

ENGINE ELECTRICAL

16-39

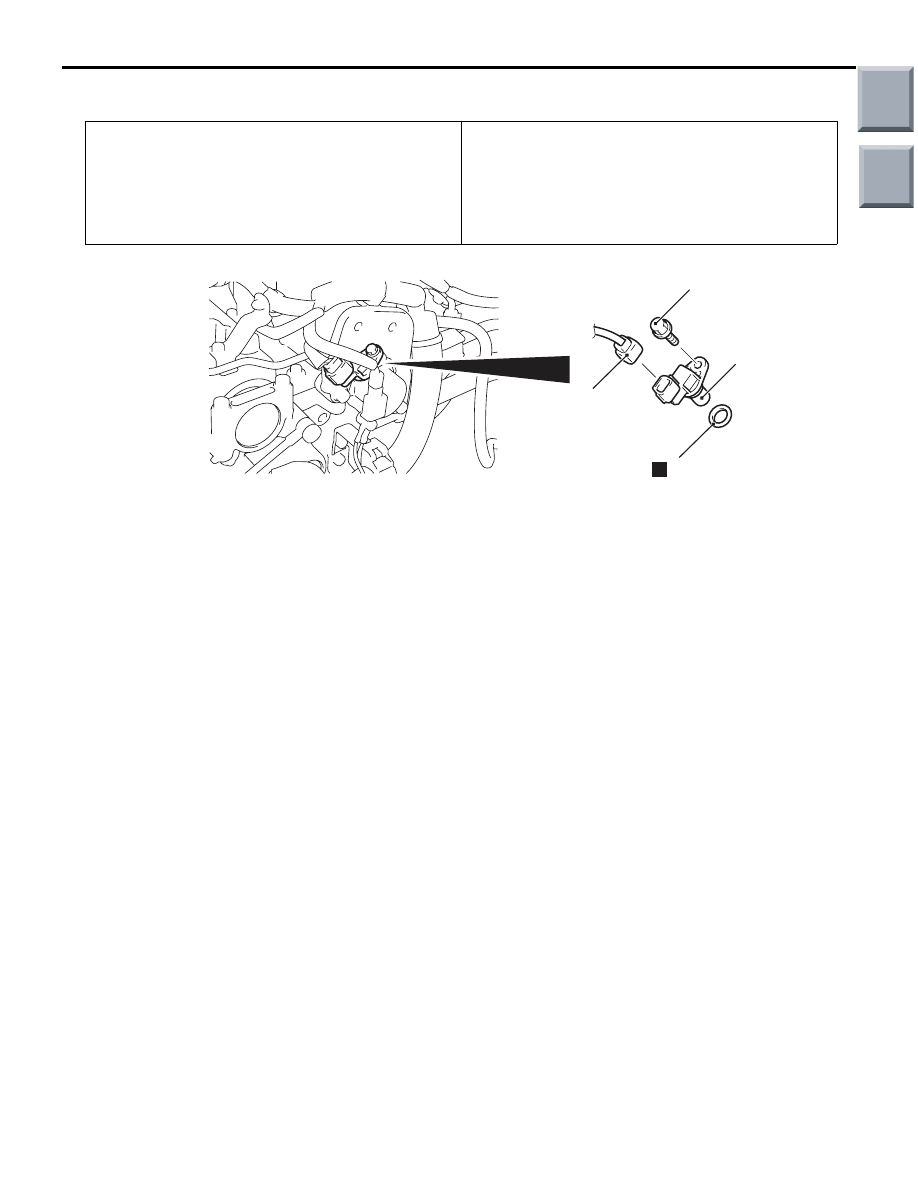

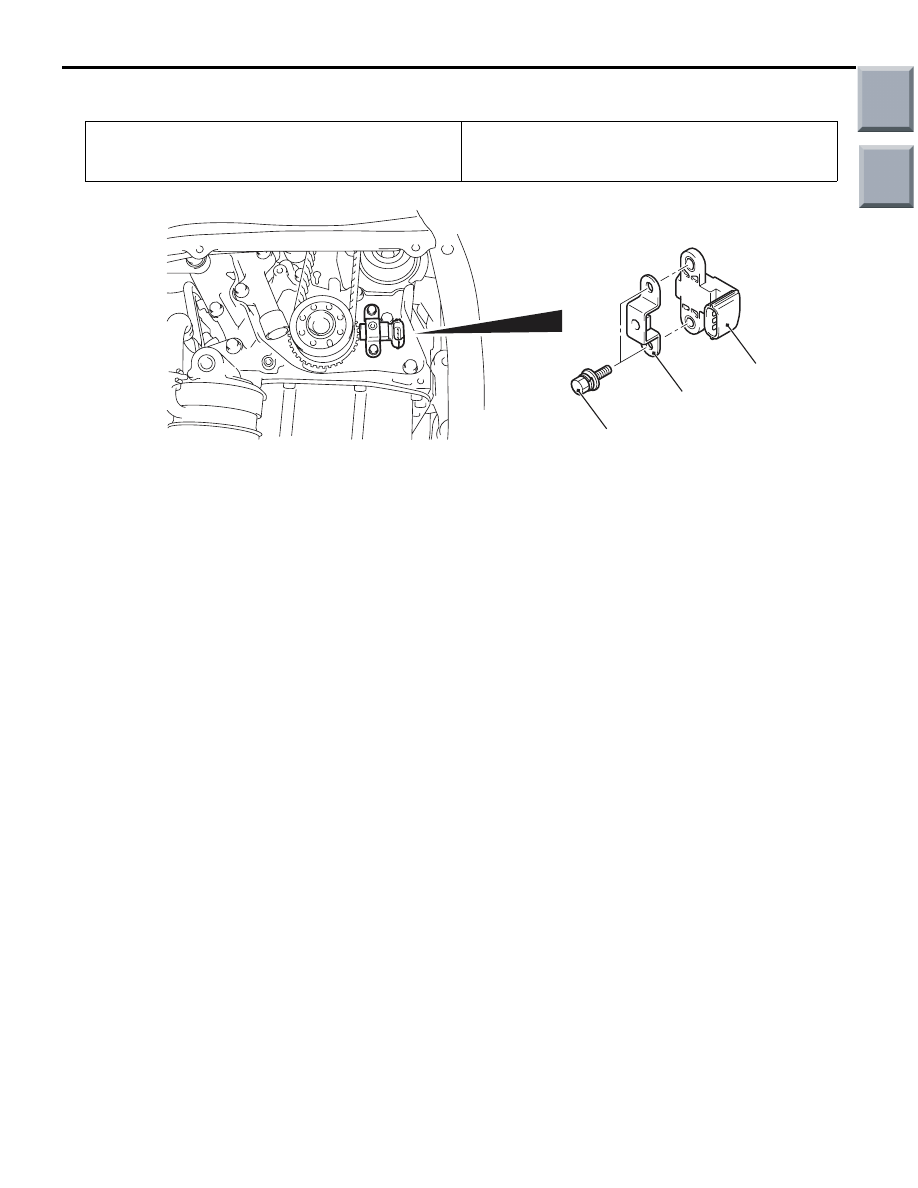

REMOVAL AND INSTALLATION <4G1>

M1163003400722

Pre-removal Operation
• Engine Cover Removal (Refer to GROUP 11C, Camshaft

and Valve Stem Seal

P.11C-20

).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-6

).

• Air Hose and Air Pipe Removal (Refer to GROUP 15,

Intercooler

P.15-8

).

Post-installation Operation
• Air Hose and Air Pipe Installation (Refer to GROUP 15,

Intercooler

P.15-8

).

• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-6

).

• Engine Cover Installation (Refer to GROUP 11C, Cam-

shaft and Valve Stem Seal

P.11C-20

).

AC402112AB

8.8 ± 1.0 N·m

1

2

3

N

Removal steps

1.

Camshaft position sensor
connector

2.

Camshaft position sensor

3.

O-ring

Removal steps (Continued)

Main

Index

Group

TOC

IGNITION SYSTEM

ENGINE ELECTRICAL

16-40

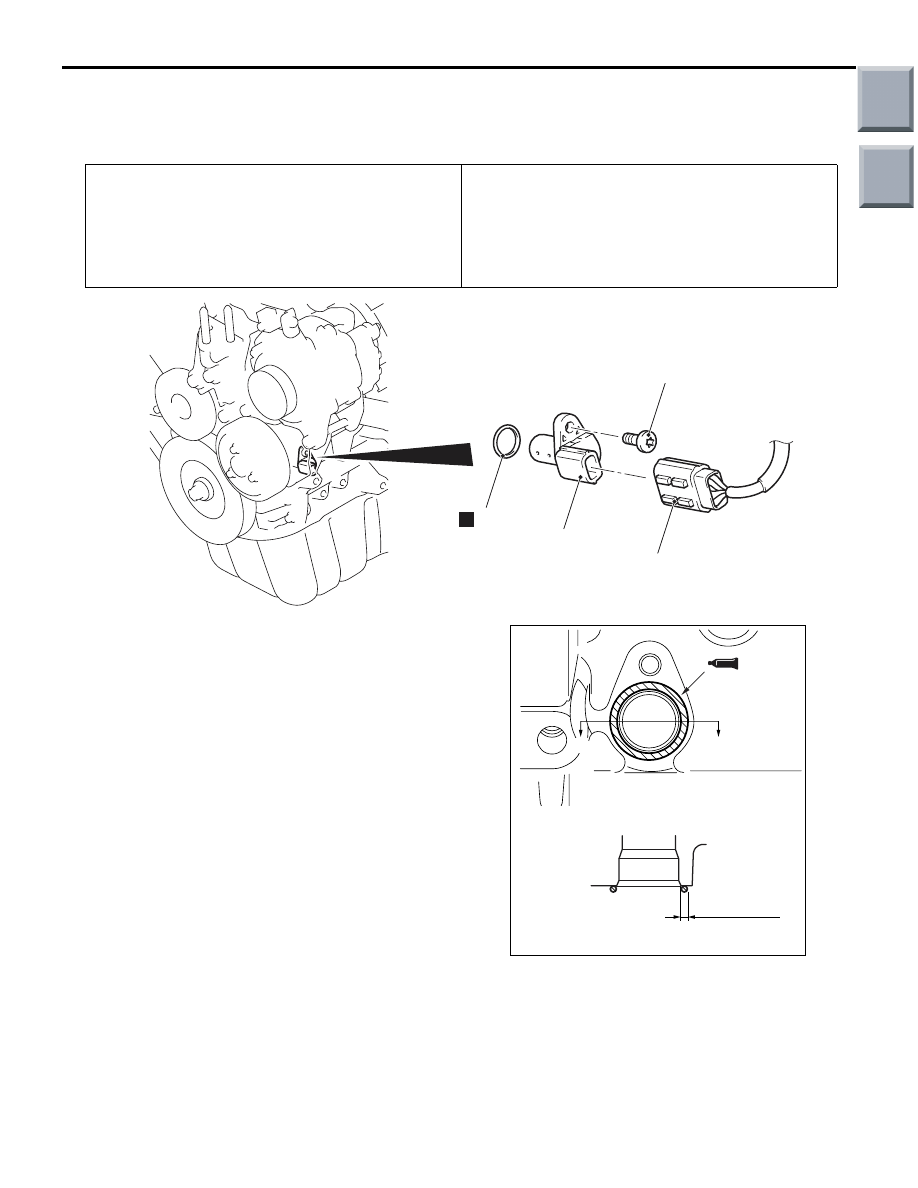

CRANK ANGLE SENSOR

REMOVAL AND INSTALLATION <4A9>

M1163004800284

Pre-removal Operation
• Side Under Cover Panel (RH) Removal

• Drive Belt Removal (Refer to GROUP 11A, Crankshaft

Pulley

P.11A-14

).

Post-installation Operation
• Drive Belt Installation (Refer to GROUP 11A, Crankshaft

Pulley

P.11A-14

).

• Drive Belt Tension Check and Adjustment (Refer to

GROUP 11A, On-Vehicle Service

− Drive Belt Tension

Check and Adjustment

P.11A-6

).

• Side Under Cover Panel (RH) Installation

AC402693AB

3

N

2

8.4 ± 0.6 N·m

1

Removal steps

<<

A

>>

•

A/C compressor assembly

1.

Crank angle sensor connector

>>

A

<<

2.

Crank angle sensor

3.

O-ring

REMOVAL SERVICE POINT
<<A>> A/C COMPRESSOR ASSEMBLY
REMOVAL

1. With the hose installed, remove the A/C

compressor assembly from the cylinder block
(Refer to GROUP 55A, Compressor Assembly

P.55A-63

).

2. Secure the removed A/C compressor assembly

with a cord to a place where it will not be a
hindrance when removing the crank angle sensor.

INSTALLATION SERVICE POINT
>>A<< CRANK ANGLE SENSOR INSTAL-
LATION

1. Remove sealant from the crank angle sensor and

the cylinder block surfaces.

AC313237

A

A

AC

φ 2 mm

Section A - A

2. Apply the sealant to the cylinder block mounting

surface as shown, and install the crank angle
sensor to the cylinder block.

Specified sealant: LOCTITE 5971 or exact
equivalent

3. Tighten the crank angle sensor mounting bolt to

the specified torque.

Tightening torque: 8.4

± 0.6 N⋅m

Main

Index

Group

TOC

IGNITION SYSTEM

ENGINE ELECTRICAL

16-41

REMOVAL AND INSTALLATION <4G1>
