TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-174

STEP 3. Connector check: A-107
electronic-controlled throttle valve connector
and A-114 engine-ECU connector or
engine-CVT-ECU connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace the connector.

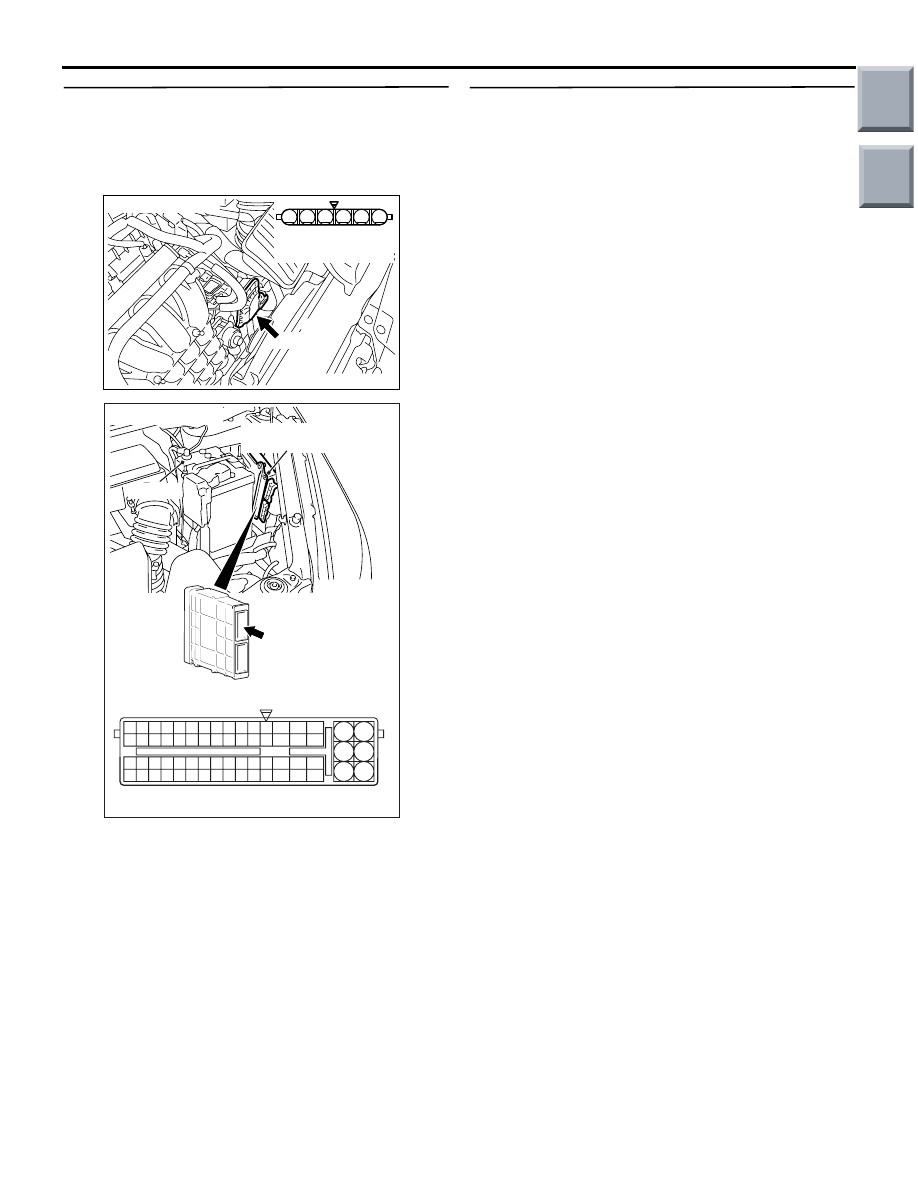

STEP 4. Check harness between A-107 (terminal
No. 1) electronic-controlled throttle valve
connector and A-114 (terminal No. 7) engine-ECU
connector or engine-CVT-ECU connector.

• Check output line for short circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair the damaged harness wire.

AK402006

1

6 5 4 3 2

AC

A-107 (B)

Connector: A-107

A-107 Harness side
connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

AK402006

1

6 5 4 3 2

AC

A-107 (B)

Connector: A-107

A-107 Harness side
connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-175

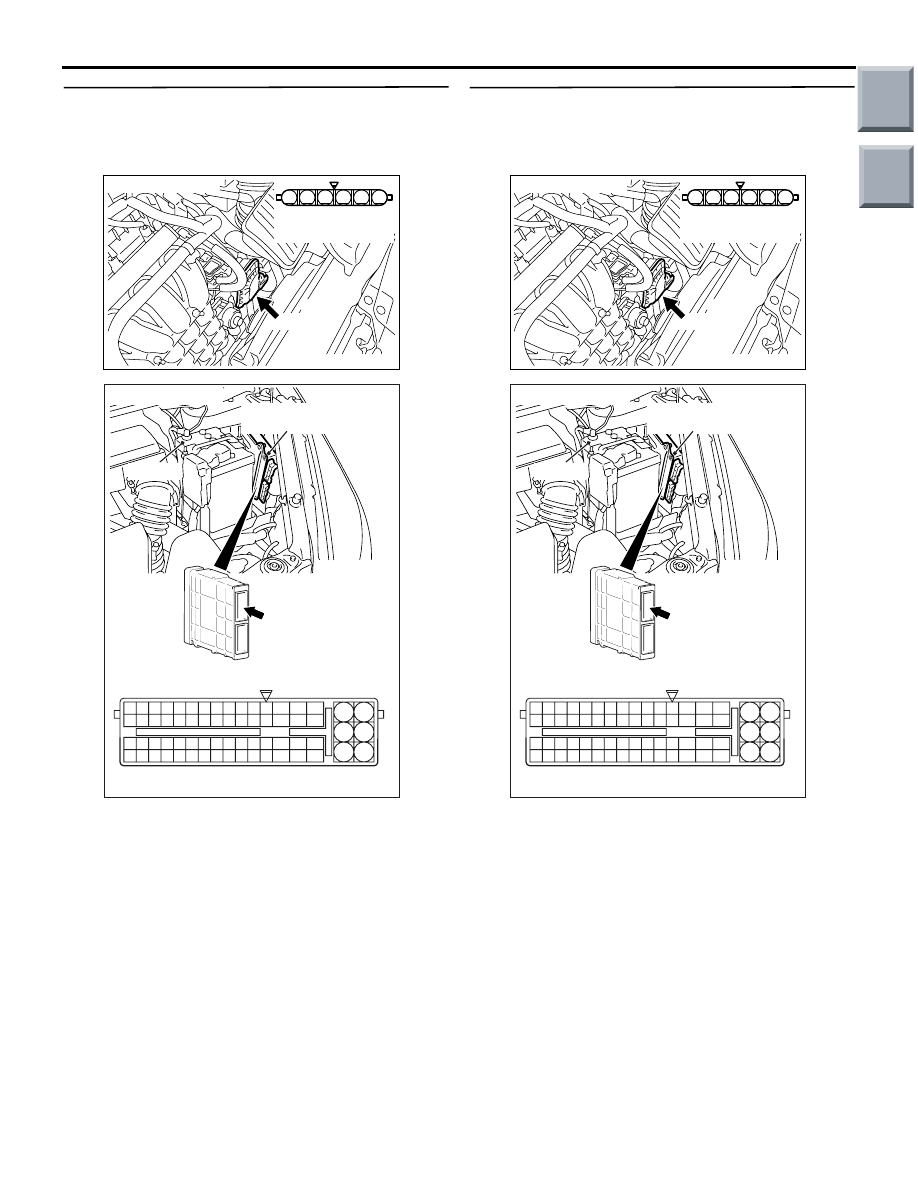

STEP 5. Check harness between A-107 (terminal
No. 2) electronic-controlled throttle valve
connector and A-114 (terminal No. 22)
engine-ECU connector or engine-CVT-ECU
connector.

• Check output line for short circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace engine-ECU <M/T> or

engine-CVT-ECU <CVT>.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402006

1

6 5 4 3 2

AC

A-107 (B)

Connector: A-107

A-107 Harness side
connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-176

Code No. P0642: Throttle Position Sensor Power Supply

FUNCTION

• The engine-ECU <M/T> or engine-CVT-ECU

<CVT> checks the throttle position sensor power
voltage for abnormal conditions.

TROUBLE JUDGMENT

Check Conditions

• Ignition switch is in "ON" position <M/T>.

• Battery positive voltage is 6.3 V or higher.

Judgement Criteria

• Throttle position sensor power voltage is 4.1 V or

less <M/T>.

• Throttle position sensor power voltage is 4.1 V or

less for 0.3 seconds <CVT>.

PROBABLE CAUSE

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS

STEP 1. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace engine-ECU <M/T> or

engine-CVT-ECU <CVT>.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-177

Code No. P0657: Throttle Valve Control Servo Relay Circuit Malfunction

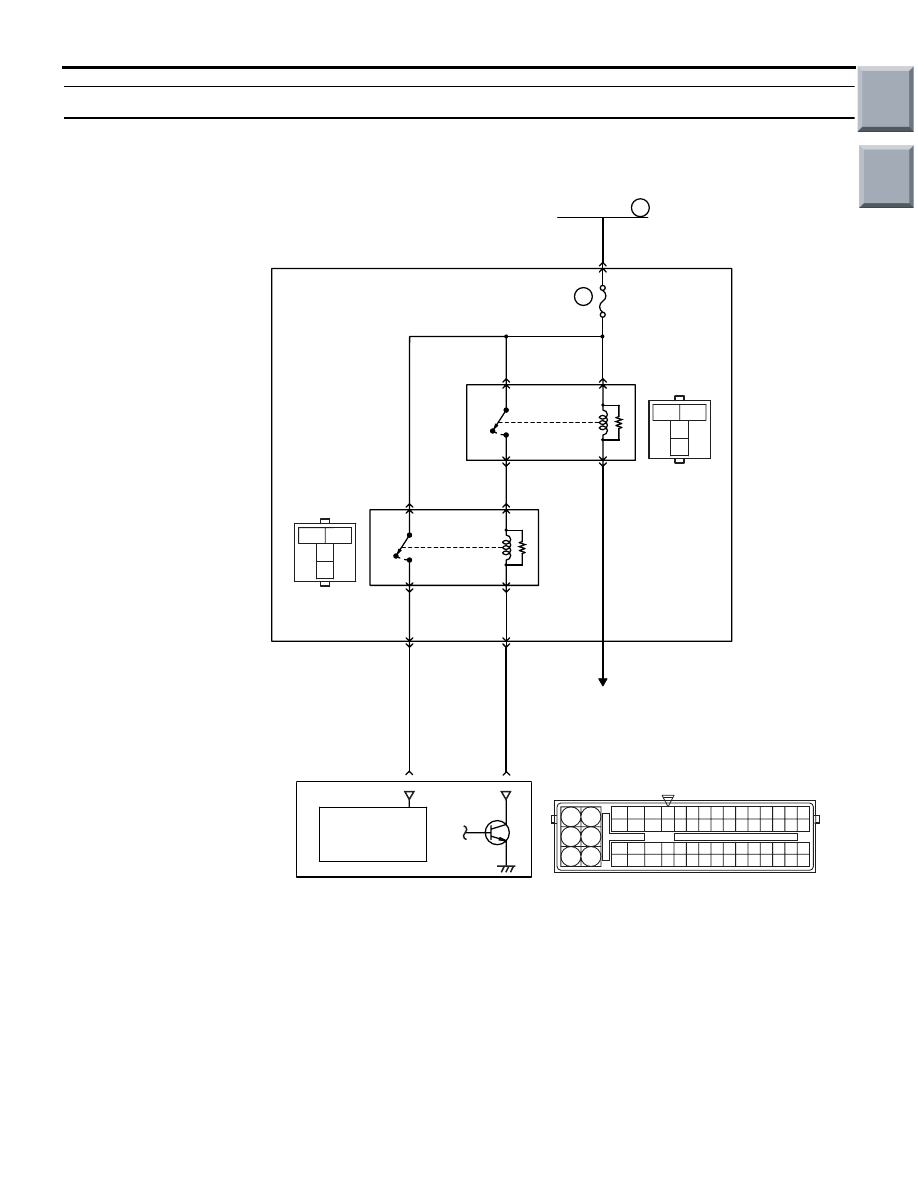

OPERATION

• Battery voltage is applied to the throttle valve

control servo relay terminal (terminal No. 3).

• Battery voltage is applied to the throttle valve

control servo relay terminal (terminal No. 1) from
the engine control relay (terminal No. 4).

• The engine-ECU <M/T> or engine-CVT-ECU

<CVT> (terminal No. 123) applies current to the
throttle valve control servo relay coil by turning
ON the power transistor in the unit in order to turn
the relay ON.

AK503598

3

1

2

4

3

1

2

4

R

92 93 94 95969798

77 78 79 808182838485868788899091

99

100

107 108 109 110 111112113114115116117118119120121
122 123 124 125126127128129130131132133134135136

101102103104105106

71 72

73 74

75 76

AC

Power source

L-W

R-L

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Throttle Valve Control Servo Relay Circuit

Engine
control
relay

Throttle
valve
control
servo
relay

B-106

B-121

B-108

3

1

4

2

3

1

32

B-112

B-110

5

78

123

4

2

1

1

R

Fusible link

16

20A

J/B

To

engine-ECU <M/T> or

engine-CVT-ECU <CVT>

A-08
