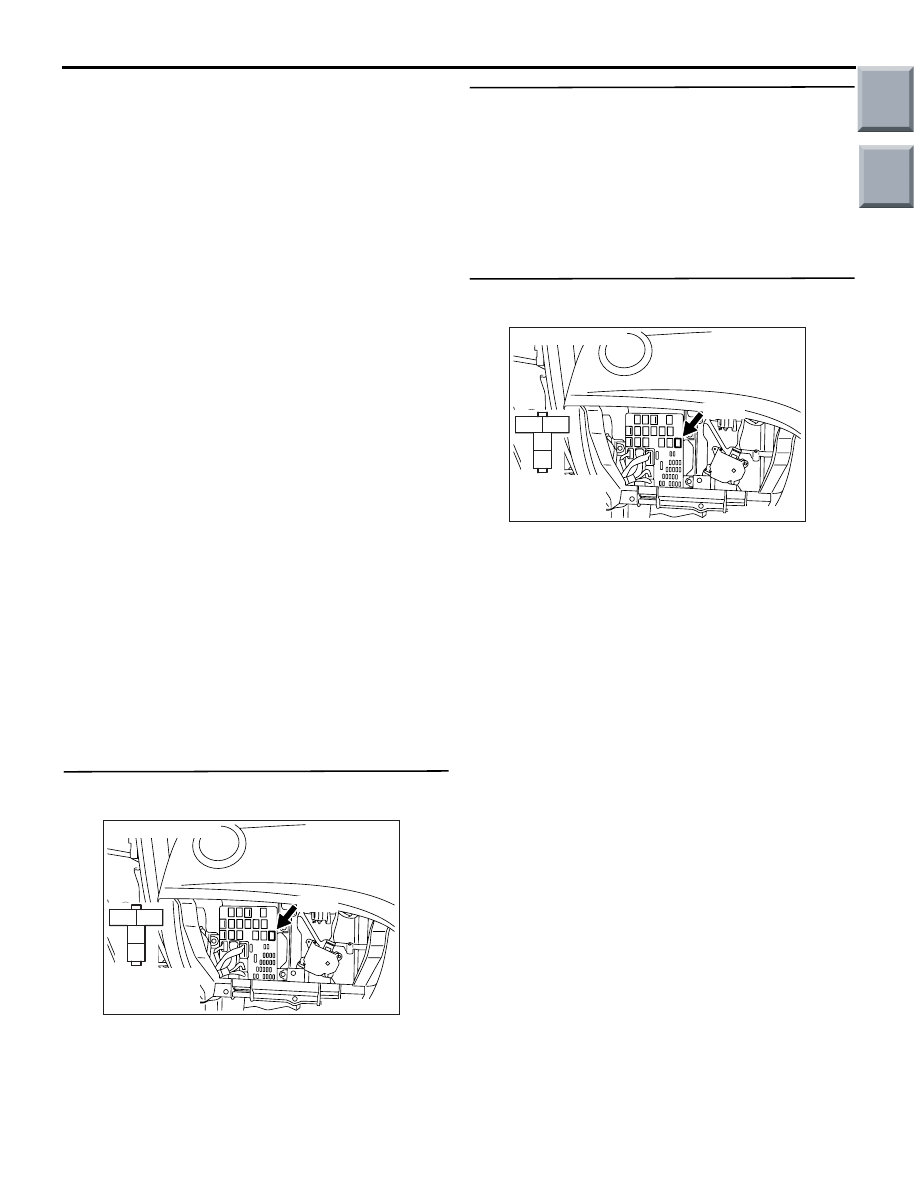

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-178

• When the throttle valve control servo relay turns

ON, battery voltage is supplied by the throttle
valve control servo relay (terminal No. 4) to the
engine-ECU <M/T> or engine-CVT-ECU <CVT>
(terminal No. 78).

FUNCTION

• When the ignition switch ON signal is input into

the engine-ECU <M/T> or engine-CVT-ECU
<CVT>, the engine-ECU <M/T> or
engine-CVT-ECU <CVT> turns ON the Throttle
valve control servo.

TROUBLE JUDGMENT

Check Conditions

• After engine starts <M/T>

• Ignition switch is in "ON" position <CVT>.

Judgement Criteria

• Throttle valve control servo supply voltage is 6.0

V or less <M/T>.

• Battery voltage is 8.3 V or more <CVT>.

• The power line voltage of the electronic controlled

throttle system is 6.0 V or less for 0.35 second
<CVT>.

PROBABLE CAUSES

• Failed throttle valve return spring

• Open/short circuit in throttle valve control servo

circuit or loose connector contact.

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS

STEP 1. Connector check: B-121 throttle valve
control servo relay connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Check throttle valve control servo relay
itself.

• Check throttle valve control servo relay (Refer to

P.13A-361

).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the throttle valve control servo
relay.

STEP 3. Perform voltage measurement at B-121
throttle valve control servo relay connector.

• Remove relay, and measure at relay box side.

• Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Check intermediate connector B-108, and

repair if necessary. if intermediate connector
is normal, Check and repair harness
between B-121 (terminal No. 3) throttle
valve control servo relay connector and
battery.

• Check power supply line for

open/short circuit.

AK402030

3

2

1

4

Connector: B-121

B-121

AC

B-121
Relay box side
connector

AK402030

3

2

1

4

Connector: B-121

B-121

AC

B-121
Relay box side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-179

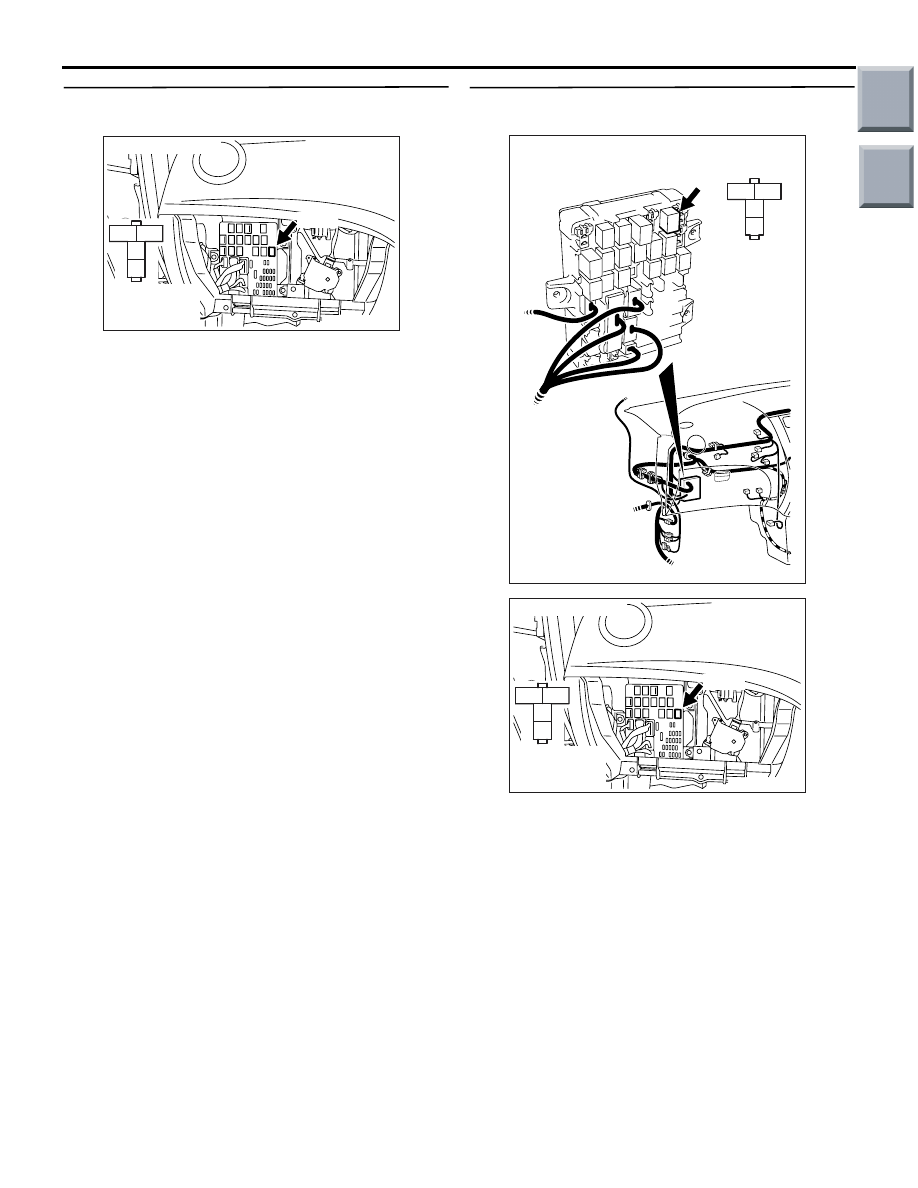

STEP 4. Perform voltage measurement at B-121
throttle valve control servo relay connector.

• Remove relay, and measure at relay box side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 5 .

STEP 5. Connector check: B-106 engine control
relay connector

Q: Is the check result normal?

YES :

Check and repair harness between B-106

(terminal No. 4) engine control relay
connector and B-121 (terminal No. 1)
throttle valve control servo relay connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace the connector.

AK402030

3

2

1

4

Connector: B-121

B-121

AC

B-121
Relay box side
connector

3

2

1

4

AK402060

B-106
J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402030

3

2

1

4

Connector: B-121

B-121

AC

B-121
Relay box side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-180

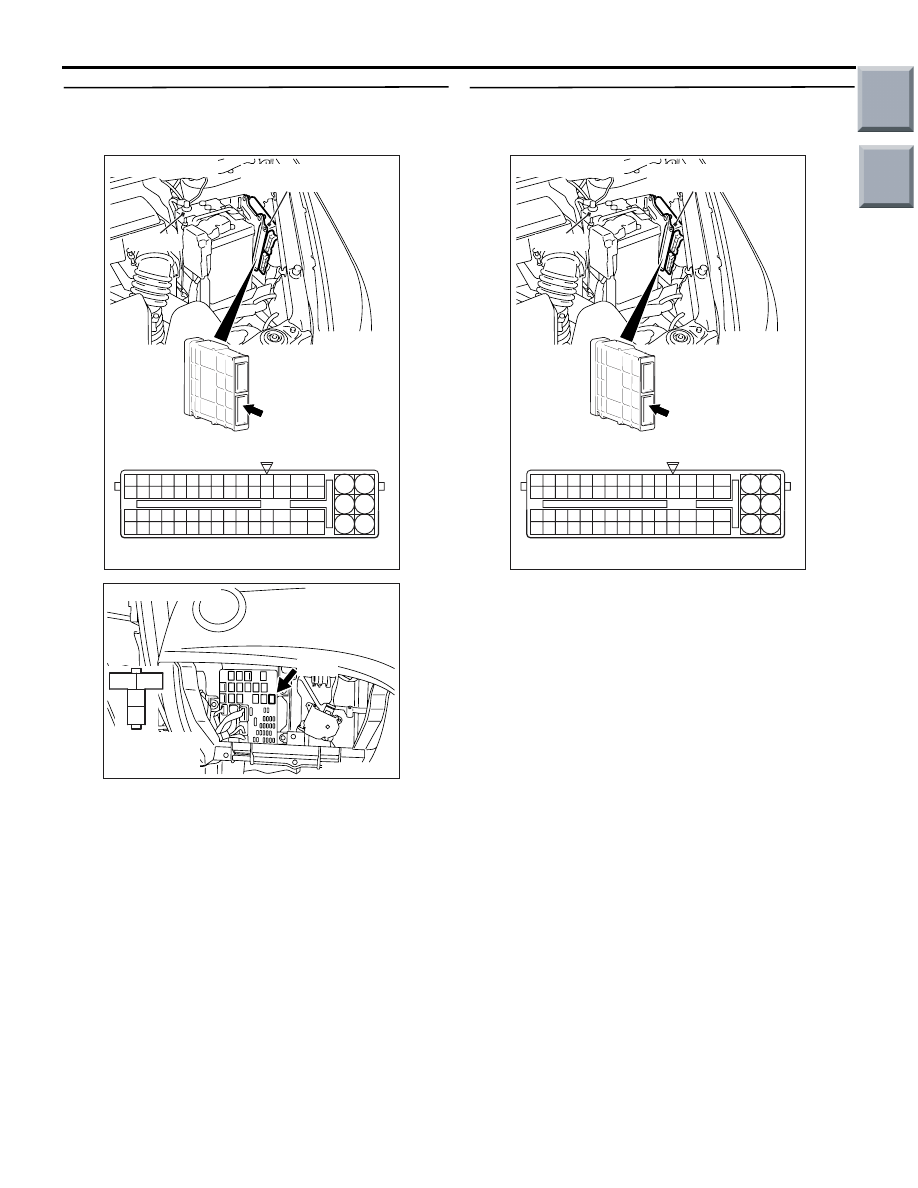

STEP 6. Perform voltage measurement at A-08
engine-ECU connector or engine-CVT-ECU
connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 123 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check intermediate connector B-110, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between B-121 (terminal No. 2)
throttle valve control servo relay connector
and A-08 (terminal No. 123) engine-ECU
connector or engine-CVT-ECU connector.

• Check earthing line for open/short

circuit.

STEP 7. Perform voltage measurement at A-08
engine-ECU connector or engine-CVT-ECU
connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 78 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 8 .

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AG

A-08

Connector:

A-08

Harness side connector

Battery

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

AK402030

3

2

1

4

Connector: B-121

B-121

AC

B-121
Relay box side
connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AG

A-08

Connector:

A-08

Harness side connector

Battery

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-181

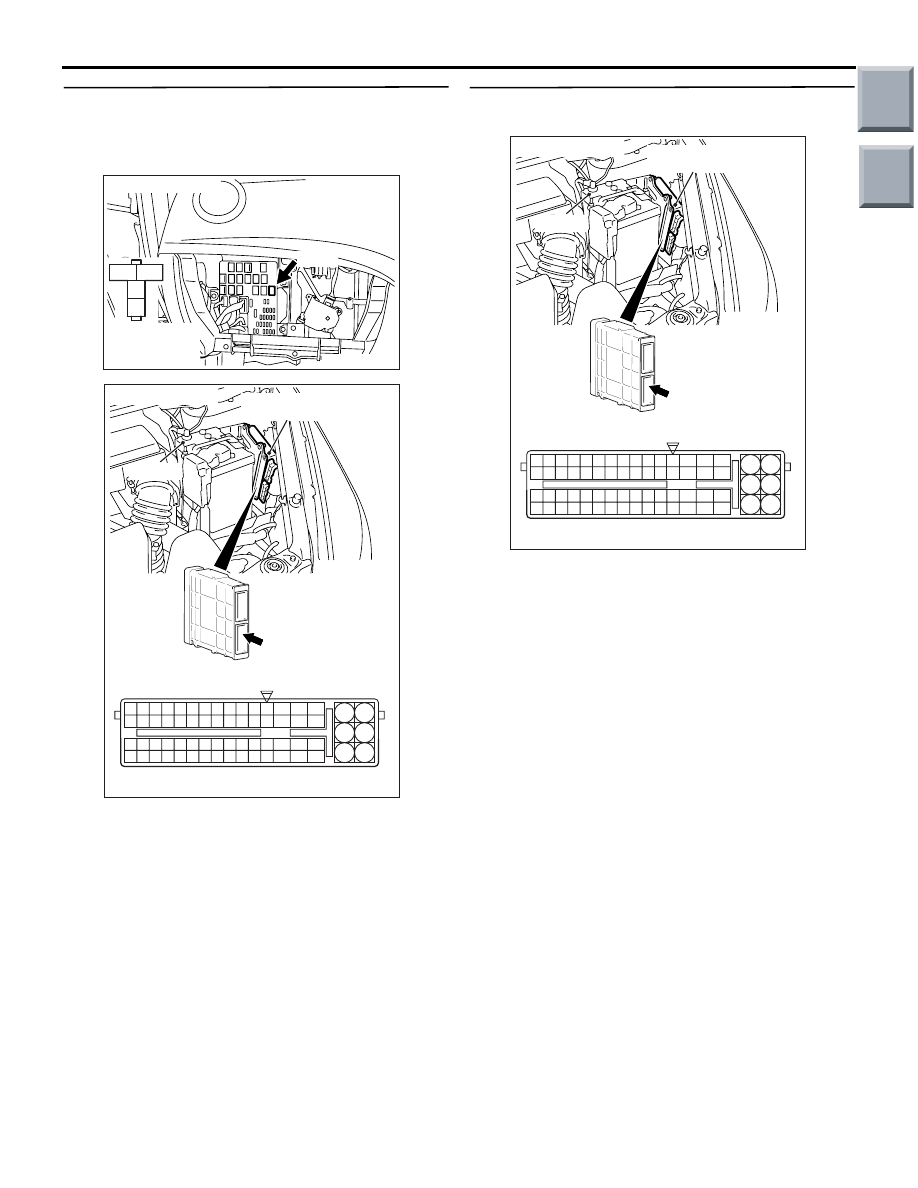

STEP 8. Check harness between B-121 (terminal
No. 4) throttle valve control servo relay
connector and A-08 (terminal No. 78) engine-ECU
connector or engine-CVT-ECU connector.

NOTE: Before checking harness, check intermediate
connector B-112, and repair if necessary.

• Check power supply line for open/short circuit.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair the damaged harness wire.

STEP 9. Connector check: A-08 engine-ECU
connector or engine-CVT-ECU connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Replace the engine-ECU <M/T> or

engine-CVT-ECU <CVT>.

• Check earthing line for open/short

circuit.

NO :

Repair or replace the connector.

AK402030

3

2

1

4

Connector: B-121

B-121

AC

B-121
Relay box side
connector

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AG

A-08

Connector:

A-08

Harness side connector

Battery

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AG

A-08

Connector:

A-08

Harness side connector

Battery

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Main
