TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-134

Code No. P0335: Crank Angle Sensor System

OPERATION

• Power is supplied to the crank angle sensor (ter-

minal No. 3) from the engine control relay (termi-
nal No. 4) and is earthed to the engine-ECU
<M/T> or engine-CVT-ECU <CVT> (terminal No.
28) from the crank angle sensor (terminal No. 1).

• A power voltage of 5 V is applied to the crank

angle sensor output terminal (terminal No. 2)
from the engine-ECU <M/T> or engine-CVT-ECU
<CVT> (terminal No. 13).

AK402689

3

1

2

4

1

2 3

19

21

20

18

17

16

15

14

1213

11

8 9

L

10

37
52 53 54 555657585960616263646566

38 39 404142434445464748495051

22 23 24 252627282930313233343536

7

5

3

1

6

4

2

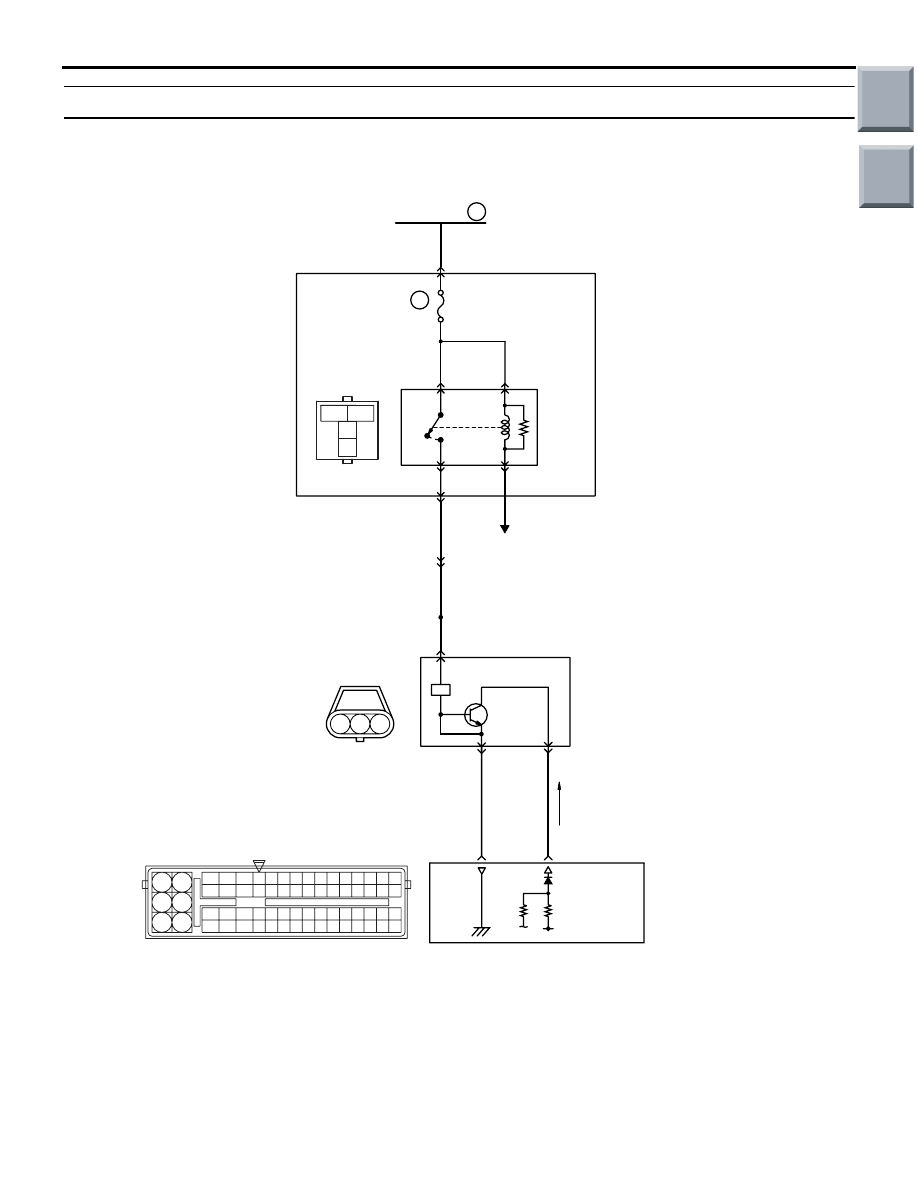

Crank Angle Sensor Circuit

1

1

R

Fusible link

16

20A

J/B

Engine
control
relay

Crank
angle
sensor

4

1

2

2

3

1

3

6

4

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

28

13

BR-W

G-R

R

L-W

R

B-106

A-114

B-112

A-17

B-108

A-133

MU802337

AC

To engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  Pu: Purple

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-135

FUNCTION

• The crank angle sensor detects the crank angle

(position) and inputs a pulse signal to the
engine-ECU <M/T> or engine-CVT-ECU <CVT>.

• In response to the signal, the engine-ECU <M/T>

or engine-CVT-ECU <CVT> controls the injector,
etc.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in "ON" position <M/T>.

Judgment Criteria

• Pulse signal from crank angle sensor continues

264 times and engine speed is less than 440
r/min <M/T>.

• Crank angle sensor signal pattern is abnormal

<M/T>.

Check Condition

• Ignition switch is in "ON" position <M/T>.

Judgment Criterion

• Crank angle sensor signal pattern is not normal

for 4 seconds and engine speed is more than 440
r/min <M/T>.

Check Condition

• While engine is cranking.

Judgment Criterion

• Crank angle sensor output voltage has not been

changed (no pulse signal has been input) for 4
seconds.

PROBABLE CAUSES

• Failed crank angle sensor

• Open/short circuit in crank angle sensor circuit or

loose connector contact

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-331

.

a. Item 22: Crank angle sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 2 .

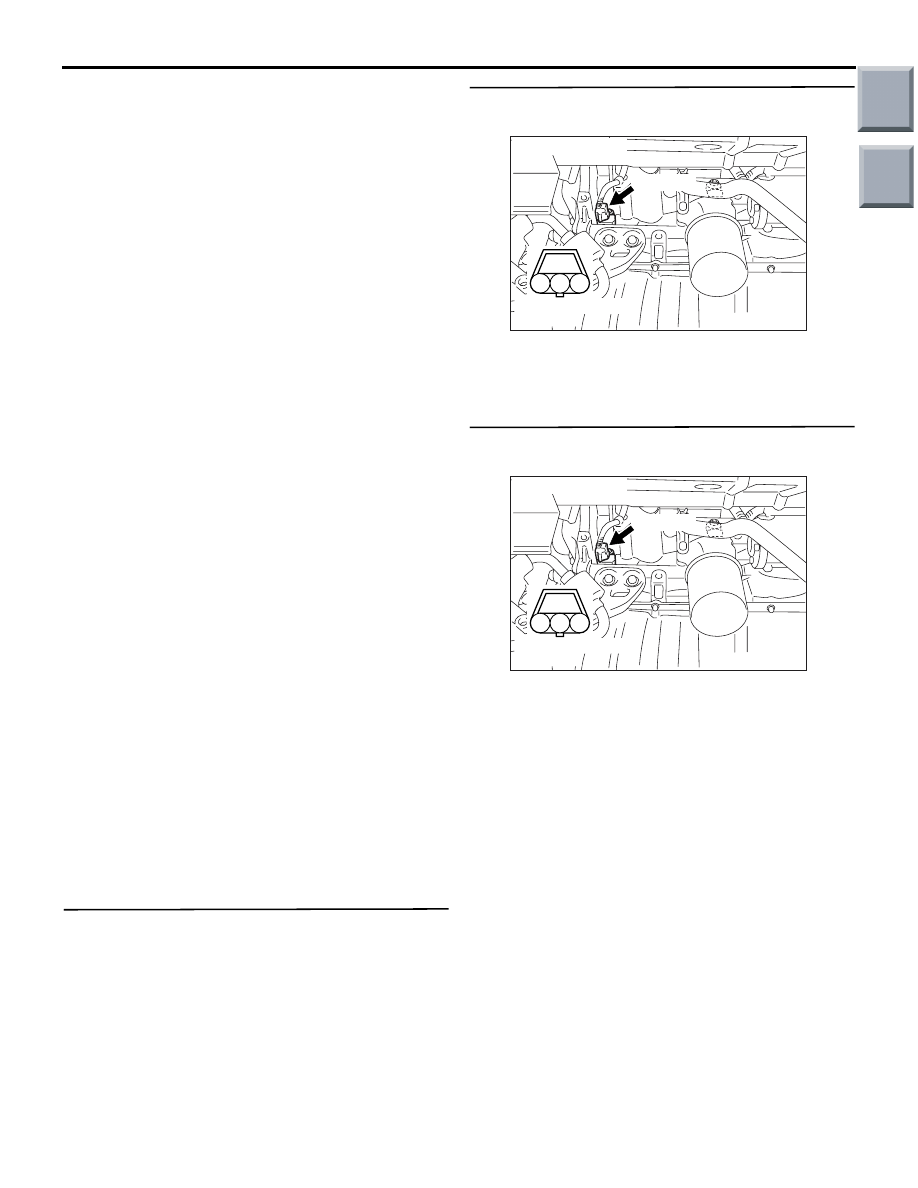

STEP 2. Connector check: A-133 crank angle
sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

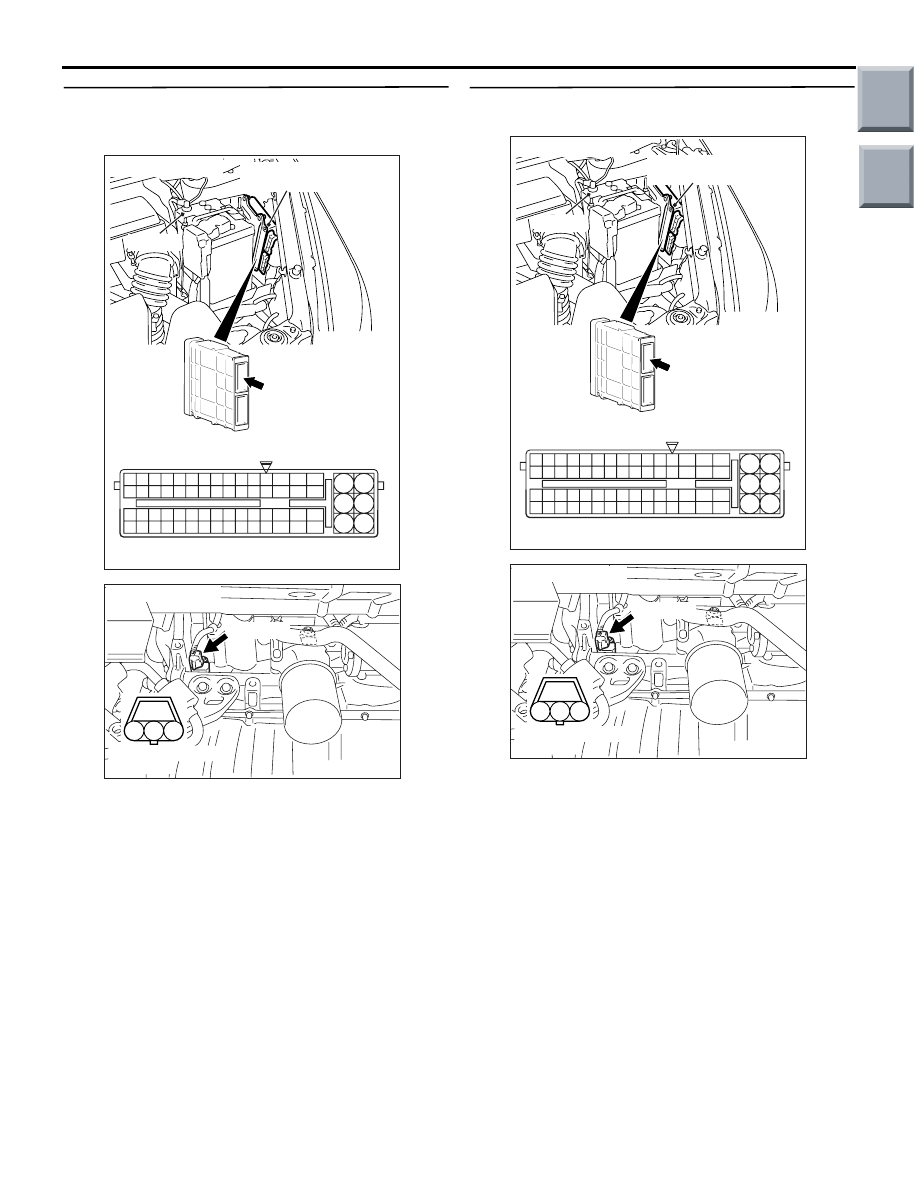

STEP 3. Perform voltage measurement at A-133
crank angle sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 2 and earth.

OK: 4.9

− 5.1 V

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 4 .

AK402016

1

2

3

AC

Connector: A-133

A-133 (B)

A-133 Harness side
connector

AK402016

1

2

3

AC

Connector: A-133

A-133 (B)

A-133 Harness side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-136

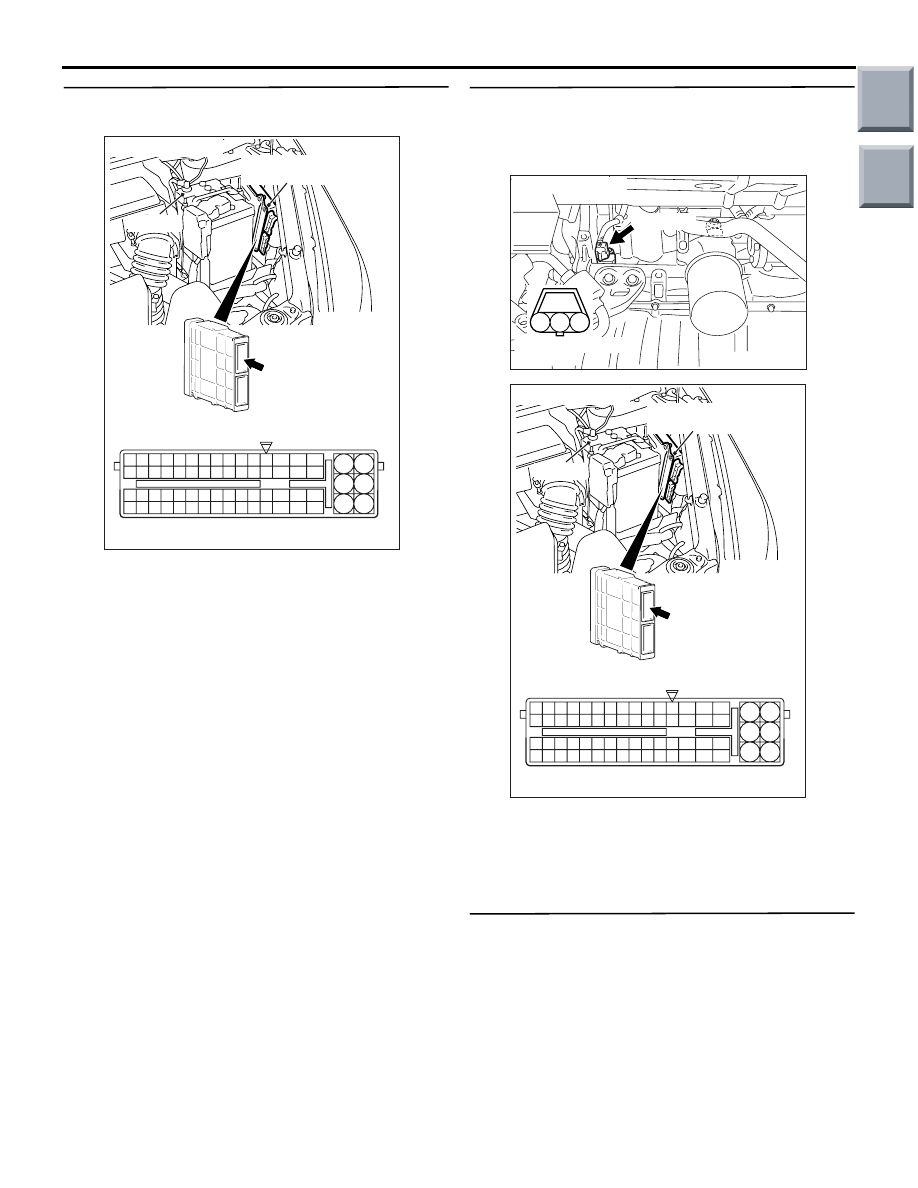

STEP 4. Perform voltage measurement at A-114
engine-ECU connector or engine-CVT-ECU
connector.

• Disconnect engine-ECU connector or

engine-CVT-ECU connector, and connect special
tool power plant ECU check harness
(MB991987), and then measure the voltage on
the check connector.

• Disconnect A-133 crank angle sensor connector.

• Ignition switch: ON

• Voltage between terminal No. 13 and earth.

OK: 4.9

− 5.1 V

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 6 .

STEP 5. Connector check: A-114 engine-ECU
connector or engine-CVT-ECU connector

Q: Is the check result normal?

YES :

Check and repair harness between A-133

(terminal No. 2) crank angle sensor
connector and A-114 (terminal No. 13)
engine-ECU connector or engine-CVT-ECU
connector.

• Check output line for open circuit.

NO :

Repair or replace the connector.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AE

A-114

Connector:

A-114

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

A-114 Special tool power plant ECU check
harness

AK402016

1

2

3

AC

Connector: A-133

A-133 (B)

A-133 Harness side
connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

AK402016

1

2

3

AC

Connector: A-133

A-133 (B)

A-133 Harness side
connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-137

STEP 6. Connector check: A-114 engine-ECU
connector or engine-CVT-ECU connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair or replace the connector.

STEP 7. Check harness between A-133 (terminal
No. 2) crank angle sensor connector and A-114
(terminal No. 13) engine-ECU connector or
engine-CVT-ECU connector.

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair the damaged harness wire.

STEP 8. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-331

.

a. Item 22: Crank angle sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/Inspection

Service Points

− How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Replace engine-ECU <M/T> or
engine-CVT-ECU <CVT>.
