Mitsubishi Canter (FE, FG). Manual - part 30





120

7 Construction of bodies

7.4 Clearance between chassis parts and bodies

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

7. The Exhaust system

The heat generated within and around the exhaust system can be very high,
and the required clearance of components near it is an important factor in
the safety of the vehicle. Keep the clearance between the rear body parts
and these parts per the following figures on the table.

Part

Minimum Clearance and Notes

Parts

Minimum Clearance (mm {in.})

Wiring harness

Fuel hose and pipe

Fuel tank

Rear body floor

Subframe, additional member etc.

Spring, axle

Shock absorber

Tire

Propeller shaft

Differential

Brake hose and pipe

Parking brake cable

Oil pan

Rear mud guard

Battery cable

Rubber parts

Plastic parts

Oil pipe

Brake booster

Vacuum tank

150 (*100) {5.91 (*3.94)}

200 {7.87}

150 {5.91}

100 {3.94}

20 {0.79}

20 {0.79}

30 {1.18}

100 {3.94}

50 {1.97}

50 {1.97}

100 {3.94}

50 {1.97}

100 {3.94}

50 {1.97}

150 {5.91}

150 {5.91}

150 {5.91}

100 {3.94}

100 {3.94}

80 {3.15}

Note*: When wire harness is covered by heatproof conduit or

protection.

121

7 Construction of bodies

7.4 Clearance between chassis parts and bodies

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

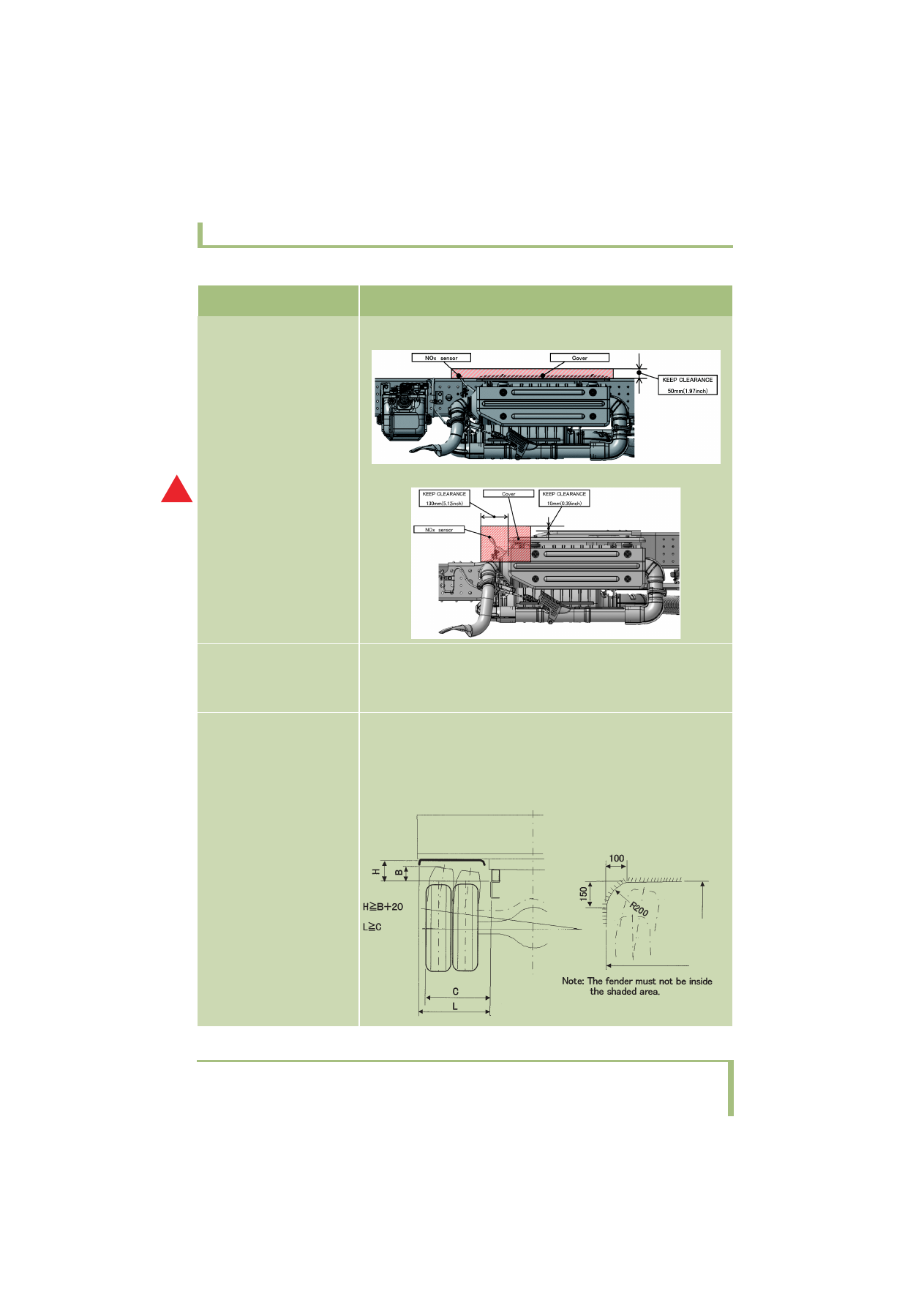

NOx sensor
<FE>

<FG>

8. Cab tilt area

Cabs other than double cabs can be tilted. Make sure that installation items
do not enter the tilt path of the cab. For details on space requirements, refer
to Chapter 9 "Layout Drawings: Cab Side View (Cab Tilt Area)"
(

컄 page 173).

9. Attaching the rear fender

The clearance between the rear fender and tire must be designed to be
optimum assuming that the vehicle is traveling in bad conditions.

Determine the standard clearance from the fender and top and side
surfaces of the frame as follows from dimensions B and C listed in 9.9
"Differential and tire bound height"

컄 page 202.

Part

Minimum Clearance and Notes

A

mm

{0.79in.}

mm {3.94in.}

mm

{5.91in.}

[C+30mm {1.18in.}]

[B+20mm {0.79in.}]

122

7 Construction of bodies

7.5 Fuel tank

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

7.5 Fuel tank

7.5.1

Cautions relating to fuel tank

Be cautious while installing the rear fuel tank piping.
Do not let it interfere with the body.

Do not allow foreign materials to enter the fuel tank
and related parts.

Install all fuel hoses so that there is no slack, or broken
parts and make sure that the hose is free to accept
fuel. If a hose is too long, shortening may be required.

The temporary rubber cap on the fuel tank filler frame
pass through must be removed. Clip part number
MH021308 must be reused.

When inserting fuel filler hose MK517156, make sure
that the hose is completely against the seat (spool) of
the filler pipe. Install in accordance with the illustra-
tion printed below. Make sure there is no interference
with the breather hose.

Remove the two tie wraps that temporarily hold the
breather hose in the shipping position.

Insert more than 20 mm {0.79 in.} of the breather hose
MK456266 to the filler end pipe and retain it using
clamp MH021302.

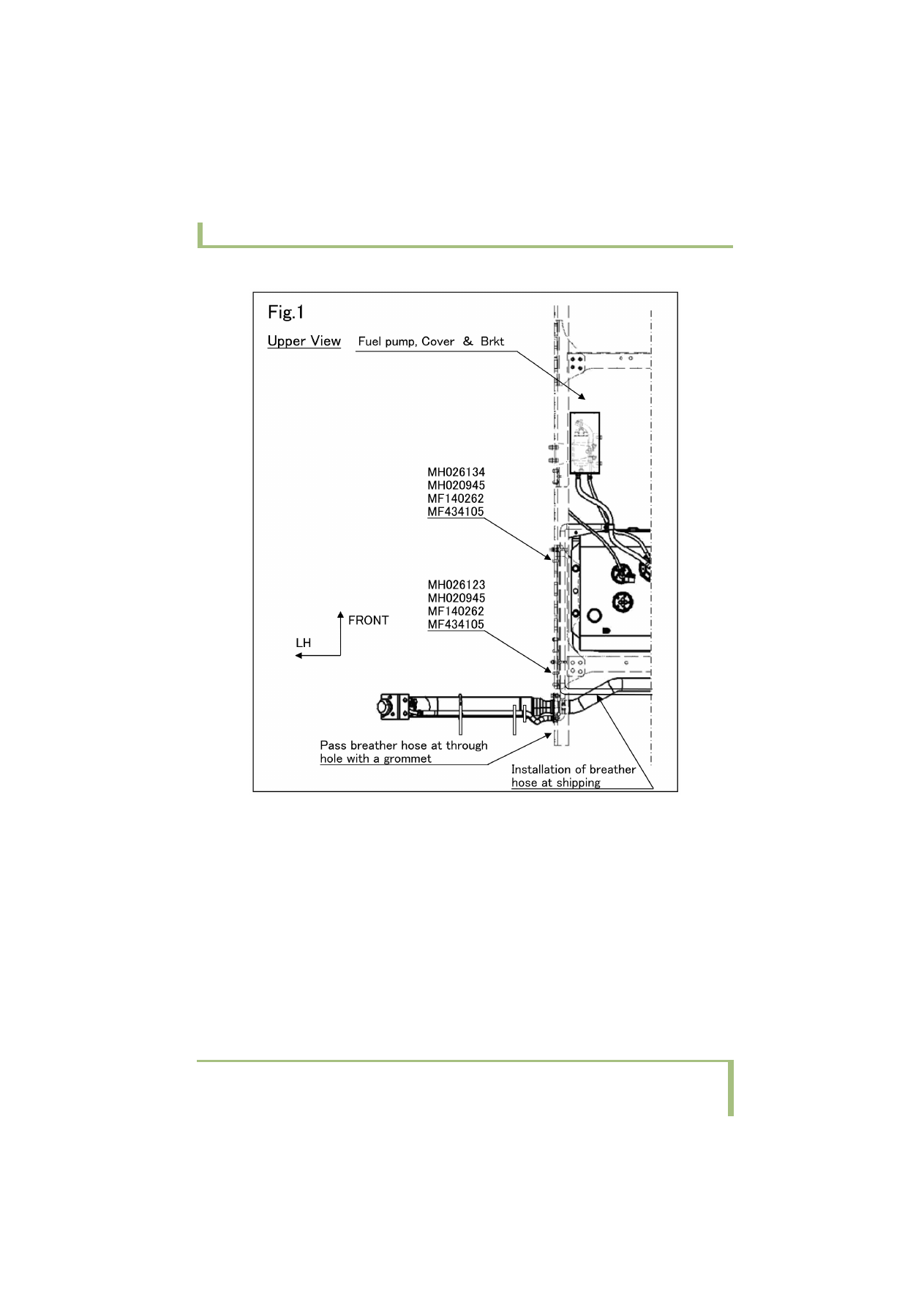

Position the breather hose using clamps MH020945
to points indicated in the illustration below. Secure
breather hose to the filler pipe using tie wraps
ME292602 in two places. Refer to Fig. 1, Fig. 2 and
indicated in Section 9.13 Fuel tank mounting layout.

The fuel filler end must be attached to the rear body
structure. The rear body structure must be strong
enough to support the weight of all components. The
filler pipe must not be allowed to project beyond the
side of the body.

The fuel filler pipe MUST be located at least 171.5 mm
{6.75 in.} above the height of the upper truck frame
flange. This will allow satisfactory fill speed.

Attach the fuel cap tether. See Section 9.13 Fuel tank
mounting layout.

The air vent valve inclination must be approximately
25 degrees to vertical.

Attach caution label MK587871 where it will be
readily seen.

Inspect the system and ensure that all attaching hard-
ware is secure. Make sure there are no leaks or
restrictions.

123

7 Construction of bodies

7.5 Fuel tank

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i
