Mitsubishi Canter (FE, FG). Manual - part 22

88

6 Modifications to the basic vehicle

6.6 Brake systems

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

6.6 Brake systems

All accident prevention regulations must be complied
with when working on the vehicle.

Comply with all federal, state, and local regulations
and codes.

Disc brake

Extreme caution is required in handling brake tubing
because of the importance of the components due to
brake safety. Tubing, joints, and brake components
should be protected with covers during mounting work
to prevent them from dents, damages, welding sparks,
and heat and routing changes of tubing necessary for
coupling with trailers, etc., should be performed in
accordance with the following cautions.

a

Risk of accident

Work carried out incorrectly on the brake system
may impair its function. This may lead to the failure
of components or parts relevant to safety. This
could cause an operator to lose control of the
vehicle and cause an accident with possible injury
or death.

!

Do not impede cooling by attaching spoilers below
the bumper, additional hub caps or brake disc
covers, etc.

i

After any modifications the brake system must be
tested for proper operation and approved by a
technical inspection authority otherwise the
operating permit will be invalidated.

Further information can be found in Section 5
"Damage prevention"

컄 page 62.

89

6 Modifications to the basic vehicle

6.6 Brake systems

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

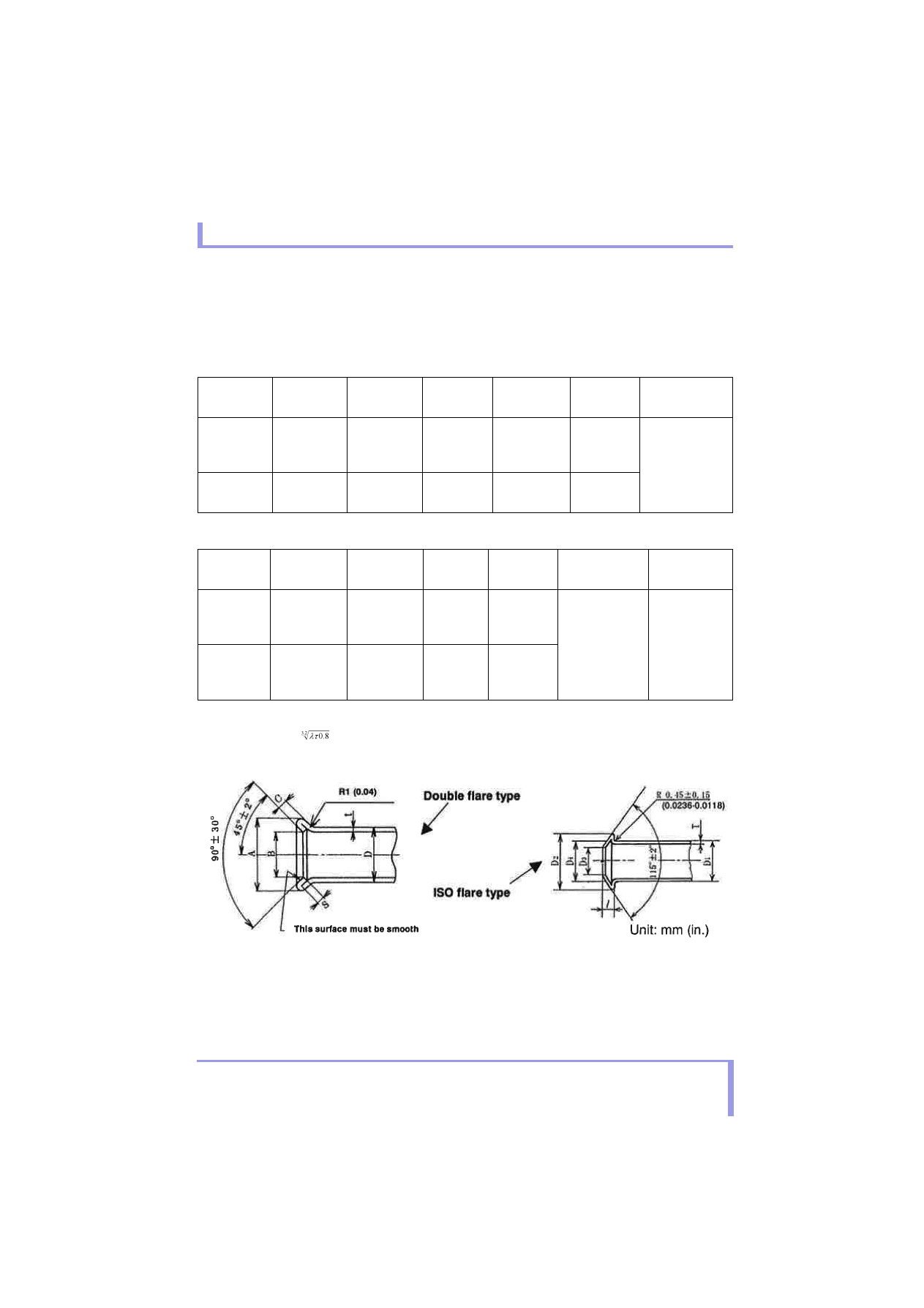

6.6.1

Chassis tubing form and dimension
specifications

The chassis uses steel brake lines which conform to
the following specifications.

(Double Flare type)

Unit: mm {in.}

(ISO flare type) Material is the same as Double Flare types.

Unit: mm {in.}

D4 is an outside diameter on the sealing surface. The
surface-roughness is

Nominal

diameter

A

B

t

C

S

min.

Material

4.75
4.76

{0.19}

6.6-7.1

{0.26-0.28}

3.0-3.7

{0.12-0.15}

0.7

{0.03}

1.4

{0.06}

1.0

{0.04}

SPCC (JIS)

(ASTM A109 or

A366)

Double walled

steel tubes

6.35

{0.25}

8.6-9.1

{0.34-0.36}

4.5-5.2

{0.18-0.20}

0.7

{0.03}

1.4

{0.06}

1.0

{0.04}

Nominal

diameter

D1

D2

D3

D4 min.

T

L

4.75
4.76

{0.19}

4.83-4.69

{0.190-

0.185}

7.28-6.92

{0.286-

0.273}

3.5-3.0
{0.137-

0.119}

4.7

{0.19}

0.77-0.63

{0.030-0.025}

2.8-2.2

{0.110-0.087}

6.35

{0.25}

6.42-6.28

{0.252-

0.248}

8.98-8.62

{0.353-

0.340}

5.1-4.6
{0.201-

0.182}

6.3

{0.25}

Fig. 1

90

6 Modifications to the basic vehicle

6.6 Brake systems

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

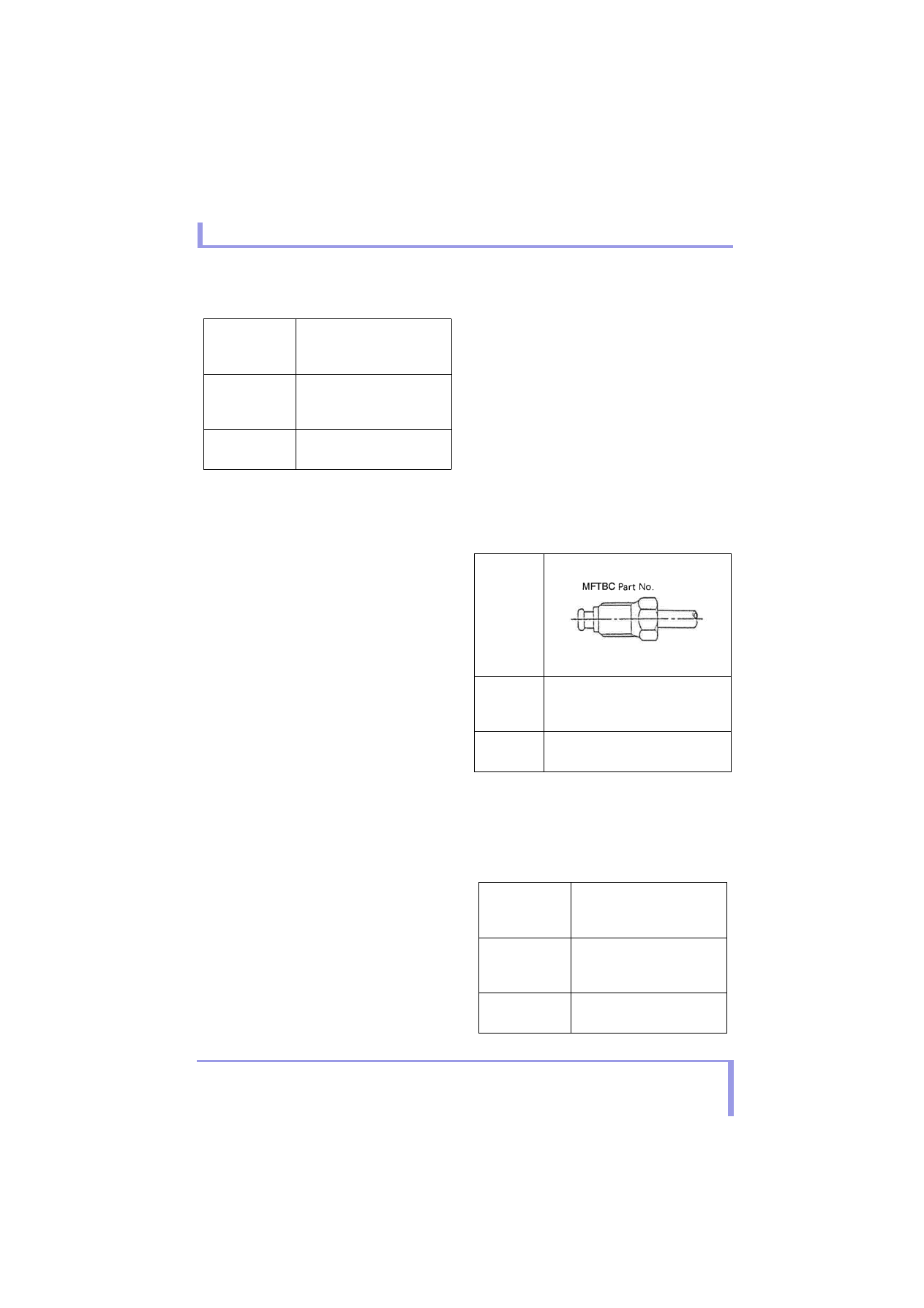

The tightening torques for the flare nuts which
connect the brake lines are shown below.

6.6.2

Making additional tubes

• Only use brake tubes of the same material as the

tubes connected to the chassis when extending
the brake tubes.

• Only use steel tubes to extend the brake fluid

tubes. Never use copper tubes.

• Only use metric pipe tools to form the flared end of

brake lines as shown in the "Flared end shape
figure" in Fig. 1. Be careful to not scratch the tubes,
or damage the mating surfaces when flaring the
ends.

• A brass nut used with steel tubes could cause

uneven fitting between the flared surface of the
tubes and the connecting surface joint, resulting in
fluid leakage.

• Use the flare nuts specified in the table below.

• Use a tubing bending tool to bend the brake lines

correctly. Do not use heat to bend the brake lines.

• The bend curvature R should strictly conform to the

minimum allowable bend radius R shown in the
table below.

Nominal

Diameter

mm {in.}

Tightening torque

N·m {ft.lbs, kgf.cm}

4.75
4.76

{0.19}

13 to 17

{9.4 to 12.3, 130 to 170}

6.35

{0.25}

19 to 25

{13.7 to 18.8, 190 to 260}

Nominal

diameter of

tube

mm {in.}

Fig. 2

4.75
4.76

{0.19}

MF651001 (Double flare type)

MK678335 (ISO flare type)

6.35

{0.25}

MF651002 (Double flare type)

MK678336 (ISO flare type)

Nominal

diameter

mm {in.}

Bend radius

mm {in.}

4.75
4.76

{0.19}

25 {0.98}

6.35

{0.25}

30 {1.18}

91

6 Modifications to the basic vehicle

6.6 Brake systems

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

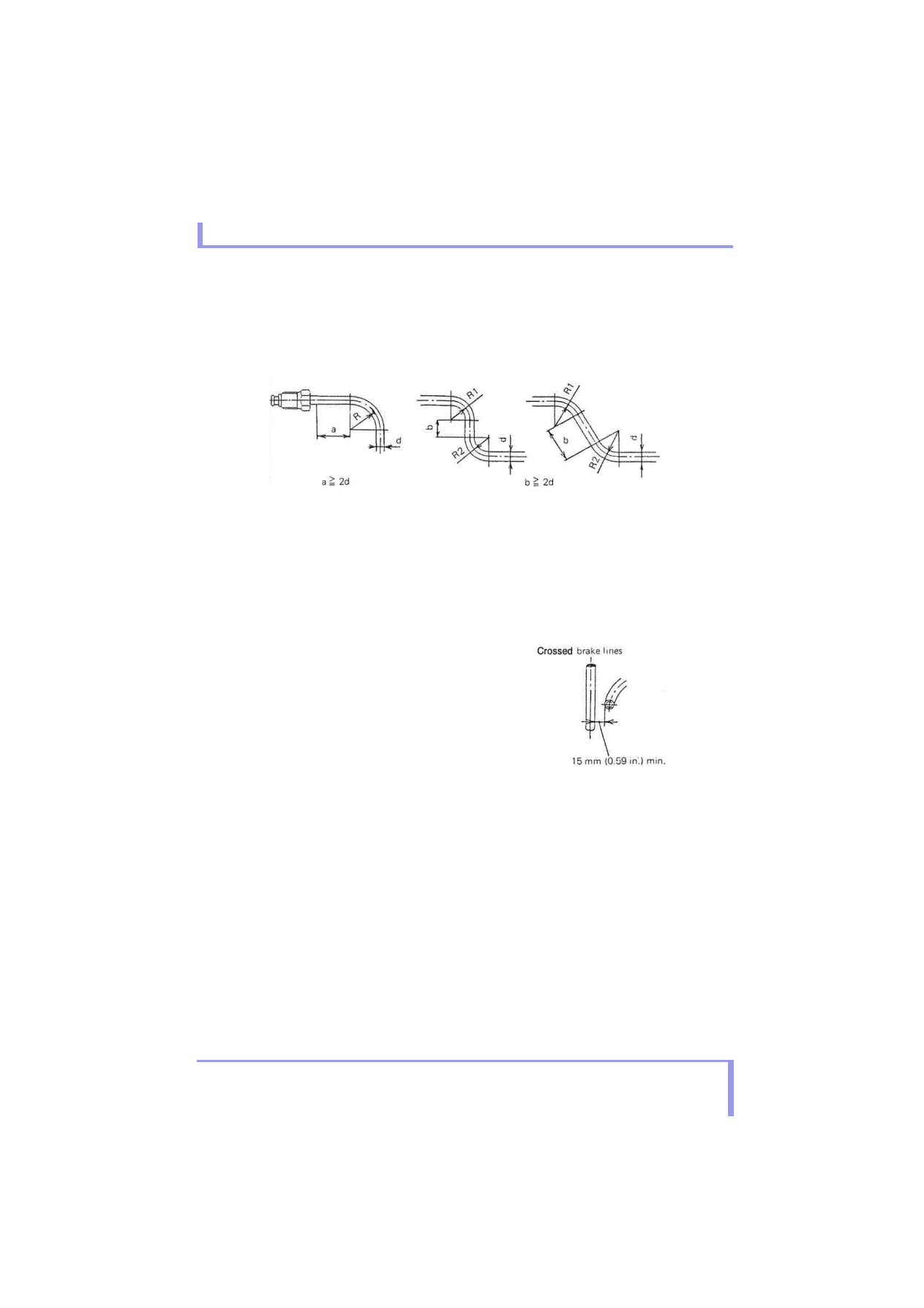

• The required length of the straight portion of the

line end and the bent portion must conform to the
dimensions specified in Fig. 3.

• Use high pressure air nozzle to clean and remove

foreign matter from inside the brake lines before
use. Use compressed air for cleaning. Cleaning oil
is not recommended, but completely remove any
residue if it is used.

6.6.3

Running additional lines

• Avoid crossing brake lines. If this is unavoidable,

position each line so it clears the other by more
than 15 mm {0.59 in.}. (Fig. 4)

• Position the brake lines so that they are not closer

than 15 mm {0.59 in.} to sharp edges of the frame
or other parts. (Fig. 5)

Fig. 3

Fig. 4
