80

5 Damage prevention

5.14 Storing and handing over the vehicle

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

5.14 Storing and handing over the vehicle

Storage

To prevent any damage while vehicles are in storage,
MITSUBISHI FUSO recommends that they be serviced
and stored in accordance with the manufacturer's
specifications

컄 page 39.

Handover

To prevent damage to the vehicle or to repair any
existing damage, MITSUBISHI FUSO recommends that
the vehicle be subjected to a full function check and a
complete visual inspection before it is handed over
컄 page 40.

81

6.1 General

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

6.1 General

i

Further information on bolted and welded
connections can be found in Section 3 "Planning of
bodies"

컄 page 27 and Section 5 "Damage

prevention"

컄 page 53.

6 Modifications to the basic vehicle

a

Risk of injury

Do not modify any bolted connections that are
relevant to safety, e.g. that are required for wheel
alignment, steering or braking functions.

When unfastening bolted connections make sure
that, when work is complete, the connection again
corresponds with the original condition.

Welding work on the chassis/body may only be
carried out by trained and qualified personnel.

The body, the attached or installed equipment and
any modifications must comply with the applicable
laws and directives as well as work safety or
accident prevention regulations, safety rules and
accident insurer requirements.

82

6 Modifications to the basic vehicle

6.2 Chassis frame material

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

6.2 Chassis frame material

If the frame is extended, the material of the extension
element and reinforcing bracket must have the same
quality and dimensions as the standard chassis frame.

See the respective body/equipment mounting
directives for the longitudinal frame member
dimensions.

Material: FEC  . . . . . . . . . . . . . . .  HTP540

FGB  . . . . . . . . . . . . . . .  MJSH440 or

SAPH440 (JIS)
(SAE J410950X or
the equivalent)

A

83

6 Modifications to the basic vehicle

6.3 Drilling work on the vehicle frame

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

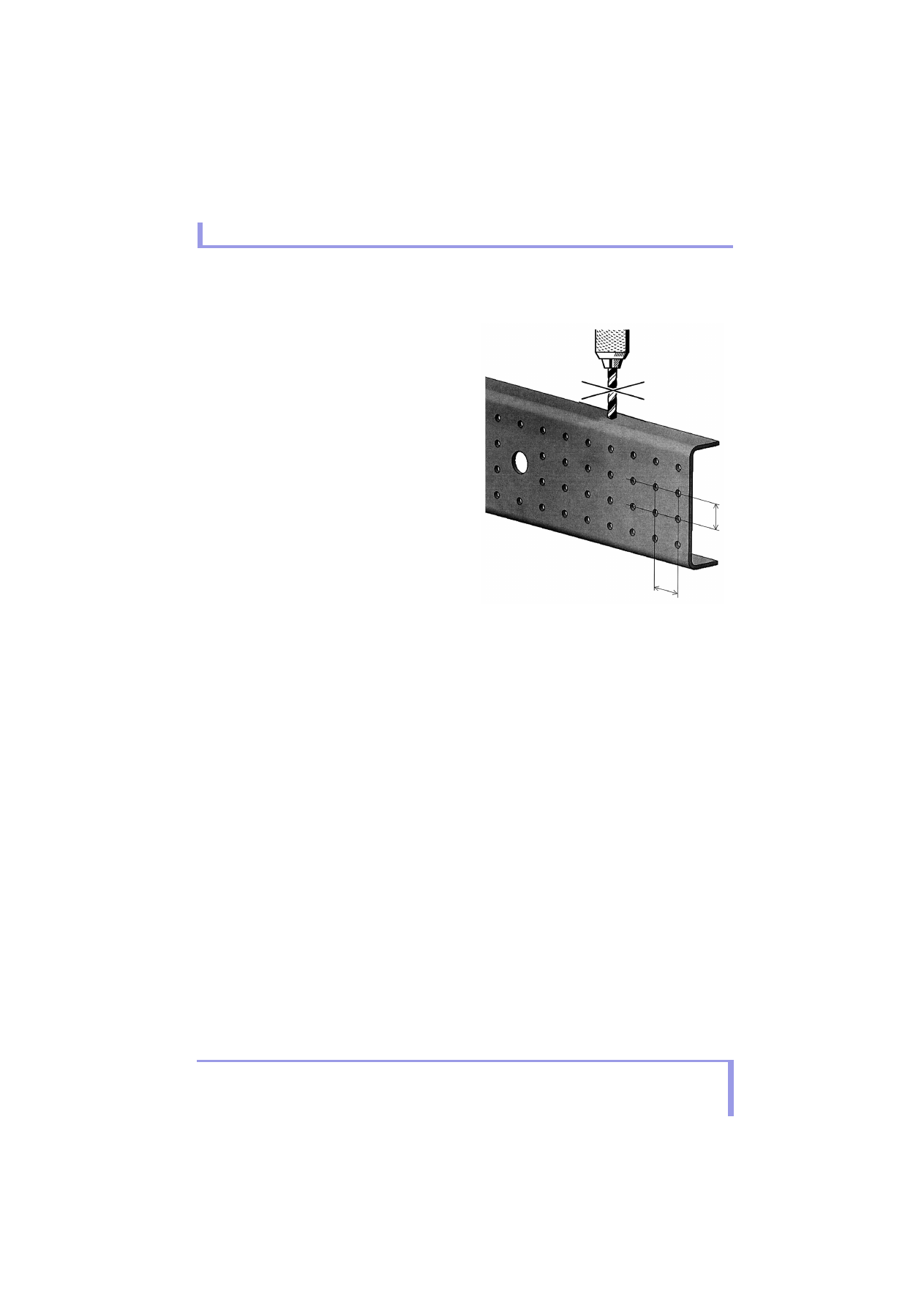

6.3 Drilling work on the vehicle frame

Drilling work on side rails

All factory holes in side rails are regularly spaced
{50 mm (1.97 in.) in longitudinal pitch and 40 mm
(1.57 in.) in vertical pitch}. Use existing holes instead
of drilling new holes. Never drill holes in any top flange
areas. Also avoid enlarging existing holes in principle.
If it is unavoidable to enlarge a hole, limit the hole
diameter to 13 mm (0.51 in.).

No load may be applied to the center of the web of the
longitudinal member (diaphragm effect). If this is
unavoidable, make sure that there is a large area of
support on both sides of the web.

40

{1

.5

7}

50

{1.97}

Unit: mm {in.}
