Mitsubishi Canter (FE, FG). Manual - part 17





68

5 Damage prevention

5.6 Corrosion protection measures

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

Disassembly of components

If the body manufacturer makes structural
modifications to the chassis, the corrosion protection
in the affected areas must be restored to match the
production standards of MITSUBISHI FUSO. The areas
must also be finished with appropriate paintwork.
Information on approved MITSUBISHI FUSO
refinishing paint suppliers is available on request from
the responsible department

컄 page 15.

Damage to components

If components are damaged during disassembly
(scratches, scuff marks), they must be professionally
repaired. This applies especially for drilled holes and
openings. Two-component epoxy primers are
particularly suitable for repair work.

Cutting of components

When cutting and grinding work is carried out, the
adjacent painted components must be protected
against flying sparks and shavings. Grinding dust and
shavings must be carefully removed because these
contaminants can spread corrosion. Edges and drilled
holes must be cleanly deburred in order to guarantee
optimum corrosion protection.

Corrosion protection on reinforcements and
fittings

Reinforcements and fittings must receive adequate
anti-corrosion priming prior to installation. In addition
to galvanizing, cataphoretic dip-priming and zinc-rich
paint in sufficient coatings have proved satisfactory
for this purpose.

69

5 Damage prevention

5.7 Corrosion prevention in welding work

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

5.7 Corrosion prevention in welding work

In order to avoid crevice corrosion at weld seams, the
welds should be made in accordance with the
examples shown.

Preparation

The welding area must be free from corrosion, grease,
dirt or similar contamination. If painted surfaces are to
be welded, the paint coat must first be removed by
grinding or chemical stripping. If this is not done, the
paint will burn and the residues can impair corrosion
resistance.

After welding work

• Remove drilling shavings.
• Deburr sharp edges.
• Remove any burned paint and thoroughly prepare

surfaces for painting.

• Prime and paint all unprotected parts.
• Preserve cavities with wax preservative.
• Carry out corrosion protection measures on the

underbody and frame parts.

i

Plug and slot welds, particularly on horizontal
surfaces, should be avoided due to the risk of
corrosion. If they are unavoidable, these welds
must receive additional preservation. Furthermore,
avoid designs which allow moisture to accumulate.
These must be fitted with additional drainage holes
or gaps in the weld seam.

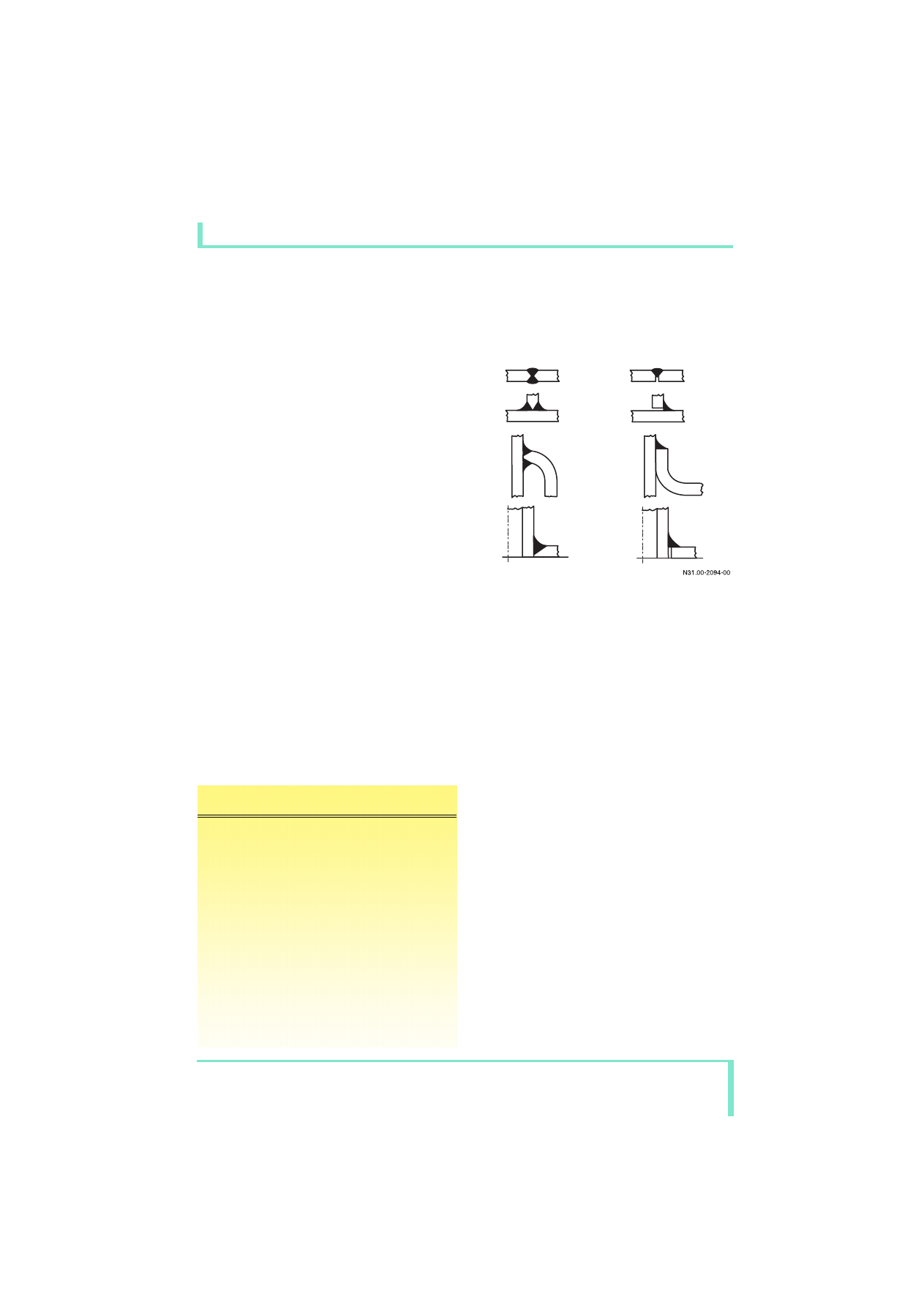

A

B

Example: Weld seams

A – Suitable
B – Unsuitable

70

5 Damage prevention

5.8 Bolted connections

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

5.8 Bolted connections

Finish-painted components

If painted parts are to be bolted together, the coats of
paint must not cause settling in the bolted
connections. In such cases, hard, high-density
coatings such as cataphoretic immersion primers or
powder coatings should be used. The coat thicknesses
should be kept as small as possible (cataphoretic
immersion primer approx. 20 µm (66 µft), powder
coatings approx. 100 µm (330 µft)).

• If using bolts with serrations under the head, an

additional top coat must be applied to touch up any
paint damage.

• The use of hexagon socket or Torx socket bolts

with the bolt heads in a horizontal position is to be
avoided, as moisture can accumulate in the bolt
head under certain conditions, leading to
corrosion.

Fasteners

In areas susceptible to corrosion always use bolts,
nuts, etc. with corrosion resistance (>480 h saline fog
test according to ISO 9227) regardless of the required
strength class. This standard is satisfied, e.g. by bolts
with electroplating and additional thick-coat sealing
and zinc platelet coatings with sealer (e.g. Dacromet
or Deltaseal).

Information on identifying suitable coatings can be
obtained from your local bolt supplier.

For details on bolted connections see Section 3
컄 page 27.

71

5 Damage prevention

5.8 Bolted connections

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

Preventing contact corrosion

Direct contact between materials with different
electrode potentials can lead to corrosion of the less
noble material when exposed to moisture and salt
ions.

When selecting materials, avoid the following
combinations:

• Chrome/nickel-steel with aluminium
• Chrome/nickel-steel with zinc-coated steel

Insulation by coating

Contact corrosion can be prevented by using
insulation such as washers, sleeves or bushings. Even
in this case, however, the connecting points must not
be persistently exposed to moisture.

Vehicle cleaning and care

When the vehicle is handed over to the body
manufacturer, it must immediately be cleaned of salt
and dirt. If it is to be stored for some time, the vehicle
must be preserved.

During modification it must be ensured that load-
bearing components are additionally protected
against aggressive chemicals and environmental
influences. If the vehicle comes into contact with
chemicals or salts (e.g. snow-clearing operations), it
must be cleaned thoroughly at regular intervals.

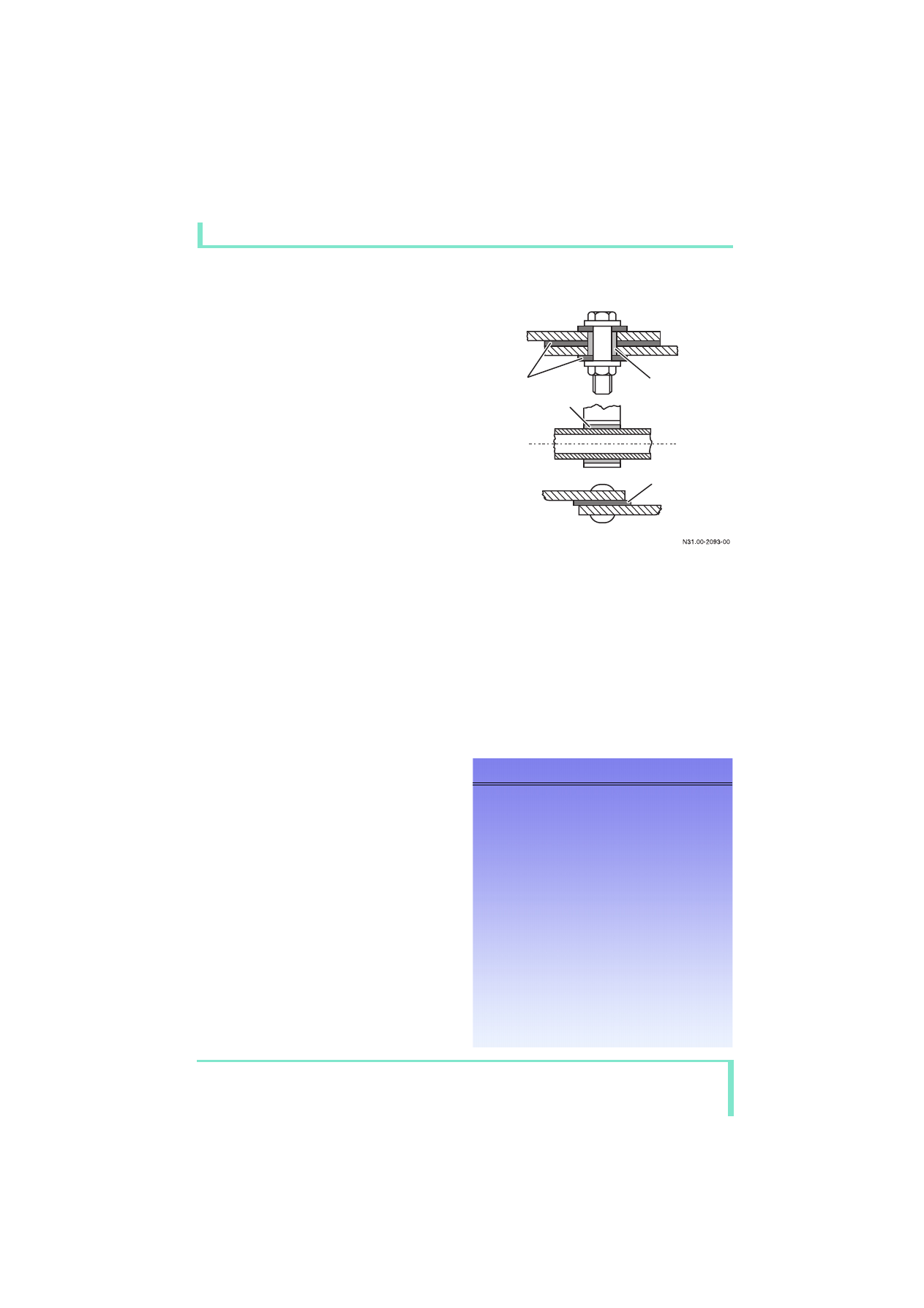

2

2

1

1

1

Insulating  washer

2

Insulating  sleeve

!

A conductive connection occurs if two different
metals are brought into contact with each other
through an electrolyte (e.g. air humidity). This
causes electrochemical corrosion and the less base
of the two metals is damaged. The further apart the
two metals are in the electrochemical potential
series, the more intense electrochemical corrosion
becomes.

For this reason, electrochemical corrosion must be
prevented by insulation or by treating the
components accordingly, or it can be minimized by
selecting suitable materials.
