5 Damage prevention

5.4 Electromagnetic compatibility (EMC)

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

5.4 Electromagnetic compatibility (EMC)

The different electrical devices on board the vehicle
cause electrical interference in the vehicle's electrical
circuit. At MITSUBISHI FUSO, electronic components
installed at the factory are checked for their
electromagnetic compatibility in the vehicle.

When retrofitting electric or electronic systems, they
must be tested for electromagnetic compatibility and
this must be documented.

The equipment must have been granted type approval
in accordance with FCC regulations.

The following standards provide information on this:

i

The notes on operating safety and vehicle safety in
Section 1 "Introduction"

컄 page 10 and 컄 page 11

must be complied with.

65

5 Damage prevention

5.5 Welding work

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

5.5 Welding work

All laws governing explosive substances must be
complied with.

The following safety measures must be observed to
prevent damage to components caused by
overvoltage during welding work:

• Disconnect the positive and negative terminals

from the battery and cover them.

• Connect the welding-unit ground terminal directly

to the part to be welded.

• Do not touch electronic component housings

(e.g. control modules) and electric lines with the
welding electrode or the ground contact clamp of
the welding unit.

• Before welding, cover springs to protect them from

welding spatter. Do not touch springs with welding
electrodes or welding tongs.

• Cover the fuel tank and fuel system (lines, etc.)

before carrying out welding work.

• Avoid welding work on inaccessible cavities in the

cab.

• Welds must be ground down and reinforced with

angular profiles to prevent notching from welding
penetration.

• Avoid welds in bends.
• The distance from a weld to the outer edge should

always be at least 15 mm {0.59 in.}.

• Avoid defects such as deposited metal cracking,

toe crack, blow holes, slag inclusion, under cut,
poor penetration, etc.

!

Do not connect the arc welder ground clamp to
assemblies such as the engine, gearbox or axles.

Welding work is not permitted on assemblies such
as the engine, gearbox, axles, etc.

66

5 Damage prevention

5.5 Welding work

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

The following safety measures must be observed to
prevent damage to welding parts;

• Do not weld any item to the frame to hold it

temporarily.

• Clean parts thoroughly with a wire brush and dry

them off before welding.

• Make sure the paint is completely removed, before

welding a painted part.

• Use a low hydrogen type welding electrode.  The

welding electrode absorbs moisture when it is
used, so it is necessary to dry it thoroughly before
use.

• When welding, maintain the optimum welding

speed and conditions for the preservation of the
welding electrode.

• Maintain the welding current at the optimum value

for safety.

• Make several short welding beads rather than one

long bead.

• Make symmetrical beads to limit shrinkage.
• Avoid more than 3 welds at any one point.
• Avoid welding in strain hardened zones.
• When connecting the ground cable of the arc

welder, make sure to disconnect the negative
terminal from the battery.  The ground of the
welder should be connected to the side rail near
the welded part.  Never connect around the engine,
transmission, propeller shaft, front and rear axles,
etc.

• When performing welding work on the chassis,

take proper measure to prevent the tubes,
harnesses, rubber parts, springs, etc. from heat or
spatter.

• Do not cool parts off with water after welding.

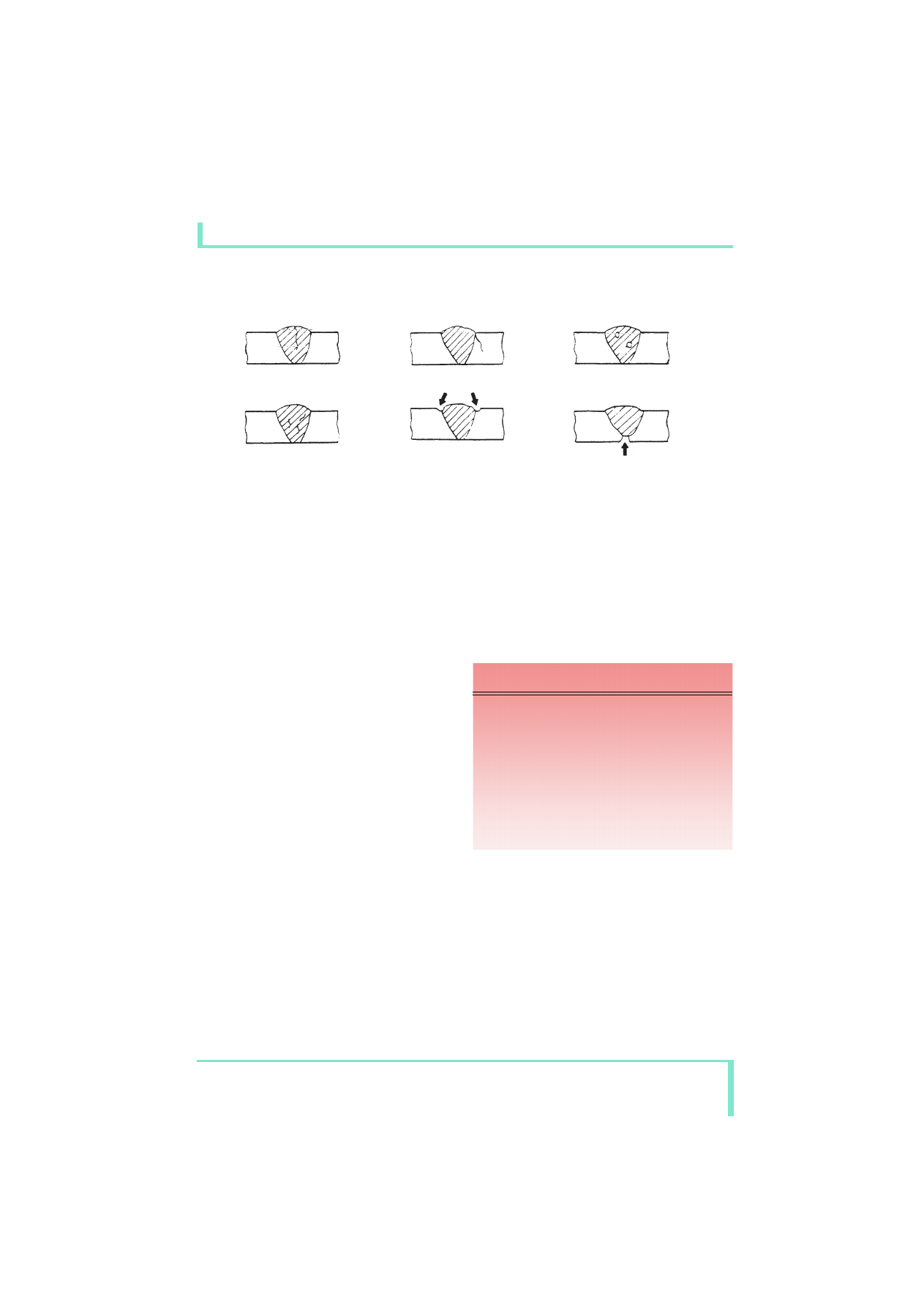

Fig. 1

4

6

5

1

3

2

7

Deposited metal cracking

8

Toe  crack

9

Blow hole

4

Slag inclusion

5

Under  cut

6

Poor  penetration

a

Risk of accident and injury

Before performing electric of arc welding as part of
vehicle repair operation, disconnect the negative (-)
cable from the battery.  The ground cable of the
welding machine should be connected to a point as
close to the welding area as possible.

67

5 Damage prevention

5.6 Corrosion protection measures

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

5.6 Corrosion protection measures

General

In order to preserve the durability and quality standard
of the vehicle, measures must be taken to protect it
against corrosion when the vehicle is modified and
after installing bodies and fittings.

Information on the design, execution of work and the
requirements of the materials and components to be
used with regard to corrosion protection is listed
below.

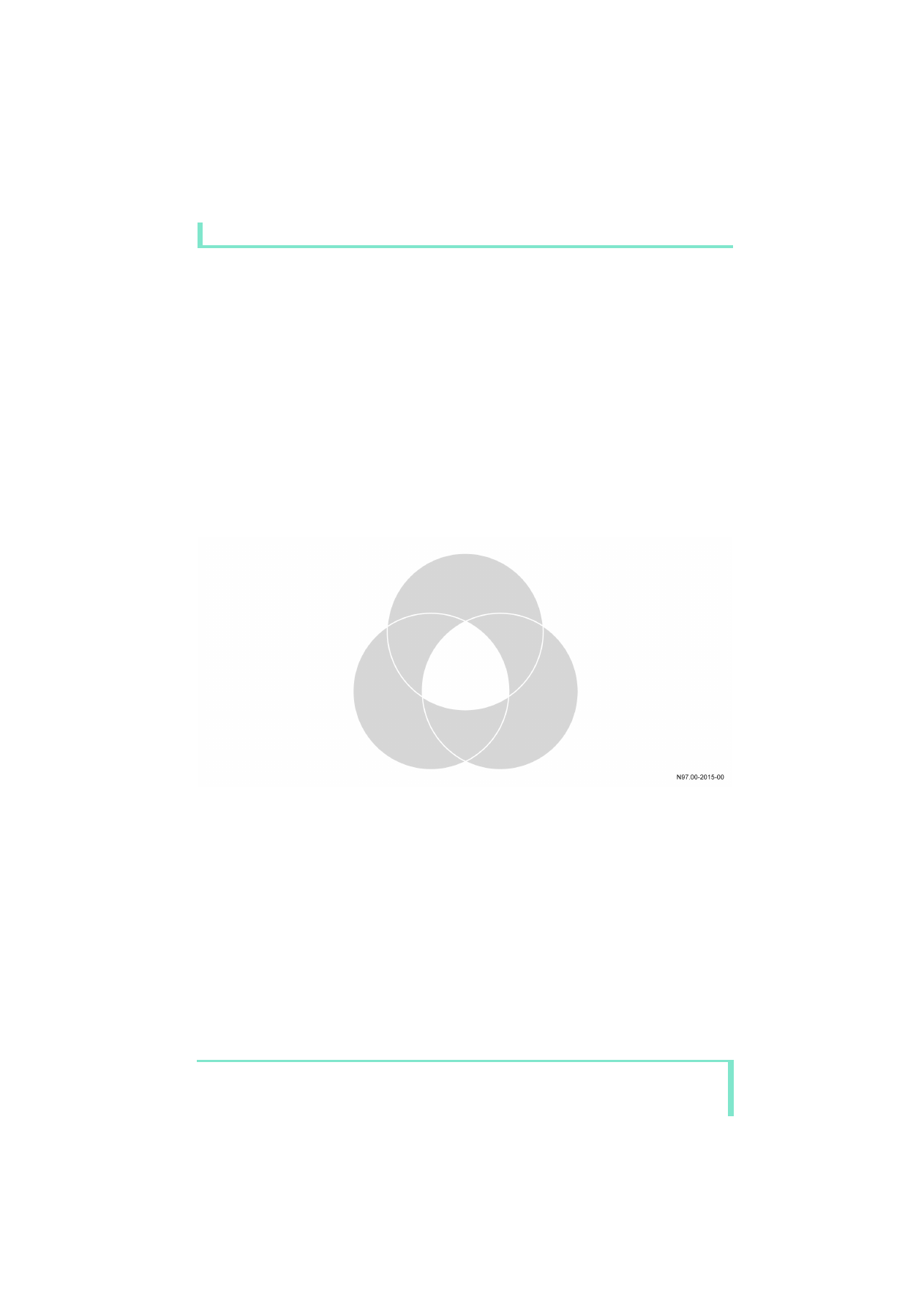

To achieve good corrosion protection, the areas of
design (1), production (2) and materials (3) must be
perfectly matched.

Materials

Design

Production

Corrosion
protection

Optimum corrosion protection
