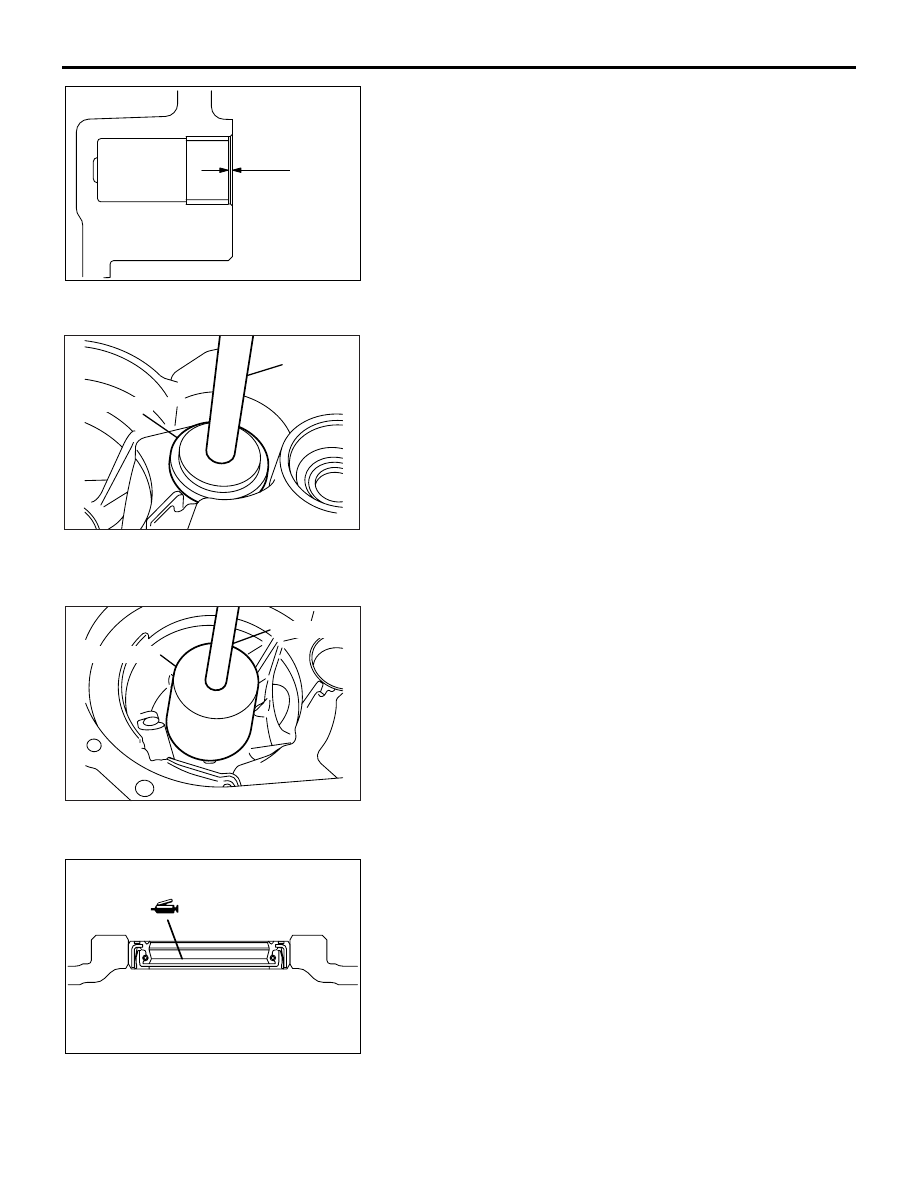

AK204291

1 mm

AC

CLUTCH HOUSING

MANUAL TRANSMISSION OVERHAUL

22B-37

2. Be sure the bushing is fully seated as shown. It must be 1

mm below the housing surface.

.

>>C<< OUTER RACE INSTALLATION

AK201669

MB990938

AD

MB990935

Using special tools, press fit the outer race into the clutch hous-
ing.

• Handle (MB990938)

• Installer adapter (MB990935)

.

>>D<< OUTER RACE INSTALLATION
1. Check the installation direction of the outer race.

AK201670AD

MB991445

MB990938

2. Using special tools, press fit the outer race into the clutch

housing.

• Handle (MB990938)

• Bushing remover and installer base (MB991445)

.

>>E<< OIL SEAL INSTALLATION

AK204284AC

1. Pack grease in the oil seal lip area.

Specified grease:

Mitsubishi Part No. 0101011 or equivalent

AK201671

MB990928

AD

MB990938

TRANSMISSION CASE

MANUAL TRANSMISSION OVERHAUL

22B-38

2. Using special tools, press fit the oil seal into the clutch

housing.

• Handle (MB990938)

• Installer adapter (MB990928)

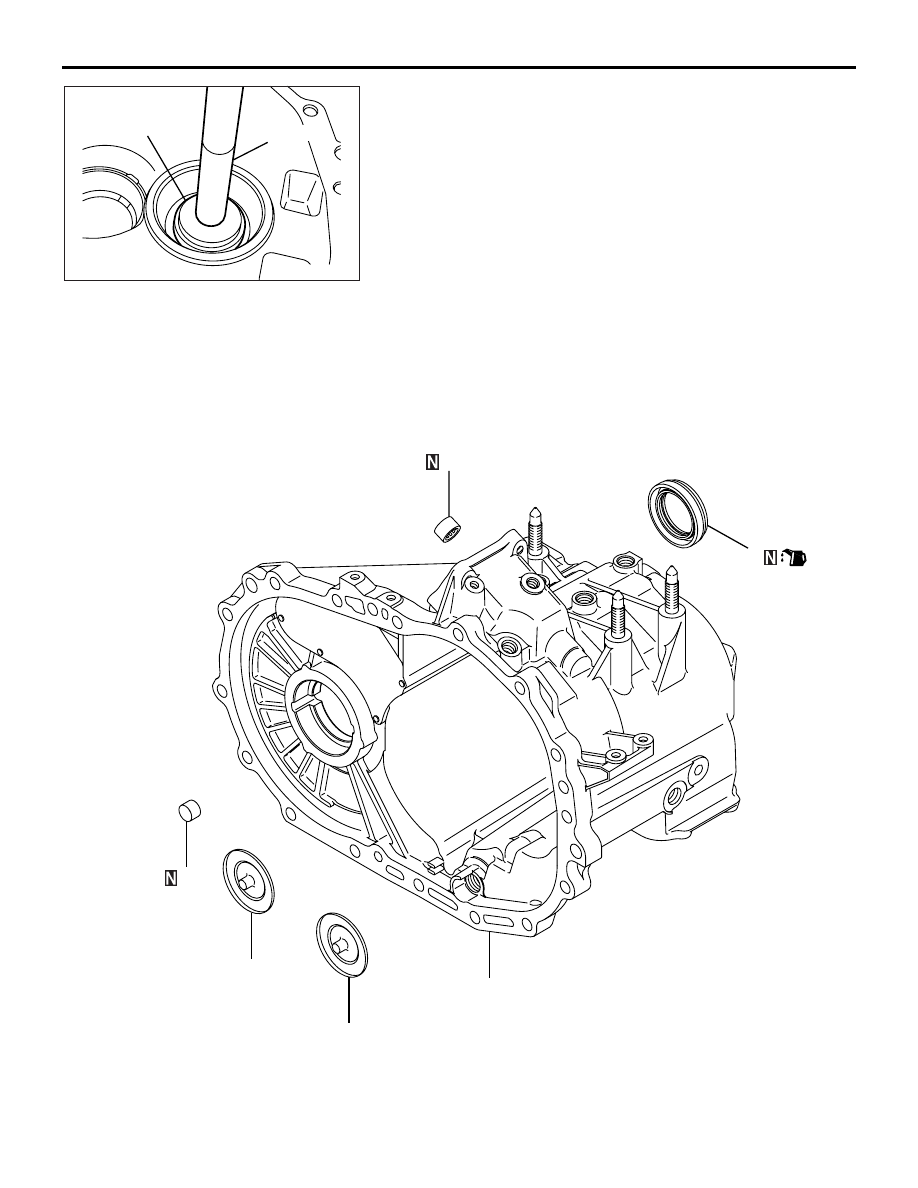

TRANSMISSION CASE

DISASSEMBLY AND REASSEMBLY

M1222013400303

AK203131

2

*

6

3

4

5

*

1

AD

Disassembly steps

>>

D

<<

1. Oil seal

>>

C

<<

2. Needle bearing*

>>

B

<<

3 Oil guide

>>

B

<<

4. Oil guide

>>

A

<<

5. Bushing*
6. Transmission

Disassembly steps ( つづき )

TRANSMISSION CASE

MANUAL TRANSMISSION OVERHAUL

22B-39

NOTE:

*Refer to the needle bearing and bushing installa-

tion procedures only when replacing the transmission
case.

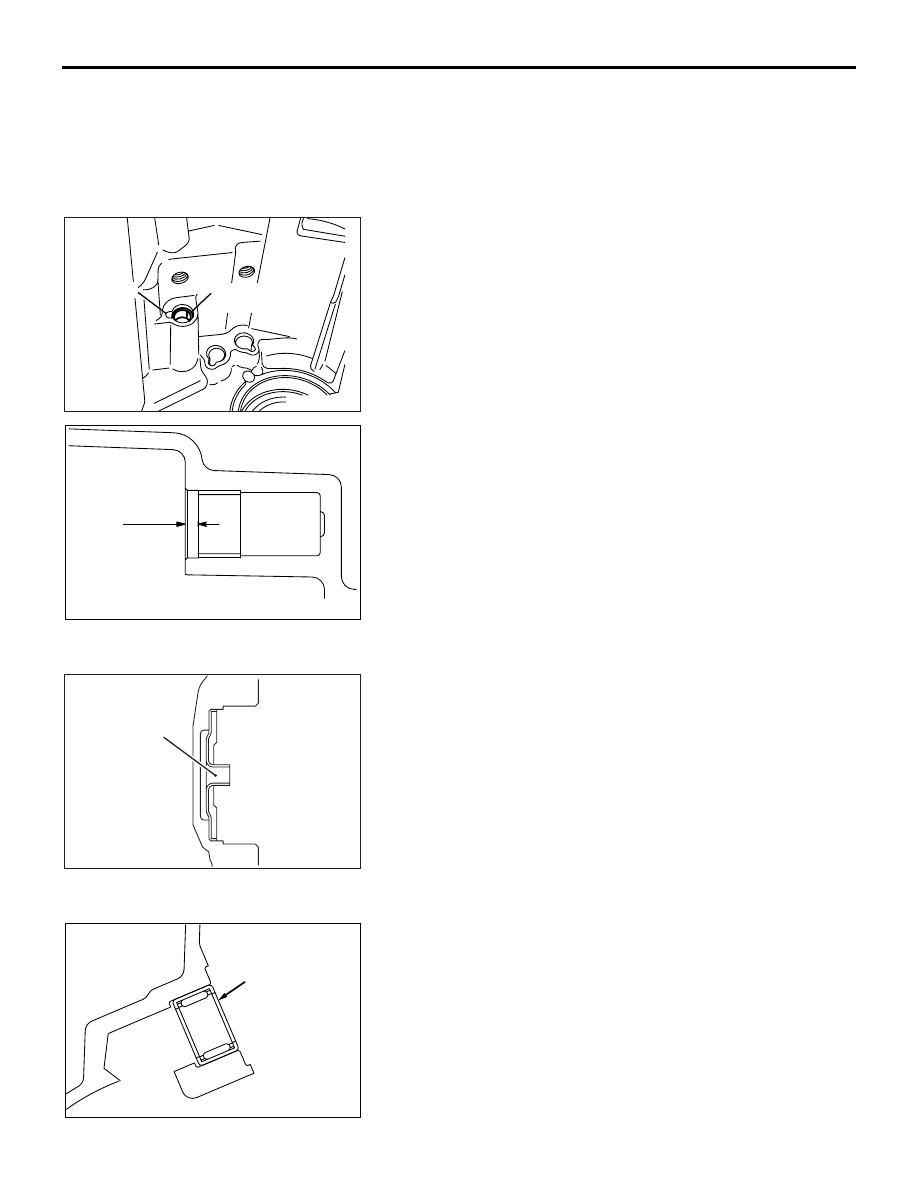

REASSEMBLY SERVICE POINTS

.

>>A<< BUSHING INSTALLATION

AK201672AD

Air vent

Seam of

bushing

1. Press fit the bushing so the seam is away from the air vent.

AK204304

3 mm

AC

2. Be sure the bushing is fully seated as shown. It must be 3

mm below the housing surface.

.

>>B<< OIL GUIDE INSTALLATION

AK500016

Oil guide

AB

Evenly press the oil guide so it is fully seated and not at an
angle.

.

>>C<< NEEDLE BEARING INSTALLATION

AK204287

Model number

stamped side

AB

1. Check the installation direction of the needle bearing.

2. Press fit the needle bearing until it is flush with the case.

.

TRANSMISSION CASE

MANUAL TRANSMISSION OVERHAUL

22B-40

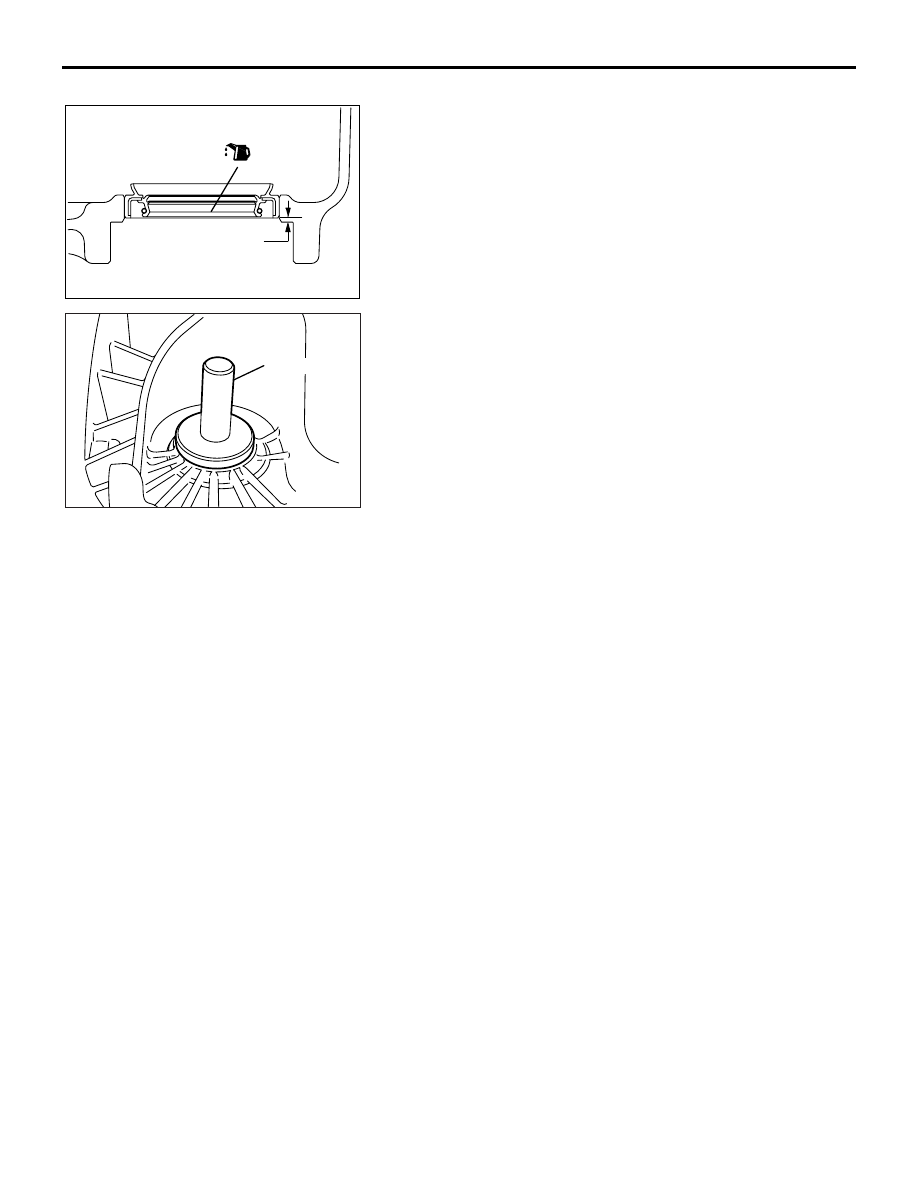

>>D<< OIL SEAL INSTALLATION

AK204286AD

1.5 mm

1. Apply transmission oil to the oil seal lip area.

Transmission oil:

Genuine Mitsubishi MTF

AK201673

MD998800

AD

2. Using special tool Differential oil seal installer (MD998800),

press fit the oil seal into the transmission case.
