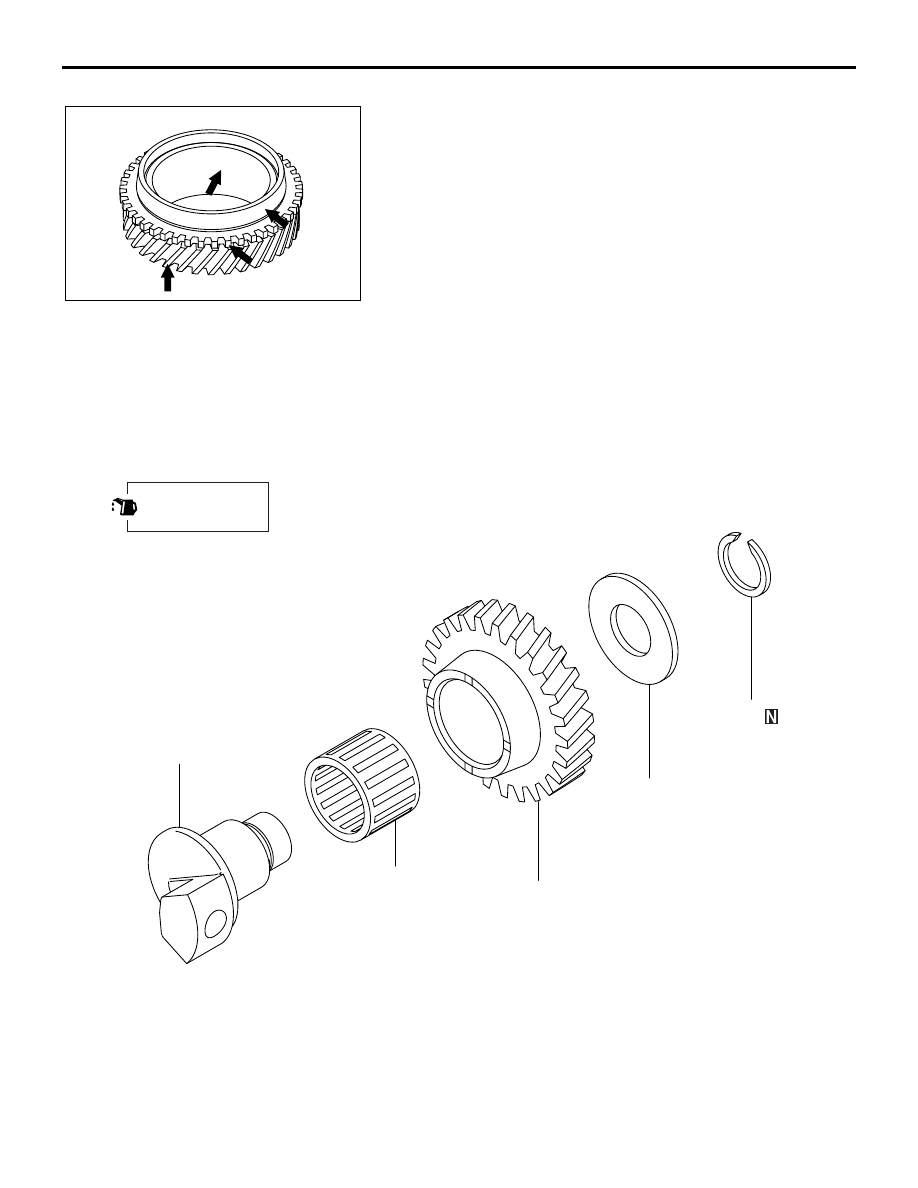

REVERSE IDLER GEAR

MANUAL TRANSMISSION OVERHAUL

22B-29

SPEED GEARS

AK204299AB

1. Check that the helical and clutch gear tooth surfaces are not

damaged or worn.

2. Check that the synchronizer cone surfaces are not

roughened, damaged or worn.

3. Check that the gear inside diameter and front and rear

surfaces are not damaged or worn.

REVERSE IDLER GEAR

DISASSEMBLY AND REASSEMBLY

M1222012500277

AK305225

4

1

2

3

5

AB

Apply gear oil to all

moving parts before

installation.

Disassembly steps

1.

Snap ring

2.

Thrust washer

3.

Reverse idler gear

4.

Needle roller bearing

5.

Reverse idler gear shaft

Disassembly steps ( つづき )

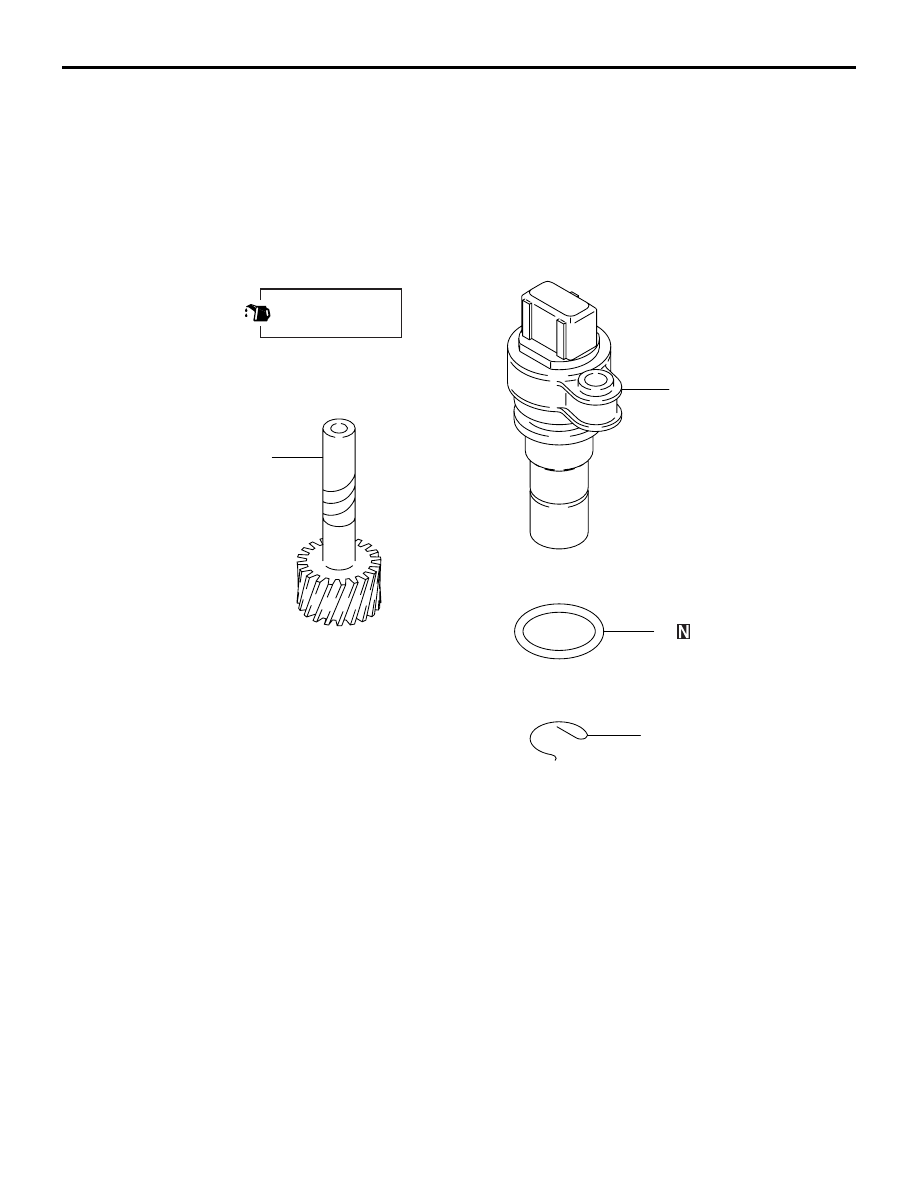

VEHICLE SPEED SENSOR

MANUAL TRANSMISSION OVERHAUL

22B-30

VEHICLE SPEED SENSOR

DISASSEMBLY AND REASSEMBLY

M1222007000038

AK204397

4

2

3

1

AB

Apply gear oil to all

moving parts before

installation.

Disassembly steps

1.

E-clip

2.

Speed sensor gear

3.

O-ring

4.

Speed sensor

Disassembly steps ( つづき )

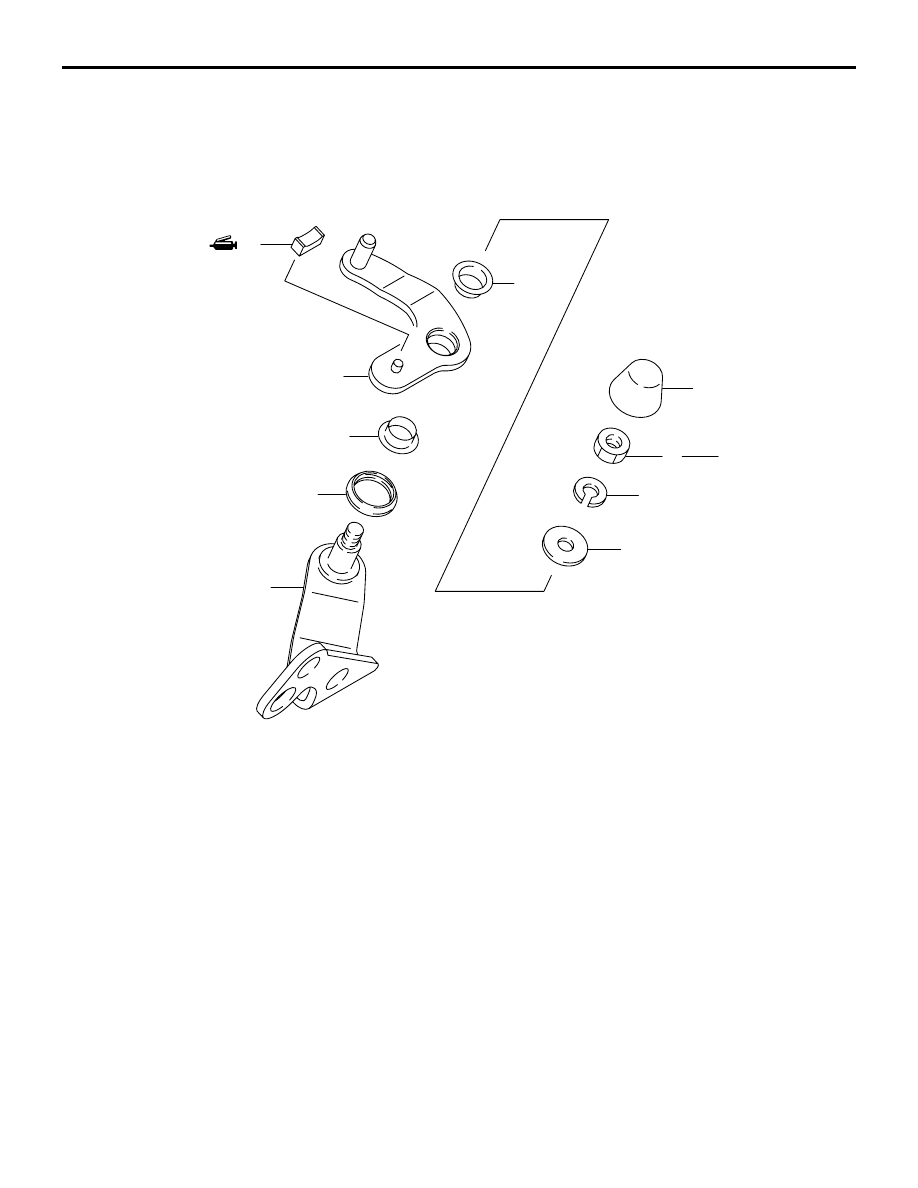

SELECT LEVER

MANUAL TRANSMISSION OVERHAUL

22B-31

SELECT LEVER

DISASSEMBLY AND REASSEMBLY

M1222012800193

AK502136

6

5

7

1

11 ± 1 N·m

8

2

9

3

4

10

AB

Disassembly steps

1.

Dust cover

2.

Nut

3.

Spring washer

4.

Washer

>>

A

<<

5.

Select lever bushing

6.

Select lever shoe

7.

Select lever

>>

A

<<

8.

Select lever bushing

>>

A

<<

9.

Dust cover

10. Select lever shaft

Disassembly steps ( つづき )

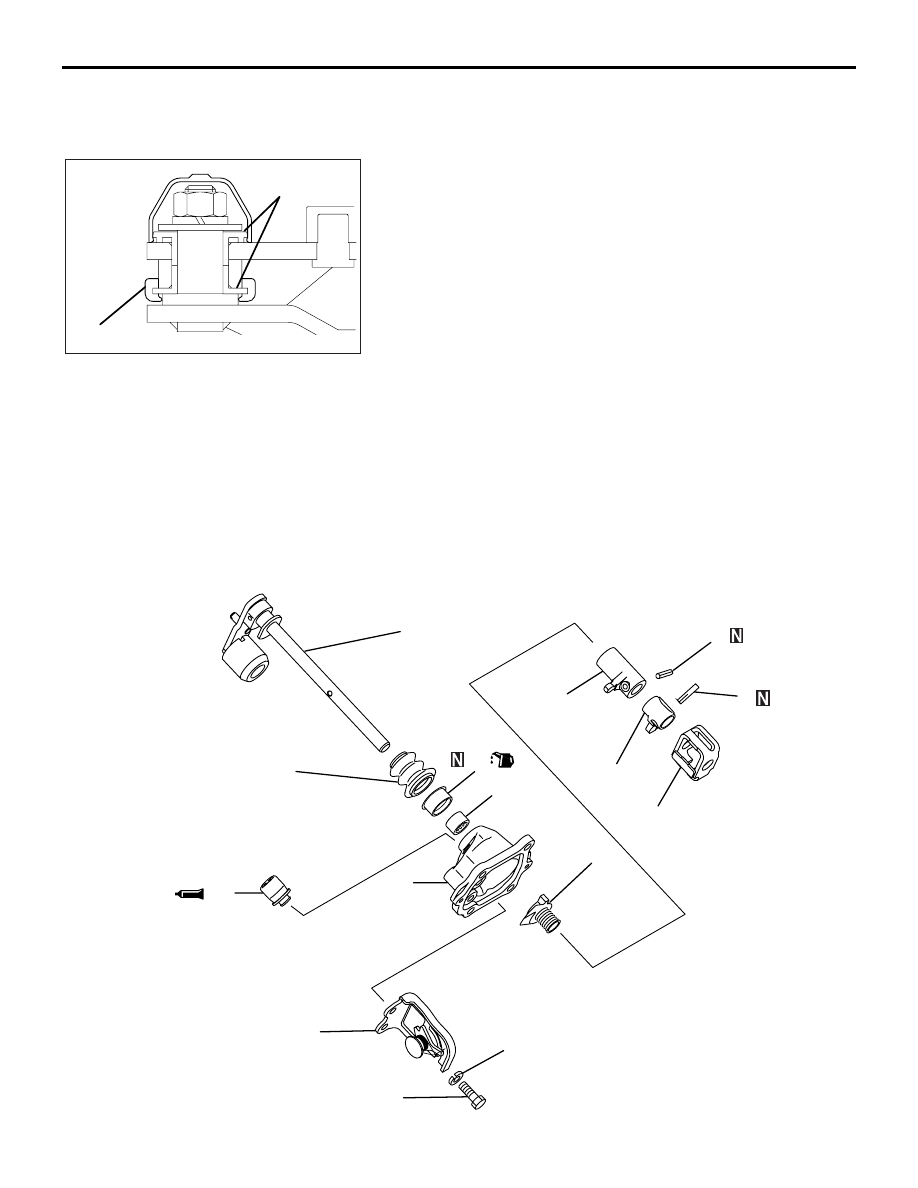

CONTROL HOUSING

MANUAL TRANSMISSION OVERHAUL

22B-32

REASSEMBLY SERVICE POINT

.

>>A<< DUST COVER AND SELECT LEVER BUSHING
INSTALLATION

AK204311

Select lever

bushing

Dust cover

AB

Make sure the dust cover and select lever bushing installation
direction is correct, and distinguished parts are correctly
assembled. Refer to the figure at left.

CONTROL HOUSING

DISASSEMBLY AND REASSEMBLY

M1222013100302

AK502052

11

7

8

1

6

5

4

2

3

13

14

12

10

9

21.7 ± 0.3 N·m

AB
