MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-290

STEP 8. Check multi-centre display unit  connector C-05
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is multi-centre display unit  connector C-05 in good

condition?
YES :
Go to Step 9.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

multi-centre display unit  should work normally.

STEP 9. Check the wiring harness between C-05 (terminal
3) and ignition switch (ACC).

NOTE: Also check intermediate connector C-29 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-29 is damaged, repair or
replace the wiring harness. Refer to GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between C-05 (terminal 3) and

ignition switch (ACC) in good condition?
YES :
There is no action to be taken.
NO :  Repair the wiring harness. The multi-centre display

unit  should work normally.

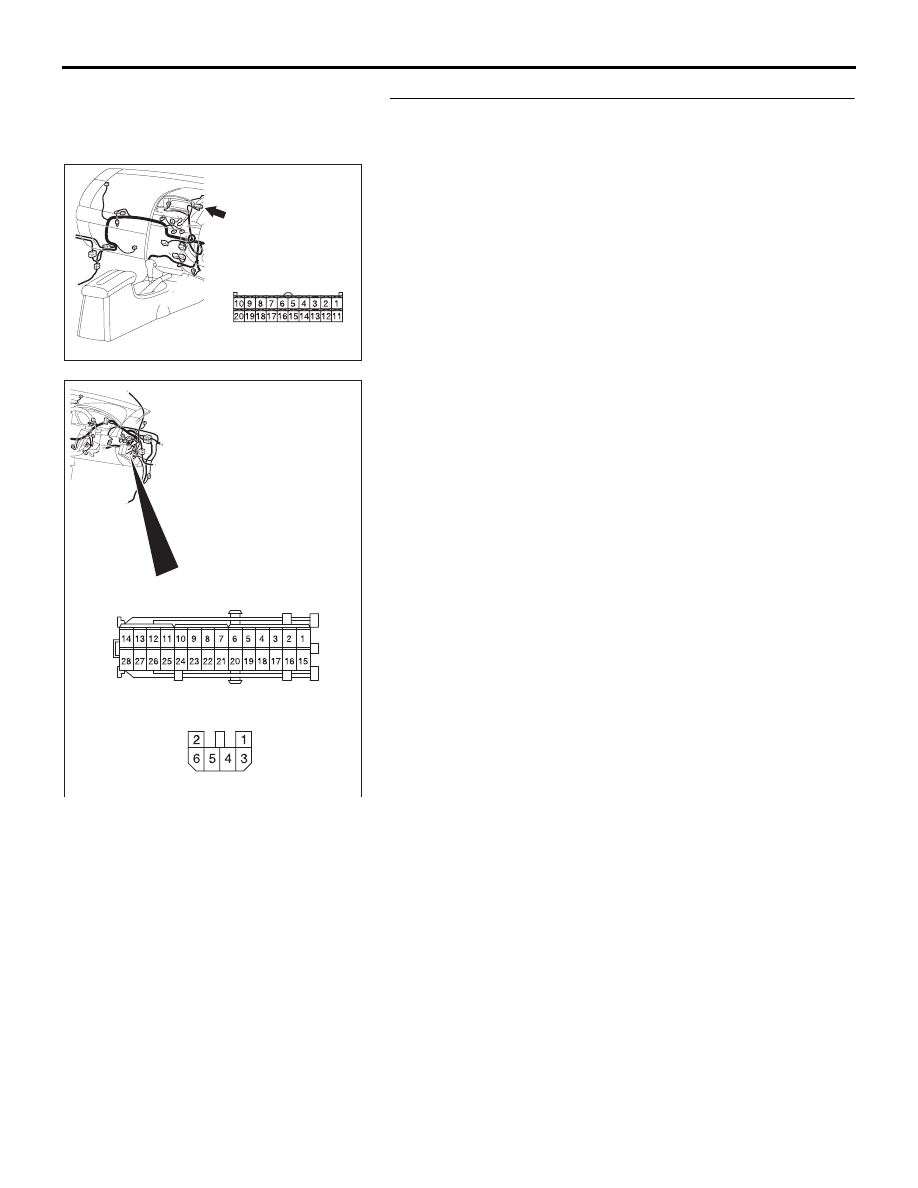

16DB490A

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

16DB490A

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

52DB014A

CONNECTOR: C-29

MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-291

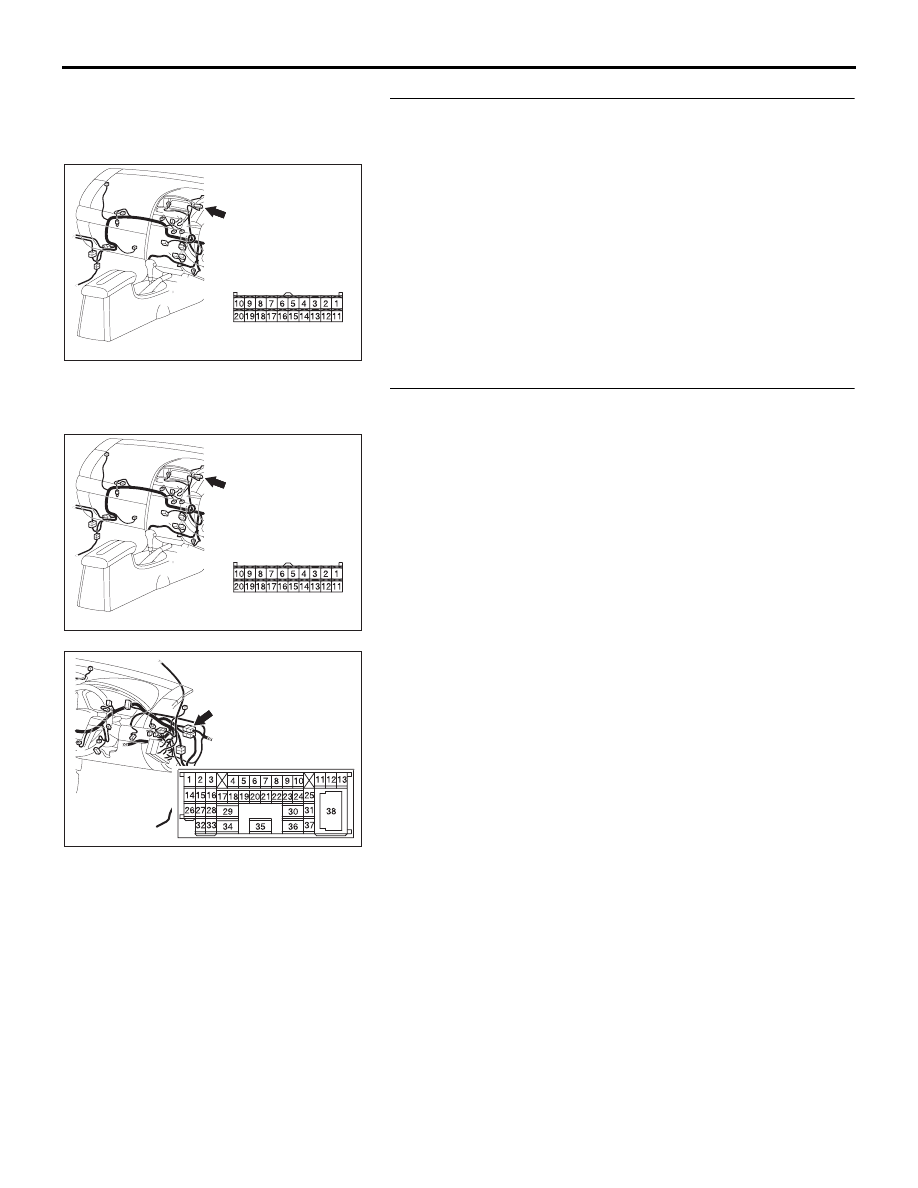

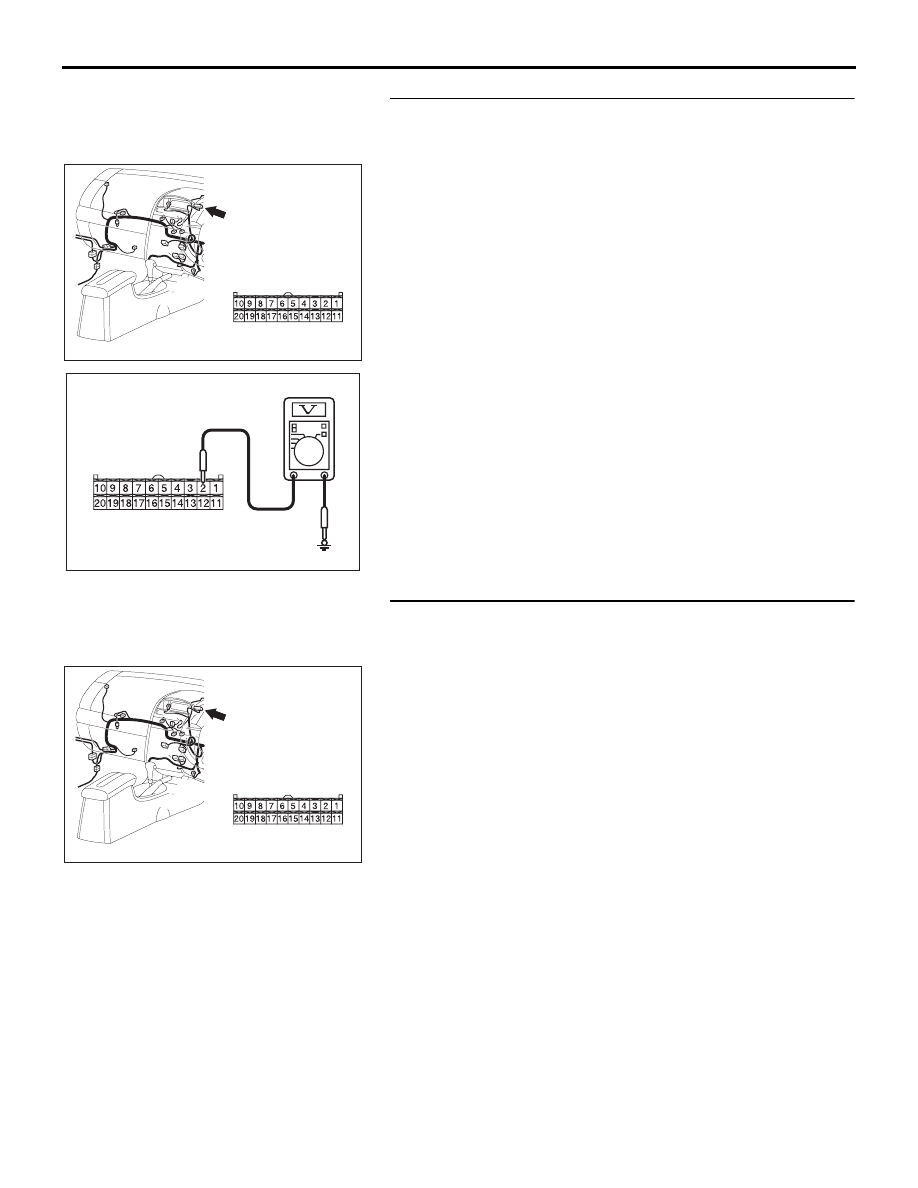

STEP 10. Check the multi-centre display unit  power
supply circuit [ignition switch (IG1)]. Measure the voltage
at the multi-centre display unit  connector C-05.
(1) Disconnect the multi-centre display unit  connector C-05

and measure at the harness side.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 2 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Replace the multi-centre display unit . The

multi-centre display unit  should work normally.

NO :  Go to Step 11.

STEP 11. Check the multi-centre display unit  connector
C-05 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is multi-centre display unit  connector C-05 in good

condition?
YES :
Go to Step 12.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

multi-centre display unit  should work normally.

16DB490A

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

AC209365

CONNECTOR C-05
(HARNESS SIDE)

IA

16DB490A

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-292

STEP 12. Check the wiring harness between multi-centre
display unit  connector C-05 (terminal 2) and ignition
switch (IG1).

NOTE: Also check junction block connector C-211 and C-215
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If junction block connector C-211 or
C-215 is damaged, repair or replace the wiring harness. Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between multi-centre display unit

connector C-05 (terminal 2) and ignition switch (IG1) in
good condition?
YES :
The procedure is complete.
NO :  Repair the wiring harness. The multi-centre display

unit  should work normally.

16DB490A

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

25DB096A

CONNECTORS: C-211, C-215

HARNESS SIDE

C-211

HARNESS SIDE

C-215

MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-293

INSPECTION PROCEDURE 3: The A/C Display Shows "COMMUNICATION ERROR", and then can not
Proceed to Next Screen.

.

CIRCUIT OPERATION

The multi-centre display unit  receives information on
current A/C operation condition from the A/C-ECU
via CAN bus lines.

.

TECHNICAL DESCRIPTION (COMMENT)

The multi-centre display unit  will show "COMMUNI-
CATION ERROR" message if it has received abnor-
mal data from the A/C-ECU via CAN communication
for 60 seconds or more. Then the A/C operation
screen, which is based on the last normal informa-
tion, continues to be shown. If the communication
returns to normal, "COMMUNICATION ERROR"
message will disappear and the A/C operation
screen will return to normal.

.

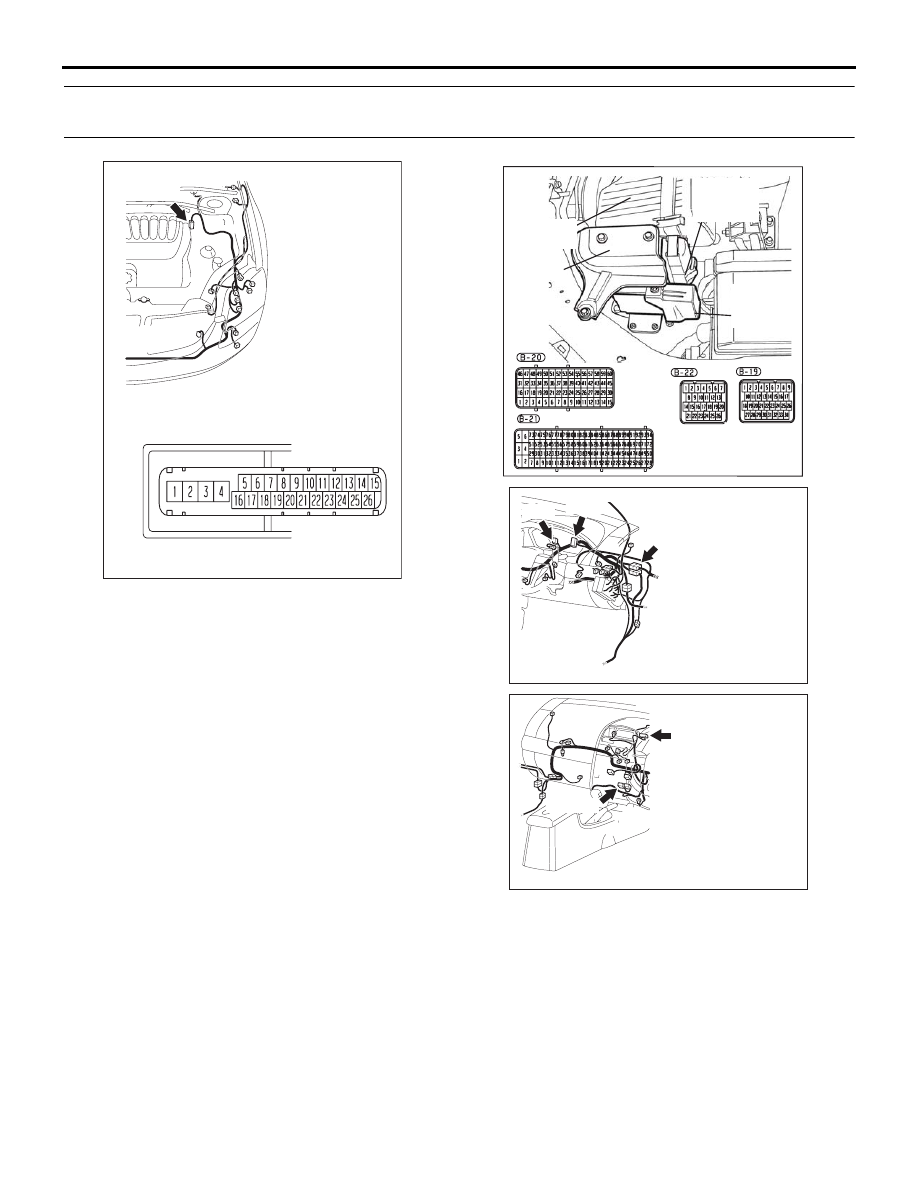

16DB402A

A-02 (GR)

CONNECTOR: A-02

A-02 HARNESS CONNECTOR:

16DB407A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

A/T

CONTROL

UNIT

54DB025A

C-02

C-29

C-101

CONNECTORS: C-02, C-29, C-101

16DB552A

CONNECTORS: C-05, C-15

C-05 (B)

C-15 (B)
