HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-150

CAUTION

• Handle halogen lamp with care. The gas inside halogen

lamp bulb is highly pressurised, so dropping, knock-
ing, or scratching a halogen lamp bulb can cause it to
shatter.

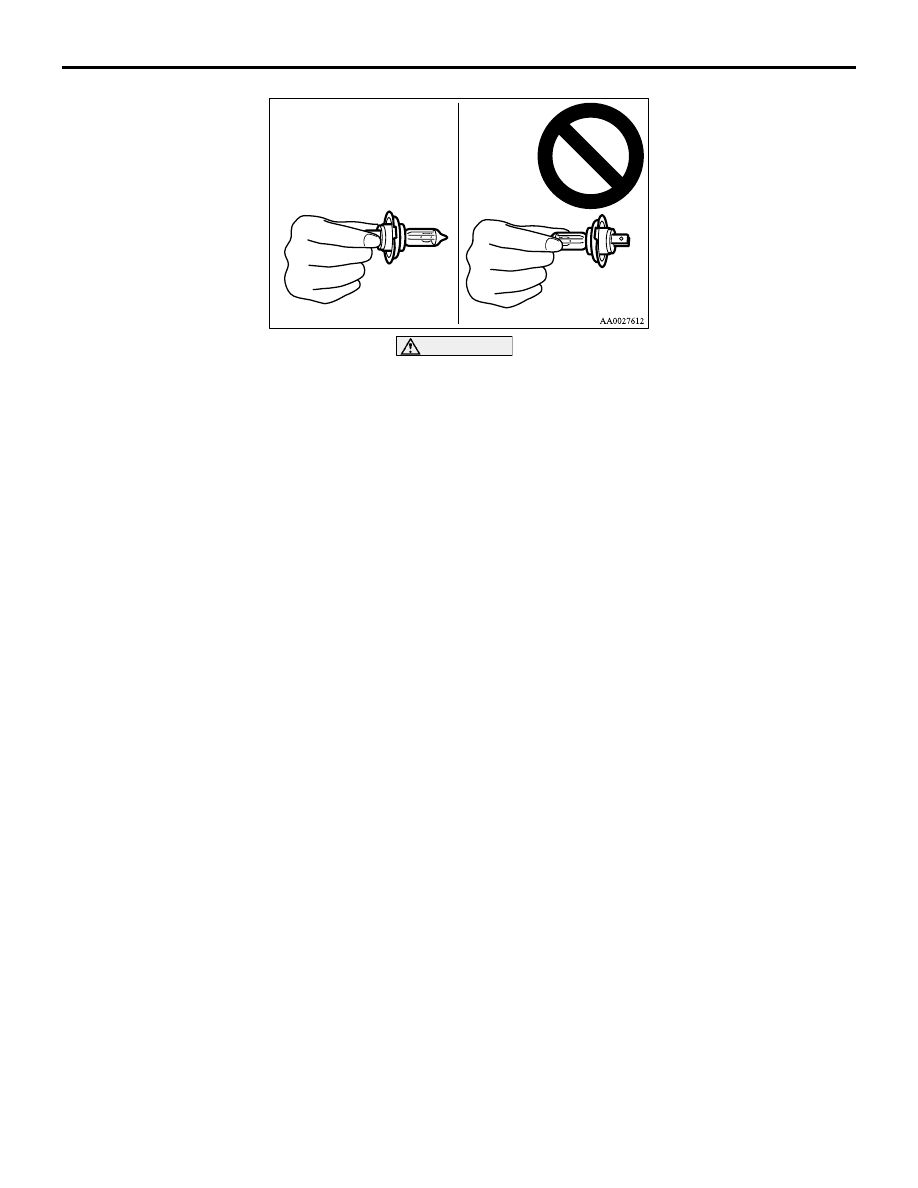

•  Never hold the halogen lamp bulb with a bare hand,

dirty glove, etc. The oil from your hand  could cause the
bulb to break the next time the headlamps are operated.
If the glass surface is dirty, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-151

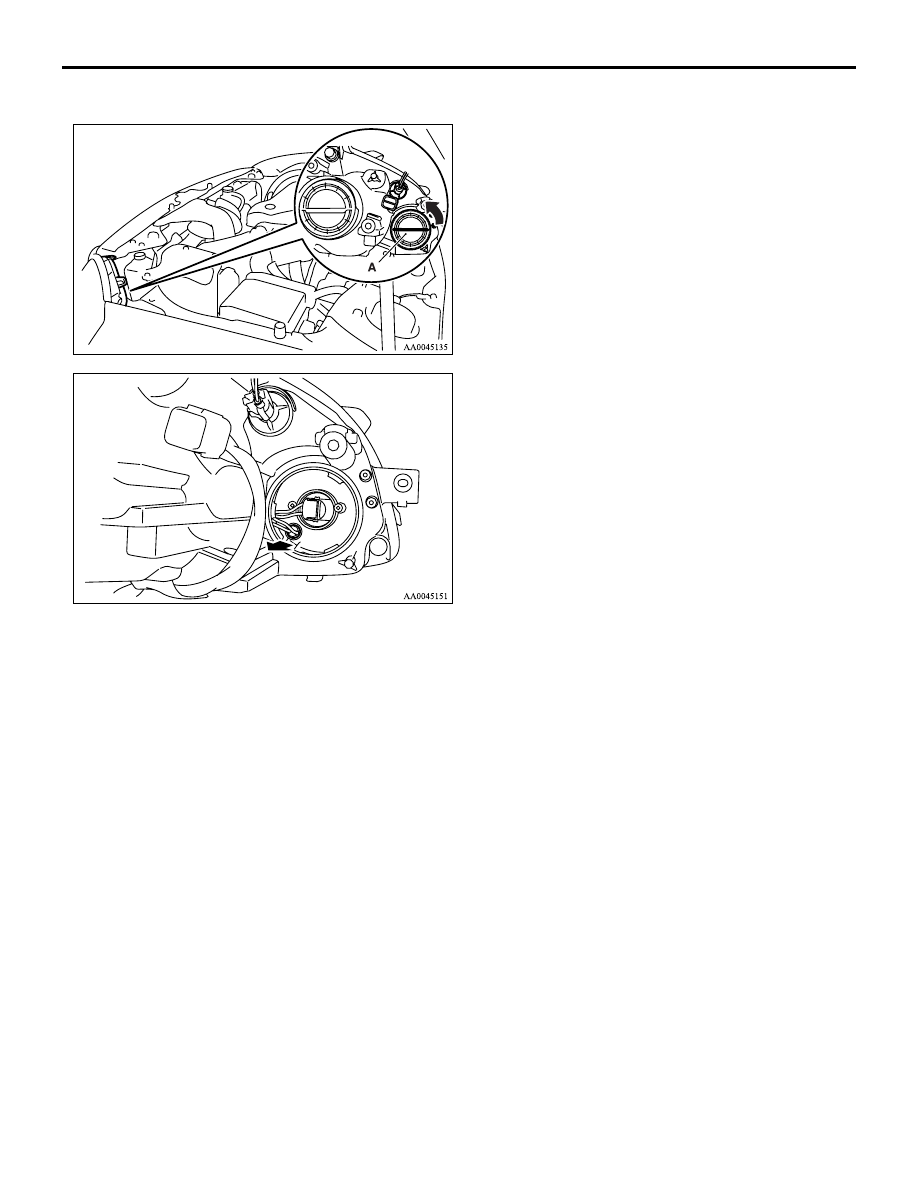

Position/Park Lamp Bulb

1. Turn the cap (A) anticlockwise and remove it.

2. Pull out the socket. Remove the bulb from the socket by

pulling it out

3. When replacing bulb, push bulb into socket then push in

socket to headlamp.

4. Install cap (A) by twisting it clockwise.

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-152

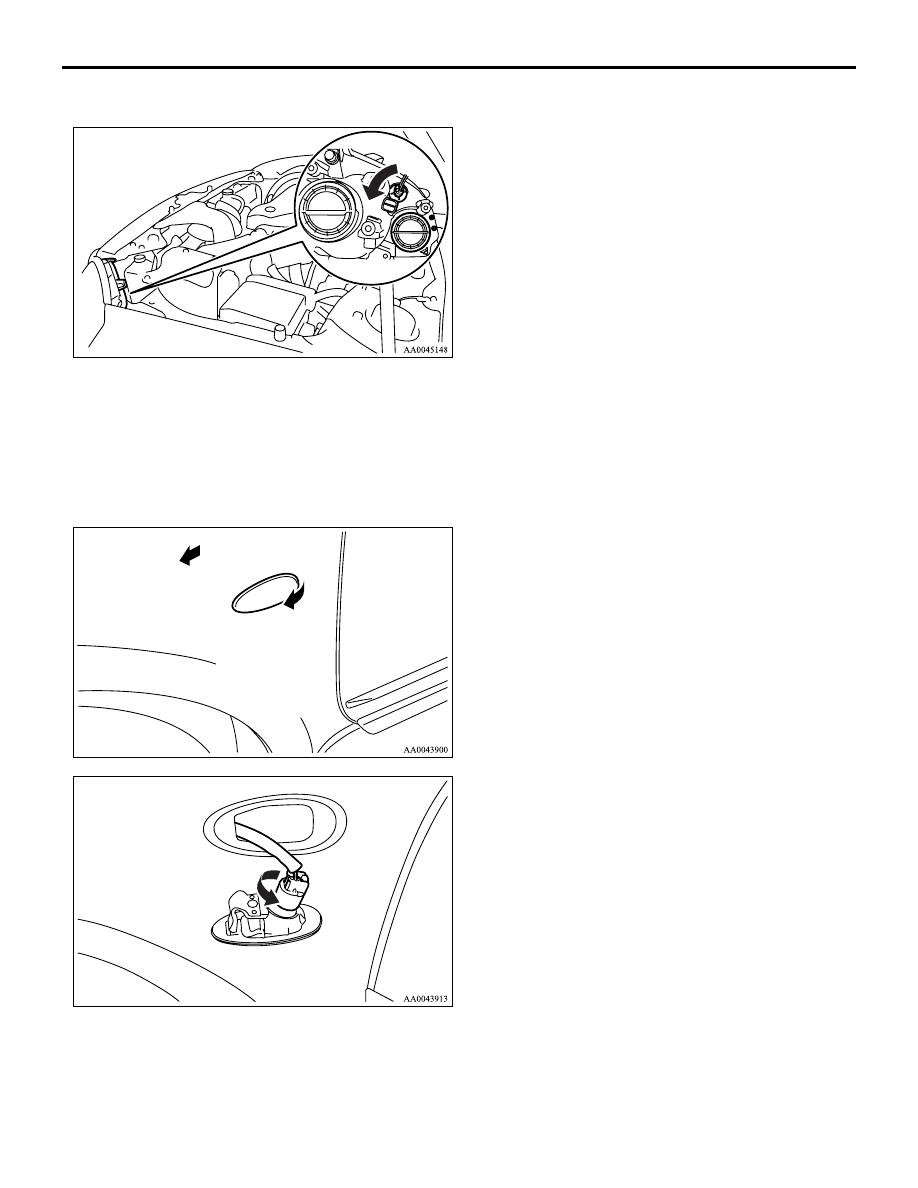

Front turn-signal lamps

1. Turn the bulb socket anticlockwise to remove it. Remove the

bulb from the socket by turning it anticlockwise while
pressing in.

2. When replacing bulb, turn clockwise while pushing in socket.

Turn socket clockwise to fit to headlamp.

Side turn-signal lamps

1. Remove the lamp housing by levering it towards the front of

the vehicle.

2. Remove the socket and bulb assembly together by turning it

anticlockwise, and then remove the bulb by pulling it out.

3. Replace bulb by pushing into socket, then turning socket

clockwise in lamp.

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-153

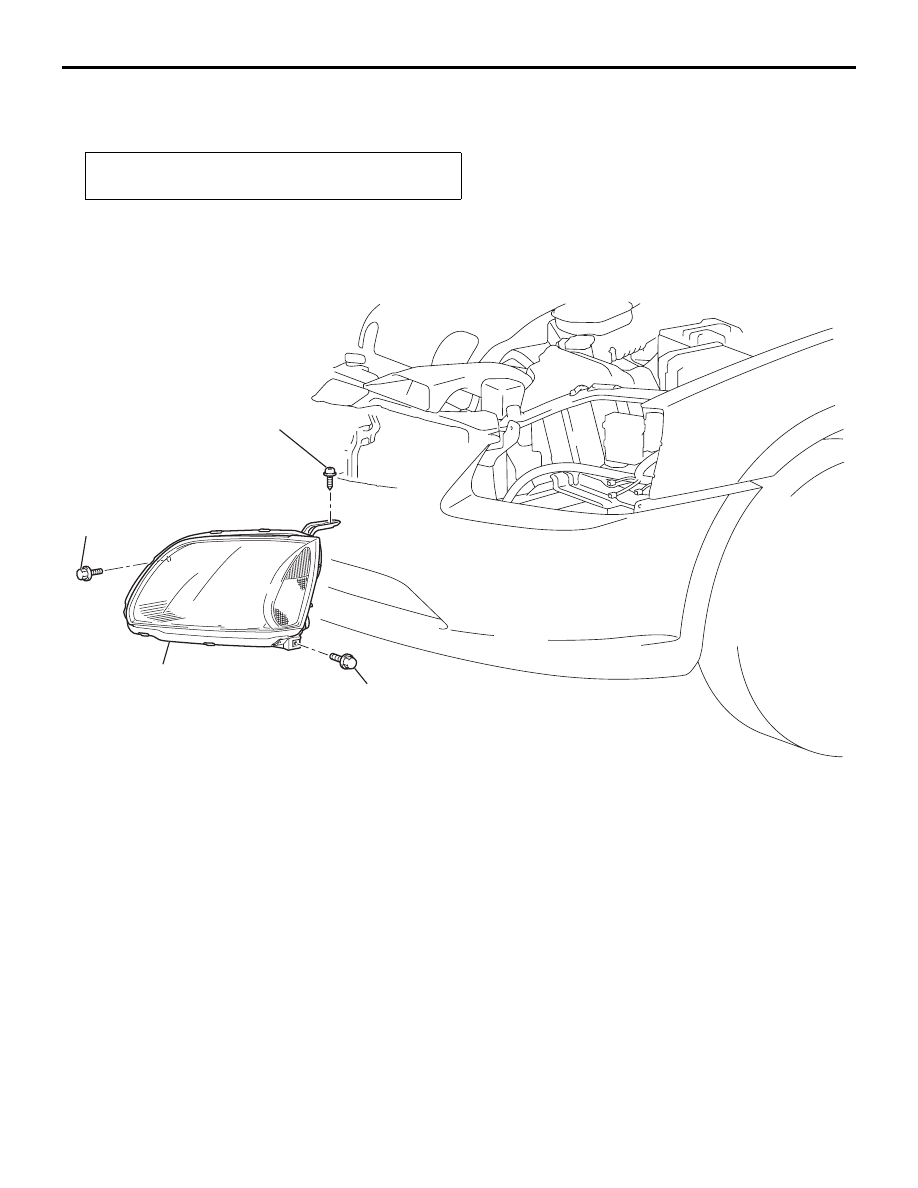

HEADLAMP AND FRONT COMBINATION LAMP

REMOVAL AND INSTALLATION

M1542002700358

Post-installation operation
• Headlamp aiming adjustment (Refer to

P.54A-143

).

16DB415A

1

4.9 ± 0.7 N·m
44 ± 6 in-lb

4.9 ± 0.7 N·m
44 ± 6 in-lb

1.5 ± 0.2 N·m
14 ± 1 in-lb

HEADLAMP REMOVAL STEPS

•

RADIATOR GRILL (REFER TO
GROUP 51, RADIATOR GRILL

P.51-6

.)

•

SPLASH SHIELD MOUNTING
CLIPS, FRONT BUMPER UNDER
COVER, RUBBER NUT, LICENSE
PLATE GARNISH (REFER TO
GROUP 51, FRONT BUMPER

P.51-2

.)

<<A>>

1.

HEADLAMP ASSEMBLY

HEADLAMP REMOVAL STEPS
