Mitsubishi 380. Manual - part 903

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-146

LUMINOUS INTENSITY MEASUREMENT

M1542001000486

• Measure the luminous intensity of headlamps with a pho-

tometer in accordance with the instruction manual prepared
by the manufacturer of the photometer and make sure that
the luminous intensity is within the following limit.

Limit::  High beam:   18,000 cd or more
             Low beam:      7,000 cd or more

NOTE: . When measuring the intensity, maintain an engine
speed of 2,000 r/min, with the battery fully charged.
There may be special local regulations pertaining to headlamp
intensity. Be sure to make any adjustments necessary to satisfy
such regulations.

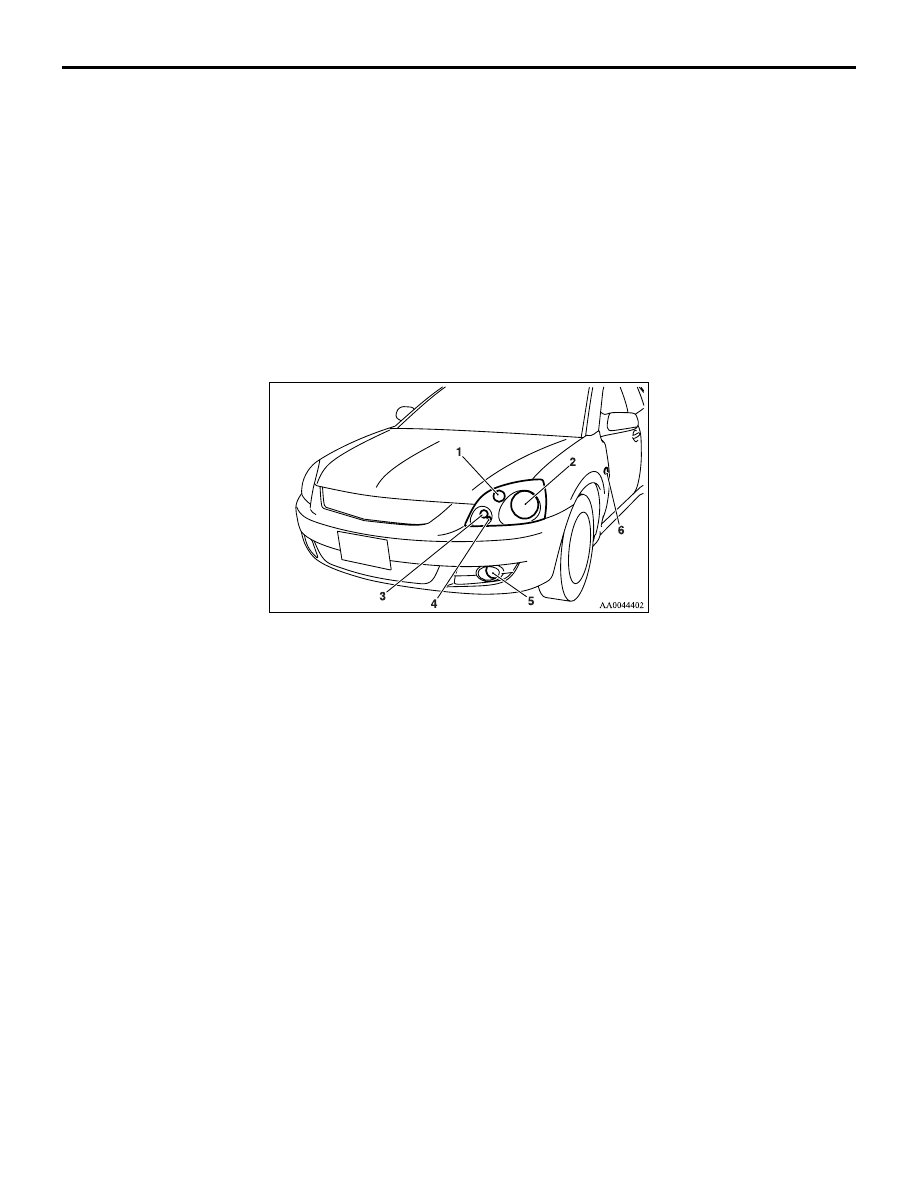

1. Front turn-signal lamps

2. Headlamps, high/low beam

3. Headlamps, high beam

4. Position/Park lamps

5. Front fog lamps

6. Side turn-signal lamps

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-147

 BULB REPLACEMENT

M1542001300711

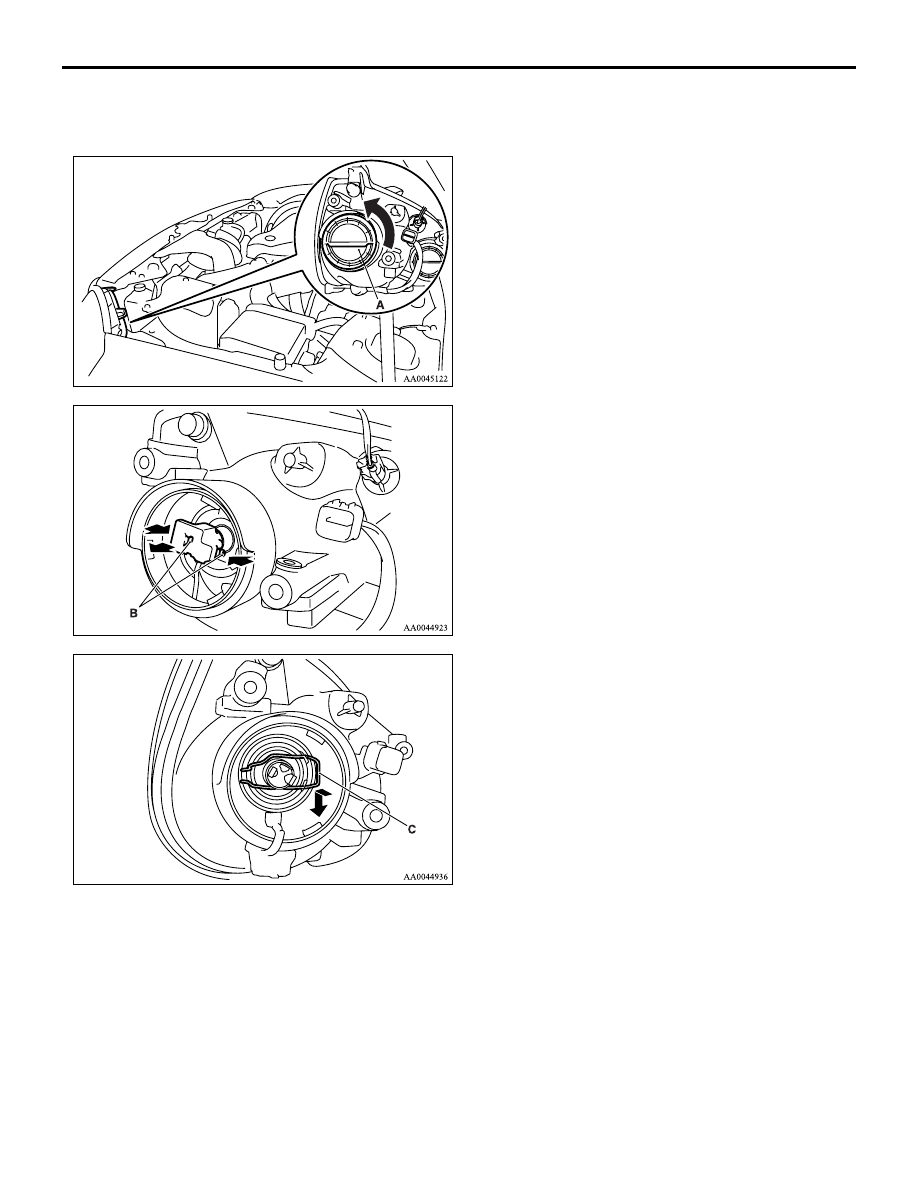

Headlamp (High/Low Beam)

1. Turn the cap (A) anticlockwise and remove it.

2. While pressing the indicated points (B) on the sides of the

socket, pull out the socket.

3. Unhook the spring (C), which secures the bulb, and remove

the bulb.

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-148

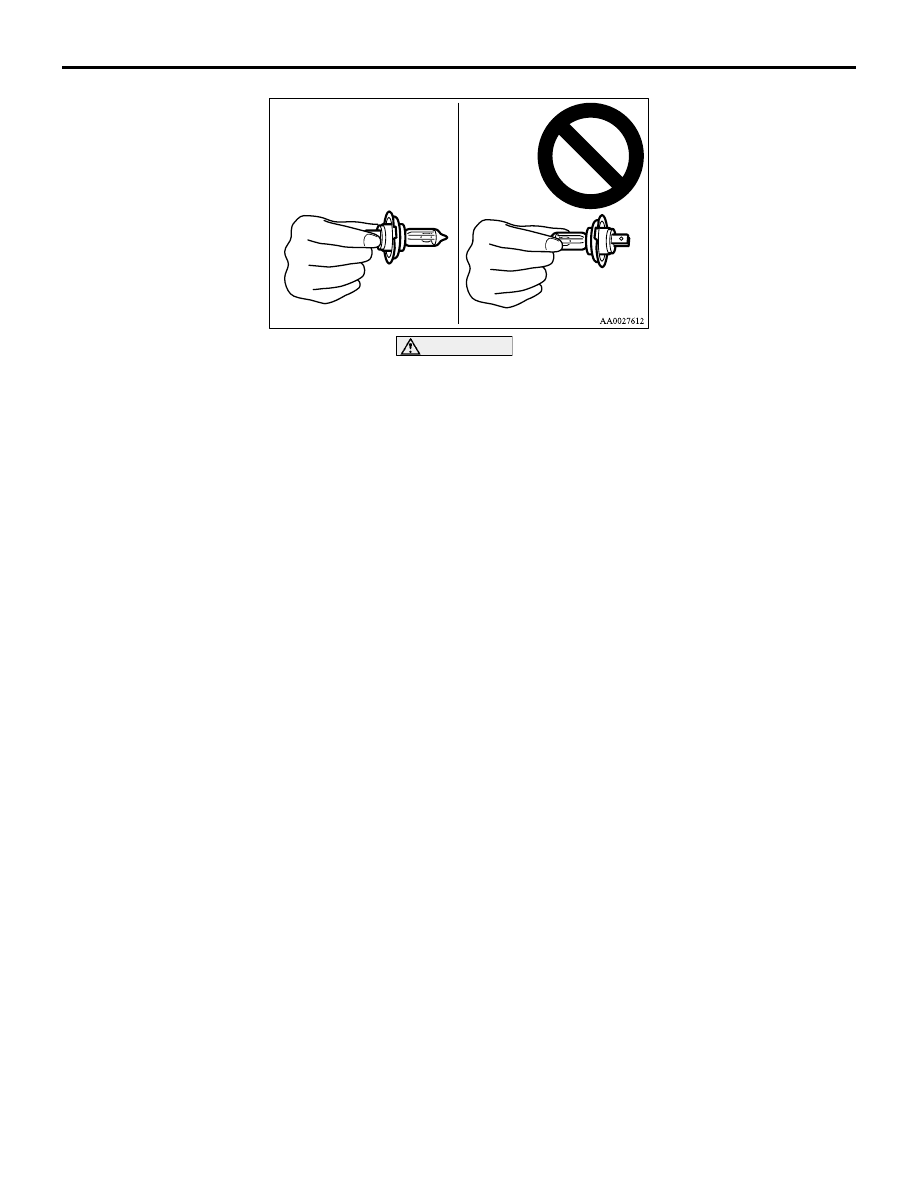

CAUTION

• Handle halogen lamp with care. The gas inside halogen

lamp bulb is highly pressurised, so dropping, knock-
ing, or scratching a halogen lamp bulb can cause it to
shatter.

•  Never hold the halogen lamp bulb with a bare hand,

dirty glove, etc. The oil from your hand  could cause the
bulb to break the next time the headlamps are operated.
If the glass surface is dirty, it must be cleaned with
alcohol, paint thinner, etc., and refit it after drying it
thoroughly.

HEADLAMP AND POSITION LAMP ASSEMBLY

CHASSIS ELECTRICAL

54A-149

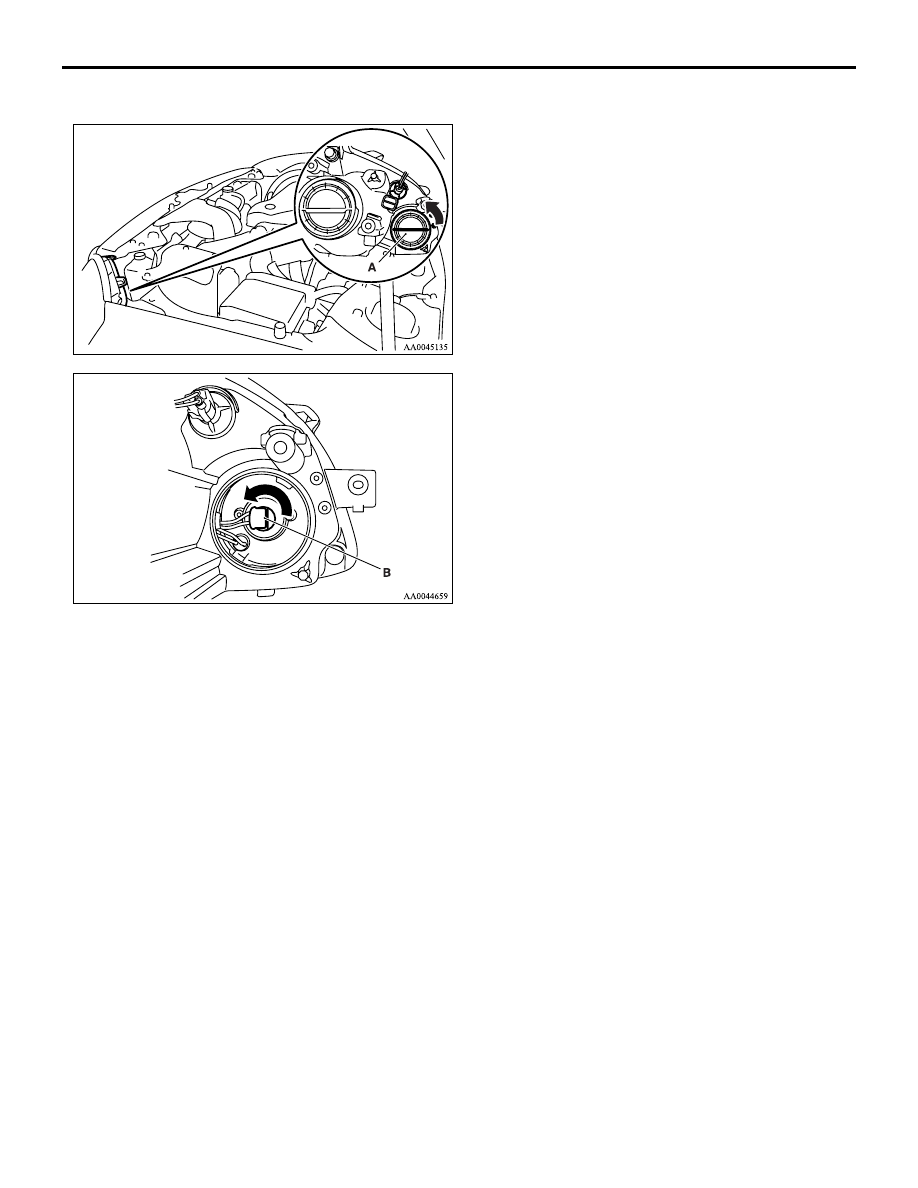

Headlamp Bulb (High Beam)

1. Turn the cap (A) anticlockwise and remove it.

2. Turn the bulb socket (B) anticlockwise to remove it. Remove

the bulb from the socket by pulling it out.

3. Connect the headlamp bulb to the socket by pushing in and

install bulb socket to the headlamp by twisting clockwise.
