AIR BAG MODULES AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-240

Required Special Tool:

•  MB991958 : diagnostic tool (MUT-III Sub Assem-

bly)

• MB991824: Vehicle Communication Interface

(V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehi-

cles with CAN communication system)

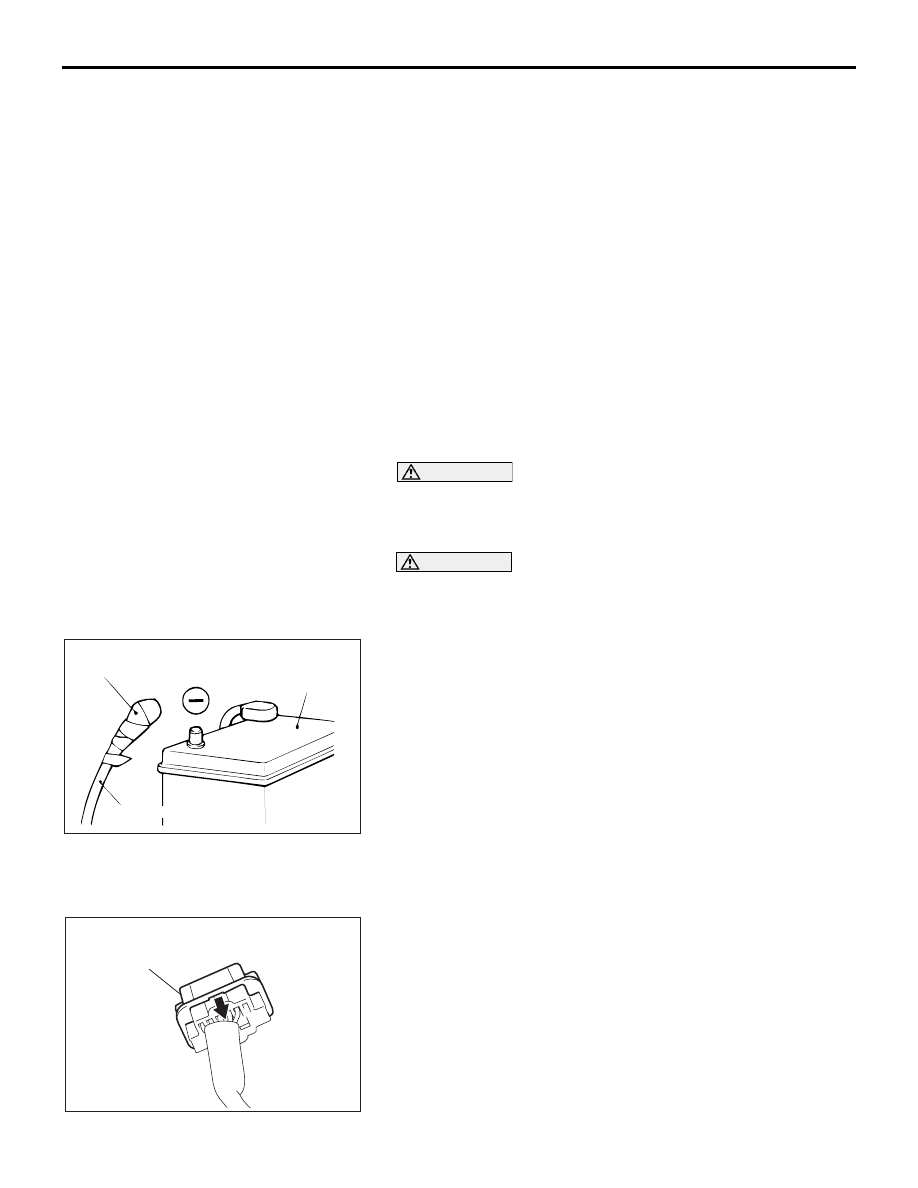

REMOVAL SERVICE POINTS

.

<<A>> NEGATIVE (

−) BATTERY CABLE DISCON-

NECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-16

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and air
bag(s) deployment.

.

<<B>> CONNECTOR (FOR AIR BAG MODULE)
REMOVAL

Slide the outer housing of the clock spring or front passenger’s
air bag module  connector in the arrow direction shown, and
disconnect the connector.

.

•

INSTRUMENT PANEL ASSEMBLY
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

).

2. CONNECTOR
1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

>>D<<

•

POST-INSTALLATION INSPECTION

AIR BAG MODULE INSTALLATION
STEPS (Continued)

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC

AC306561AE

OUTER HOUSING OF THE CLOCK SPRING
OR FRONT PASSENGER'S AIR BAG
MODULE CONNECTOR

AIR BAG MODULES AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-241

<<C>> AIR BAG MODULE ASSEMBLY REMOVAL

WARNING

•

The air bag module must not be measured with
such equipment as an ohmmeter.

•

The air bag module must not be disassembled.

•

The removed air bag module should be stored in a
clean, dry place with the deployment surface fac-
ing up.

Loosen the torx screw and remove the air bag module assem-
bly.

.

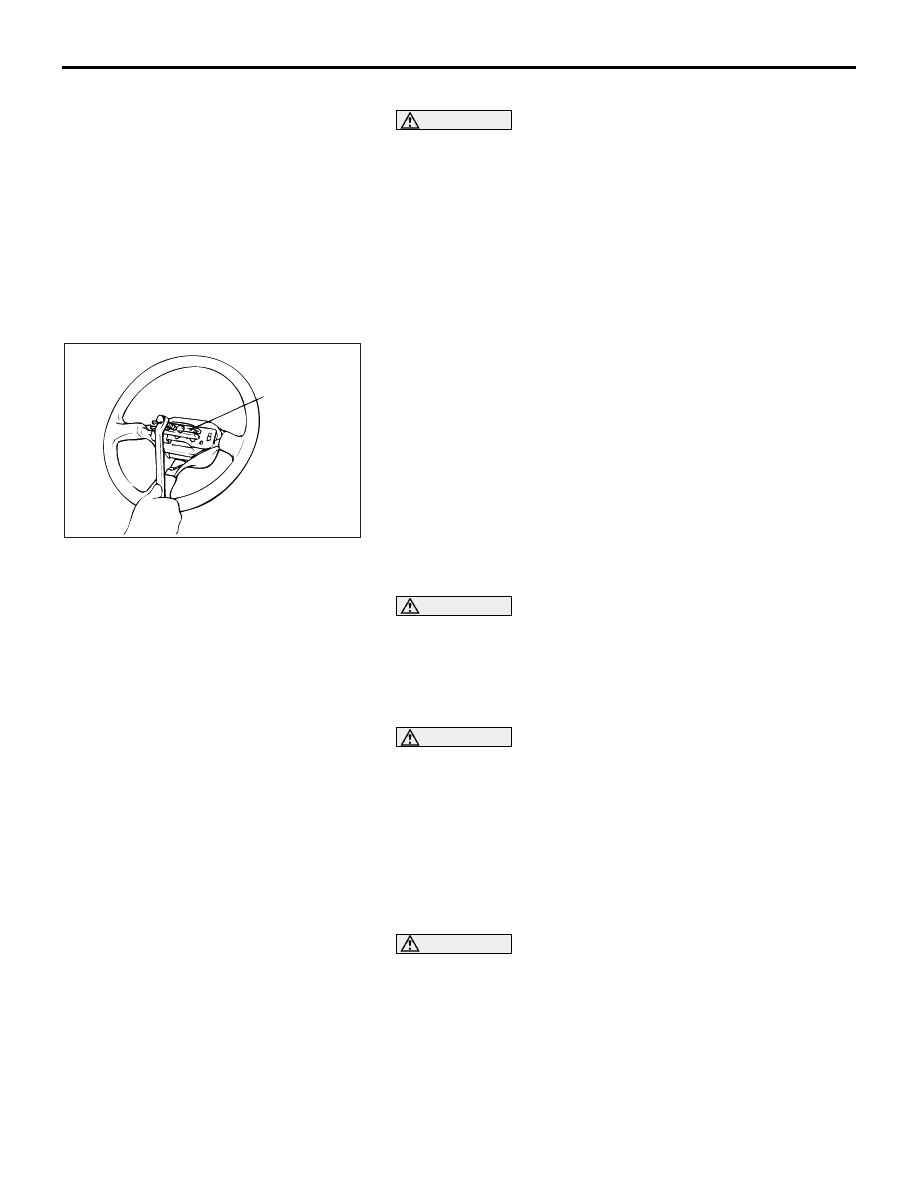

<<D>>STEERING WHEEL ASSEMBLY REMOVAL

Use special tool MB990803 to remove the steering wheel.

.

<<E>> CLOCK SPRING REMOVAL

WARNING

The removed clock spring should be stored in a
clean, dry place.

.

<<F>> AIR BAG MODULE REMOVAL (FRONT
PASSENGER’S SIDE)

WARNING

•

When the passenger’s air bag module is removed,
do not damage the engagement of the pawls.

•

The removed passenger’s air bag module should
be stored in a clean, dry place with  the deploy-
ment surface facing up.

INSTALLATION SERVICE POINTS

.

>>A<< PRE-INSTALLATION INSPECTION

WARNING

Dispose of air bag modules only according to the
specified procedure. (Refer to

P.52B-254

).

1. When installing the new air bag modules and clock spring,

refer to “INSPECTION” (

P.52B-244

).

2. Connect the negative (

−) battery cable.

AC000991AB

MB990803

AIR BAG MODULES AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-242

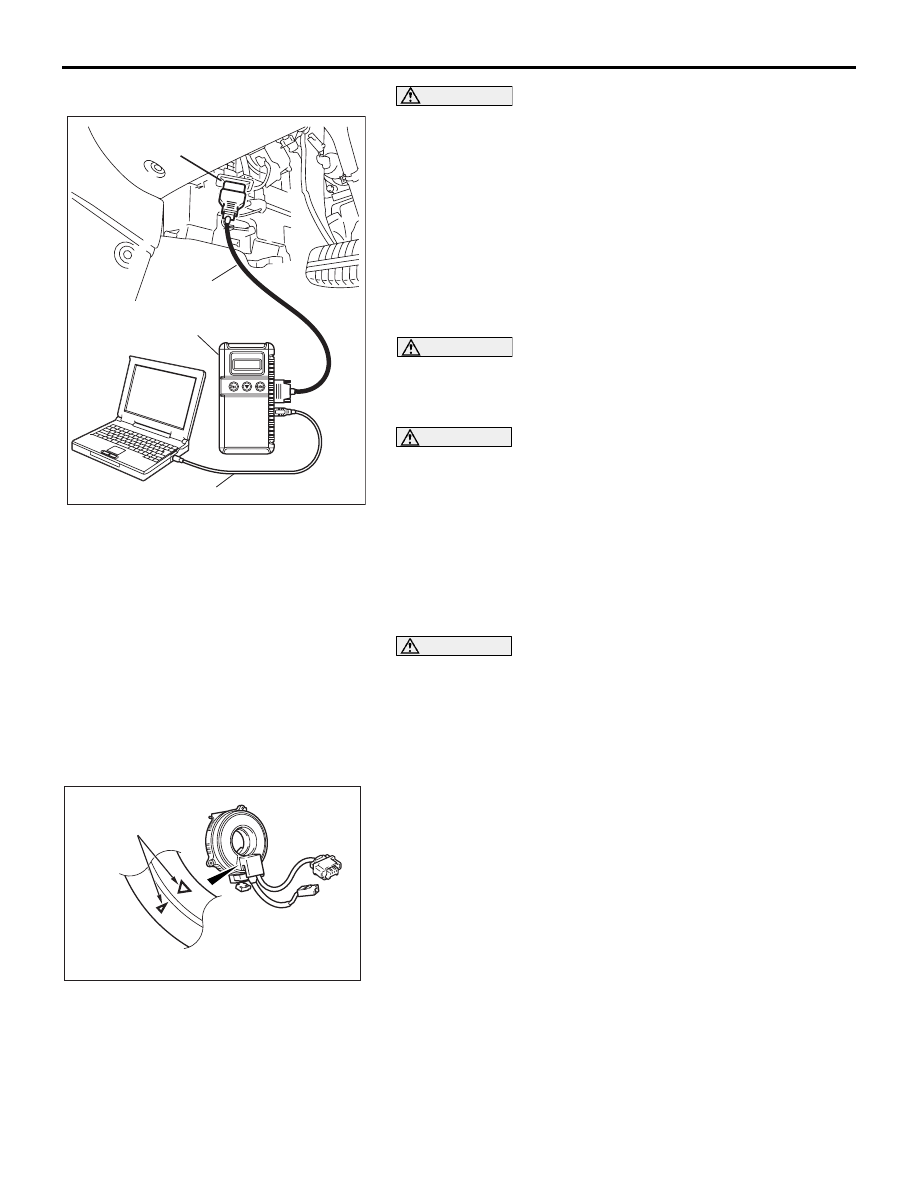

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
3. Connect diagnostic tool MB991958 to the data link

connector.

4. Turn the ignition switch to the “ON” position.

5. Check DTCs using diagnostic tool MB991958 to ensure

entIre SRS operates properly.
At this time, check that no DTC except B1400, B1410,
B1480 and B1490 are set.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-16

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

6. Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect the negative (

−) battery cable and tape the

terminal to prevent accidental connection and air bags
deployment.

.

>>B<< CLOCK SPRING INSTALLATION

WARNING

Ensure that the clock spring’s mating marks are prop-
erly aligned. If not, the steering wheel may not rotate
completely during a turn, or the flat cable in the clock
spring could be damaged, This would prevent normal
SRS operation and possibly cause serious injury to
the driver.

1. Align the mating marks of the clock spring.

<Mating Mark Alignment>
Turn the clock spring clockwise fully. Then turn it back
approximately 3-3/4 turns counterclockwise to align the
mating marks.

2. Turn the front wheels to the straight-ahead position. Then

install the clock spring to the column switch.

.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC306756AB

MATING MARKS

AIR BAG MODULES AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-243

>>C<< STEERING WHEEL ASSEMBLY/AIR BAG
MODULE ASSEMBLY INSTALLATION

CAUTION

When installing the steering wheel and air bag module,
ensure that the harness of the clock spring does not
become caught or tangled.
1. Before installing the steering wheel and air bag module, turn

the vehicle’s front wheels to the straight-ahead position and
align the mating marks of the clock spring.

2. After securing the steering wheel, turn the steering wheel all

the way in both directions to confirm that the steering wheel
rotation is normal.

.

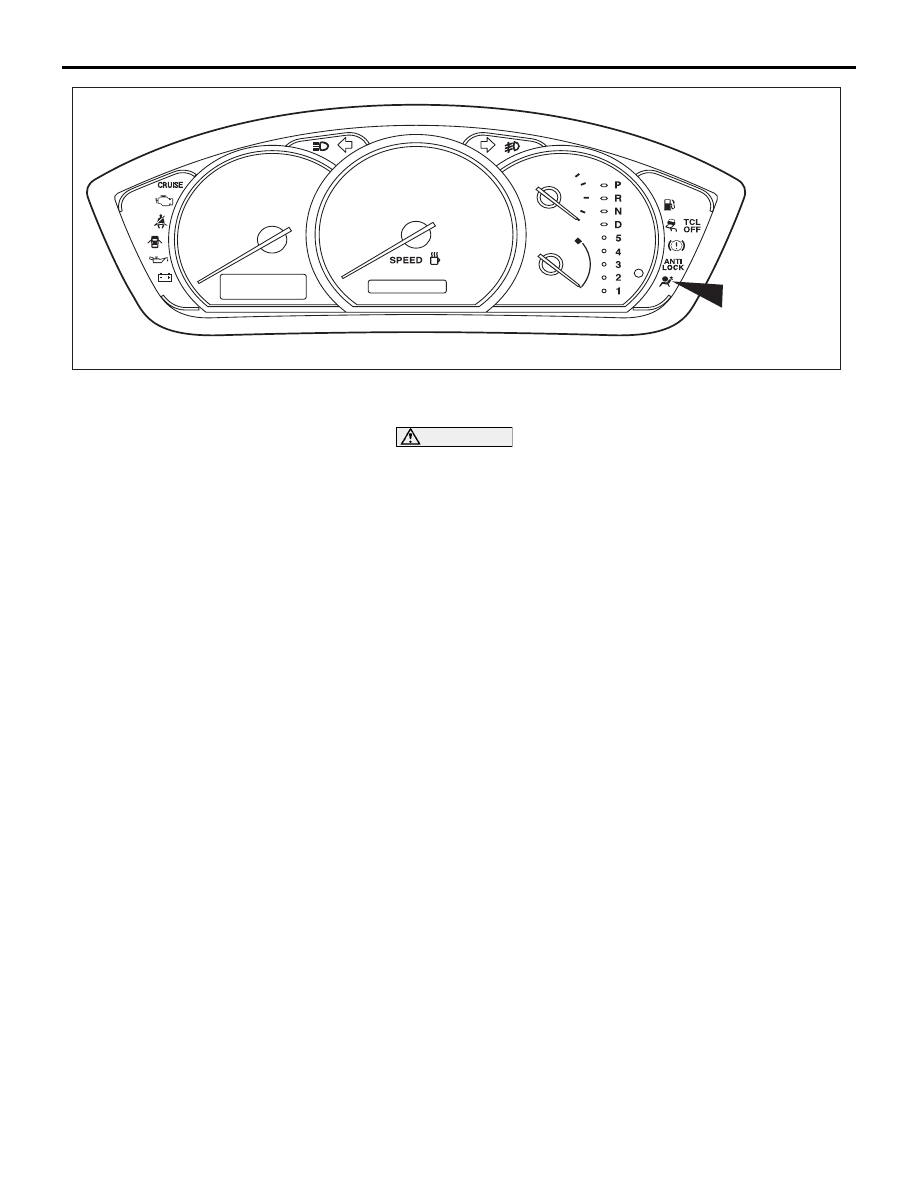

>>D<< POST-INSTALLATION INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to “ON” position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-20

.

35DB113A

SRS
WARNING
LAMP
