SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-132

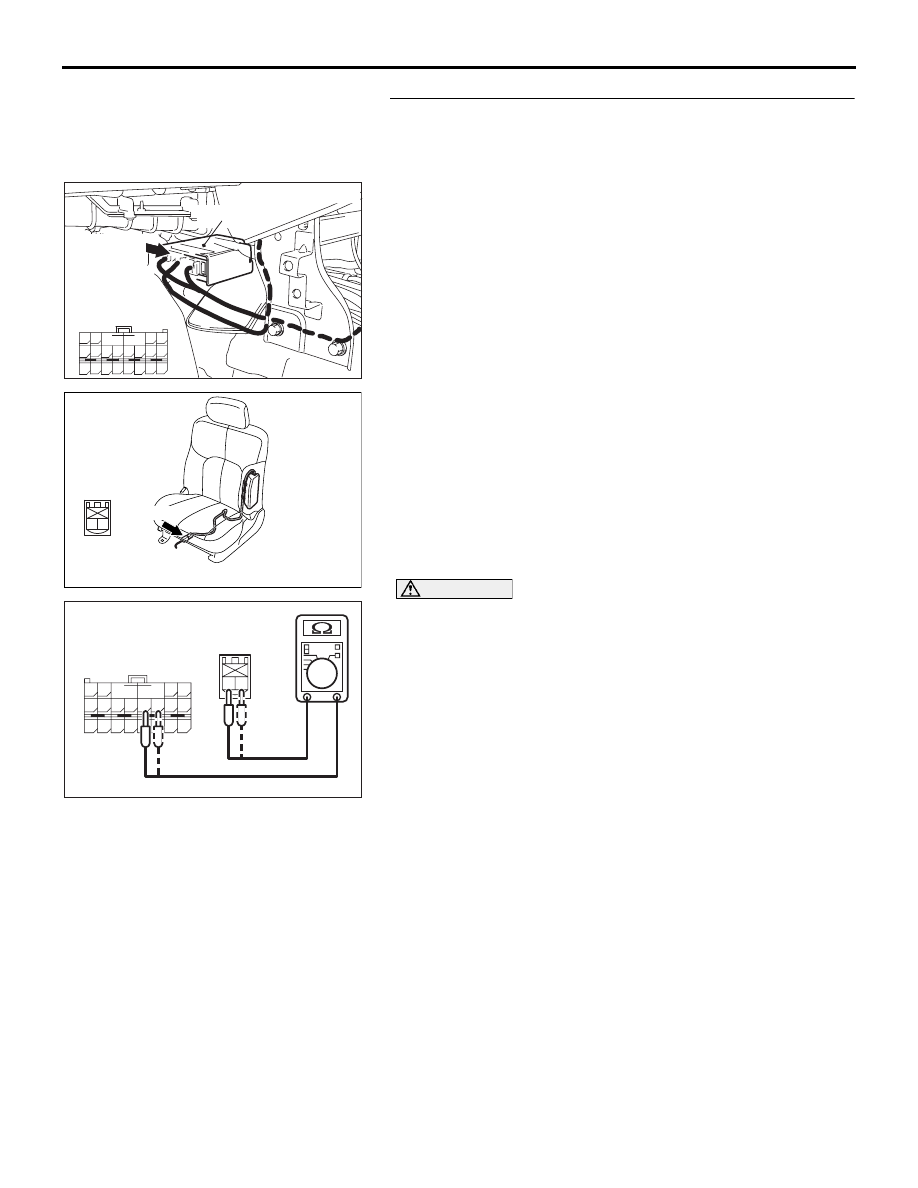

STEP 4. Check the harness for open circuit between the
SRS-ECU connector D-27 (terminal No.9 and 10) and the
side-airbag module (LH) connector D-24 (terminal No.1 and
2).
(1) Disconnect SRS-ECU connector D-27.

(2) Disconnect side-airbag module (LH) connector D-24.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(3) Check for continuity between the following terminals. It

should be less than 2 ohms.

• SRS-ECU connector D-27 (terminal No.9) and the

side-airbag module (LH) connector D-24 (terminal No.1)

• SRS-ECU connector D-27 (terminal No.10) and the

side-airbag module (LH) connector D-24 (terminal No.2)

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1431 sets,
replace the SRS-ECU (Refer to

P.52B-234

). Then go

to Step 5.

NO :  Replace the harness wires between SRS-ECU

connector D-27 and side-airbag module (LH)
connector D-24. Then go to Step 5.

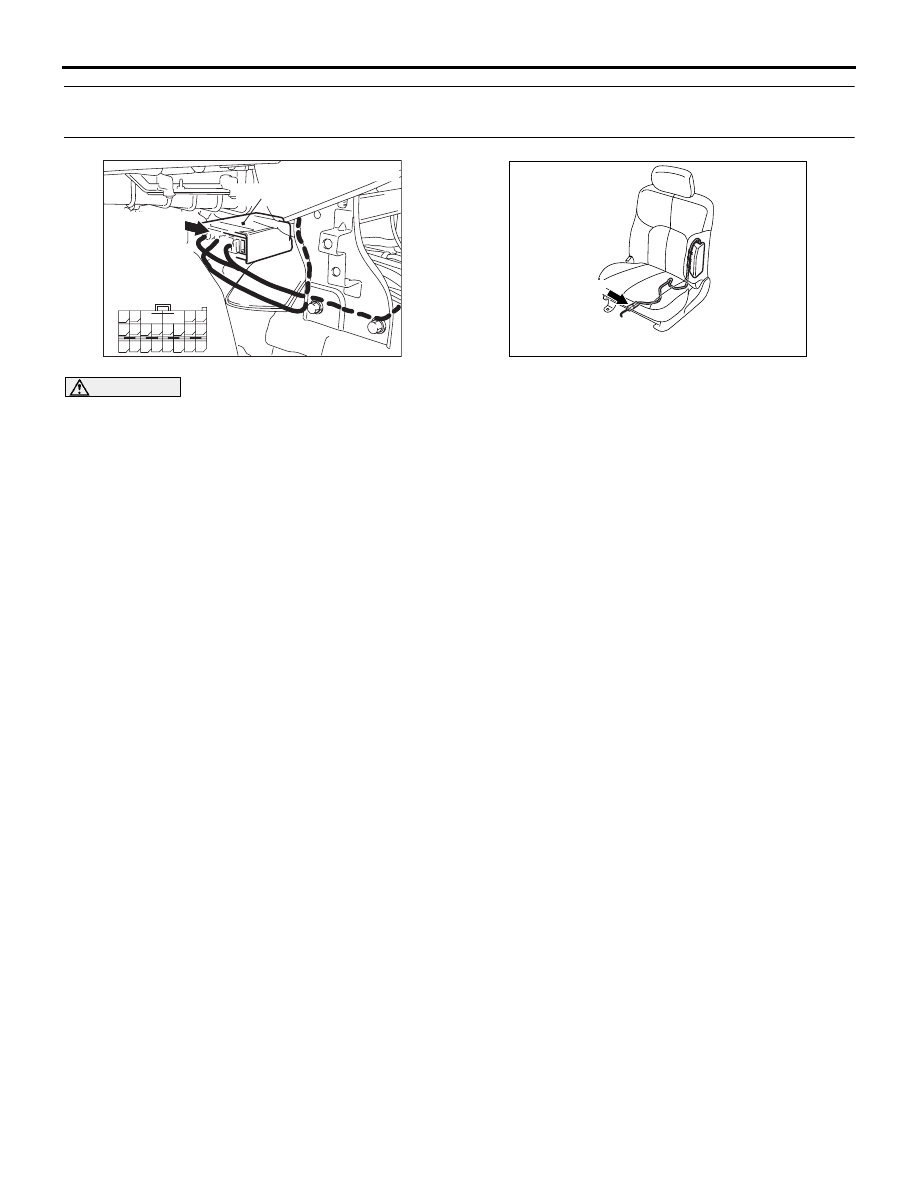

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

D-27 Floor

harness

connector

(rear view)

AC307778

CONNECTOR : D-24

AC

D-24 (R)

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

24DB076A

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

1 2

D-27 FLOOR
HARNESS SIDE
CONNECTOR
(REAR VIEW)

D-24
HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-133

STEP 5.Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1431 set?

YES : Return to Step 1.
NO :  The procedure is complete.

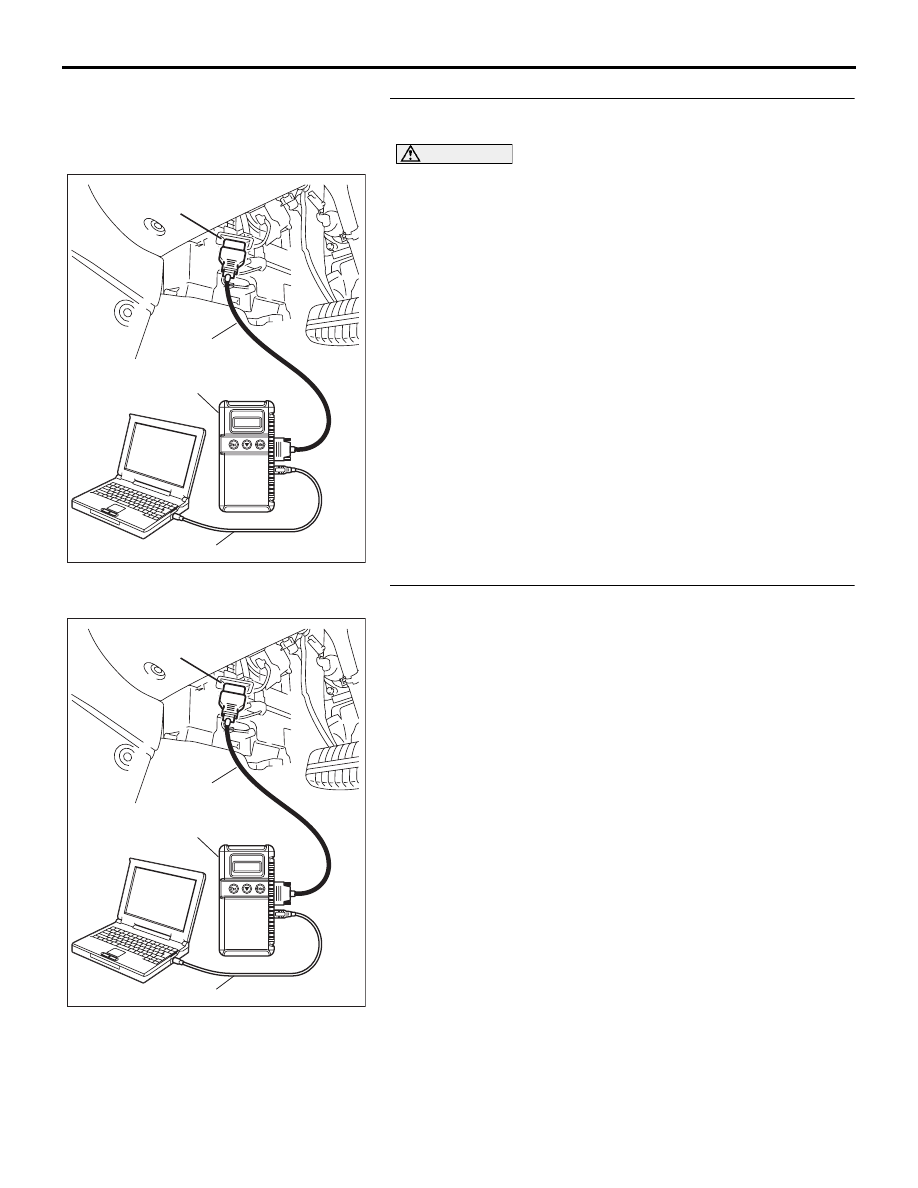

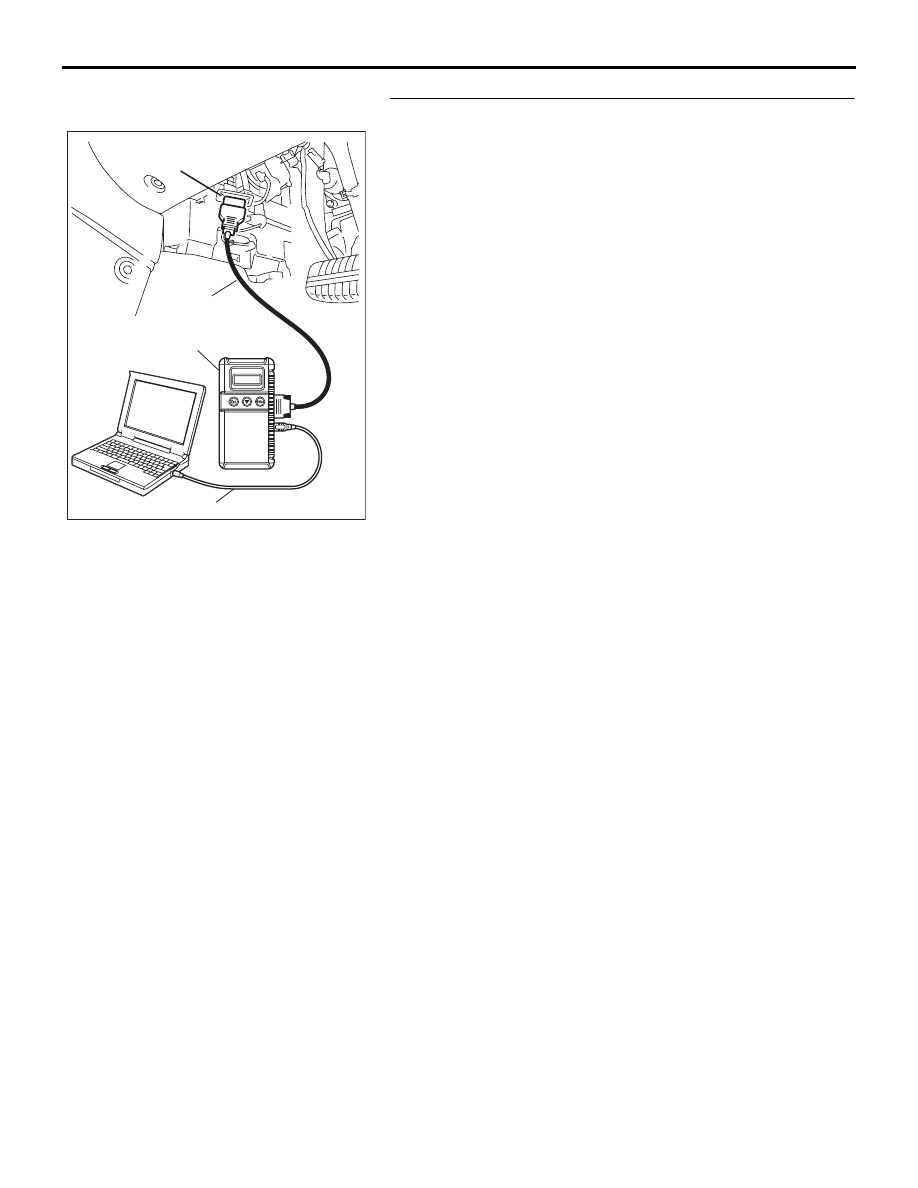

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-134

DTC B1432: Side-Airbag Module (LH) (Squib) System Fault Power Supply Circuit (Short-Circuited to
Power Supply)

CAUTION

If DTC B1432 is set in the combination meter,
always diagnose the CAN bus lines.

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a predeter-
mined level, the SRS-ECU sends an ignition sig-
nal. At this time, if the side-airbag safing
G-sensor is on, the SRS side-airbag will inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance
between the input terminals of the side-airbag mod-
ule (LH) (squib).

.

TROUBLESHOOTING HINTS

• Damaged wiring harnesses or connectors

• Short to the power supply in the side-airbag mod-

ule (LH) (squib) harness

• Malfunction of the SRS-ECU

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

.

DIAGNOSIS

Required Special Tools:

•  MB991958: diagnostic tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

• MB991865: Dummy resistor

• MB991866: Resistor harness

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

A

B

18

10

15

7

13

5

14

6

16

8

17

9

19

11

20

12

1 2

3 4

D-27 Floor

harness

connector

(rear view)

AC307778

CONNECTOR : D-24

AB

D-24 (R)

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-135

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958. Refer to "How to

connect the diagnostic tool

P.52B-19

."

(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : Go to Step 2
NO :  Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart ).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions ).

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
