SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-128

STEP 8. Check the harness wires for short circuit between
SRS-ECU connector D-27 (terminal No.9 and 10) and
side-airbag module (LH) connector D-24 (terminal No.1 and
2).
Q: Are the harness wires between SRS-ECU connector

D-27 (terminal No.9 and 10) and side-airbag module (LH)
connector D-24 (terminal No.1 and 2) in good condition?
YES : Go to Step 9.
NO : Replace the harness wires between SRS-ECU

connector C-110 and side-airbag module (LH)
connector D-24. Then go to Step 9.

STEP 9. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1430 set?

YES : Return to Step 1.
NO : The procedure is complete.

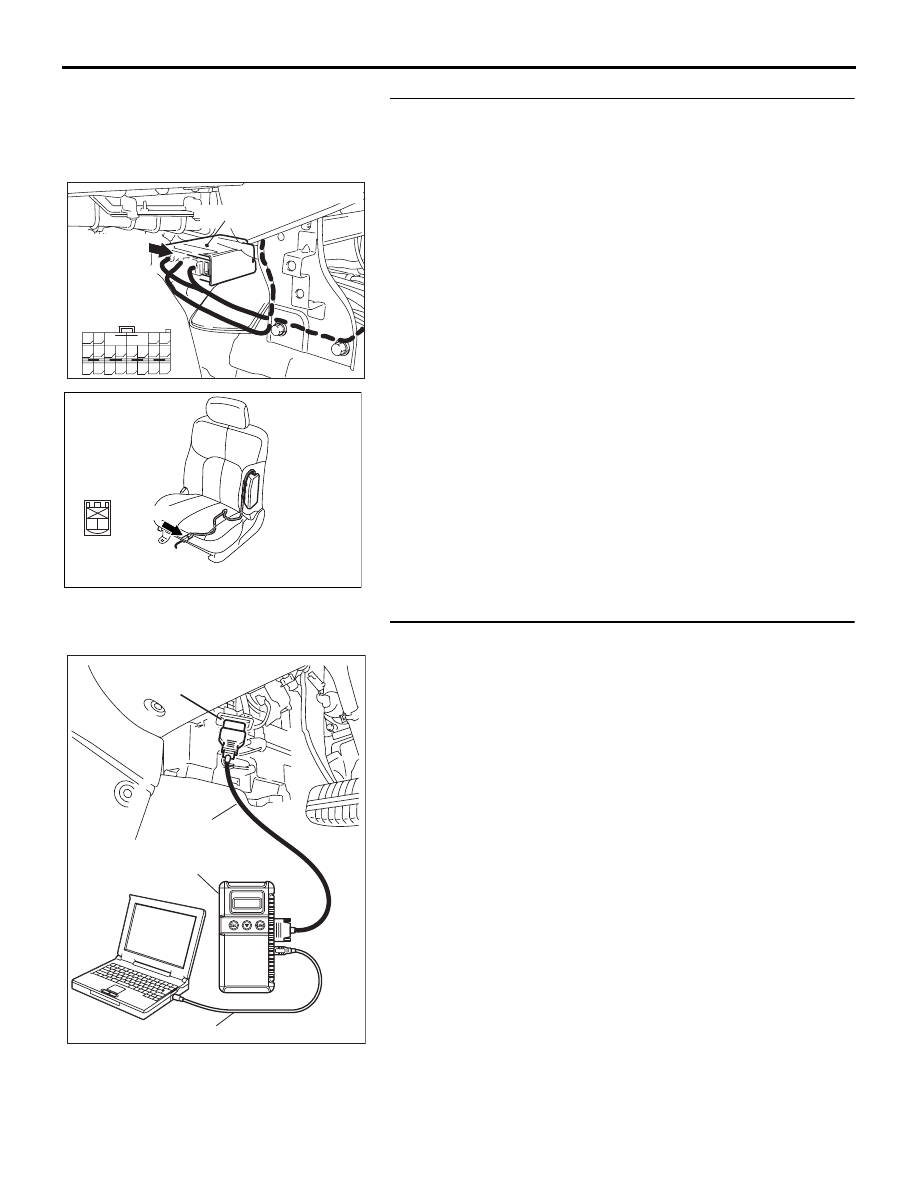

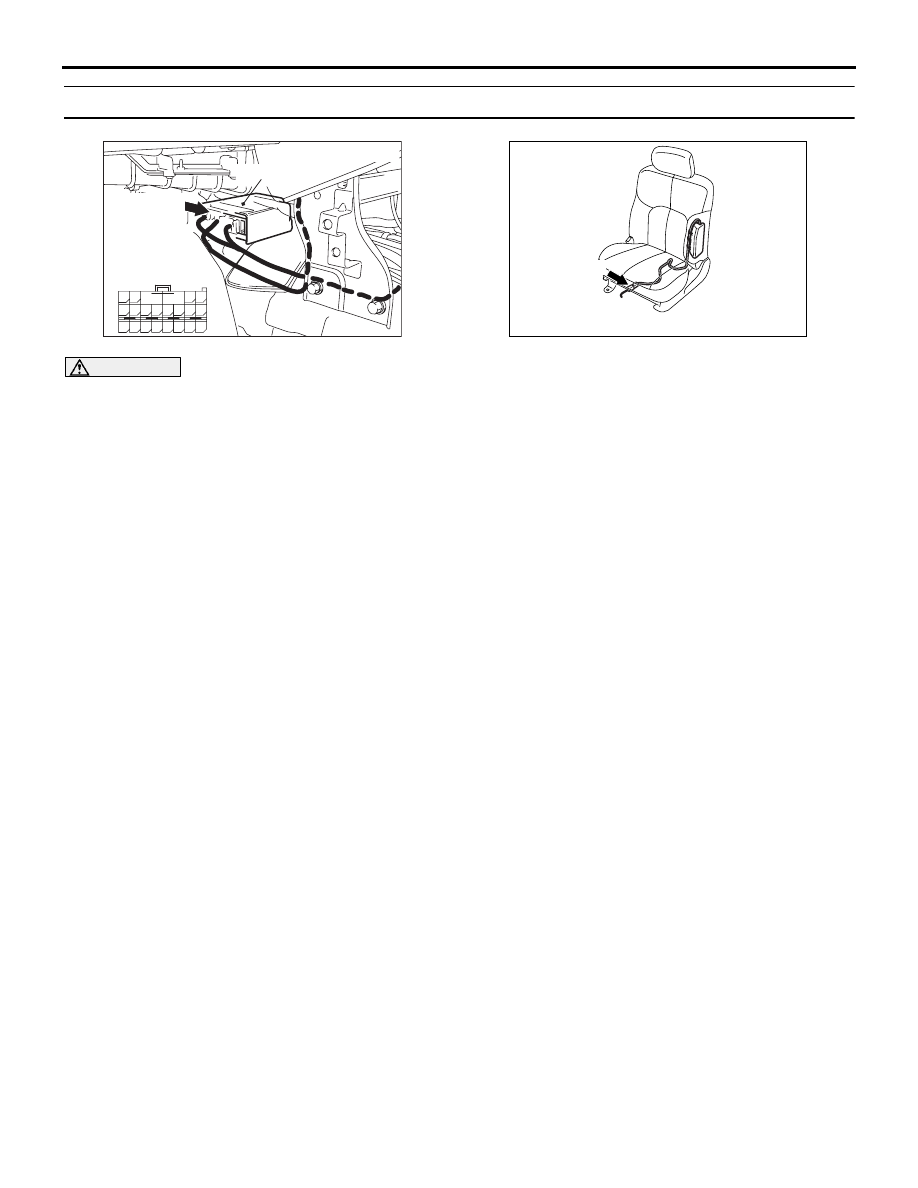

AC307778

CONNECTOR : D-24

D-24 (R)

HARNESS SIDE
CONNECTOR
(REAR VIEW)

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

1 2

3 4

D-27 Floor

harness

connector

(rear view)

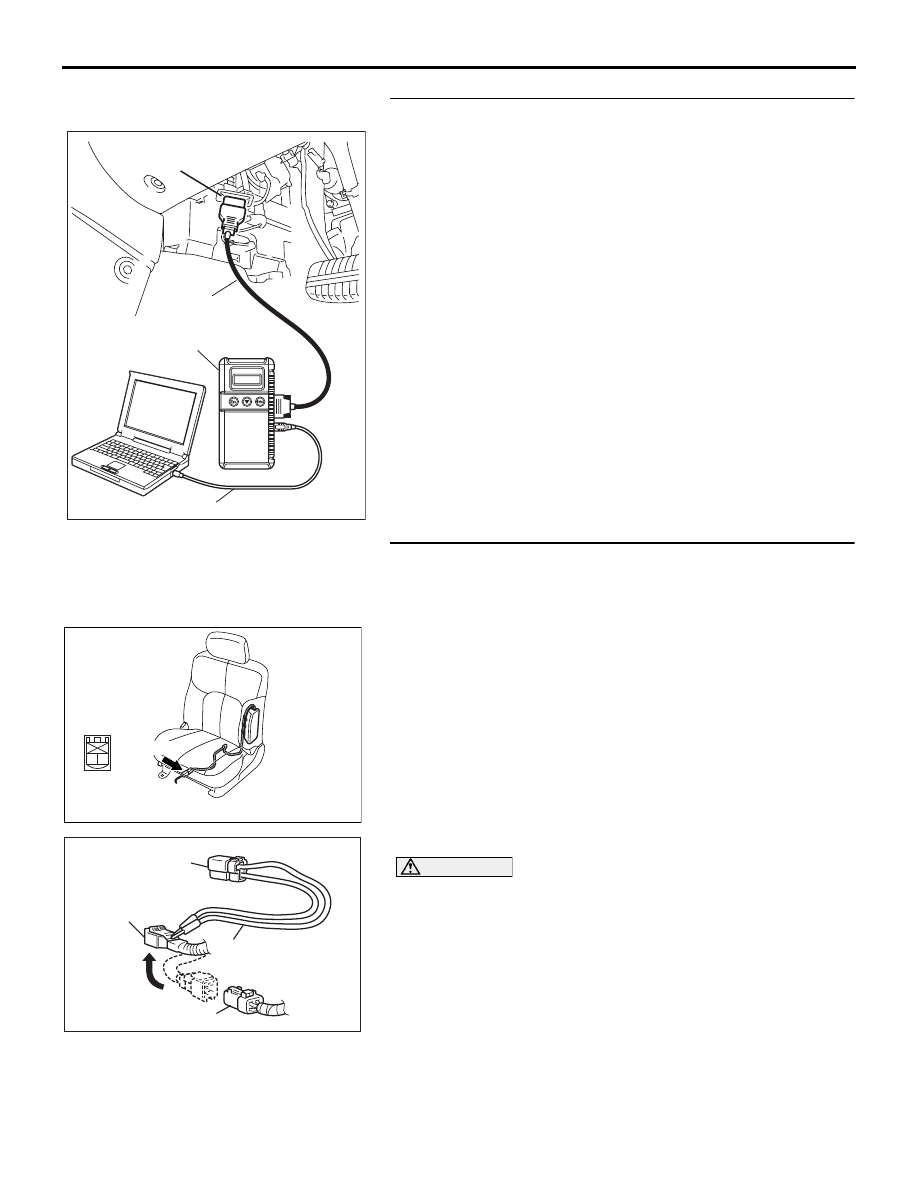

00DB076A

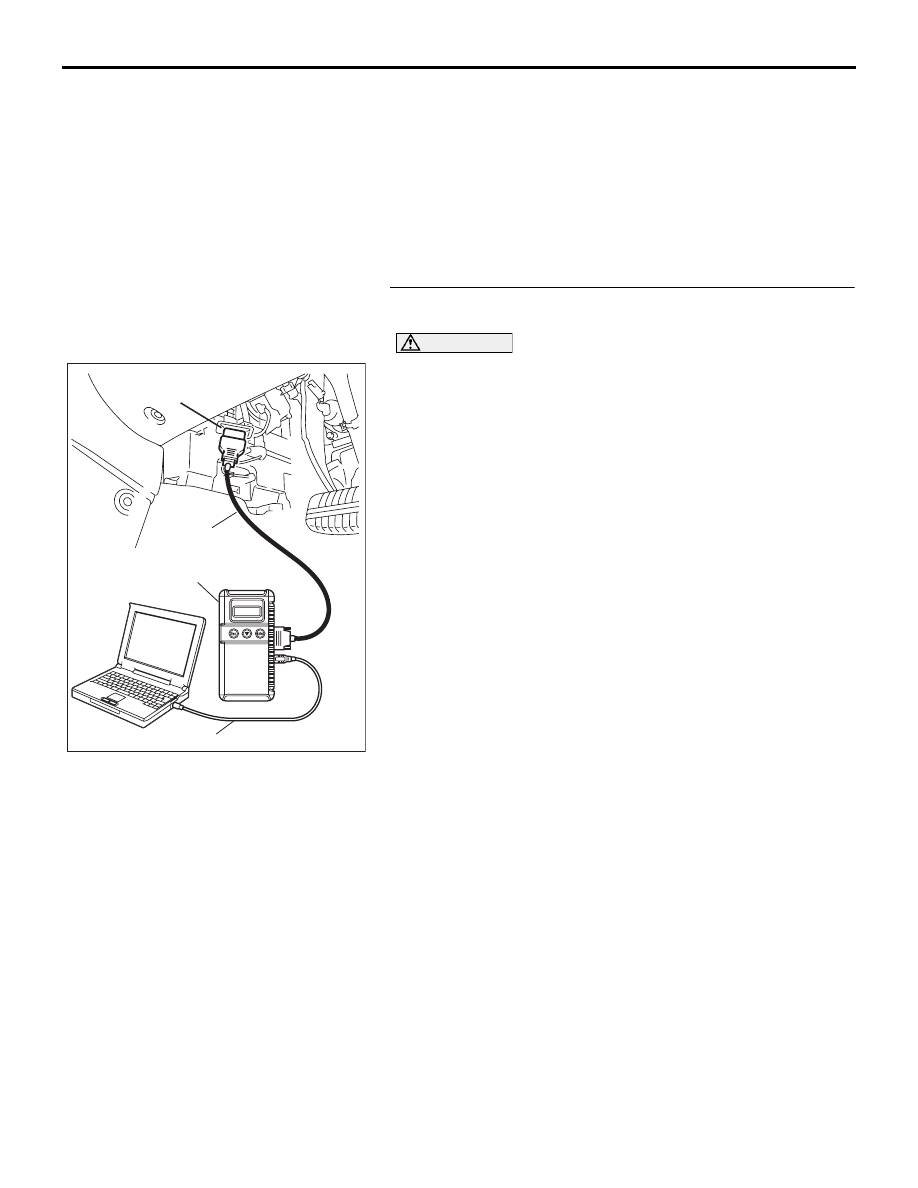

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-129

DTC B1431: Side-Airbag Module (LH) (Squib) System Fault 2 (Open in the Squib Circuit)

CAUTION

If DTC B1431 is set in the combination meter,
always diagnose the CAN bus lines.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a predeter-
mined level, the SRS-ECU sends an ignition sig-
nal. At this time, if the side-airbag safing
G-sensor is on, the SRS side-airbag will inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance
between the input terminals of the side-airbag mod-
ule (LH) (squib).

TROUBLESHOOTING HINTS

• Open circuit in the side-airbag module (squib)

(LH) circuit

• Improper connector contact

• Malfunction of the SRS-ECU

• Refer to circuit diagrams GROUP-

• Refer to configuration diagrams GROUP-

24DB064A

CONNECTOR: D-27

SRS-ECU

D-27 (Y)

1 2

3 4

D-27 Floor

harness

connector

(rear view)

AC307778

CONNECTOR : D-24

D-24 (R)

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-130

DIAGNOSIS

Required Special Tools:

• MB991958: diagnostic tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

• MB991865: Dummy resistor

• MB991866: Resistor harness

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958. Refer to "How to

connect the diagnostic tool

P.52B-19

(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : Go to Step 2
NO : Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart ).

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-131

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.
NO : There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions ).

STEP 3. Check the side-airbag module (LH). (Using
diagnostic tool MB991958, read the diagnostic trouble
code.)
(1) Disconnect the negative battery terminal.
(2) Disconnect the side-airbag module (LH) connector D-24.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the D-24 harness side

connector by testprobe.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and then check the

diagnostic trouble code.

Q: Is DTC B1431 set?

YES : Go to Step 4.
NO : Replace the seatback frame of the front seat (LH)

(Refer to GROUP 52A, Front Seat

P.52A-33

). Then

go to Step 5.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC307778

CONNECTOR : D-24

D-24 (R)

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC006042BP

MB991866
(RESISTOR HARNESS)

D-24 HARNESS SIDE
CONNECTOR

D-24 SIDE-AIRBAG

MODULE (LH) CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

Ω)
