Mitsubishi 380. Manual - part 762





TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11A-50

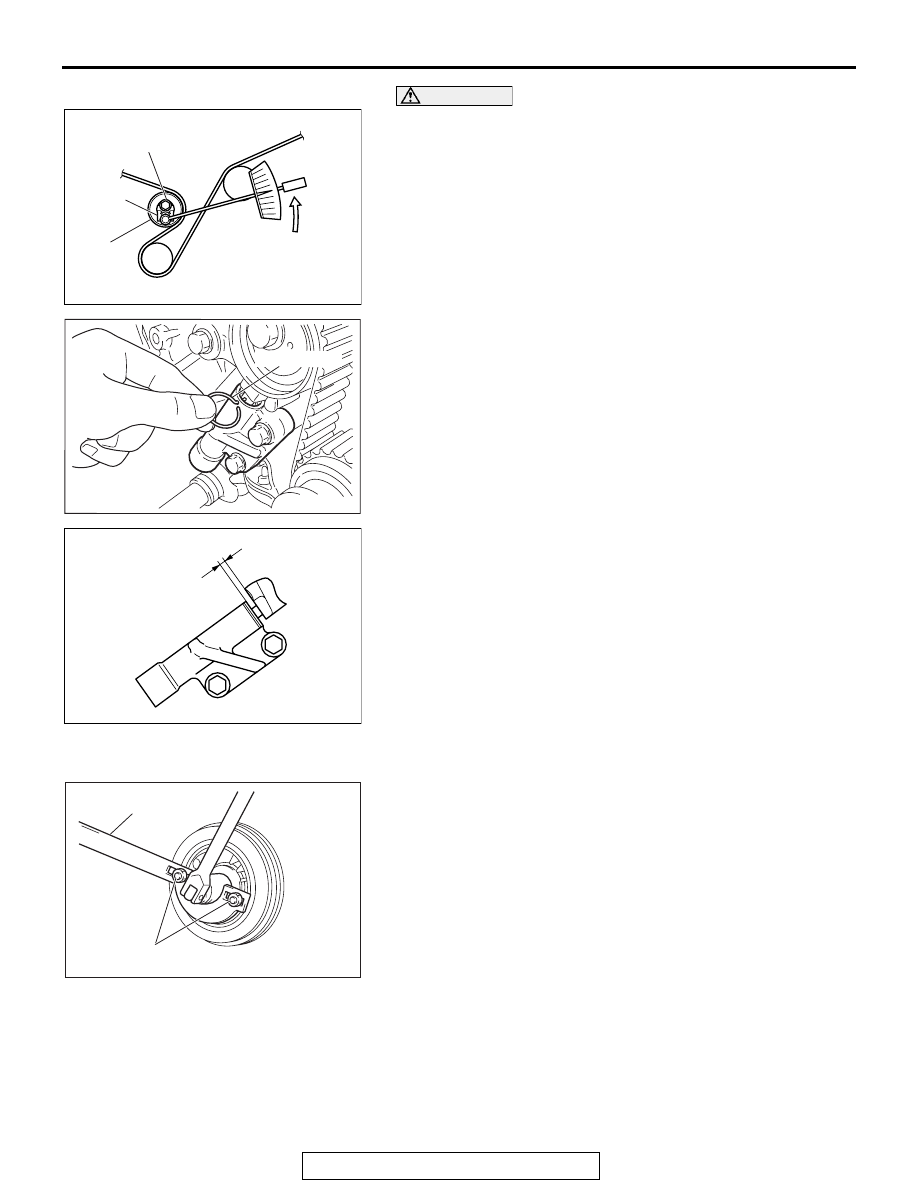

CAUTION

When tightening the center bolt, be careful that the ten-
sioner pulley does not turn with the bolt.
6. Loosen the center bolt of the tensioner pulley. Use special

tool MD998767 and a torque wrench to apply the tension
torque to the timing belt as shown in the illustration. Then
tighten the center bolt to the specified torque.

Standard value: 4.4 N

m (39 in-lb) <Timing belt ten-

sion torque>

Tightening torque: 48

± 6 Nm (36 ± 4 ft-lb)

7. Remove the setting pin that has been inserted into the

auto-tensioner.

8. Turn the crankshaft clockwise twice to align the timing

marks.

9. Wait for at least five minutes, then check that the

auto-tensioner pushrod extends within the standard value
range.

Standard value (A): 4.8

 6.0 mm (0.19  0.24 inch)

10.If not, repeat the operation in steps 1 to 8 above.

11.Check again that the timing marks of the sprockets are

aligned.

.

>>C<< CRANKSHAFT PULLEY INSTALLATION

Use special tools MB991800 and MB991802 to install the
crankshaft pulley.

AC206418

MD998767

TENSIO-
NER
PULLEY

4.4 N·m
39 in-lb

48 ± 6 N·m
36 ± 4 ft-lb

AB

AC205276

SETTING PIN

AB

AC206419

AB

A

ACX01675AB

MB991800

MB991802

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11A-51

INSPECTION

M1112004400437

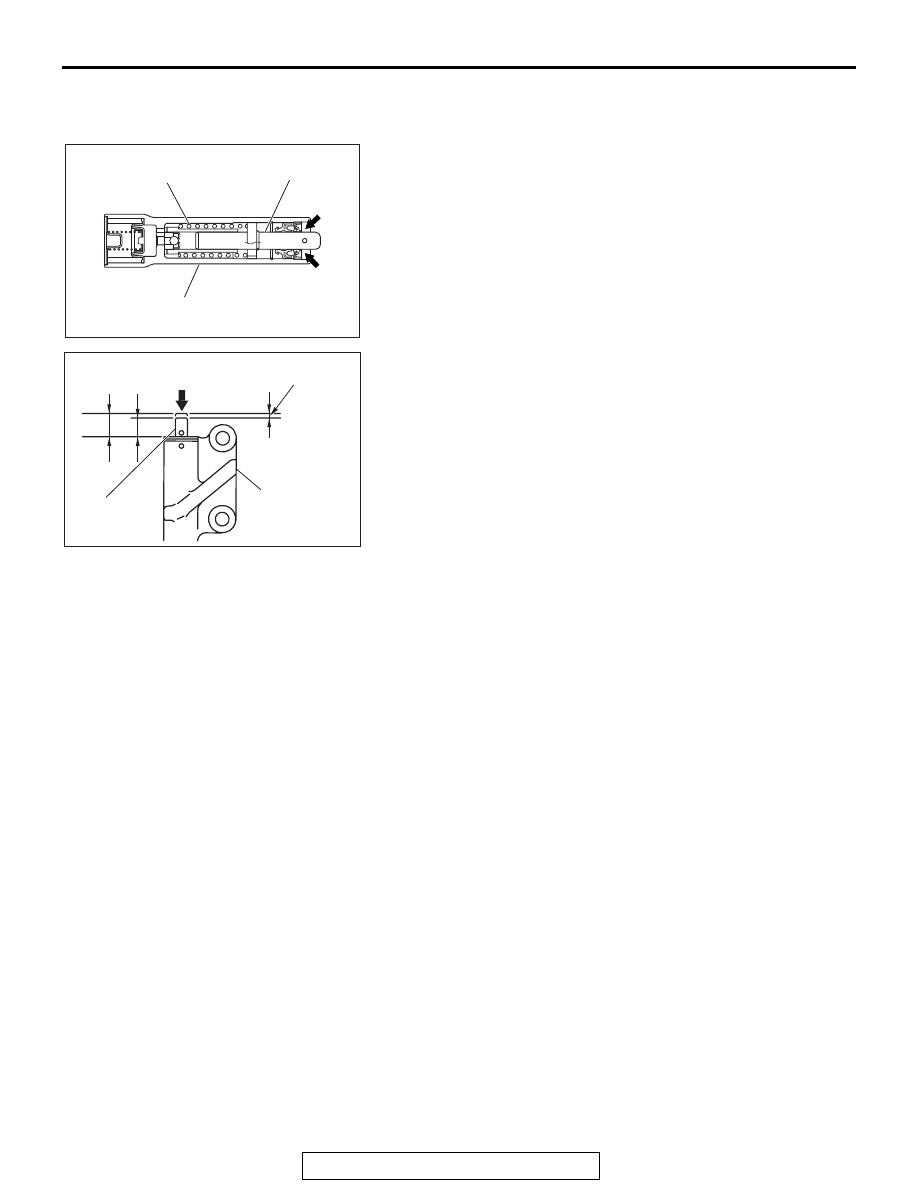

AUTO-TENSIONER ADJUSTER CHECK

1. Check for oil leak from seal, and replace it if leak is detected.

2. Check for wear or damage at the top of the rod. Replace it, if

required.

3. While holding the auto-tensioner with your hand, press the

end of the pushrod against a metal surface (such as the
cylinder block) with a force of 98

− 196 N (22 − 44 pound)

and measure how far the pushrod is pushed in.

Standard value: Within 1 mm (0.04 inch)
A: Length when no force is applied
B: Length when force is applied

 B: Movement in

4. If the measured value is out of the standard value, replace

the auto-tensioner adjuster.

ACX00536

AUTO-TENSIONER

SPRING

PUSHROD

AB

AC206608AB

A

B

AUTO-
TENSIONER

ROD

MOVEMENT

98 – 196 N
(22 – 44 lb)

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11A-52

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1111003800387

ITEM

SPECIFICATION

Camshaft and valve stem seal

Camshaft position sensing cylinder bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Camshaft position sensor support bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Camshaft position sensor bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Camshaft sprocket bolt

88

± 10 N⋅m (65 ± 7 ft-lb)

Ignition coil bolt

10

± 2 N⋅m (89 ± 17 in-lb)

PCV valve

10

± 2 N⋅m (89 ± 17 in-lb)

Rocker cover bolt

3.5

± 0.5 N⋅m (31 ± 4 in-lb)

Rocker shaft bolt

31

± 3 N⋅m (23 ± 2 ft-lb)

Thrust case bolt

19

± 3 N⋅m (14 ± 2 ft-lb)

Camshaft oil seal

Camshaft sprocket bolt

88

± 10 N⋅m (65 ± 7 ft-lb)

Crankshaft oil seal

A/T drive plate bolt

74

± 1 N⋅m (55 ± 1 ft-lb)

Crankshaft position sensor bolt

8.5

± 0.5 N⋅m (76 ± 4 in-lb)

Cylinder head gasket

Camshaft sprocket bolt

88

± 10 N⋅m (65 ± 7 ft-lb)

Cylinder head bolt <Cold engine>

108

± 5 N⋅m (80 ± 3 ft-lb) → 0

N

⋅m (0 in-lb) → 108 ± 5 N⋅m (80

± 3 ft-lb)

Grounding connecting bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Ignition coil bolt

10

± 2 N⋅m (89 ± 17 in-lb)

Power steering oil pump bracket connecting bolt

41

± 8 N⋅m (30 ± 6 ft-lb)

Rocker cover bolt

3.5

± 0.5 N⋅m (31 ± 4 in-lb)

Timing belt rear center cover bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Engine assembly

Engine cover bolt

3.0

± 0.5 N⋅m (27 ± 4 in-lb)

Engine front mounting insulator bolt

M12

108

± 10 N⋅m (80 ± 9 ft-lb)

Engine front mounting bracket bolt and nut

M12

108

± 10 N⋅m (80 ± 9 ft-lb)

Engine front mounting stay bolt

36

± 6 N⋅m (27 ± 4 ft-lb)

Grounding bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Grounding cable bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Power steering oil pump bolt

46

± 8 N⋅m (34 ± 6 ft-lb)

Power steering oil pump nut

42

± 7 N⋅m (31 ± 5 ft-lb)

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11A-53

Power steering pressure hose clamp bracket bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Power steering oil reservoir connecting bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Oil pan and oil screen

Cover bolt

11

± 0.5 N⋅m (93 ± 4 in-lb)

Engine oil dipstick bolt

14

± 1 N⋅m (120 ± 13 in-lb)

Engine lower oil pan bolt

11

± 1 N⋅m (97 ± 9 in-lb)

Engine oil pan drain plug

39

± 5 N⋅m (29 ± 3 ft-lb)

Engine upper oil pan bolt

8.5

± 3.5 N⋅m (76 ± 31 in-lb)

Engine upper oil pan to torque converter bolt

35

± 5 N⋅m (26 ± 4 ft-lb)

Oil screen bolt

19

± 3 N⋅m (14 ± 2 ft-lb)

Starter bolt

30

± 3 N⋅m (23 ± 2 ft-lb)

Torque converter connecting bolt

49

± 3 N⋅m (36 ± 2 ft-lb)

Timing belt

Auto-tensioner bolt

23

± 3 N⋅m (17 ± 2 ft-lb)

Crankshaft pulley center bolt

185 N

⋅m (136 ft-lb)

Engine mount stay bolt

36

± 6 N⋅m (27 ± 4 ft-lb)

Engine support bracket bolt

45

± 5 N⋅m (34 ± 3 ft-lb)

Harness bracket bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Tensioner arm bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Tensioner bracket bolt

41

± 8 N⋅m (30 ± 6 ft-lb)

Tensioner pulley bolt

48

± 6 N⋅m (36 ± 4 ft-lb)

Tensioner pulley nut

49

± 9 N⋅m (36 ± 7 ft-lb)

Timing belt lower cover bolt (bolt, flange)

M6

11

± 1 N⋅m (98 ± 8 in-lb)

Timing belt lower cover bolt (bolt, washer assembled)

M10

14

± 1 N⋅m (120 ± 13 in-lb)

Timing belt upper cover bolt (bolt, flange)

M6

11

± 1 N⋅m (98 ± 8 in-lb)

M8

14

± 1 N⋅m (120 ± 13 in-lb)

ITEM

SPECIFICATION
