SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <3.8L ENGINE>

11A-54

SERVICE SPECIFICATIONS

M1111000300747

SEALANTS

M1111000500365

ITEM

STANDARD VALUE

LIMIT

Drive belt tension

Vibration frequency Hz
(Reference)

87

− 119

−

Tension N (Reference)

226

− 422

−

Basic ignition timing at idle

ECU controlled

−

CO contents %

0.5 or less

−

HC contents   ppm

100 or less

−

Curb idle speed   r/min

680

± 100

−

Compression pressure (200 r/min)   kPa (psi)

1,550 (225)

Minimum 1,110
(161)

Compression pressure difference of all cylinder   kPa (psi)

−

98 (14)

Intake manifold vacuum at curb idle   kPa (in Hg)

−

Minimum 60 (18)

Auto-tensioner pushrod movement   mm (in)

Within 1.0 (0.04)

−

Timing belt tension torque   N

⋅m (in-lb)

4.4 (39)

−

Auto tensioner rod protrusion amount   mm (in)

4.8

− 6.0 (0.19 − 0.24)

−

ITEM

SPECIFIED SEALANT

Engine oil pan

3M

™ AAD Part No.8672, 8704, 3M™ AAD Part No.8679/8678 or

equivalent

12-1

GROUP 12

ENGINE

LUBRICATION

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

12-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

12-3

ON-VEHICLE SERVICE. . . . . . . . . . .

12-3

ENGINE OIL CHECK  . . . . . . . . . . . . . . . . .

12-3

ENGINE OIL REPLACEMENT . . . . . . . . . .

12-3

ENGINE OIL FILTER REPLACEMENT. . . .

12-4

ENGINE OIL PRESSURE CHECK . . . . . . .

12-6

SPECIFICATIONS  . . . . . . . . . . . . . . .

12-7

FASTENER TIGHTENING SPECIFICATIONS

12-7

SERVICE SPECIFICATIONS  . . . . . . . . . . .

12-7

SEALANT  . . . . . . . . . . . . . . . . . . . . . . . . . .

12-7

LUBRICANT  . . . . . . . . . . . . . . . . . . . . . . . .

12-7

HOME

GENERAL DESCRIPTION

ENGINE LUBRICATION

12-2

GENERAL DESCRIPTION

M1121000100410
The lubrication method is a fully force-fed, full-flow filtration type.

ENGINE OILS

WARNING

Prolonged and repeated contact with mineral oil will result in the removal of natural fats from
the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains
potentially harmful contaminants which may cause skin cancer. Adequate means of skin pro-
tection and washing facilities must be provided.

.

Recommended Precautions

The most effective precaution is to adapt working
practices which prevent, as far as practical, the risk
of skin contact with mineral oils i.e. use enclosed
systems for handling used engine oil and degrease
components, where practical, before handling them.

.

Other precautions:

• Avoid prolonged and repeated contact with oil,

particularly used engine oil.

• Wear protective clothing, including impervious

gloves where practical.

• Avoid contaminating clothes with oil.

• Do not put oily rags in pockets.

• Do not wear heavily soiled clothing and

oil-soaked foot-wear. Overalls must be cleaned
regularly and kept separate from personal cloth-
ing.

• Where there is a risk of eye contact, eye protec-

tion should be worn i.e. chemical goggles or face
shields. In addition, an eye wash facility should
be provided.

• Obtain first aid treatment immediately for open

cuts and wounds.

• Wash regularly with soap and water to ensure all

oil is removed (skin cleansers and nail brushes
will help). After cleaning, apply lotion, etc., con-
taining lanolin to replace natural skin oils is
advised.

• Do not use gasoline, kerosene, diesel fuel, gas

oil, thinners or solvents for cleaning skin.

• Apply barrier creams before each work period.

• If skin disorders develop, obtain medical advice

immediately.

ITEM

SPECIFICATION

Oil pump type

3.8L Engine

Trochoid type

Drive method

Crankshaft

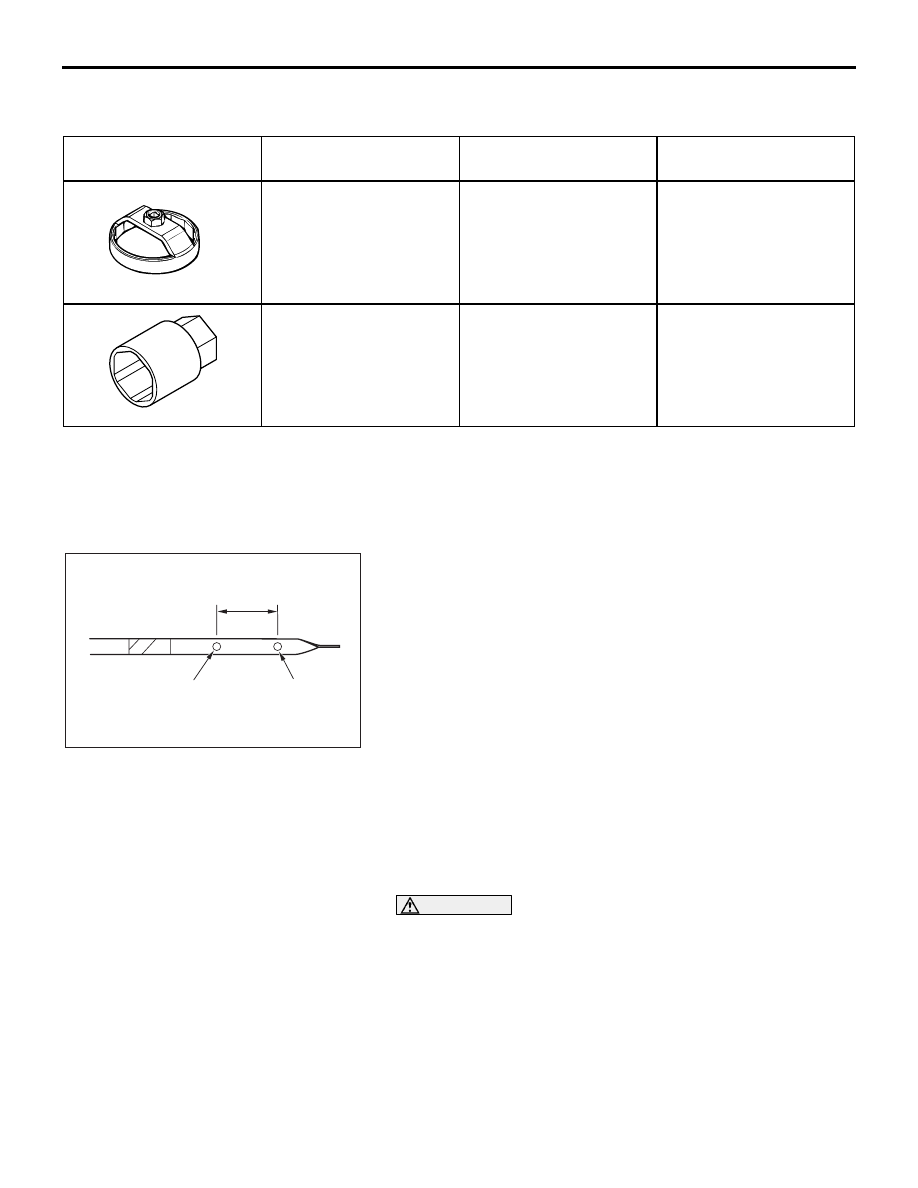

SPECIAL TOOLS
