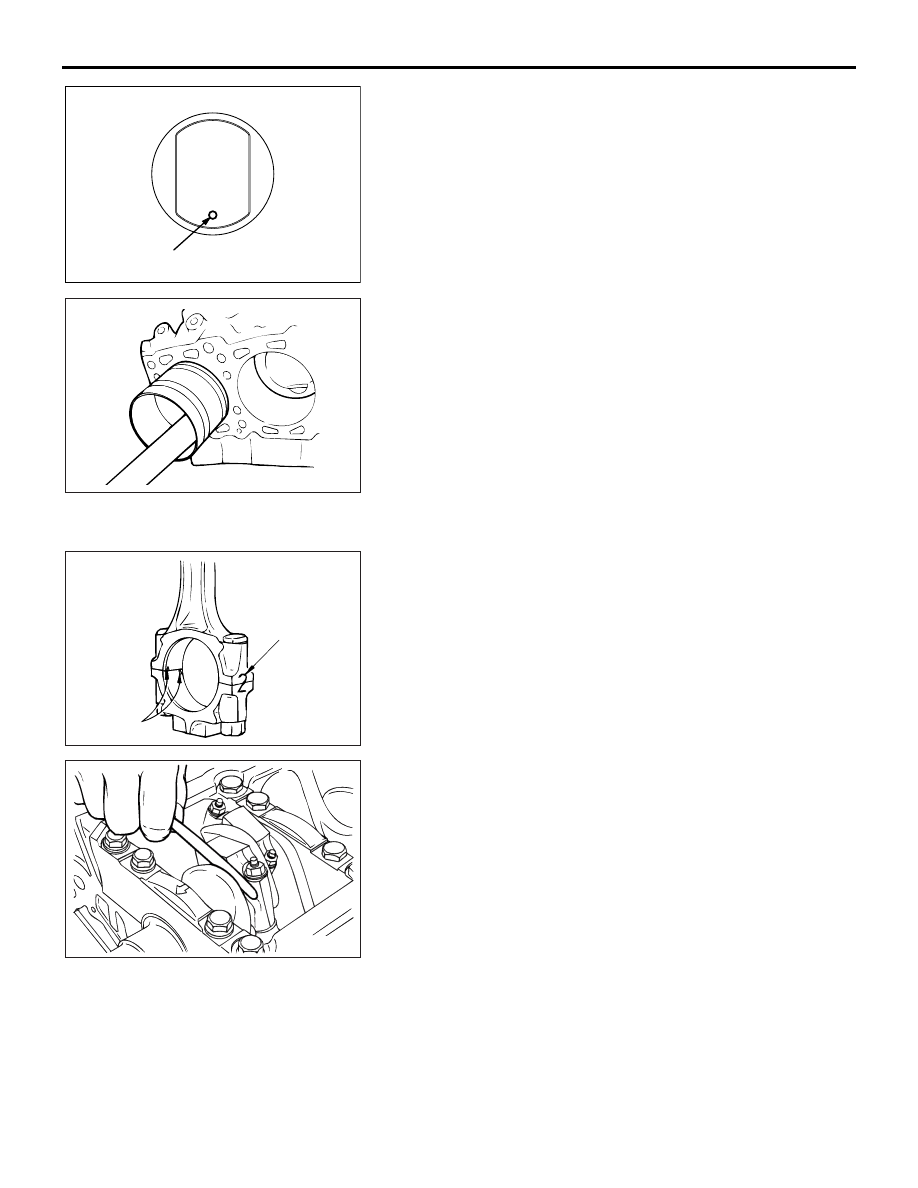

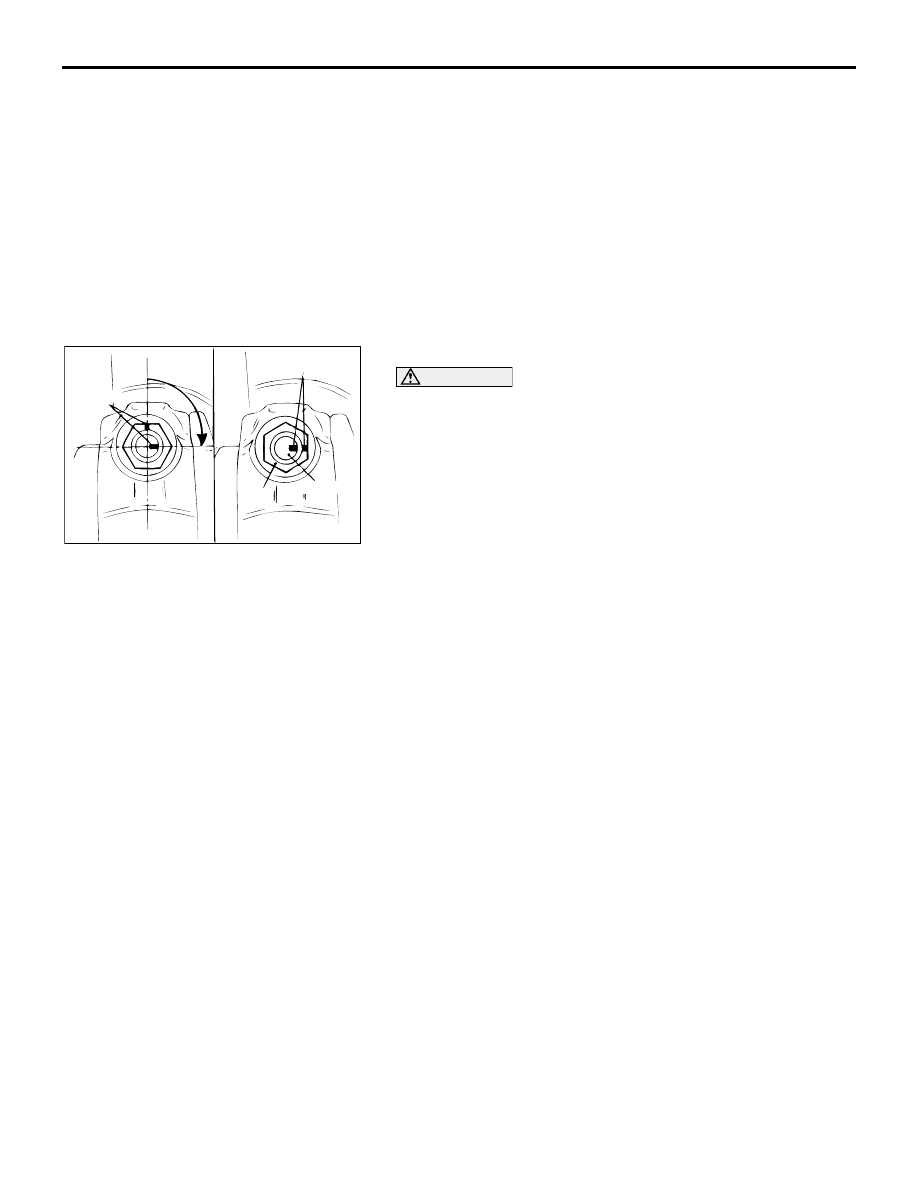

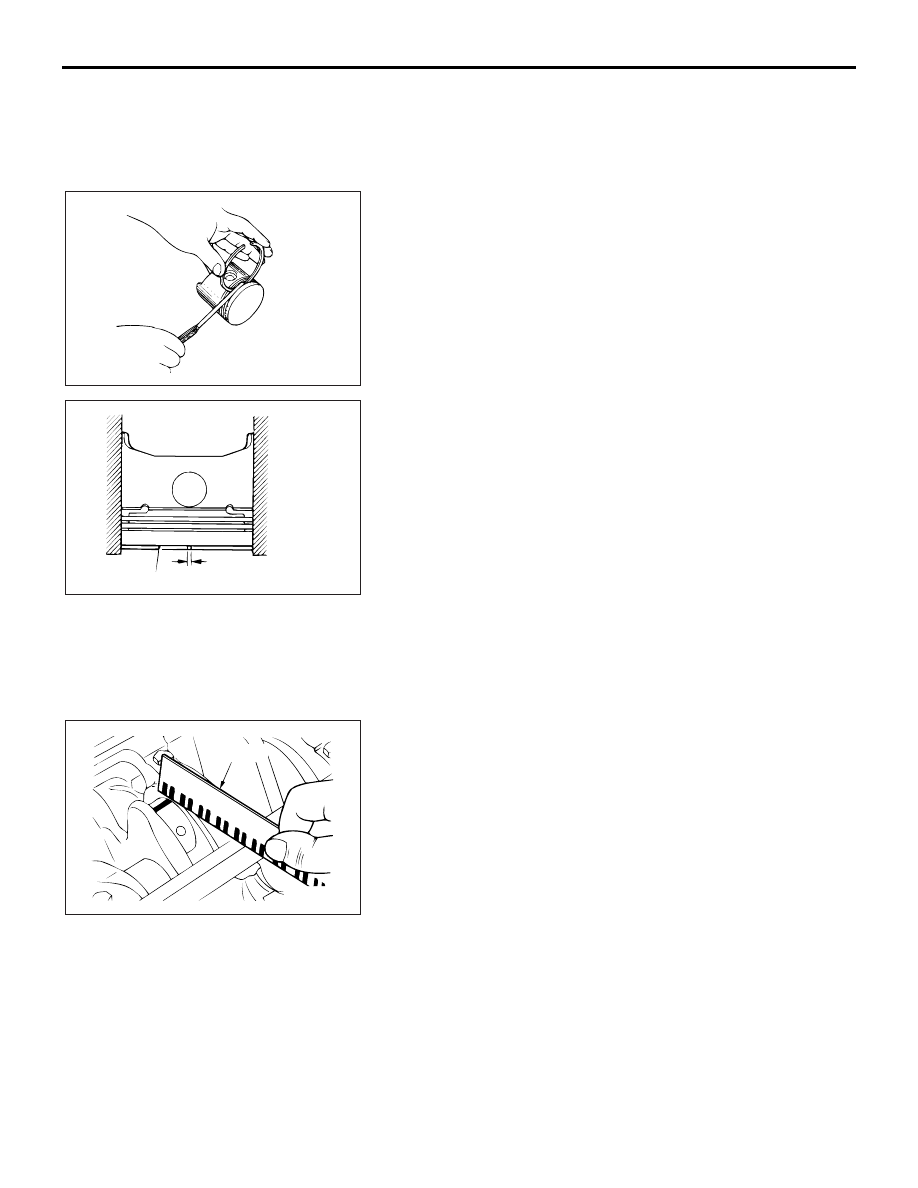

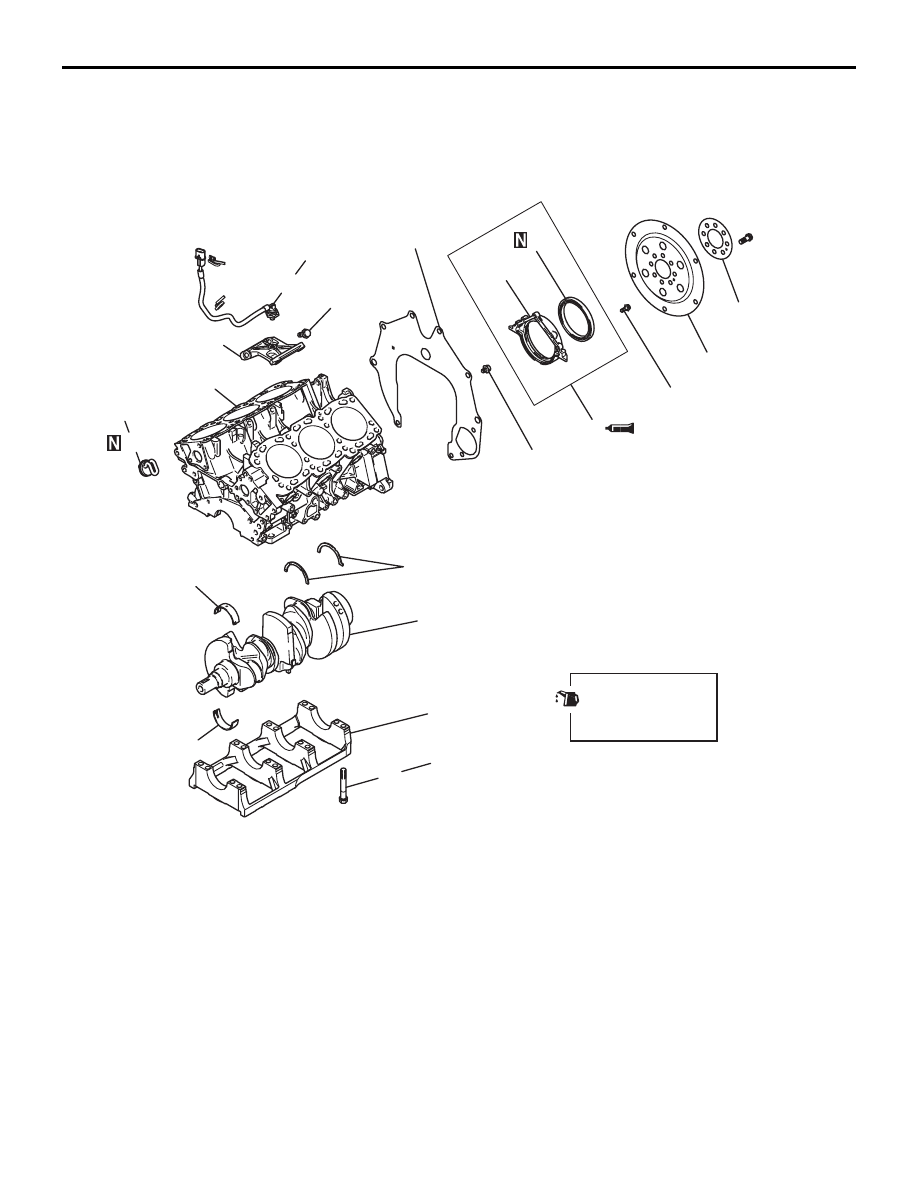

PISTON AND CONNECTING ROD ENGINE OVERHAUL <3.8L ENGINE> 11B-50 4. Insert the piston and connecting rod assembly into the cylinder with the front mark on the piston crown pointing to 5. Using a suitable piston ring compressor tool, install the piston and connecting rod assembly into the cylinder block. . >>F<< CONNECTING ROD CAP INSTALLATION 1. Verifying the mark made during disassembly, install the bearing cap to the connecting rod. If the connecting rod is 2. Make sure that the connecting rod big end side clearance meets the specification. Standard value: 0.10 − 0.25 mm (0.004 − 0.009 inch) Limit: 0.4 mm (0.02 inch) . AK201081AB FRONT MARK AKX00721 AKX00735 CYLINDER NO. NOTCHES AB AK201530 |
