HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-10

CURRENT TROUBLE

Indicates that the trouble is currently present. Carry
out troubleshooting as described in the applicable
inspection procedure.

PAST TROUBLE

Indicates that the trouble is historic, but normal oper-
ation has been restored. Observe the applicable
inspection procedure with particular emphasis on
connector(s) and wiring harness.

HARNESS INSPECTION

Check for an open or short circuit in the harness
between the terminals which were faulty according to
the connector measurements. Carry out this inspec-
tion while referring to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

. Here, “Check harness

between power supply and terminal xx” also includes
checking for blown fuse. For inspection service
points when there is a blown fuse, refer to "Inspec-
tion Service Points for a Blown Fuse

P.00-16

."

AC210616

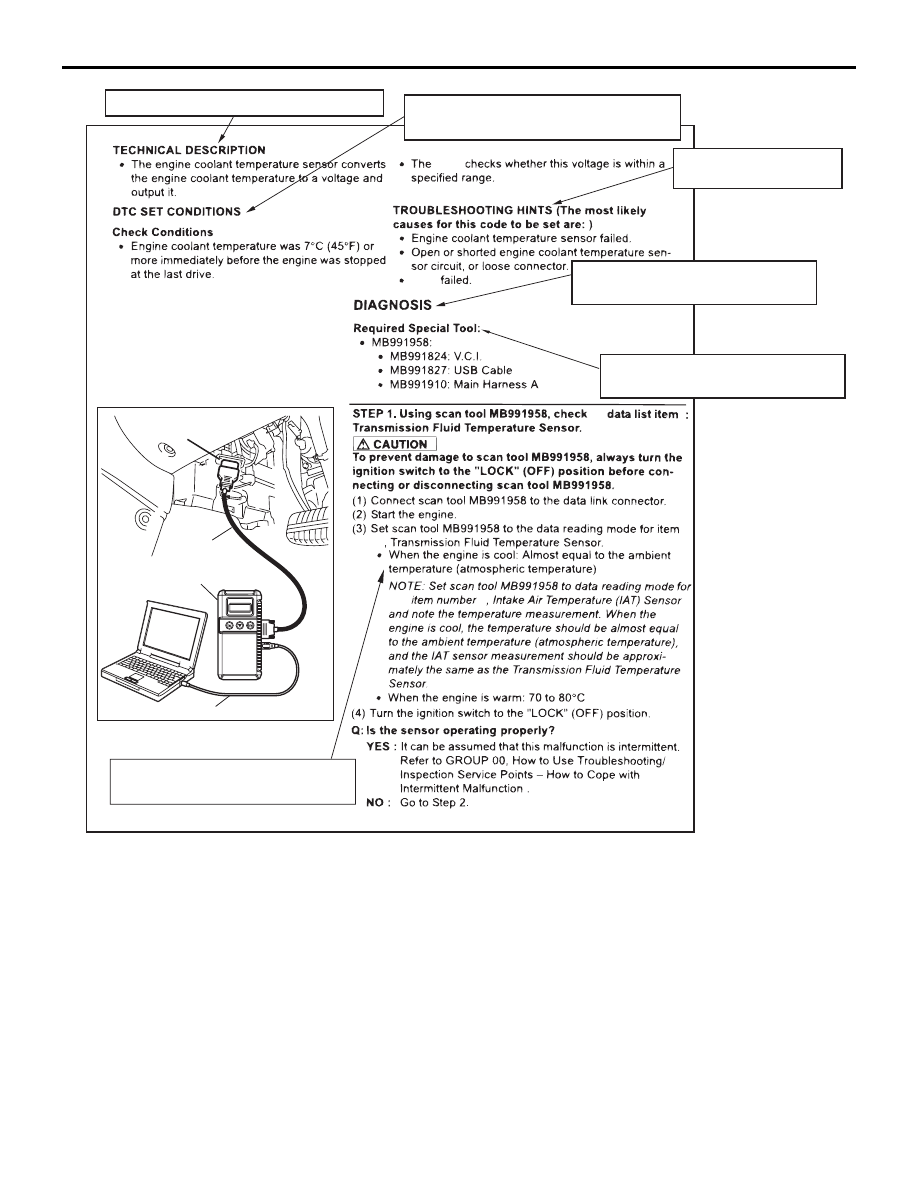

(5) Explains about technical details.

(6) Describes the conditions for that DTC
      being set (stored).

(8) Start of the diagnosis procedure
      for that DTC.

(10) Provides the inspection procedure
      for that DTC step by step.

(7) Describes possible
      cause(s)for that DTC.

(9) Identifies the special tool(s)
     necessary for diagnosing that DTC.

AB

00DB077A

(5) Explains about technical details.

(6) Describes the conditions for that DTC
      being set (stored).

(8) Start of the diagnosis procedure
      for that DTC.

(10) Provides the inspection procedure
      for that DTC step by step.

(7) Describes possible
      cause(s)for that DTC.

(9) Identifies the special tool(s)
     necessary for diagnosing that DTC.



Diagnostic Tool  (MUT-III)

ECU

ECU

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

7

7

A/T

MPI

5

00DB077A

(5) Explains about technical details.

(6) Describes the conditions for that DTC
      being set (stored).

(8) Start of the diagnosis procedure
      for that DTC.

(10) Provides the inspection procedure
      for that DTC step by step.

(7) Describes possible
      cause(s)for that DTC.

(9) Identifies the special tool(s)
     necessary for diagnosing that DTC.



Diagnostic Tool  (MUT-III)

ECU

ECU

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

7

7

A/T

MPI

5

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-11

MEASURES TO TAKE AFTER
REPLACING THE ECU

If the trouble symptoms have not disappeared even
after replacing the ECU, repeat the inspection proce-
dure from the beginning.

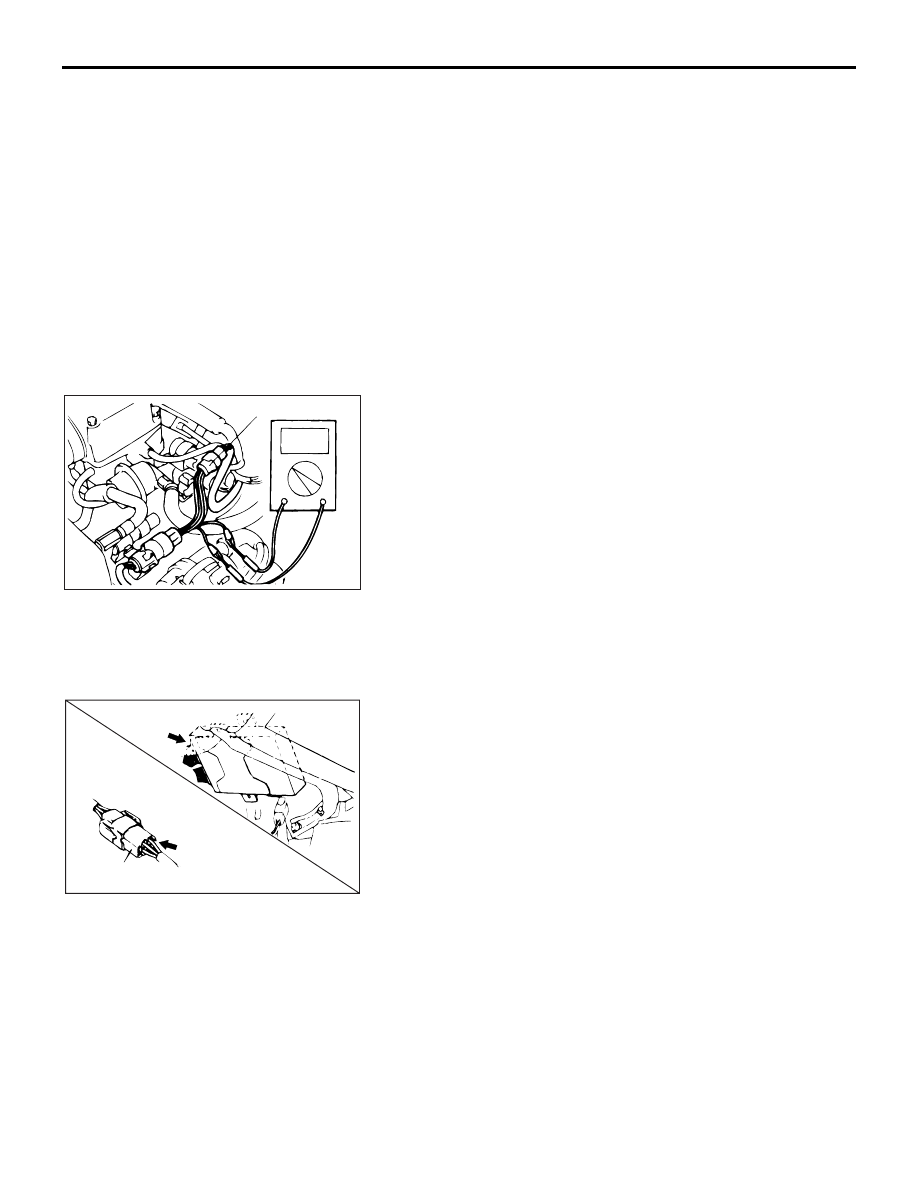

CONNECTOR MEASUREMENT SERVICE POINTS

M1001013600063

Turn the ignition switch to the "LOCK" (OFF) position when
connecting and disconnecting the connectors. Turn the ignition
switch to "ON" when measuring, unless there are instructions
to the contrary.

IF INSPECTING WITH THE CONNECTOR
CONNECTED <WATERPROOF CONNECTORS>

Be sure to use special tool. Never insert a test  probe from the
harness side, as this will reduce the waterproof performance
and result in corrosion.

IF INSPECTING WITH THE CONNECTOR
CONNECTED <ORDINARY (NON-WATERPROOF)
CONNECTORS>

Check by inserting the multi-meter test  probe from the harness
side. Note that if the connector (control unit, etc.) is too small to
permit insertion of the test  probe, it should not be forced; use
the test  probe tool for this purpose.

ACX00863AE

SPECIAL TOOL

AC001606AB

CONNECTOR

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-12

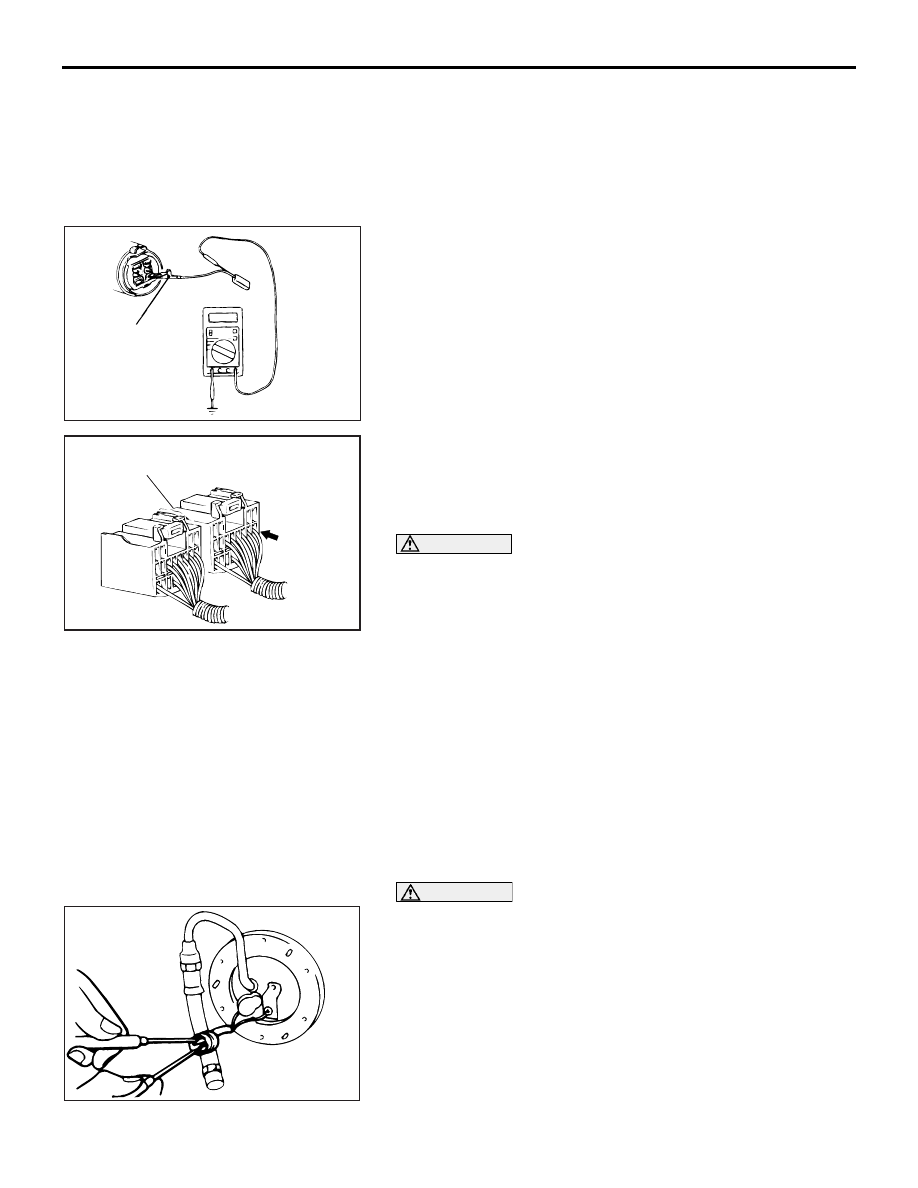

IF INSPECTING WITH THE CONNECTOR
DISCONNECTED <WHEN INSPECTING A
FEMALE PIN>

Required Special Tool:

• MB991219: Inspection Harness (Included in MB991223,

Harness Set)

• The special tool MB991219 for connector pin contact pres-

sure should be used. The test  probe should never be forc-
ibly inserted, as it may cause a defective contact.

• From back side of the connector (SRS-ECU harness side

connector)

• Since the SRS-ECU harness connector is plated to improve

conductivity, observe the warning below when checking this
connector.

WARNING

Insert the test probe tool into the connector from the
harness side, and connect the tester to the test  probe
tool. If any tool other than the test  probe tool is used,
it may cause damage to the harness and other com-
ponents. Furthermore, measurement should not be
carried out by touching the test  probe tool directly
against the terminals from the front of the connector.
The terminals are plated to increase their conductiv-
ity, so that if they are touched directly by the test
probe tool, the plating may break, which will decrease
reliability.

IF INSPECTING WITH THE CONNECTOR
DISCONNECTED <WHEN INSPECTING A MALE
PIN>

CAUTION

At this time, be careful not to short the connector pins with
the test  probes. Doing so may damage the circuits inside
the ECU.
Touch the pin directly with the test  probe.

ACX00865 AB

MB991219

AC001607

SRS-ECU HARNESS
CONNECTOR

AB

ACX00867 AB

HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE POINTS

GENERAL

00-13

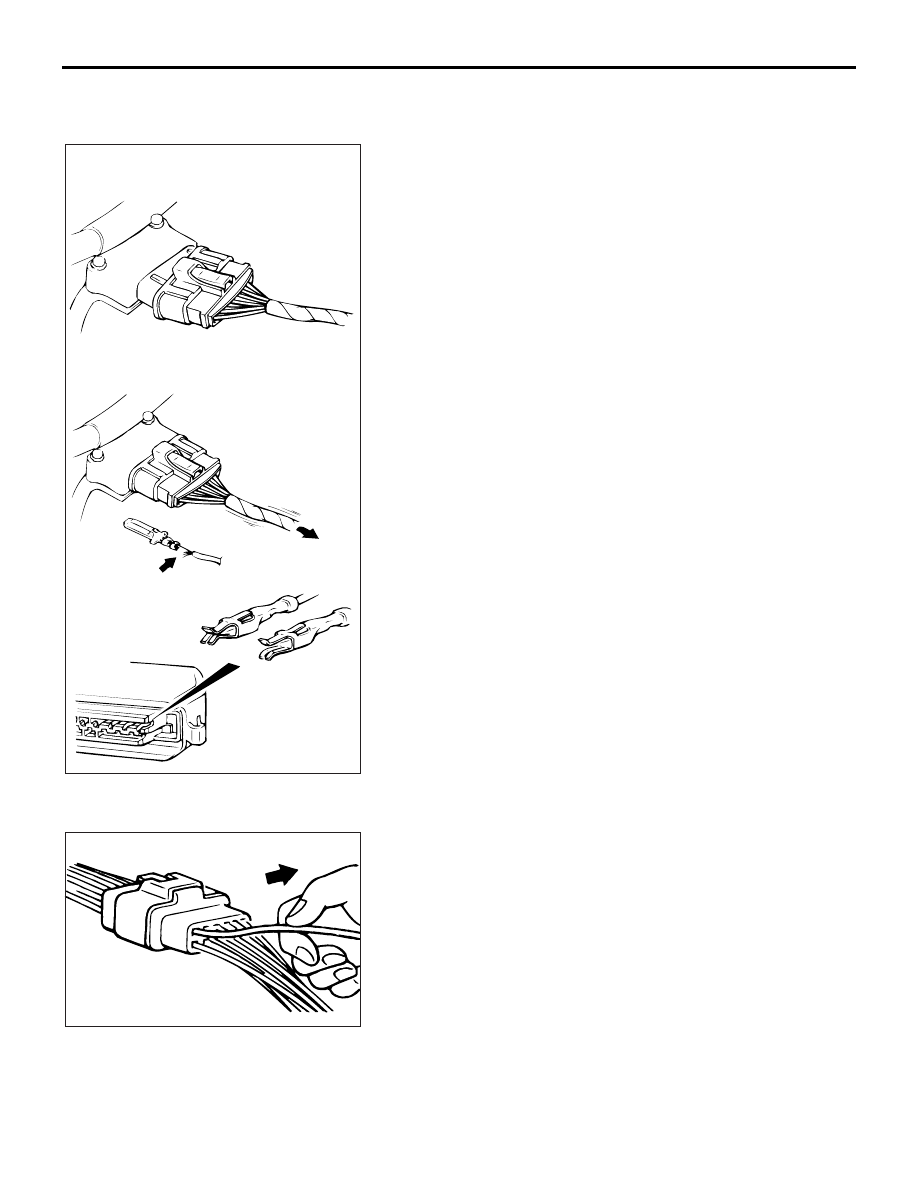

CONNECTOR INSPECTION SERVICE POINTS

M1001013700060

VISUAL INSPECTION

• Connector is disconnected or improperly connected

• Connector pins are pulled out

• Stretched an broken wires at terminal section

• Low contact pressure between male and female terminals

• Low connection pressure due to rusted terminals or foreign

matter lodged in terminals

.

CONNECTOR PIN INSPECTION

If the connector pin stopper is damaged, the terminal connec-
tions (male and female pins) will not be perfect even when the
connector body is connected, because the pins may pull out of
the back side of the connector. Therefore, gently pull the wires
one by one to make sure that no pins pull out of the connector.

.

ACX00868AC

CONNECTOR DISCONNECTED OR

IMPROPERLY CONNECTED

STRETCHED OR BROKEN WIRES

HARNESS WIRE BREAKAGE

AT TERMINAL SECTION

LOW CONTACT

PRESSURE

GOOD

BAD

ACX00869AB
