DOOR

BODY

42-52

<PASSENGER'S SIDE>

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

M1423003100319

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

LOCK

1

− 3

Less than 2 ohms

OFF

1

− 3, 2 − 3

Open circuit

UNLOCK

2

− 3

Less than 2 ohms

18DB166A

DOOR LOCK

SWITCH

12

7

1

8

2

10

9

3

11

13

5

4

14

6

AC306732

AC306175

AC306365

AC206032

SEALANT: 3M™ AAD PART NO. 8633

OR EQUIVALENT

AB

NOTE
        : THE CONVEX POSITION OF THE DOOR

SECTION A – A

FRONT

DOOR

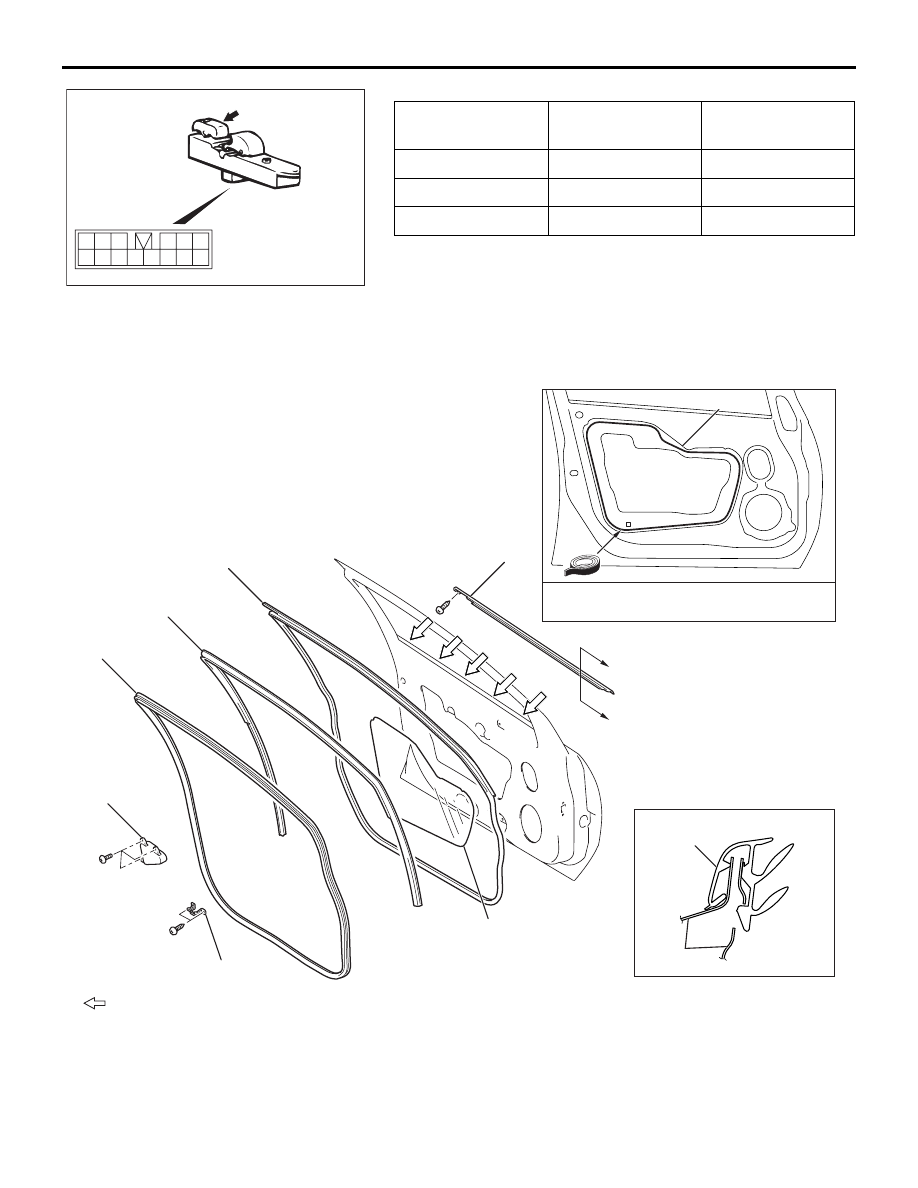

<FRONT DOOR>

1

2

4

3

3

5

6

7

7

A

A

DOOR

BODY

42-53

AC306372

AC306373

AC306725

AC306374

: SECTIONAL VIEW OF
  CLIP POSITION

: SECTIONAL VIEW OF
  CLIP POSITION

AB

CLIP POSITION

LH DOOR CLIPS (PINK),

RH DOOR CLIPS

(TURQUOISE)

6

REMOVAL

>>D<<

1. DOOR WINDOW GLASS

RUNCHANNEL
WATERPROOF FILM AND DOOR
PANEL CORE REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-14

).

•

DOOR INSIDE HANDLE (REFER TO

P.42-46

).

2. DOOR ARMREST BRACKET

>>A<<

3. WATERPROOF FILM
4. DOOR PANEL CORE

DOOR OPENING INNER
WEATHERSTRIP REMOVAL
STEPS

•

FRONT SCUFF PLATE (REFER TO
GROUP 52A, TRIMS

P.52A-11

).

>>C<<

5. DOOR OPENING INNER

WEATHERSTRIP (BODY SIDE)

DOOR OPENING OUTER
WEATHERSTRIP REMOVAL
STEPS

•

DOOR CHECK MOUNTING BOLT
(BODY SIDE) (REFER TO

P.42-37

).

>>B<<

6. DOOR OPENING OUTER

WEATHERSTRIP
DOOR BELTLINE MOLDING
REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-14

).

•

REMOTE CONTROLLED MIRROR
ASSEMBLY (REFER TO GROUP 51,
DOOR MIRROR

P.51-28

).

7. DOOR BELTLINE MOLDING

DOOR

BODY

42-54

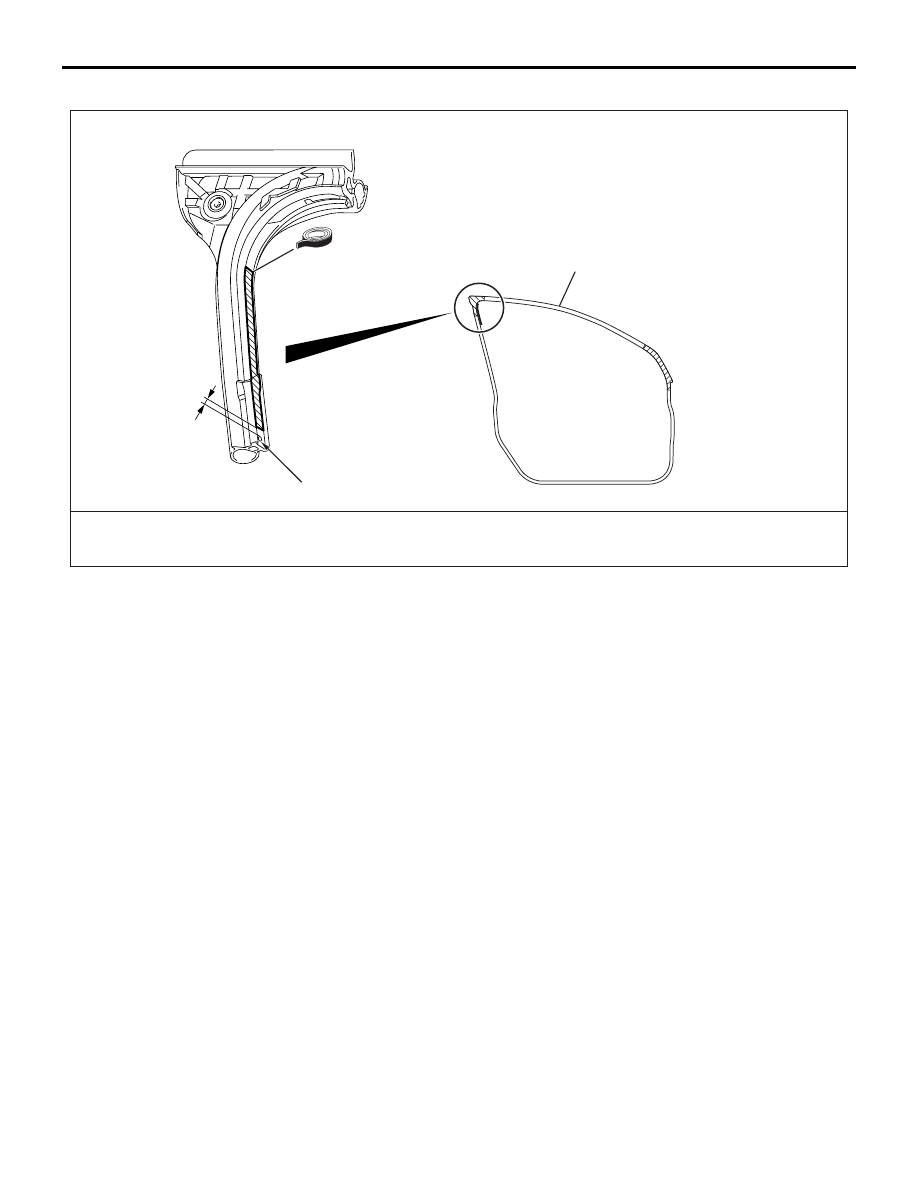

DOUBLE-SIDED TAPE POSITION

AC306726

AC306375

AC306376

AB

3 (0.12)

UNITS: mm (in)

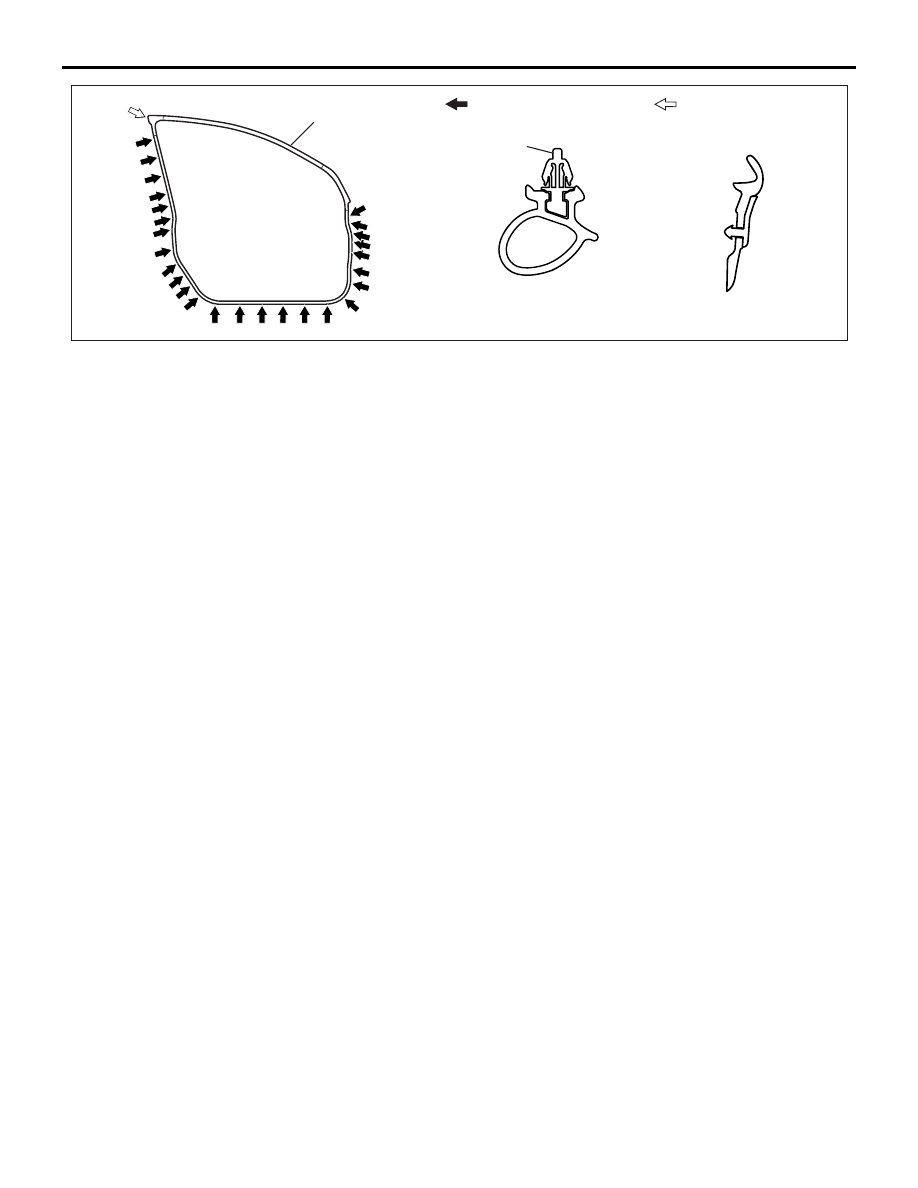

CLIP HOLE

<FRONT DOOR>

ADHESIVE TAPE: DOUBLE-SIDED TAPE [ 7 mm (0.28 in) WIDTH, 85 mm (3.35 in) LENGTH AND 0.8 mm (0.031 in)
THICKNESS ]

DOOR OPENING OUTER

WEATHERSTRIP

DOOR

BODY

42-55

AC306733

AC306176

AC306366

AC206032

SEALANT: 3M™ AAD PART NO. 8633

OR EQUIVALENT

AB

NOTE
        : THE CONVEX POSITION OF THE DOOR

SECTION A – A

REAR

DOOR

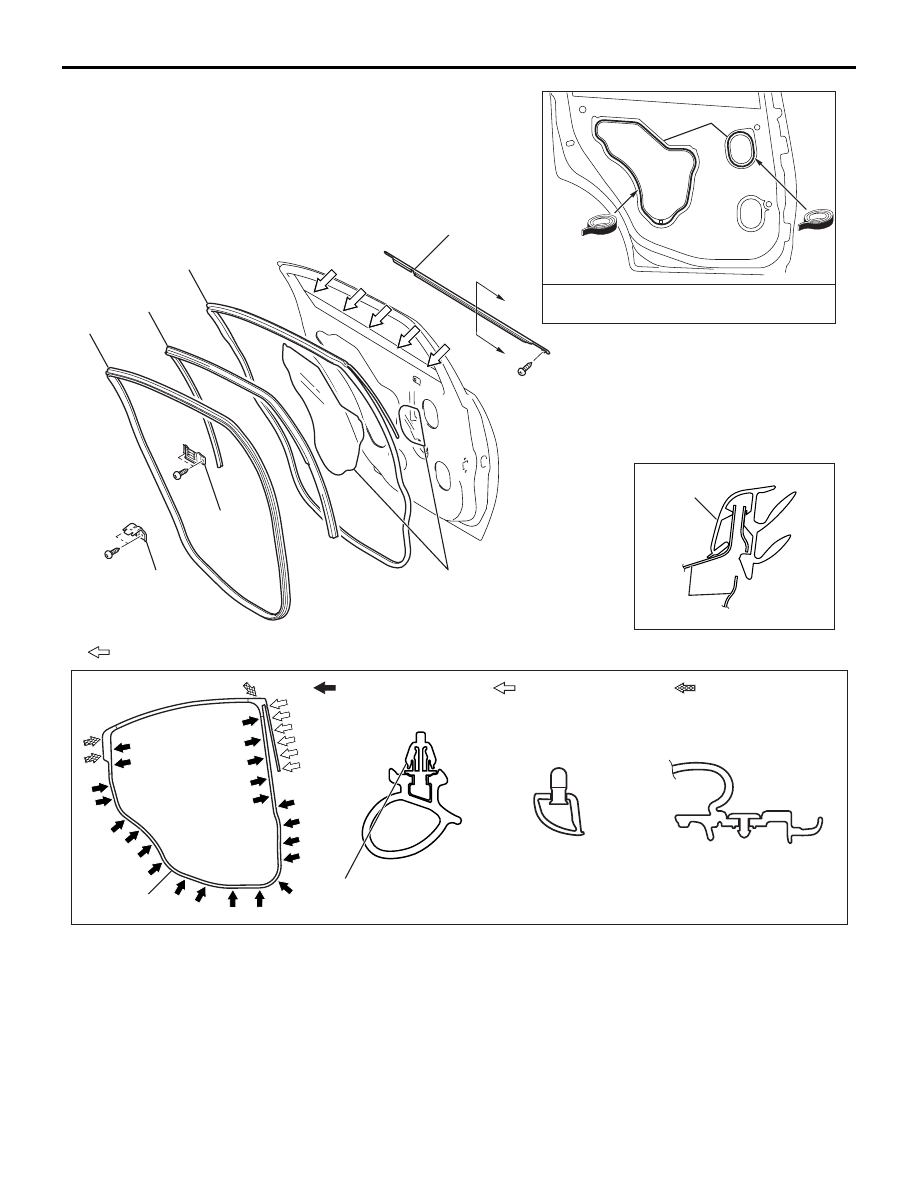

<REAR  DOOR>

1

2

4

3

3

5

6

7

7

A

A

AC306378

AC306379

AC306730

AC306380

AC306373

:SECTIONAL VIEW OF
 CLIP POSITION

:SECTIONAL VIEW OF
 CLIP POSITION

AC

:SECTIONAL VIEW OF
 CLIP POSITION

CLIP POSITION

LH DOOR CLIPS (YELLOW),

RH DOOR CLIPS (BLUE)

6

REMOVAL

>>D<<

1. DOOR WINDOW GLASS

RUNCHANNEL
DOOR PANEL BRACKET
REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-14

).

2. DOOR PANEL BRACKET

DOOR ARMREST BRACKET
REMOVAL STEPS

•

DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM

P.52A-14

).

3. DOOR ARMREST BRACKET
