RADIATOR

ENGINE COOLING

14-32

RADIATOR

REMOVAL AND INSTALLATION

M1141001500521

Pre-removal Operation
• Engine Coolant Draining (Refer to 27).

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner 4).

Post-installation Operation
• Air Cleaner Installation (Refer to GROUP 15 4).

• Engine Coolant Refilling and Level Check (Refer to 27).

• A/T Fluid Refilling and Level Check (Refer to GROUP 00,

Maintenance Service 45).

04DB007A

22 ± 4 N·m

16 ± 3 ft-lb

11 ± 2 N·m

98 ± 17 in-lb

9

8

8

7

1

12

2

3

11

11

9

9

17

15

20

16

14

10

4

13

6

18

19

5

21

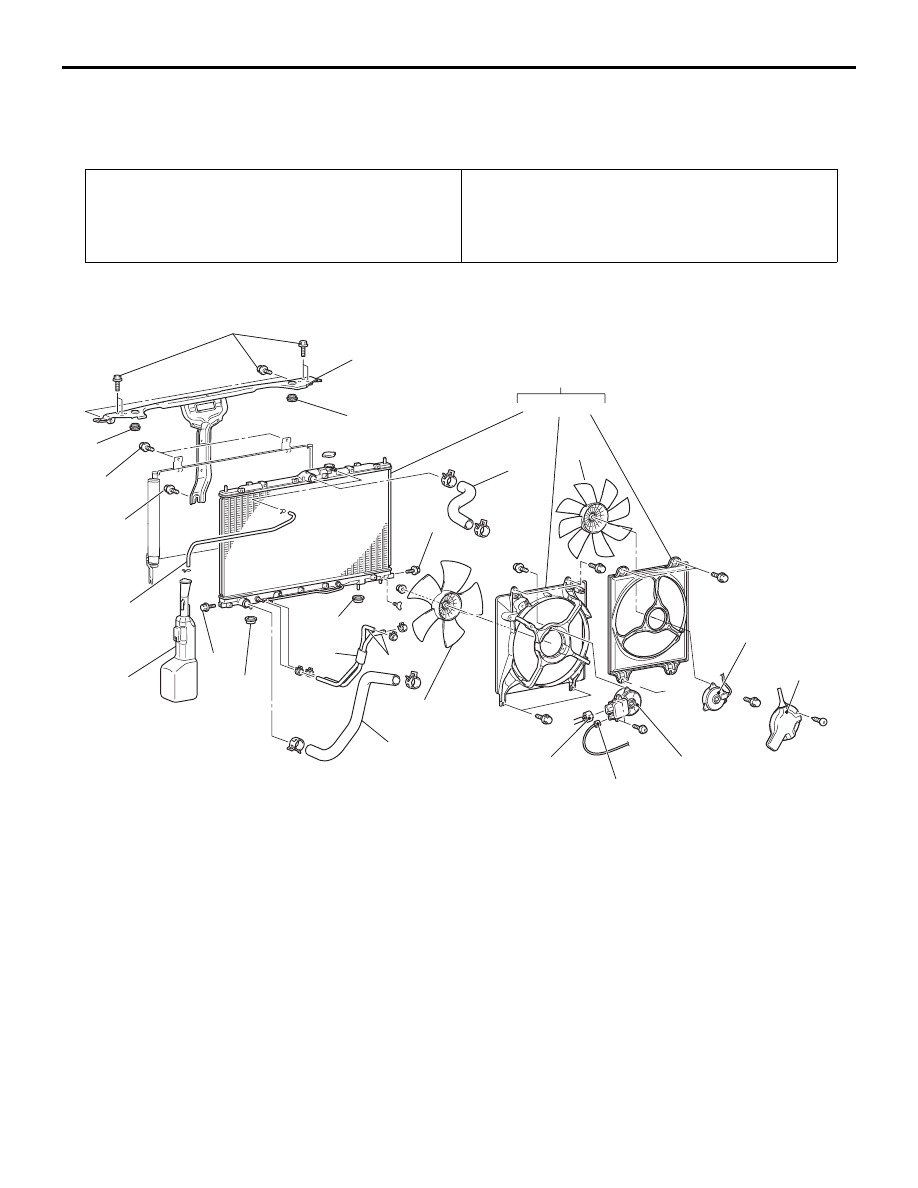

RADIATOR REMOVAL STEPS

1.

RADIATOR CONDENSER TANK
HOSE

<<A>>

>>A<<

2.

RADIATOR UPPER HOSE

<<A>>

>>A<<

3.

RADIATOR LOWER HOSE

<<B>>

4.

A/T OIL COOLER HOSE
CONNECTION

5.

CONDENSER FAN MOTOR
CONNECTOR

6.

FAN CONTROLLER CONNECTOR

•

HOOD LATCH (REFER TO
GROUP 42, HOOD 8).

7.

FRONT END STRUCTURE BAR

8.

UPPER INSULATOR

9.

CONDENSER BOLTS

10. RADIATOR ASSEMBLY
11. LOWER INSULATOR

12. RADIATOR CONDENSER TANK

ASSEMBLY

<<B>>

13. A/T OIL COOLER HOSE
14. CONDENSER FAN SHROUD

ASSEMBLY

15. COOLING FAN SHROUD

ASSEMBLY

16. RADIATOR

FAN MOTOR REMOVAL STEPS

1.

RADIATOR CONDENSER TANK
HOSE

5.

CONDENSER FAN MOTOR
CONNECTOR

<<A>>

>>A<<

3.

RADIATOR UPPER HOSE

6.

FAN MOTOR CONNECTOR

12. RADIATOR CONDENSER TANK

ASSEMBLY

RADIATOR REMOVAL STEPS

RADIATOR

ENGINE COOLING

14-33

14. CONDENSER FAN SHROUD

ASSEMBLY

15. COOLING FAN SHROUD

ASSEMBLY

17. CONDENSER FAN
18. HEAT PROTECTOR
19. CONDENSER FAN MOTOR
20. COOLING FAN
21. COOLING FAN MOTOR& FAN

CONTROLLER

FAN MOTOR REMOVAL STEPS

RADIATOR CONDENSER TANK
REMOVAL STEPS

•

UNDER COVER (LH)

•

AIR INTAKE DUCT (REFER TO
GROUP 15, AIR CLEANER 4).

1.

RADIATOR CONDENSER TANK
HOSE

5.

CONDENSER FAN MOTOR
CONNECTOR

6.

FAN MOTOR CONNECTOR

12. RADIATOR CONDENSER TANK

ASSEMBLY

RADIATOR

ENGINE COOLING

14-34

REMOVAL SERVICE POINTS

.

<<A>> RADIATOR UPPER HOSE/RADIATOR
LOWER HOSE DISCONNECTION

Make mating marks on the radiator hose and the hose clamp.
Disconnect the radiator hose.

.

<<B>> A/T OIL COOLER HOSE REMOVAL

After removing the hose from the radiator, plug the hose and
the radiator nipple to prevent dust or foreign particles from get-
ting in.

INSTALLATION SERVICE POINT

.

>>A<< RADIATOR LOWER HOSE/RADIATOR
UPPER HOSE CONNECTION

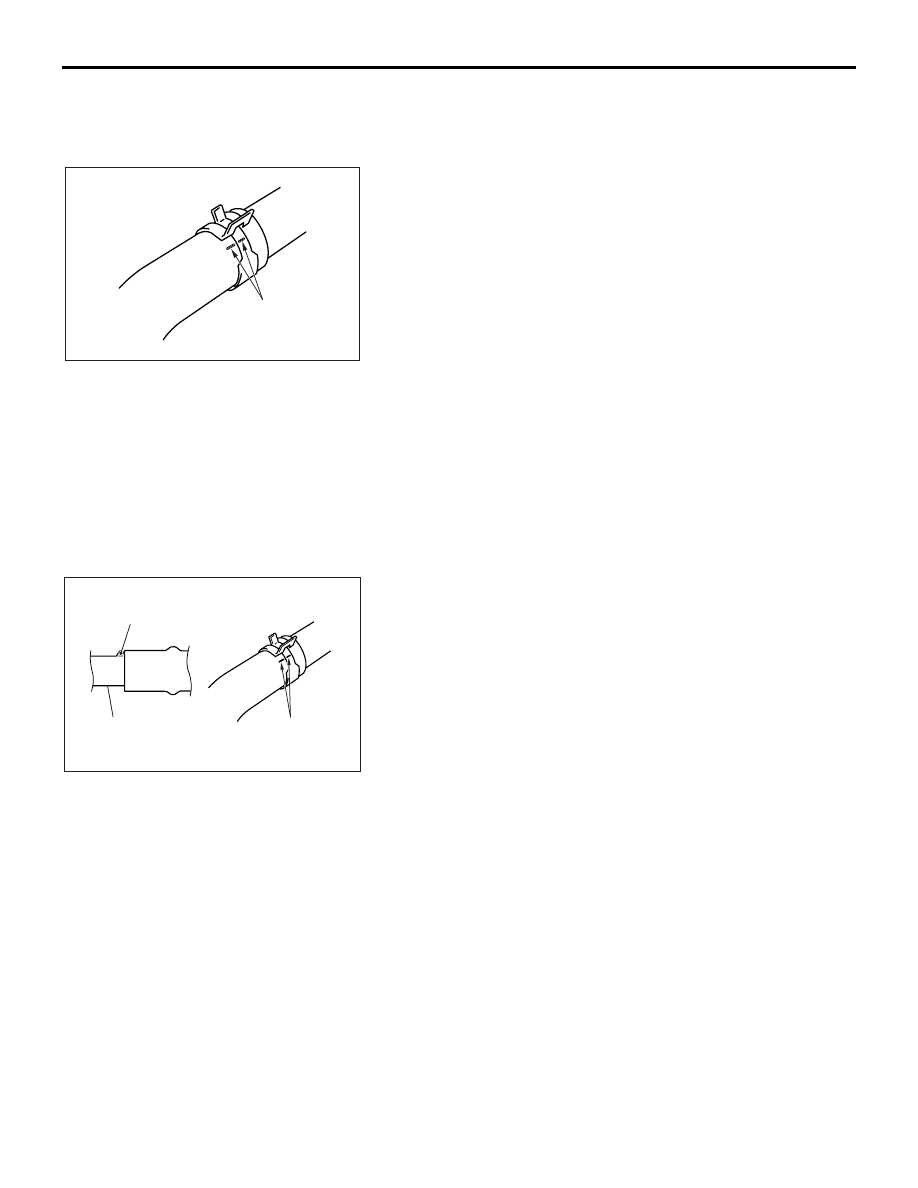

1. Insert each hose as far as the projection of the water inlet

fitting.

2. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

AC200641AB

MATING MARKS

AC200642

MATING
MARKS

PROJECTION

WATER OUTLET
FITTING

AB

THERMOSTAT

ENGINE COOLING

14-35

THERMOSTAT

REMOVAL AND INSTALLATION

M1141002400475

Pre-removal and Post-installation Operation
• Engine Coolant Draining and Refilling (Refer to 27).

• Engine Cover Removal and Installation (Refer to GROUP

11C, Engine Assembly

11A-14

).

• Engine Control Unit (ECU) Removal and Installation

(Refer to GROUP 00, General

00-7

).

• Air Cleaner Removal and Installation (Refer to GROUP

15, Air Cleaner 4).

• Strut Tower Bar Removal and Installation (Refer to

GROUP 42, Strut Tower Bar 12).

• Battery and Battery Tray Removal and Installation

04DB006A

5.0 ± 1.0 N·m
44 ± 9 in-lb

8

7

3

4

9

13

14

20

16

6

5

19

18

17

2

1

9.0 ± 2.0 N·m
80 ± 17 in-lb

15

5.0 ± 1.0 N·m
44 ± 9 in-lb

22 ± 4 N·m
16 ± 3 ft-lb

13

10

11

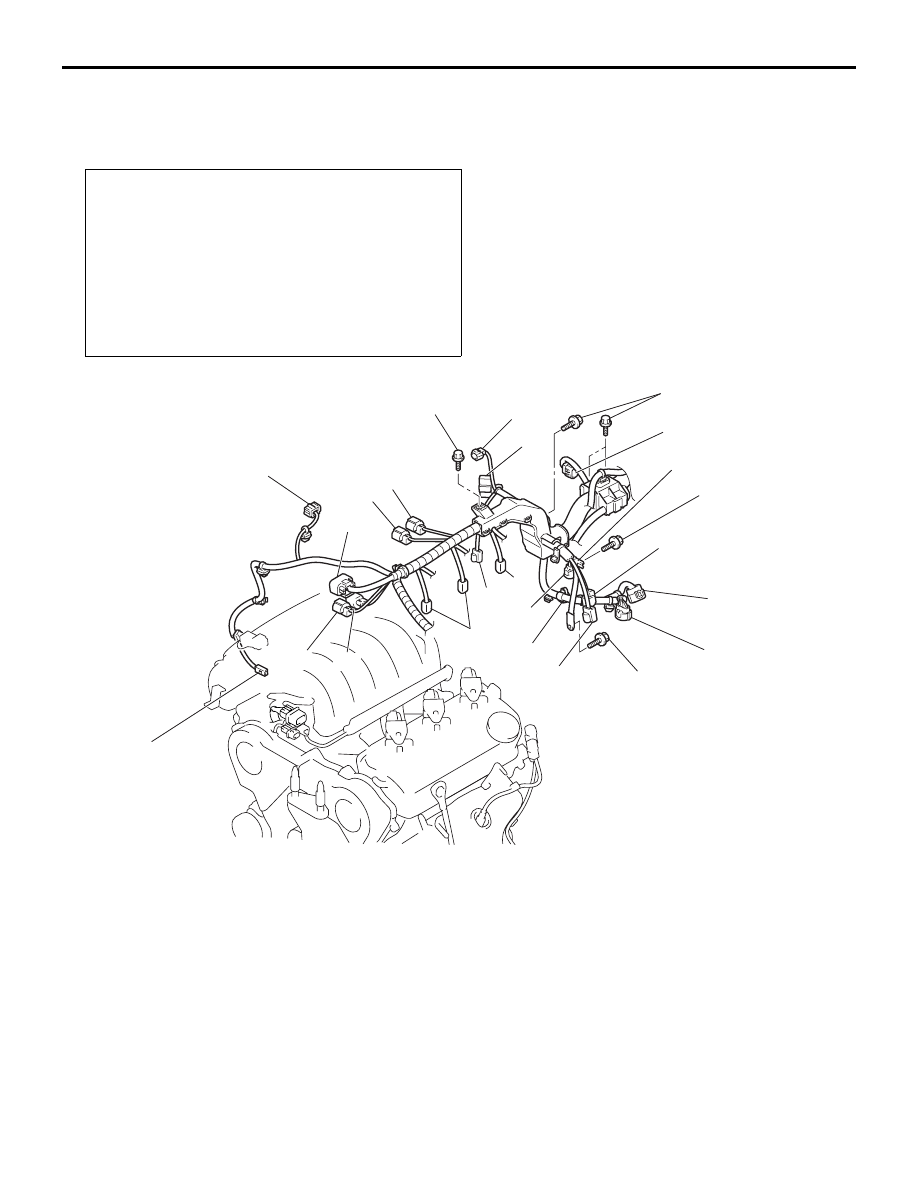

REMOVAL STEPS

1.

LEFT BANK HEATED OXYGEN
SENSOR (REAR) CONNECTOR

2.

LEFT BANK HEATED OXYGEN
SENSOR (FRONT) CONNECTOR

3.

RIGHT BANK HEATED OXYGEN
SENSOR (REAR) CONNECTOR

4.

RIGHT BANK HEATED OXYGEN
SENSOR (FRONT) CONNECTOR

5.

THROTTLE BODY ASSEMBLY
CONNECTOR

6.

EVAPORATIVE EMISSION
PURGE SOLENOID CONNECTOR

7.

MANIFOLD ABSOLUTE
PRESSURE SENSOR
CONNECTOR

8.

POWER STEERING PRESSURE
SWITCH CONNECTOR

9.

CONTROL WIRING HARNESS
AND WIRING HARNESS
COMBINATION CONNECTOR

10. KNOCK SENSOR CONNECTOR
11. CRANKSHAFT POSITION

SENSOR CONNECTOR

13. INJECTOR CONNECTOR

REMOVAL STEPS (Continued)
