CENTRALISED JUNCTION

CIRCUIT DIAGRAMS

90-12

CENTRALISED JUNCTION

M1901000301013

FUSIBLE LINK AND FUSE

ENGINE COMPARTMENT

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOUR

LOAD CIRCUIT

1

Battery/Alternator
(Fusible link No.27)

Fusible
link

80

Black

Fuse Nos.5, 6, 9 and 10 (in junction
block) circuit

2

50

Blue

Radiator fan motor

3

30

Pink

ABS-ECU and ABS/TCL-ECU (motor
power supply)

4

40

Green

Ignition switch circuit

5

40

Green

Fuse Nos.3 and 4 (in junction block
circuit), front power window regulator
motor, power seat assembly, power
window main switch and rear power
window regulator motor

6

Fuse

15

Blue

Fog lamp and fog lamp relay

7

20

Yellow

−

8

15

Red

Horn (High), horn (Low) and horn
relay

9

20

Yellow

Camshaft position sensor, crankshaft
position sensor, engine oil control
valve, evaporative emission purge
solenoid, evaporative emission
ventilation solenoid, heated oxygen
sensor,ETACS-ECU, injector, mass
airflow sensor, MPI relay, Engine
ECU, A/T ECU, throttle actuator
control motor relay and fan control
relay

10

10

Red

A/C compressor assembly and
A/C-ECU

11

15

Blue

ABS-ECU, ABS/TCL-ECU,
high-mounted stoplamp, Engine ECU
and rear combination lamp

12

−

−

−

13

7.5

Brown

Alternator

14

10

Red

ETACS-ECU, Hazard lamps

15

20

Yellow

A/T control solenoid valve and Engine
ECU

16

Front-ECU
(Headlamp relay:
High)

15

Blue

Headlamp (RH) and headlamp (High:
RH)

17

15

Blue

Headlamp (LH) and headlamp (High:
LH)

18

Front-ECU (Field
effect transistor for
headlamp: Low)

10

Red

Headlamp (RH) and headlamp (Low:
RH)

CENTRALISED JUNCTION

CIRCUIT DIAGRAMS

90-13

19

Front-ECU (Field
effect transistor for
headlamp: Low)

Fuse

10

Red

Headlamp (LH) and headlamp (Low:
LH)

20

Front-ECU (Taillamp
relay)

7.5

Brown

A/C-ECU, A/T selector lever position
illumination lamp, combination meter,
fog lamp switch, headlamp (RH),
glove box lamp, hazard warning lamp
switch, multi-center display unit,
radio, CD player, rear combination
lamp (RH), rheostat and TCL switch

21

7.5

Brown

Headlamp (LH), license plate lamp
and rear combination lamp (LH)

22

Battery/Alternator
(Fusible link No.27)

15

Blue

A/C-ECU, column switch,
combination meter, ETACS-ECU,
front-ECU, key reminder switch, multi-
center display unit, radio, CD player,
and vanity mirror lamp

23

Ignition switch (ACC)

10

Red

A/C-ECU, accessory socket relay,
ETACS-ECU, multi-center display
unit, radio, CD player.

24

Battery/Alternator
(Fusible link No.27)

15

Blue

Fuel pump module

25

Ignition switch (ACC)

30

Green

Front-ECU and windshield wiper
motor

26

Battery/Alternator
(Fusible link No.27)

Fusible
link

20

Light blue

Anti-lock braking system(solenoid
valve)

27

Alternator

120

−

Battery, front-ECU, fusible link Nos.1,
2, 3, 4, 5 and 26 and fuse Nos.6, 7, 8,
9, 10, 11, 13, 14, 15, 22 and 24 (in
relay box)

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOUR

LOAD CIRCUIT

CENTRALISED JUNCTION

CIRCUIT DIAGRAMS

90-14

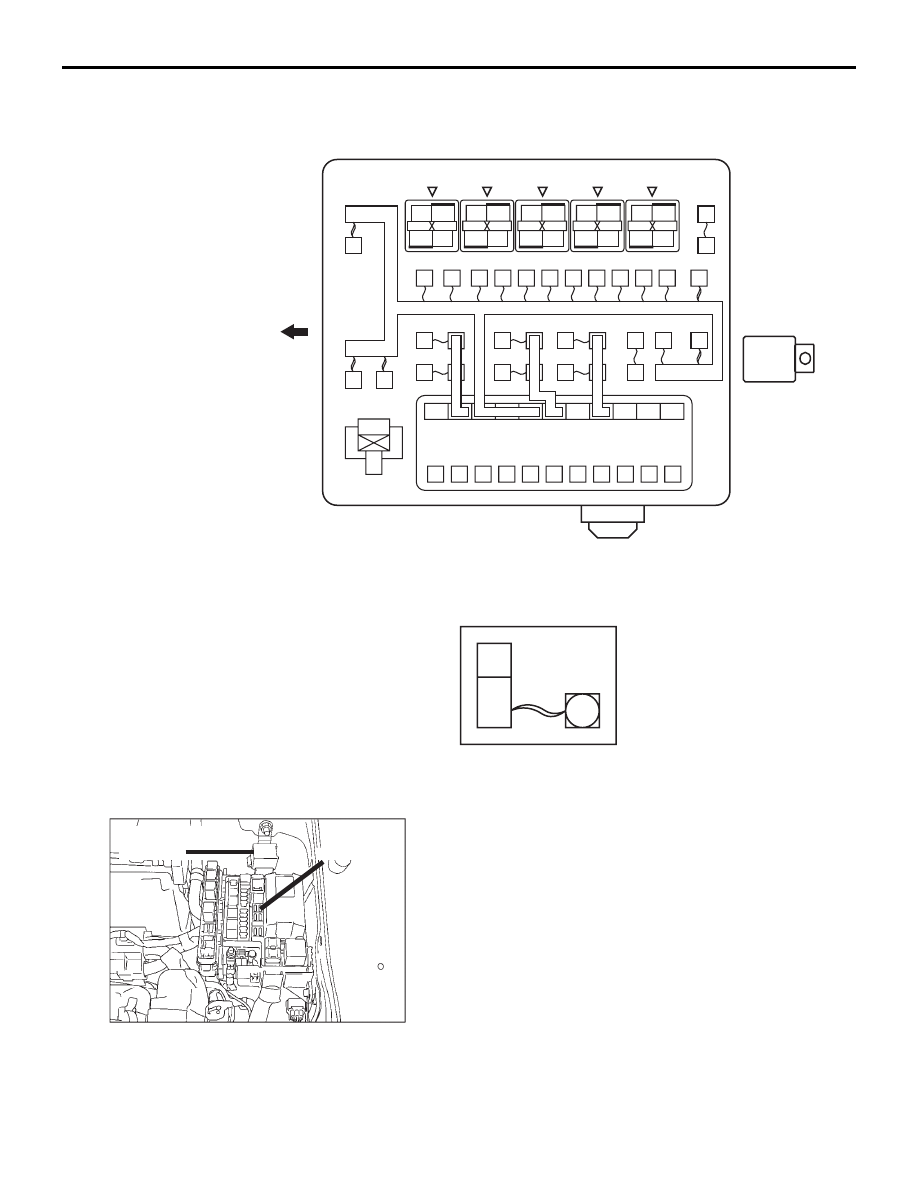

PASSENGER COMPARTMENT

36DB005A

(RELAY BOX IN ENGINE COMPARTMENT)

FRONT OF VEHICLE

1

2

3

4

5

25

6 7 8 9 10 11 12 13 14 15 24

16

17

18

19

20

21

23 22

26

External

fusible link

ABS  (20A)

AC207745

(CONNECTED DIRECTLY TO BATTERY POSITIVE TERMINAL)

27

AG

FUSIBLE LINK
ABS (solenoid valve)
       (20 A)

RELAY BOX

35DB093A

CENTRALISED JUNCTION

CIRCUIT DIAGRAMS

90-15

NO. POWER SUPPLY

CIRCUIT

NAME

RATED
CAPACITY (A)

HOUSING
COLOUR

LOAD CIRCUIT

1

Fusible link No.1

Fuse

30

Green

Rear window demister

2

30

Green

Blower motor and resistor

3

−

−

−

4

−

−

−

5

15

Blue

Accessory socket

6

15

Blue

Data link connector and ETACS-ECU

7

Ignition switch (ACC)

15

Blue

ETACS-ECU

8

−

−

−

9

Ignition switch (IG2)

7.5

Brown

Sunroof assembly

10

Ignition switch (ACC)

7.5

Brown

Remote controlled mirror

11

−

−

−

12

−

−

−

13

Ignition switch (IG1)

7.5

Brown

Fuel pump relay and Engine ECU

14

Ignition switch (ACC)

20

Yellow

Windscreen wiper

15

Fusible link No.1
(Fuse No.5 in junction
block)

7.5

Brown

Remote controlled mirror

16

Ignition switch (IG2)

7.5

Brown

A/C compressor clutch relay,
A/C-ECU, blower relay, condenser
fan motor, fan control relay,
front-ECU, outside/inside air selection
damper control motor and rear
window defogger relay

17

Ignition switch (IG1)

−

−

−

18

7.5

Brown

A/T control relay, input shaft speed
sensor, output shaft speed sensor,
Engine ECU, rear combination lamp
and SRS-ECU

19

7.5

Brown

ABS-ECU, ABS/TCL-ECU, column
switch, combination meter,
ETACS-ECU, multi-center display unit
and SRS-ECU

20

10

Red

Ignition coil

21

−

−

−

−

22

−

−

−

−

23

Fusible link No.5

20

Yellow

Sunroof assembly

24

−

−

−
