Mitsubishi 380. Manual - part 147





HOW TO READ CIRCUIT DIAGRAMS

CIRCUIT DIAGRAMS

90-8

SYMBOLS (EXCEPT CONNECTOR AND GROUNDING)

Devices appearing in circuit diagrams are indicated by the following symbols.

WIRE COLOUR CODES

Wire colours are identified by the following colour codes.

If a cable has two colours, the first of the two colour code char-
acters indicates the basic colour (colour of the cable coating)
and the second indicates the marking (tracer) colour.

NOTE:

*: No code indicates 0.5 mm

2

(0.0008 in

2

). Cable colour code in

parentheses indicates 0.3 mm

2

 (0.0005 in

2

).

ACX02377AB

Battery

ACX02378AB

Buzzer

ACX02379AB

Capacitor

ACX02380AB

Electrolytic

capacitor

ACX02381AB

Variable

capacitor

ACX02382 AB

Coil

ACX02383 AB

Diode

ACX02384

Light emitting

diode

AB

ACX02385

Photo diode

AB

ACX02386AB

Zener diode

ACX02387AC

Dual filament bulb

ACX02388AC

Single filament

bulb

ACX02389AB

Fuse

ACX02390AB

Fusible link

ACX02391AB

Horn

ACX02392AB

Motor

ACX02393AB

Pulse generator

ACX02394 AB

Piezoelectric

device

ACX02395AB

Resistor

ACX02396AB

Variable resistor

ACX02397AB

Speaker

ACX02398AB

Thermistor

ACX02399AB

Transistor

ACX02400AB

Photo transistor

CODE

WIRE COLOUR CODE

WIRE COLOUR CODE

WIRE COLOUR CODE

WIRE COLOUR

B

Black

L

Blue

R

Red

Y

Yellow

BR

Brown

LG

Light green

SB

Sky blue

G

Green

O

Orange

V

Violet

GR

Grey

P

Pink

W

White

NO.

MEANING

1

<F>: Flexible wire

<T>: Twisted wire

2

Wire size (mm

2

)*

3

Basic colour (colour of the cable coating)

4

Marking colour

ACX01279 AB

<F>

1.25

G

B

1

2

3

4

Example:

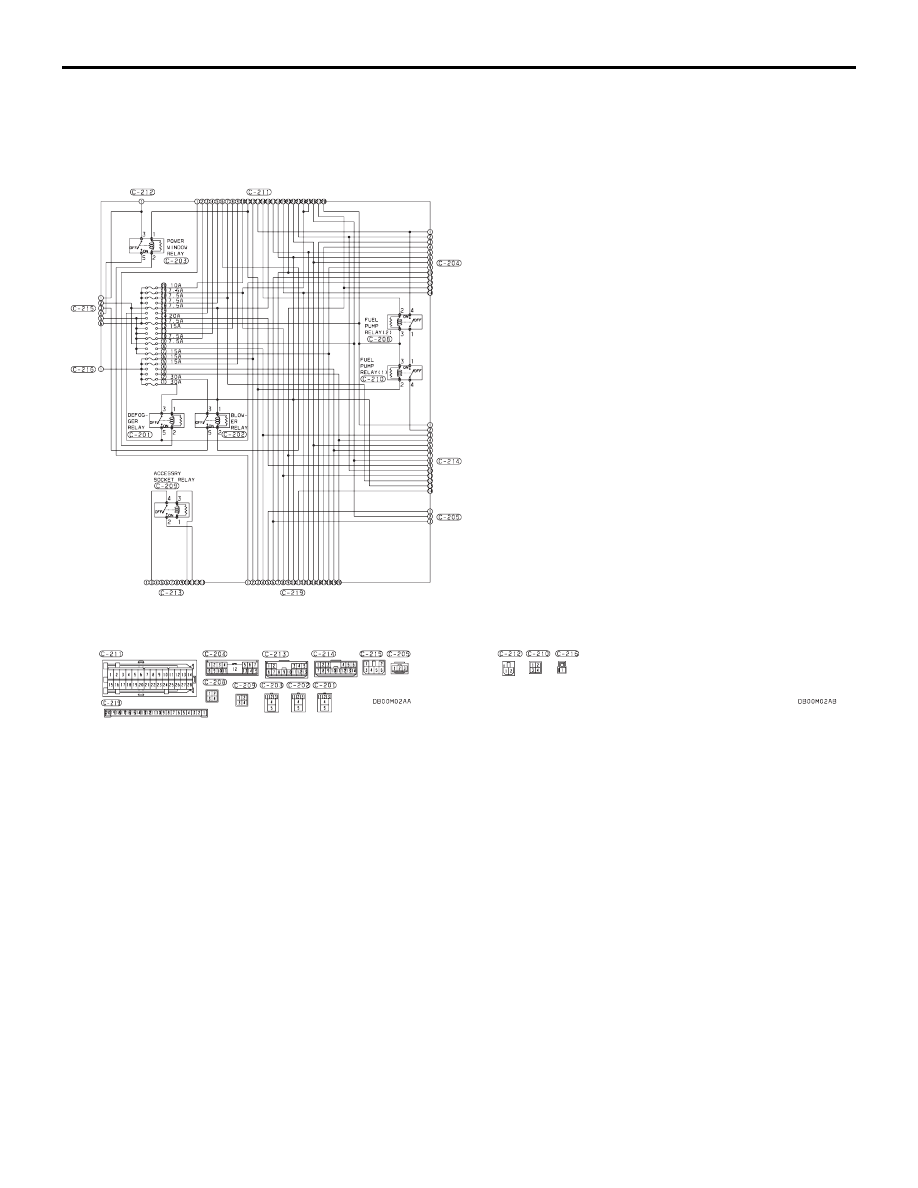

JUNCTION BLOCK

CIRCUIT DIAGRAMS

90-9

JUNCTION BLOCK

M1901000201027

JUNCTION BLOCK

CIRCUIT DIAGRAMS

90-10

NOTE: The triangle mark on the relay housing should face that on the junction block.

36DB004A

FRONT VIEW

REAR VIEW

BLOWER

RELAY

REAR

WINDOW

DEFOGGER

RELAY

POWER

WINDOW

RELAY

TO

INSTRUMENT

PANEL WIRING

HARNESS

TO

FRONT WIRING

HARNESS

TO

INSTRUMENT

PANEL WIRING

HARNESS

FUEL PUMP

RELAY (1)

ACCESSORY

SOCKET

RELAY

FUEL PUMP

RELAY (2)

NO

CONNECTION

TO

ROOF WIRING

HARNESS

TO

FLOOR WIRING

HARNESS

ETACS-ECU

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

TO

INSTRUMENT

PANEL WIRING

HARNESS

C-204

C-205

C-206

C-207

C-208

C-209

C-210

C-211

C-212

C-214

C-213

C-215

C-216

C-201

C-203

C-202

FUSES

C-219

NO

CONNECTION

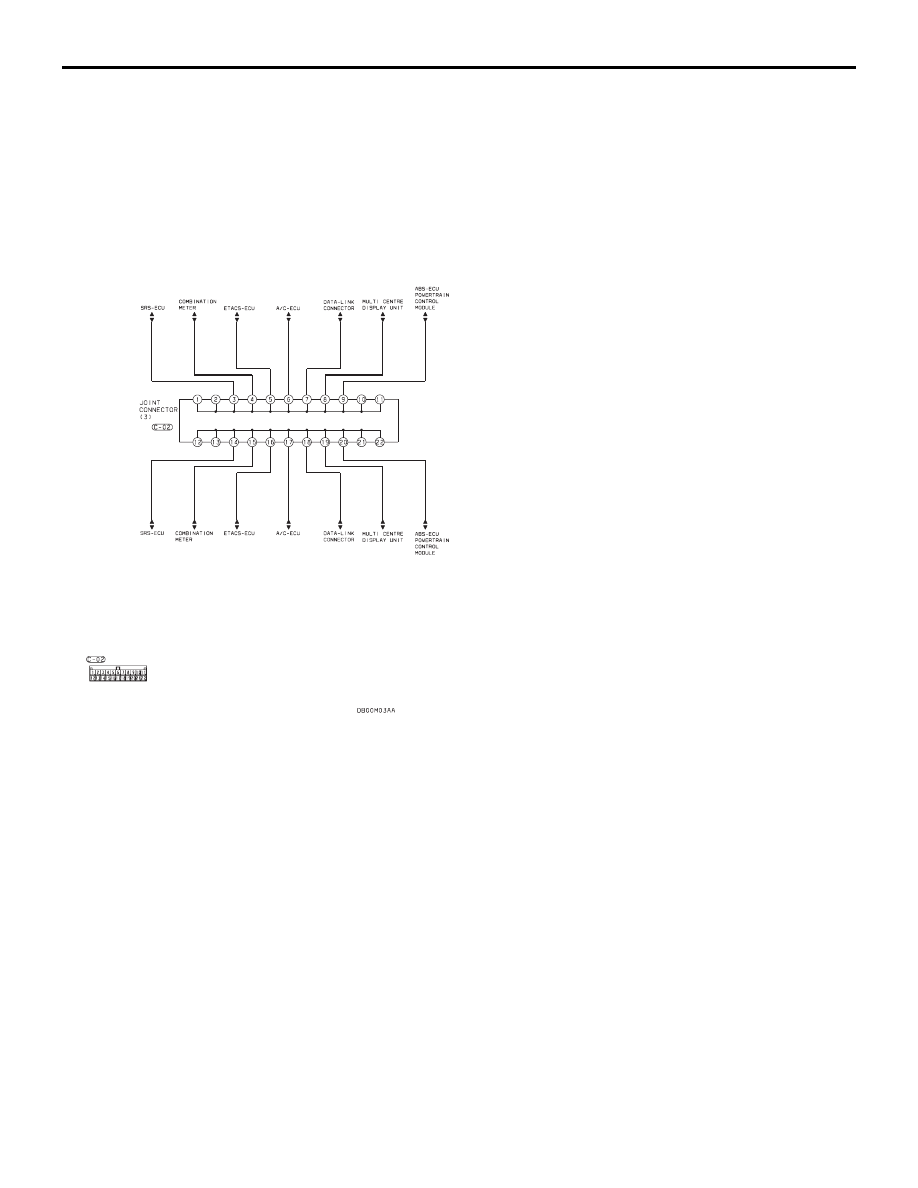

JOINT CONNECTOR

CIRCUIT DIAGRAMS

90-11

JOINT CONNECTOR

M1901014201138
